SGS Low Cost Container Type Affordable Housing

Customization: Available
Material: Steel Structure+Sandwich Panel
Length: 7.752m

Product Description

Basic Information
Width
7.752m
Height
2.85h
Ramp
1.5m
Steel Thickness
2.8mm
Usage
Dormitories, Villa, Temporary Offices
Certification
CE, ISO, SGS
Customized
Available
Transport Package
Standard Packaging
HS Code
9406900090
Production Capacity
50000 M2 Per Month
Product Description
SGS Low Cost Container Type Affordable Housing

This high-quality designed prefabricated K Home is suitable for offices, accommodations, apartments, student living units, and classrooms. It is designed and manufactured with a robust steel structure frame and sandwich panels, fully integrated with doors and windows.

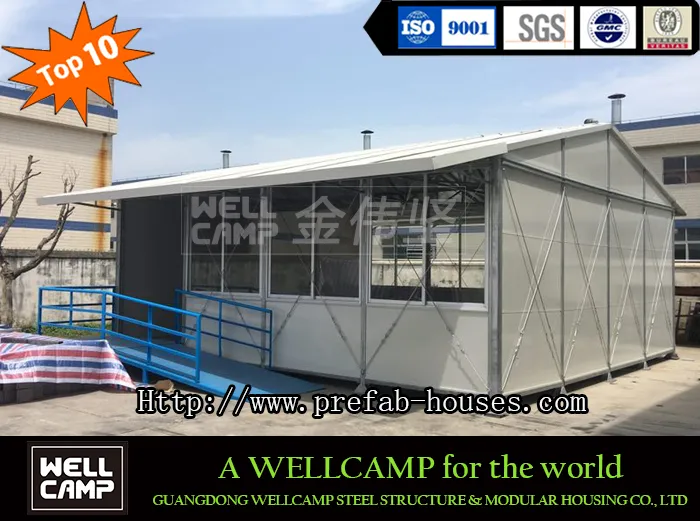

Container Type Affordable Housing

The K prefabricated house is an economic modular design commonly used in construction, oil, and mining sites as worker quarters or site offices. It is also an ideal solution for government projects, school labor accommodations, student dormitories, clinics, and laundry rooms. Its durability and ease of setup make it a preferred choice for disaster relief and low-income family housing.

This model features a steel base, eliminating the need for a cement foundation. The front includes a ramp for accessibility. Large aluminum sliding windows provide excellent natural light, and the structure is built to resist strong winds. Assembly is handled via bolts, screws, and rivets for efficiency.

Prefab K Home Construction
Key Features
Durability Resists 7-8 grade earthquakes and 12 grade typhoons. Service life of 25-30 years.
Protection Fireproof, waterproof, corrosion-resistant, sound-insulating, and heat-insulating.
Materials 18mm fiber cement board floor, EPS/Glass wool sandwich panels, and aluminum sliding windows.
Structure Modularized "C" section steel structure, fully welded and painted for longevity.

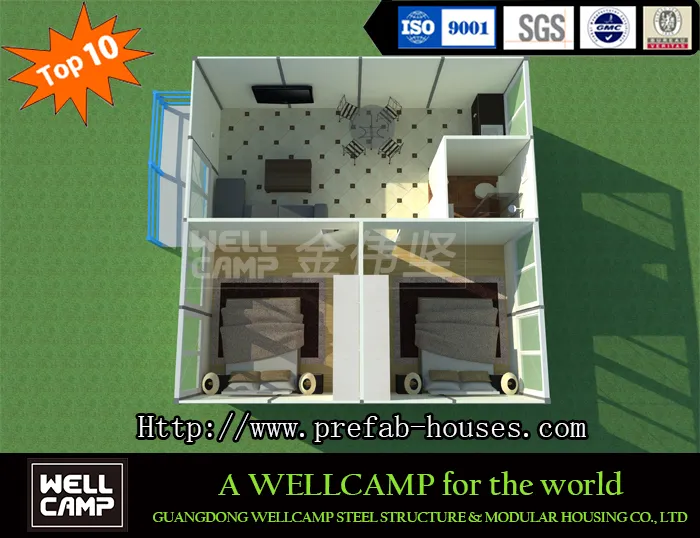

House Features View 1

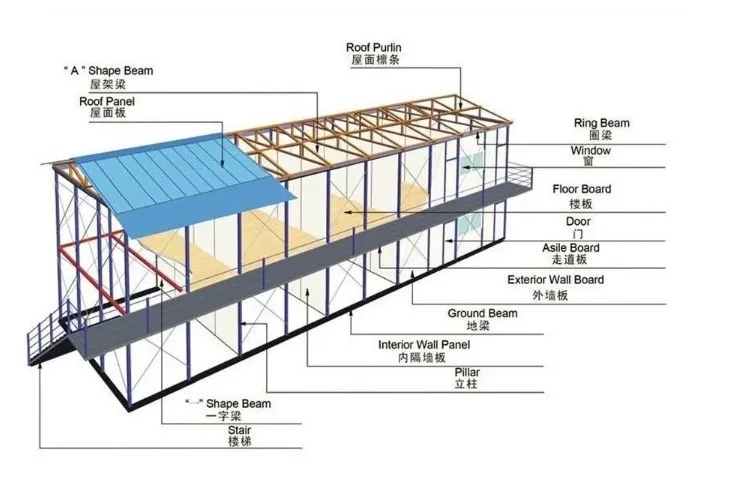

House Features View 2
Technical Specifications
Dimensions7.752m x 7.752m x 2.85h (60m²)
Steel Structure2.8mm Galvanized steel with 280mm high steel base
Wall & Roof50mm EPS sandwich panel (0.476mm single steel sheet)
Windows1820mm x 1900mm Aluminum sliding windows
DoorsStandard Steel Doors
Awning1500mm long front awning & 700mm back awning

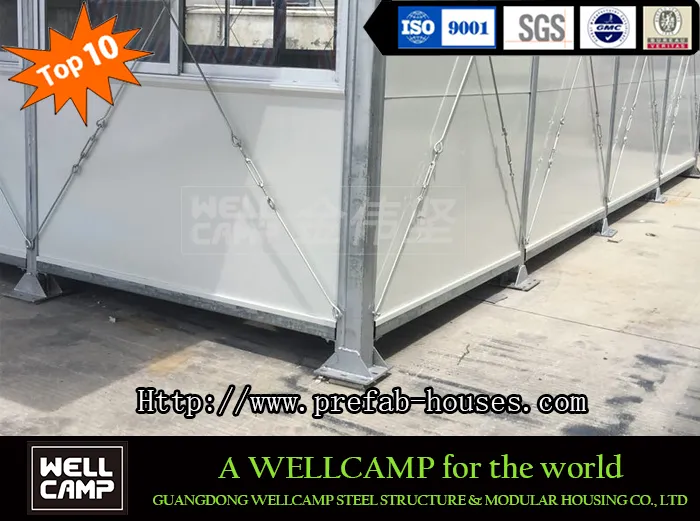

Specification Detail 1

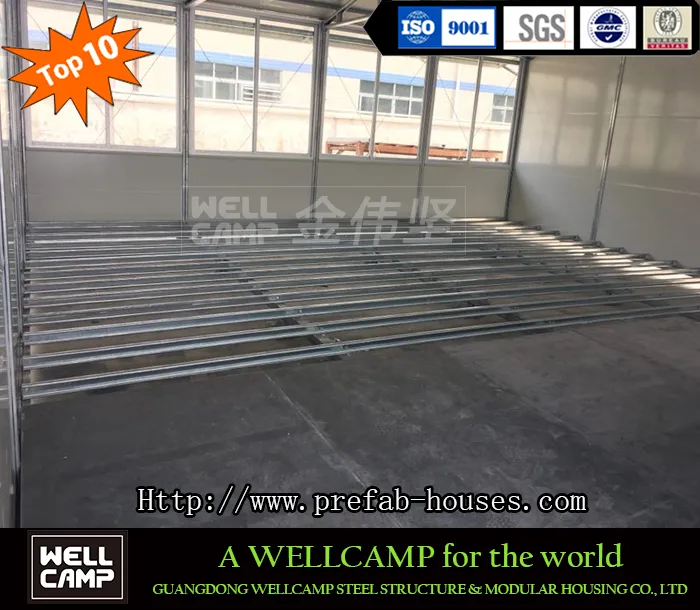

Specification Detail 2
Profile and Capability
Manufacturing Capability
Project Gallery

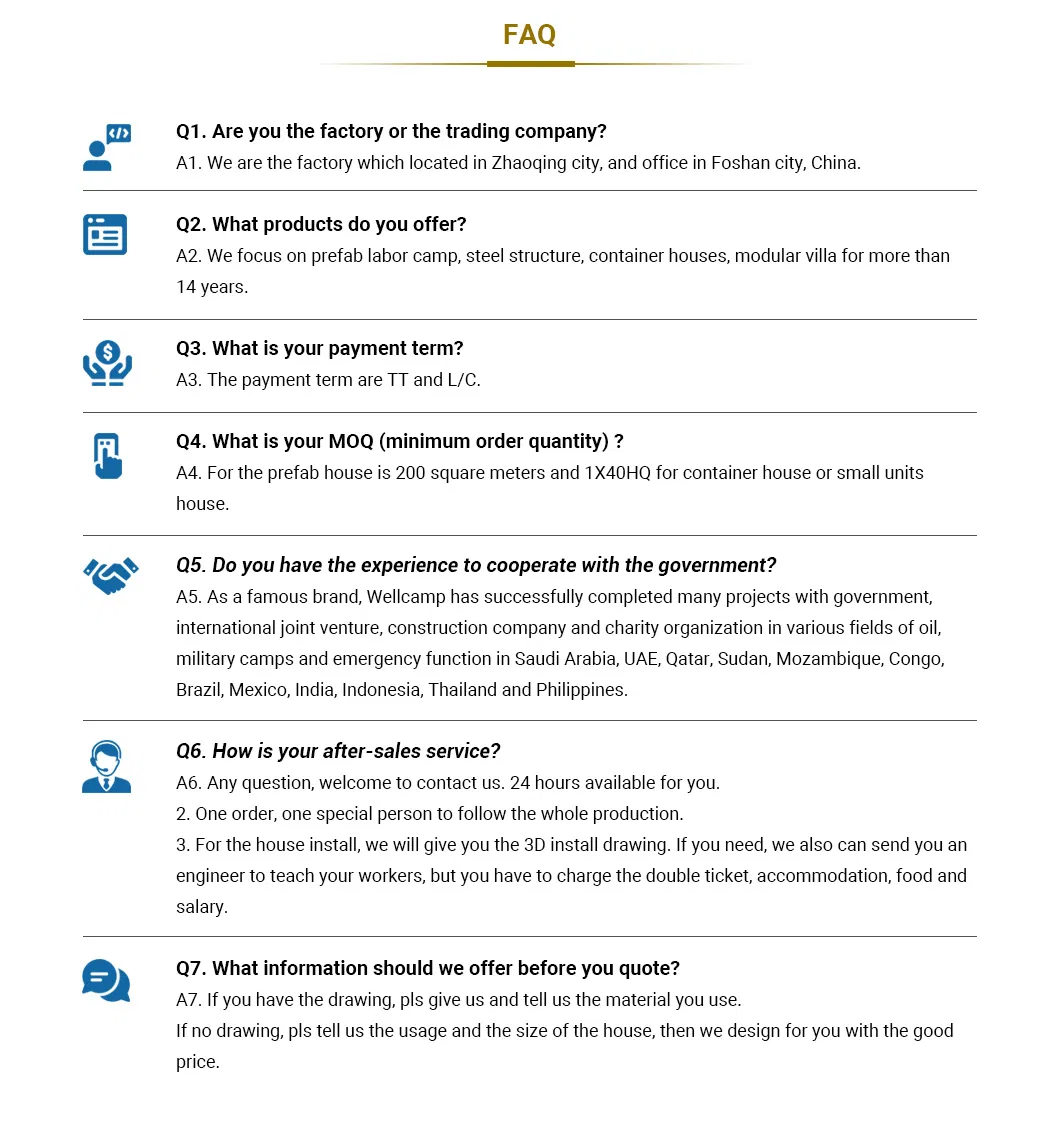

Service Standards
Frequently Asked Questions
What are the primary uses for this prefabricated house?
It is suitable for offices, accommodations, student living units, classrooms, clinics, and temporary housing for disaster relief.
How long does the installation take?
The system is designed for speed; 6 workers can build approximately 100 square meters in a single day.
Is this house resistant to extreme weather conditions?
Yes, the structure is engineered to resist 7-8 grade earthquakes and grade 12 typhoons.
What materials are used for the walls and roof?
We use 50mm EPS sandwich panels for both the walls and roof to ensure excellent insulation and durability.
Does the structure require a concrete foundation?
No, this K home comes with a 280mm high steel base, allowing it to be installed without a cement foundation.
What is the estimated lifespan of the structure?
The main steel structures are made from thick "C" section steel, which can normally be used for 25-30 years.
