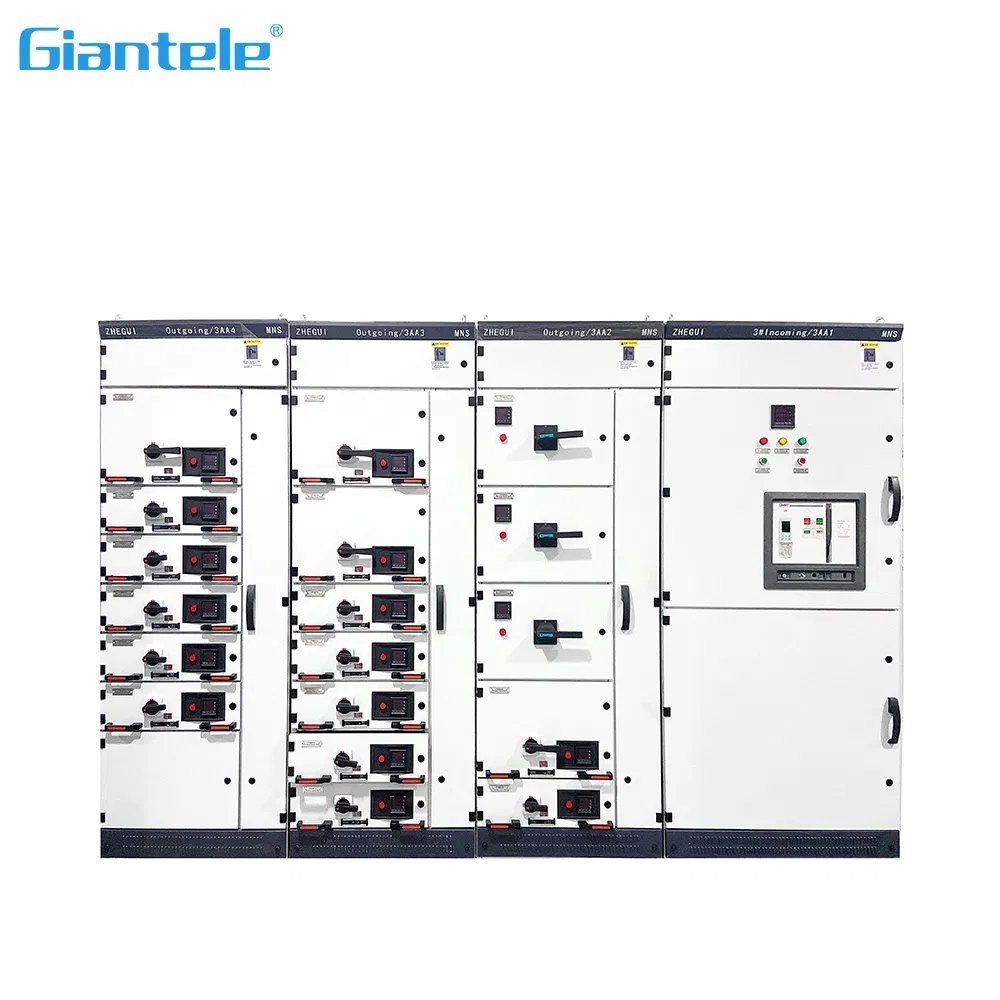

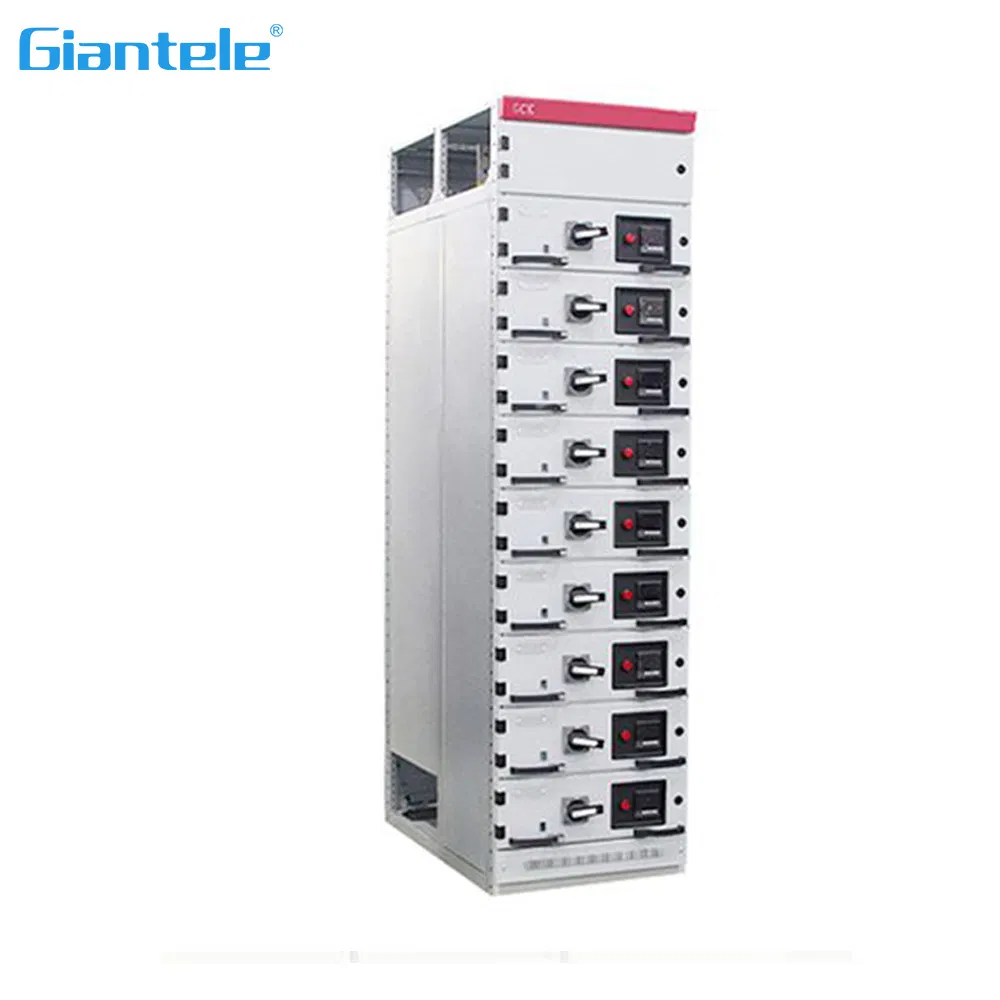

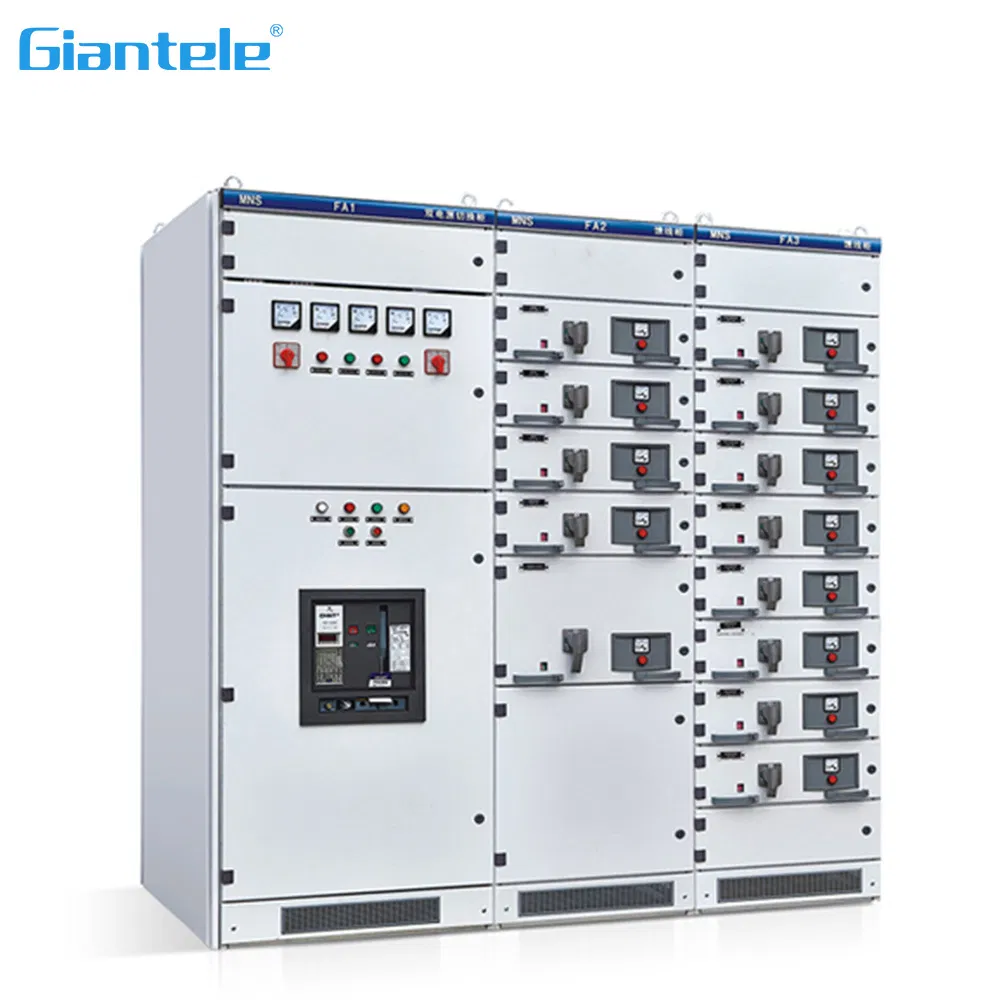

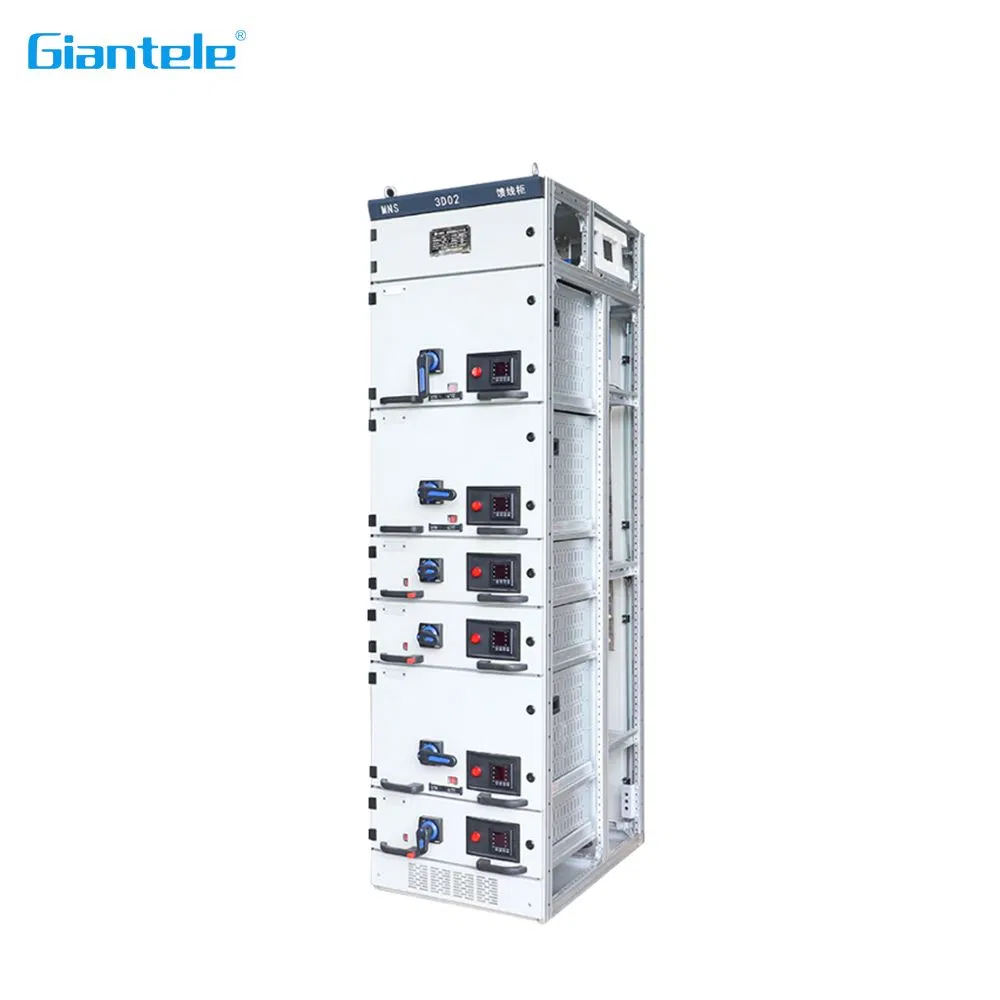

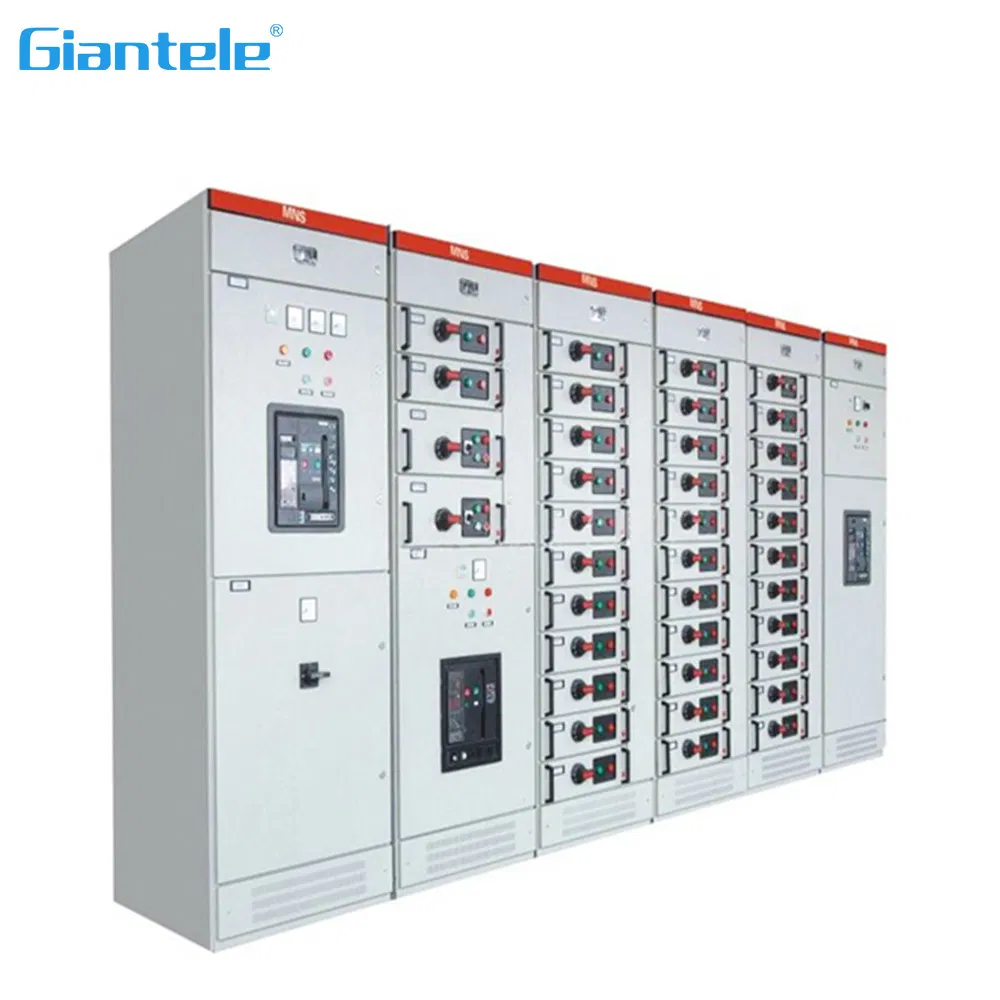

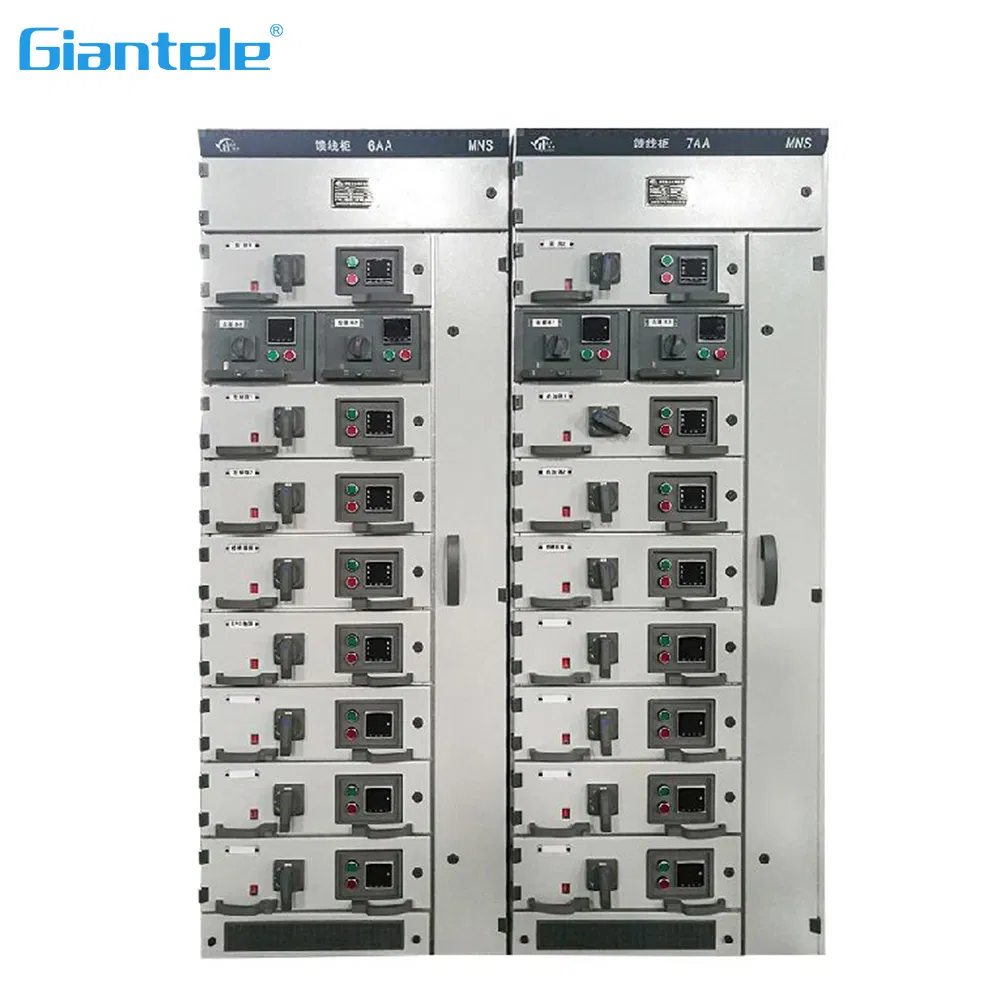

Zhegui Electric Mns Series Indoor Withdrawable Low Voltage Switchgear

1 / 5

Zhegui Electric Mns Series Indoor Withdrawable Low Voltage Switchgear

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.:mns

Voltage Level:Medium Voltage

Installation:Removable

Structure:Withdrawable

Current:AC

Transport Package:Wooden

Specification:800*1500*2300

HS Code:8537209000

Production Capacity:10pieces/Week

Packaging & Delivery

Package Size:80.00cm * 80.00cm * 220.00cm

Package Gross Weight:320.000kg

Product Description

MNS2.0 low-voltage switchgear is applicable for an AC 50~60Hz power distribution system with rated working voltage of 690V; used for all low voltage power distribution systems. It is widely applied in various industries including electric system, petrochemical engineering, industrial and mining enterprises, public utilities, municipal engineering, and commercial buildings.

Thus MNS proves to have the approved solution for the following industries: Oil & Gas (on and off shore), Chemical/Petrochemical, Pharmaceutical, Power Stations, Paper, Water treatment, Mining, Steel, Food, Marine as well as for infrastructure requirements like Data centers, Airports, Office buildings, Shopping centers, Hospitals, and Rail.

Standards: GB7251.12-2013, IEC61439-1/-2

Working and environmental conditions:

Designed for indoor installations with protection classes up to IP54.
Environmental temperature: Maximum +40ºC (short-time), +35ºC (24h average), Minimum -5ºC.
Climatic conditions: Relative humidity of 50% at 40ºC.
Measures for prevention of condensation (ventilation or heating) should be used where necessary.
Altitude: Up to 2000m. Equipment capacity should be reduced if installed above 2000m.

Product Features

Optimum protection for personnel and plant
Design verified by testing (type-tested)
High operational reliability and availability
Earthquake-, vibration- and shock-proof designs available

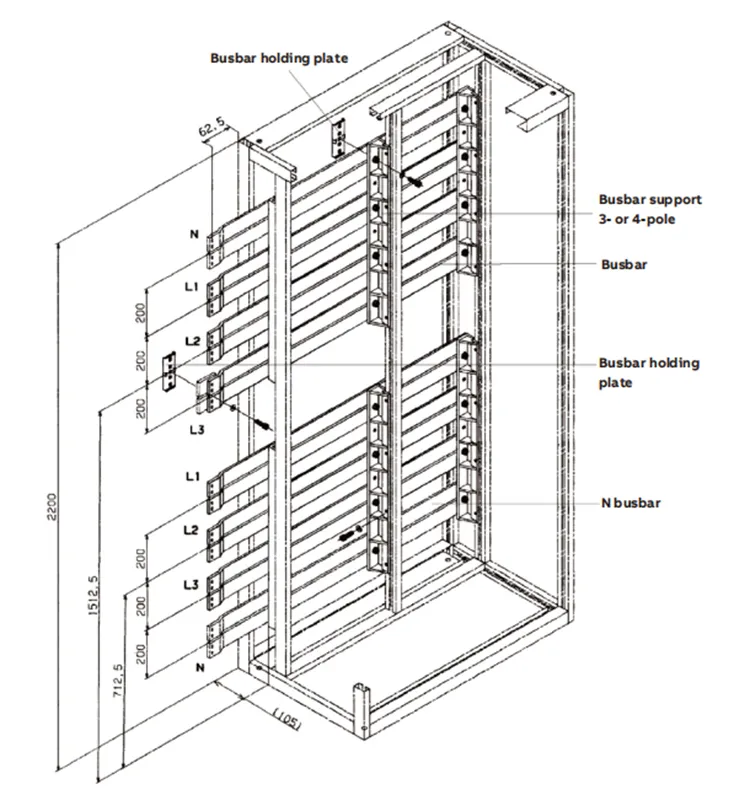

Maintenance-free busbar and frame construction
Simple retrofitting procedures
Compact, space-saving design

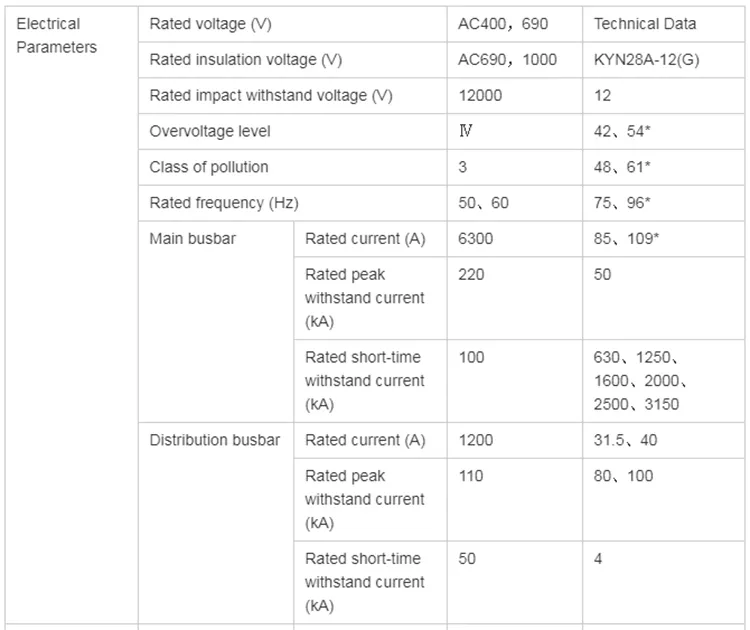

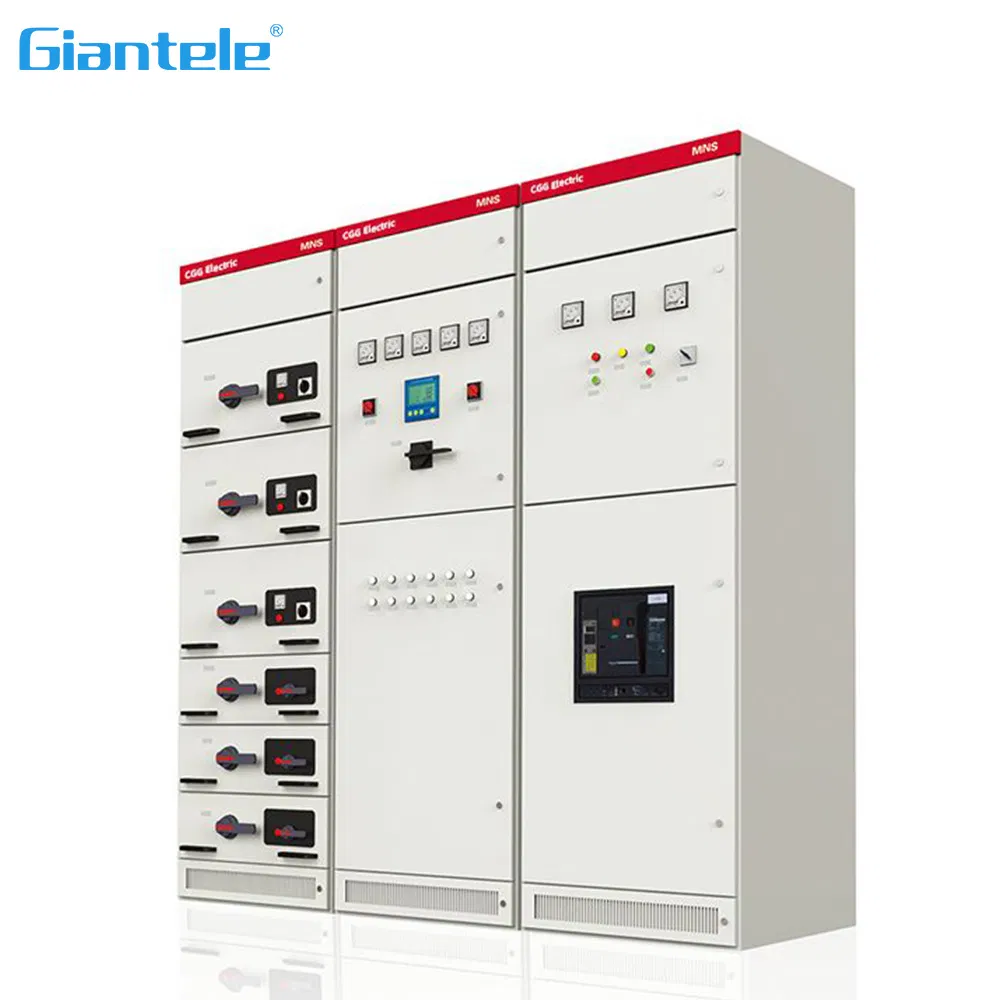

Product Parameters

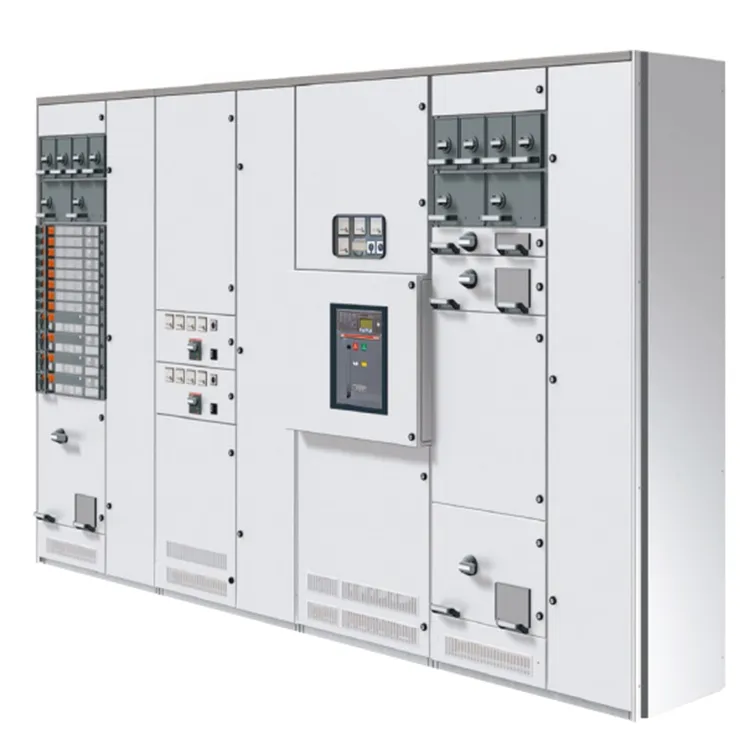

Product Details

Additional Information

Certifications

Frequently Asked Questions

Q1: What are the primary applications of the MNS2.0 low-voltage switchgear? A: It is widely used in power distribution systems for petrochemical engineering, power stations, water treatment, mining, airports, and commercial buildings.

Q2: What is the rated working voltage and frequency for this system? A: The switchgear is applicable for AC 50~60Hz power distribution systems with a rated working voltage of 690V.

Q3: Does the switchgear support harsh environment installations? A: Yes, it is designed for indoor use with protection classes up to IP54. Measures like ventilation or heating can be integrated to prevent condensation.

Q4: What are the altitude limitations for operating this equipment? A: It is designed for operation up to 2000m. Above 2000m, the equipment should be operated at a reduced capacity according to standards.

Q5: Is the busbar construction maintenance-free? A: Yes, the MNS2.0 features maintenance-free busbar and frame construction, enhancing long-term reliability and reducing operational costs.

Q6: Are the designs tested for seismic activity? A: Yes, earthquake-, vibration-, and shock-proof designs are available to ensure safety in unstable geological conditions.
