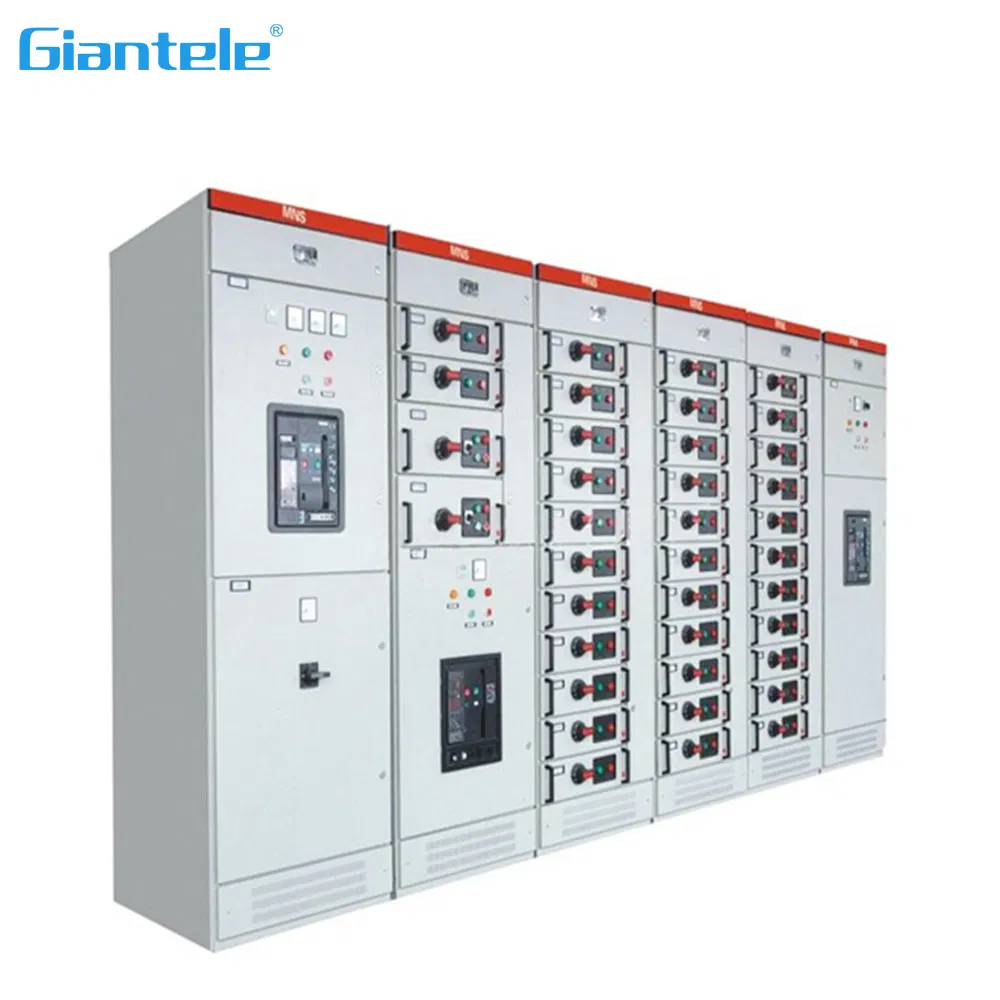

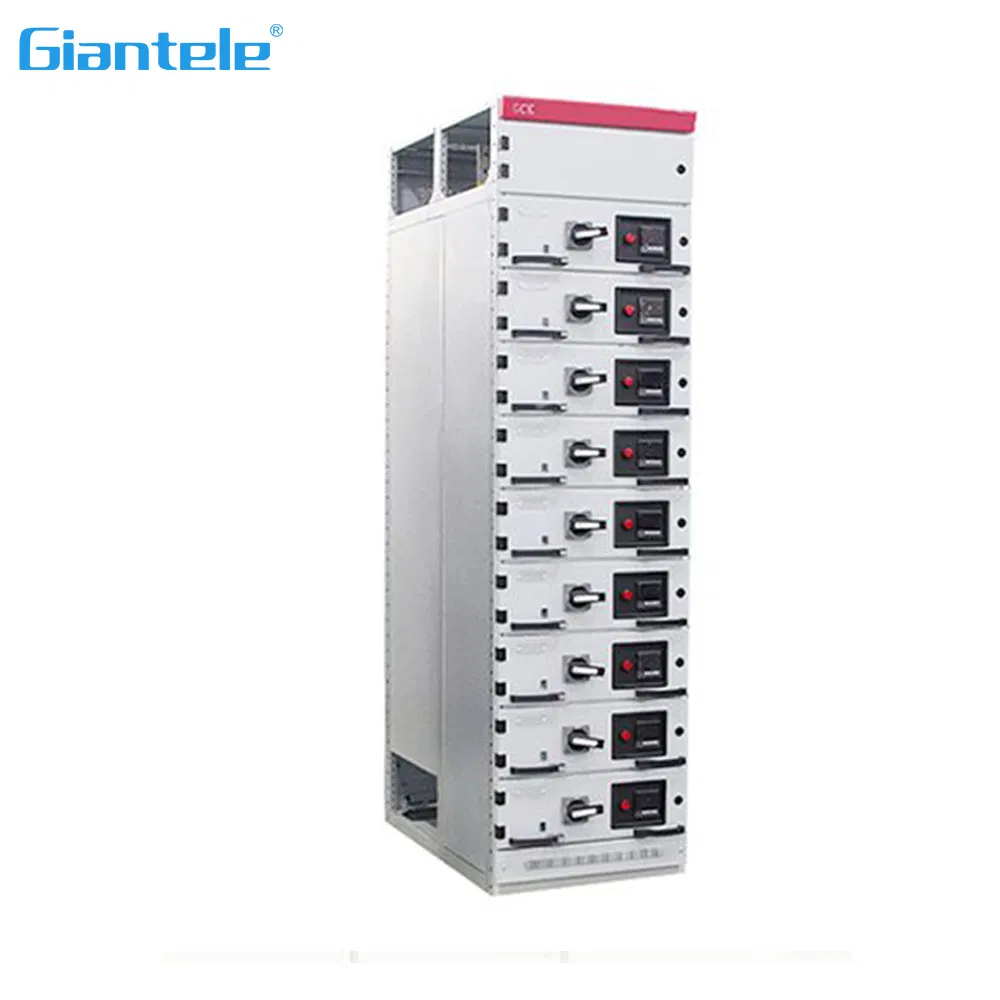

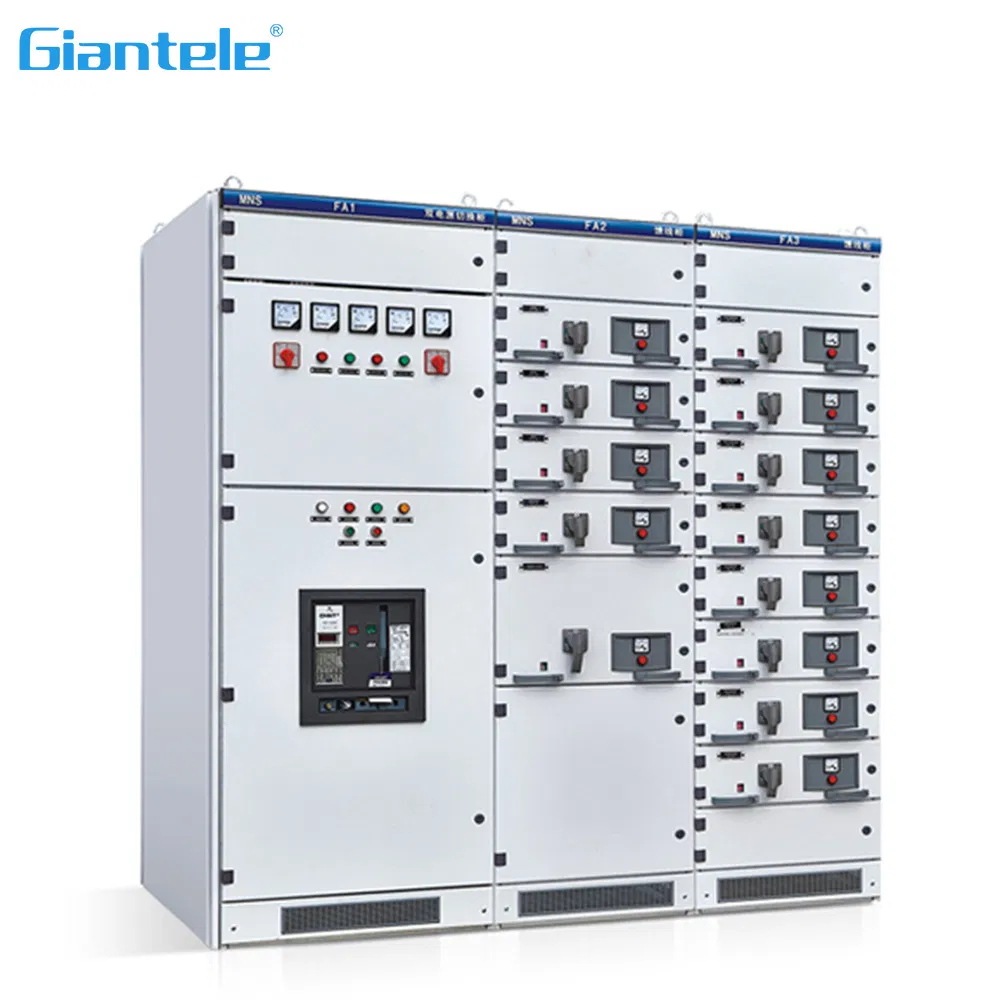

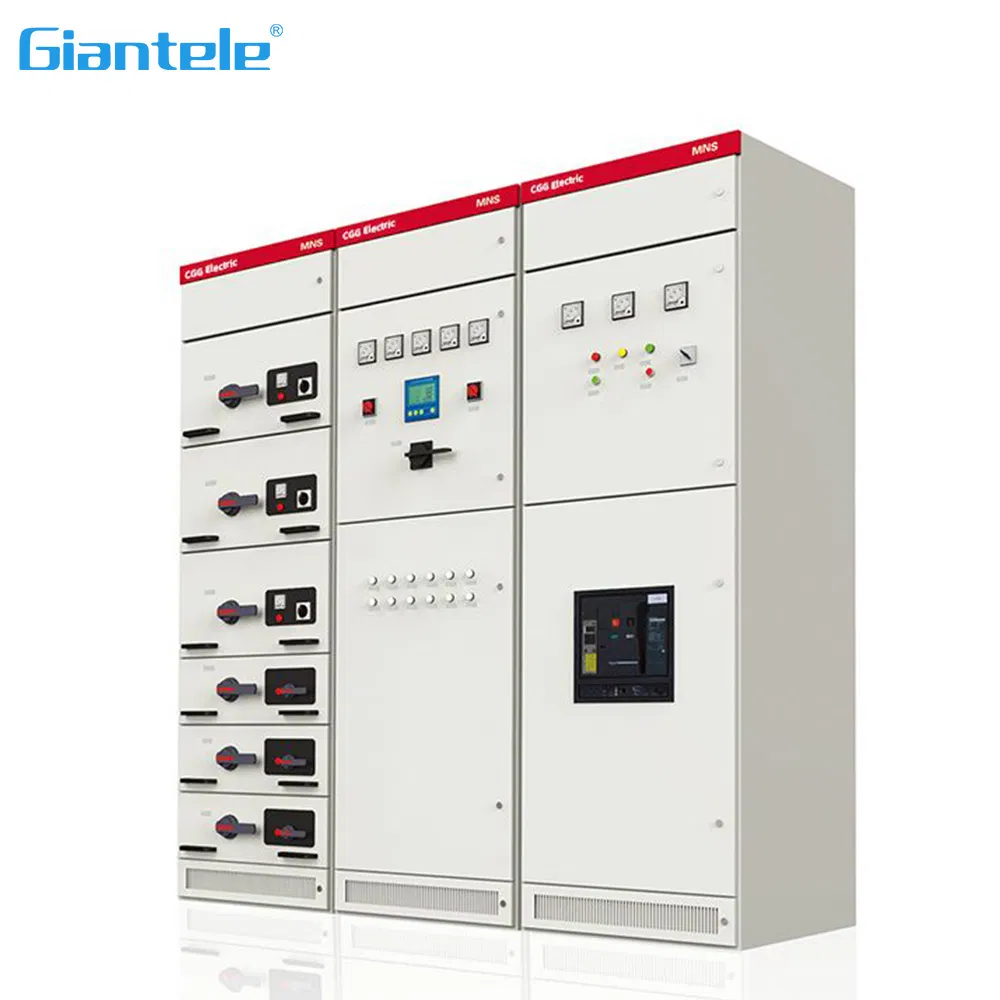

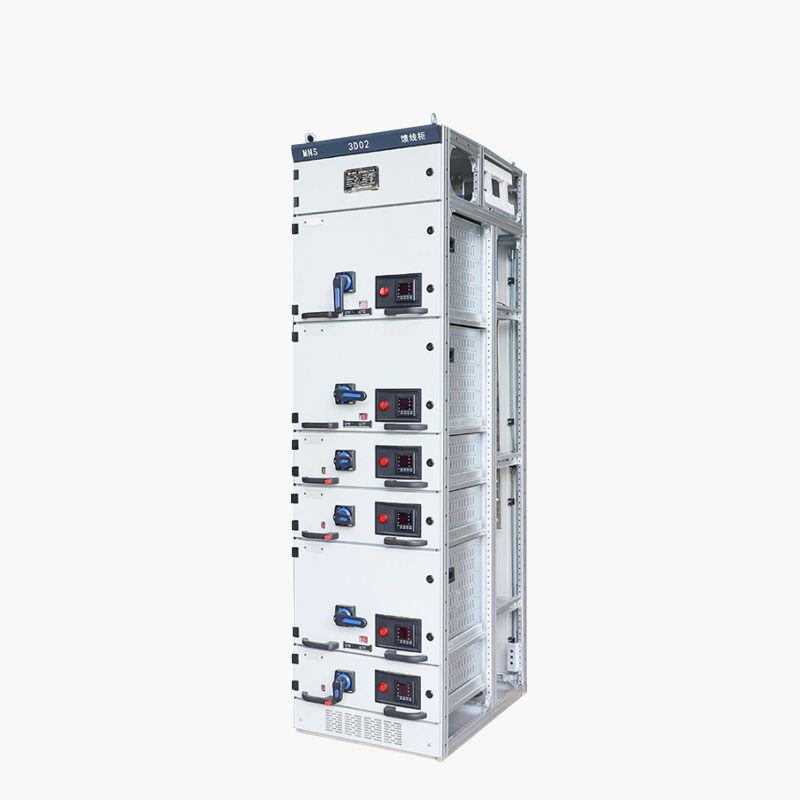

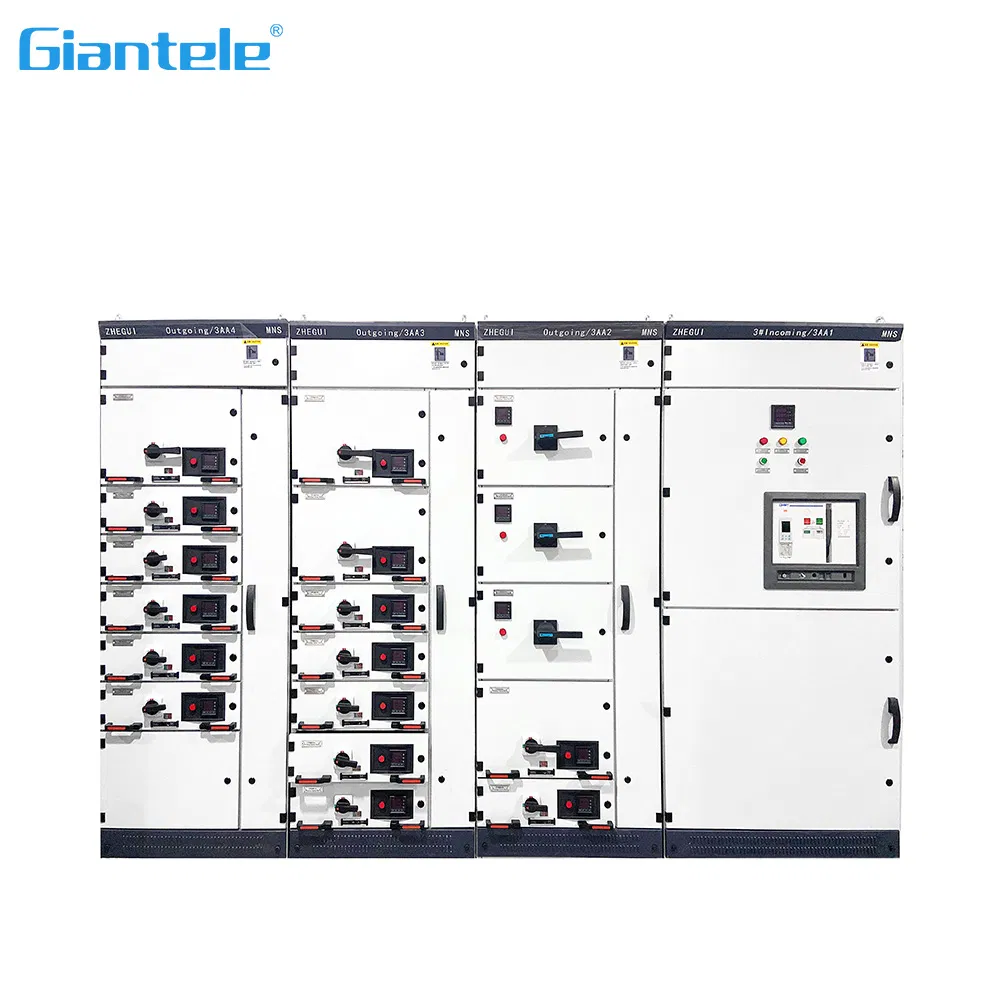

Zhegui Electric 12kv Electric Power Transmission Mns Type Electric Low Voltage Switchgear

MNS2.0 low-voltage switchgear is applicable for an AC 50~60Hz power distribution system with rated working voltage of 690V. It is designed for all low voltage power distribution requirements and is widely applied across various industries including electric systems, petrochemical engineering, industrial and mining enterprises, public utilities, municipal engineering, and commercial buildings.

Proven solutions are available for: Oil & Gas (on and off shore), Chemical/Petrochemical, Pharmaceutical, Power Stations, Paper, Water treatment, Mining, Steel, Food, Marine, and infrastructure such as Data centers, Airports, Office buildings, Shopping centers, Hospitals, and Rail.

Standards: GB7251.12-2013, IEC61439-1/-2

Working and Environmental Conditions:

• Designed for indoor installations with protection classes up to IP54.
• Maximum short-time temperature: +40ºC; Maximum 24h average: +35ºC; Minimum: -5ºC.
• Relative humidity: 50% at 40ºC. Ventilation or heating measures should be used where condensation may occur.
• Altitude: Up to 2000m (Reduced capacity required above this level).

• Optimum protection for personnel and plant
• Design verified by testing (type-tested)
• High operational reliability and availability
• Earthquake-, vibration- and shock-proof designs available

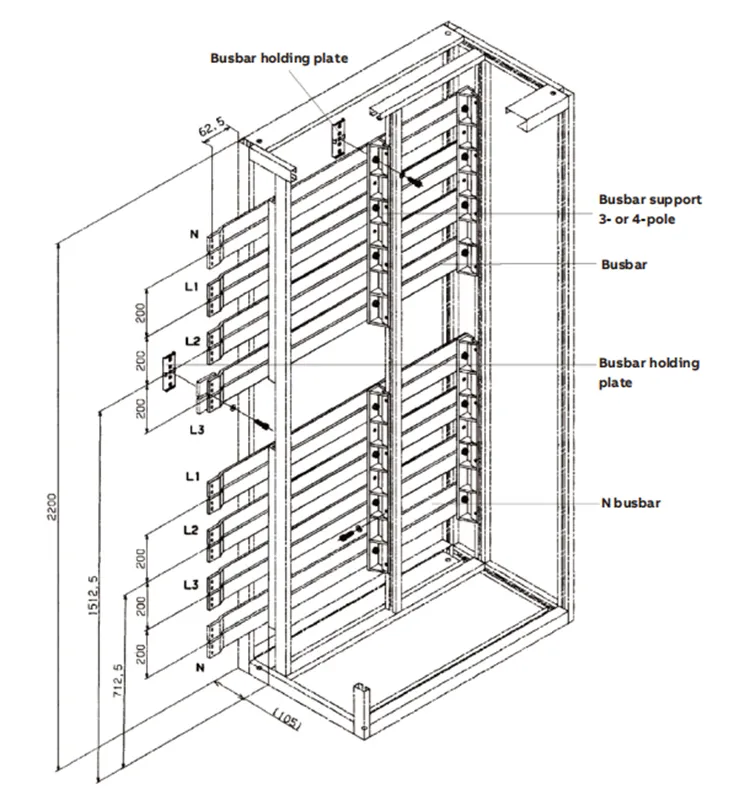

• Maintenance-free busbar and frame construction
• Simple retrofitting procedures
• Compact, space-saving design
