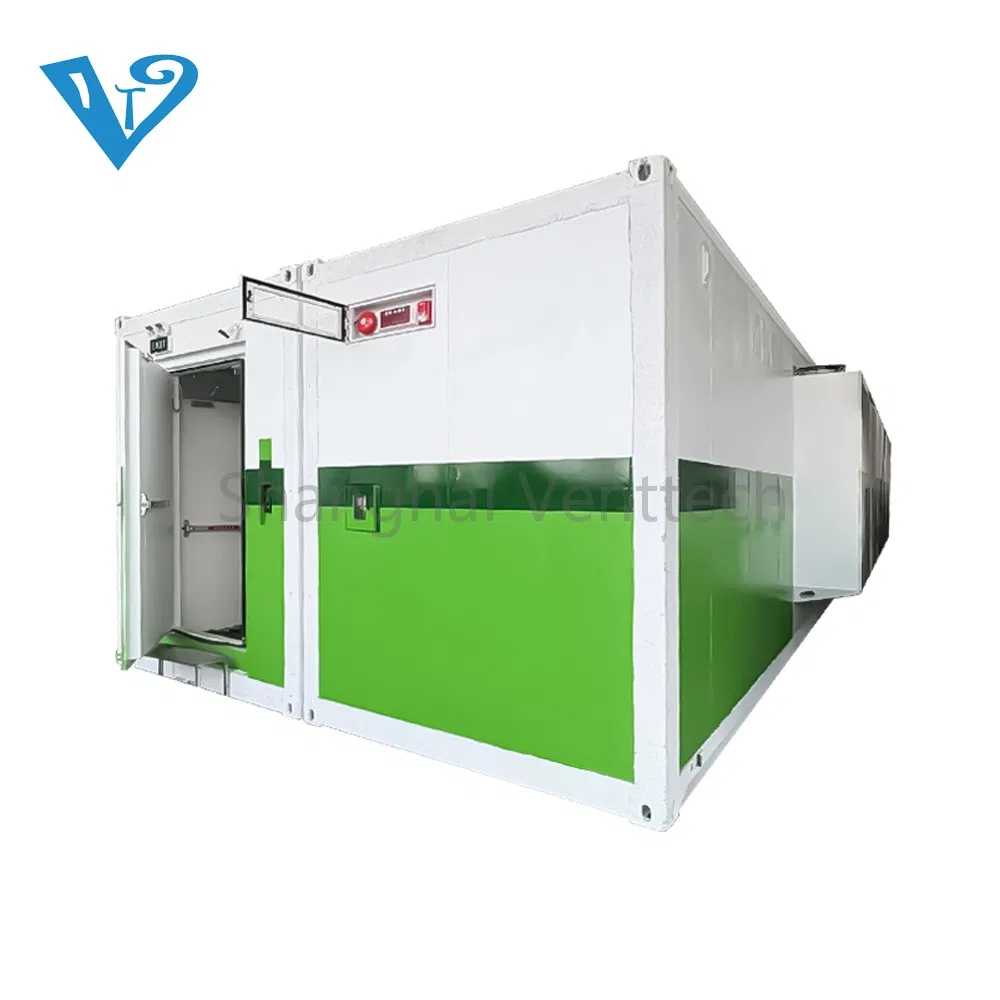

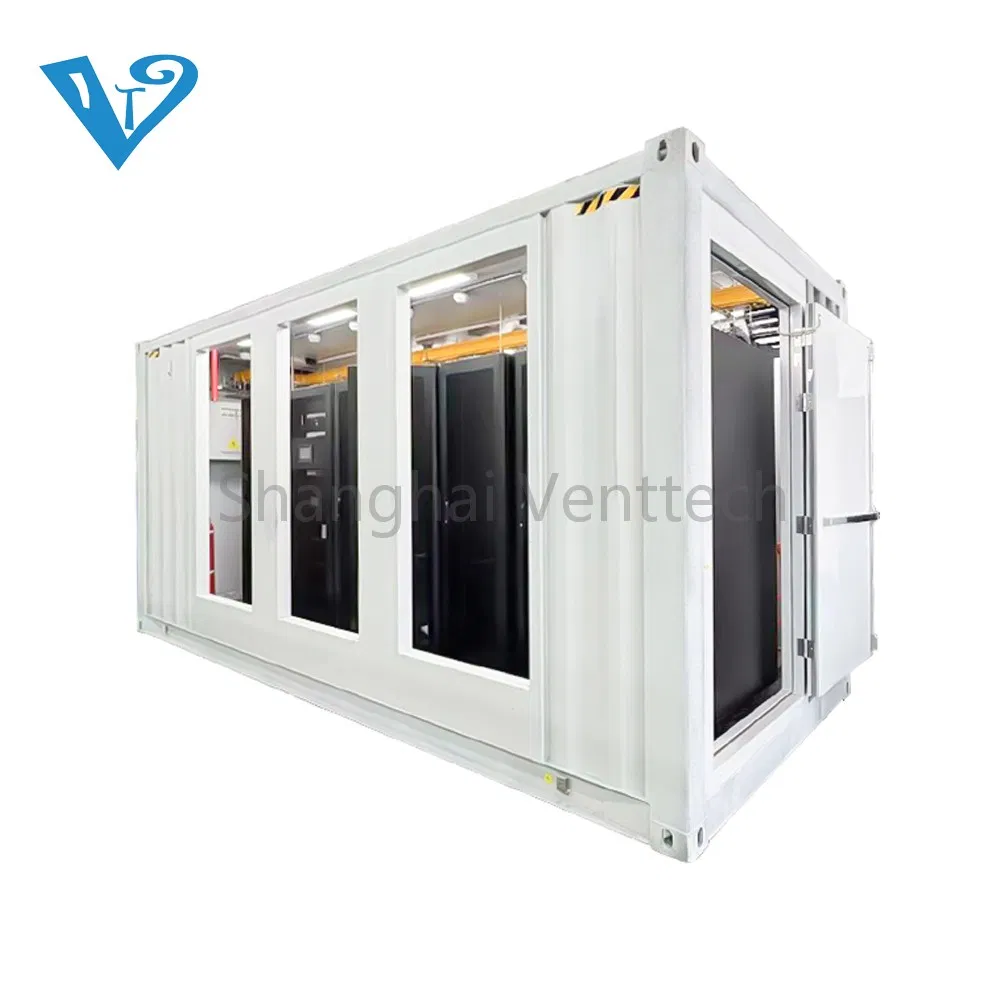

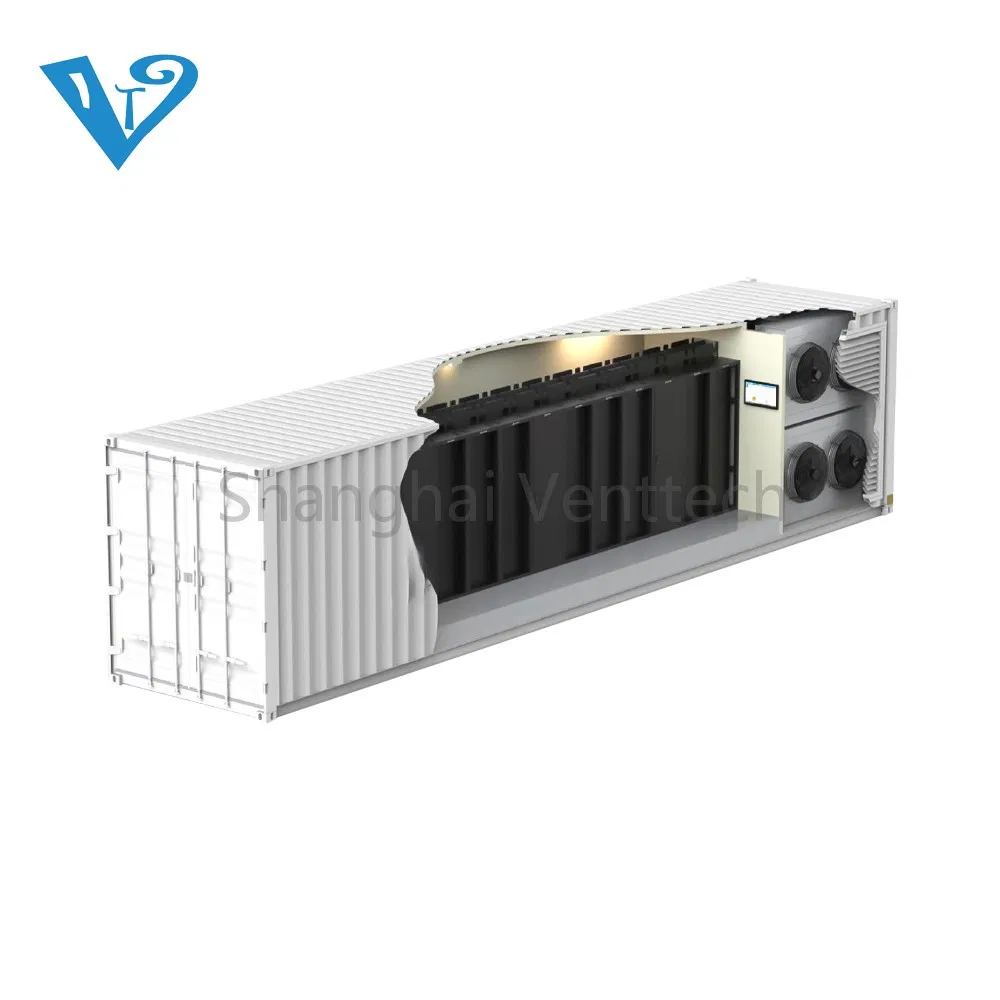

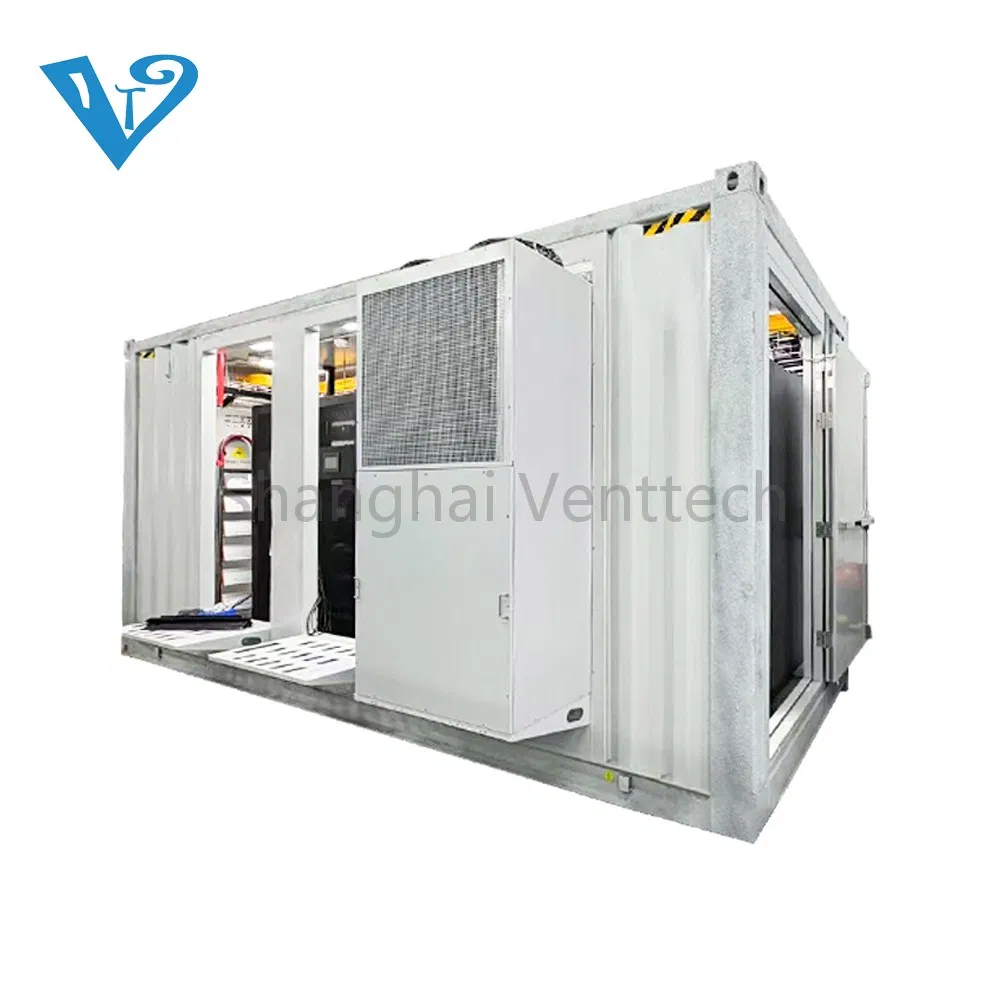

Venttech 40FT Container Base Data Center for Ai

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

i

Basic Specifications

Type
Air-Cooled
Cooling Water
Industrial Water
System Type
Open System
Noise Level
Ultra Low
Application
Electronics / Data Center
Certification
RoHS
Dimensions
10 FT / 20 FT / 40 FT
Power Supply
380V / 3P / 50Hz
Customization
Supported (OEM/ODM)
Medium
Water/Oil/Glycol/Electrolyte

Professional Cooling Solutions

We are a professional manufacturer specializing in dry air coolers for immersion cooling systems, condensers, and evaporators. With over 17 years of experience in the HVAC industry, we provide advanced container data center solutions.

The container data center solution adopts a prefabricated model, using the container as a protective shell. Key infrastructure—including IT racks, UPS, precision air conditioning, power distribution, and monitoring systems—are pre-integrated in the factory for rapid on-site deployment.

Key Features

Tailored Customization

Customized availability, protection levels, sizes, and cooling types to meet specific client requirements.

Rapid Deployment

Pre-integrated components tested in-factory allow for delivery as fast as 40 days and simple on-site installation.

Safe & Reliable

Standard IP55 protection (up to IP65) with corrosion, fire, explosion, and bulletproof capabilities.

Continuous Operation

High availability power and cooling designs ensure 24/7 online operation for critical business tasks.

📏

Multiple Sizes & Solutions

10ft Cabinet 20ft Cabinet 40ft Cabinet Custom Modular
10ft Container 20ft Container 40ft Container Custom Container

Advanced Architecture

Dual Bay Solution

Dual Bay Solution

Multi Containers Solution

Multi Containers Solution

System Components

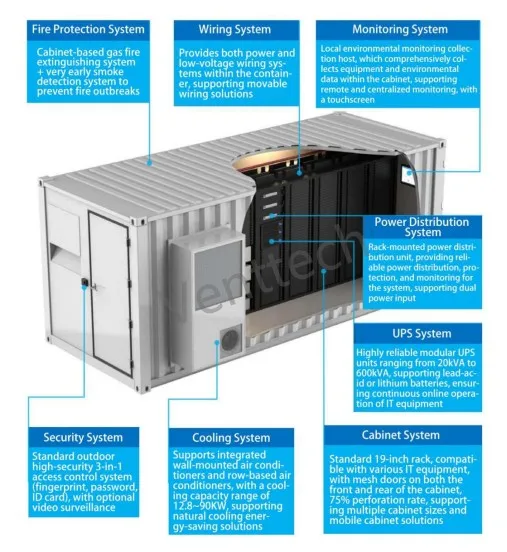

System Diagram

1. Construction

  • ISO Standard construction
  • Salt spray resistance: 750h
  • IP55 water/dust protection
  • Operating temp: -40ºC to 55ºC

2. Precision Cooling

  • 5.5-31.5kW wall mount standard
  • 5.6-90kW Inrow cooling options
  • Free cooling integration
  • High ambient support (up to 55C)

3. Power & UPS

  • 3-60kVA rack UPS standard
  • Modular UPS up to 600kVA
  • VRLA / Lithium battery options
  • T1~T4 uptime level configuration
🛡

Multiple Protective Cabinet Design

  • Waterproof & Moisture-Proof
  • Salt Spray Protection
  • Mold Prevention
  • Fire & Heat Insulation
  • Seismic Resistance
  • Theft & Explosion Protection
🚢

Packing & Service

Packing and Shipping
Our Service
?

Frequently Asked Questions

What is the delivery time for a container data center?
The delivery is highly efficient, with deployment as fast as 40 days due to our pre-integrated factory testing model.
What protection levels do the containers support?
Our standard units meet IP55 protection. We offer customization for IP65, as well as salt spray (C5M), fire, and explosion resistance.
Can the cooling system handle extreme temperatures?
Yes, our precision cooling systems are designed to operate in ambient temperatures ranging from -40ºC up to 55ºC.
What IT rack sizes are available?
We offer multiple widths (600/800mm) and depths (1100/1200mm) with a static loading capacity of up to 1800kg.
Is remote monitoring included?
Yes, our DCIM system provides full communication with UPS and cooling, accessible via Web, SMS, Email, or Modbus-TCP.
What types of UPS systems can be integrated?
We support rack-mounted UPS from 3-60kVA and modular floor-mounted solutions up to 600kVA with either VRLA or Lithium batteries.
