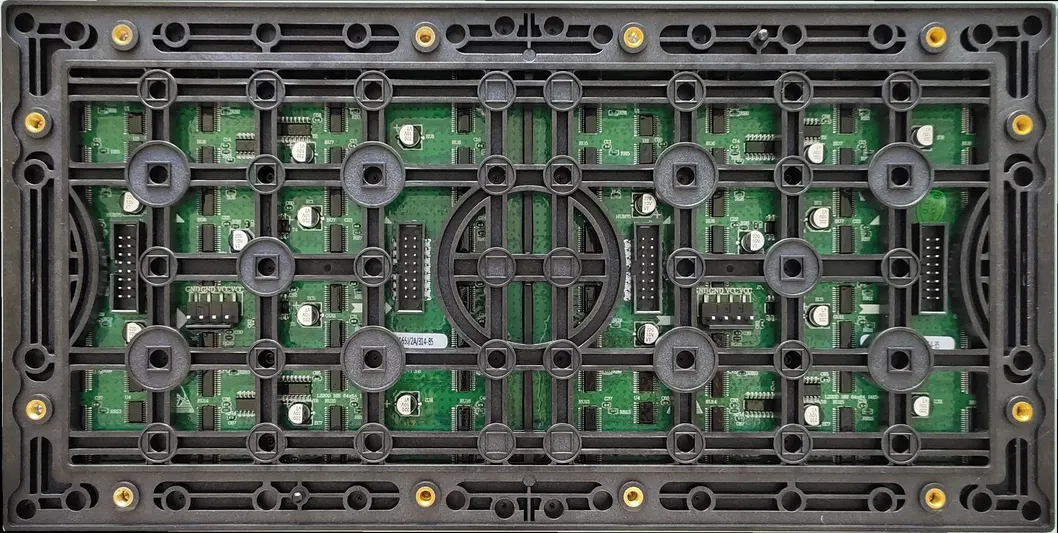

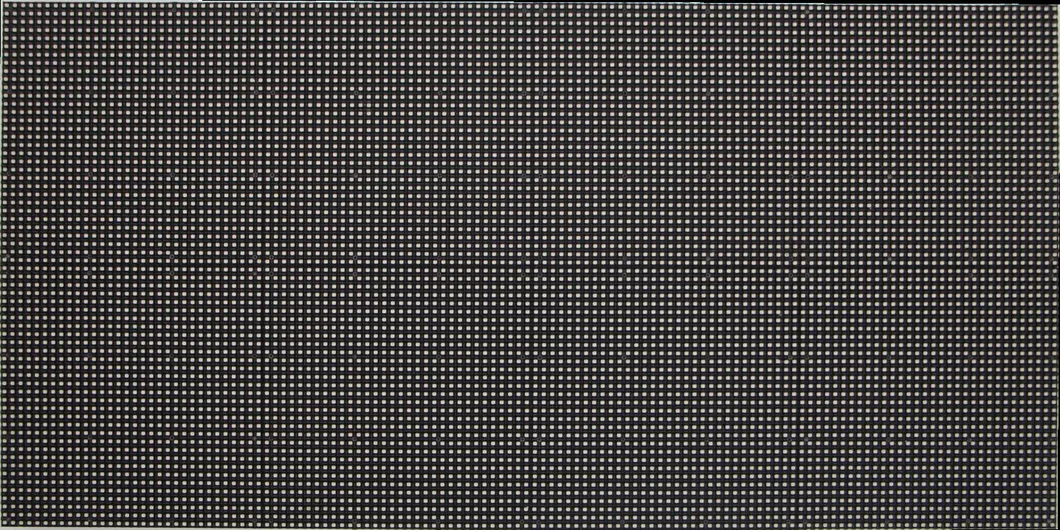

1. Unique mask design, dark black color, high contrast.
2. Standard Module size 320*160mm.
3. Symmetrical and uniform, sturdy and flat.
4. Excellent heat dissipation and weather resistance.
5. Constant current drive technology.
6. High brightness (>600 cd/sqm) with superior light distribution.

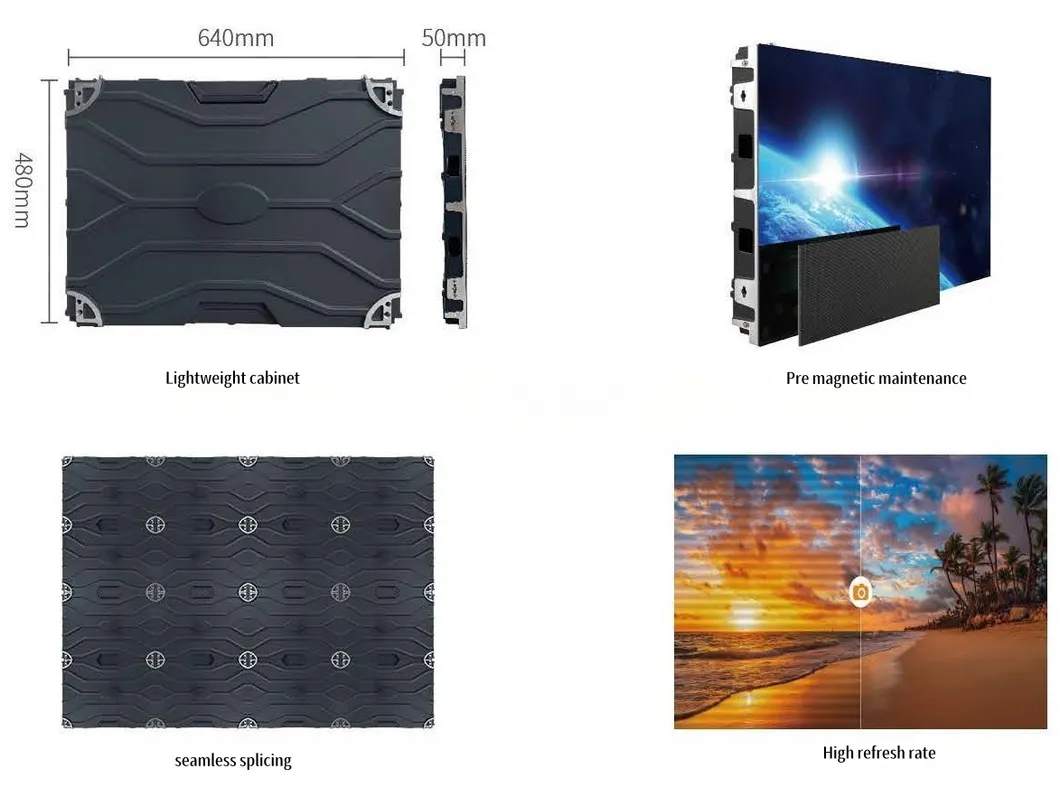

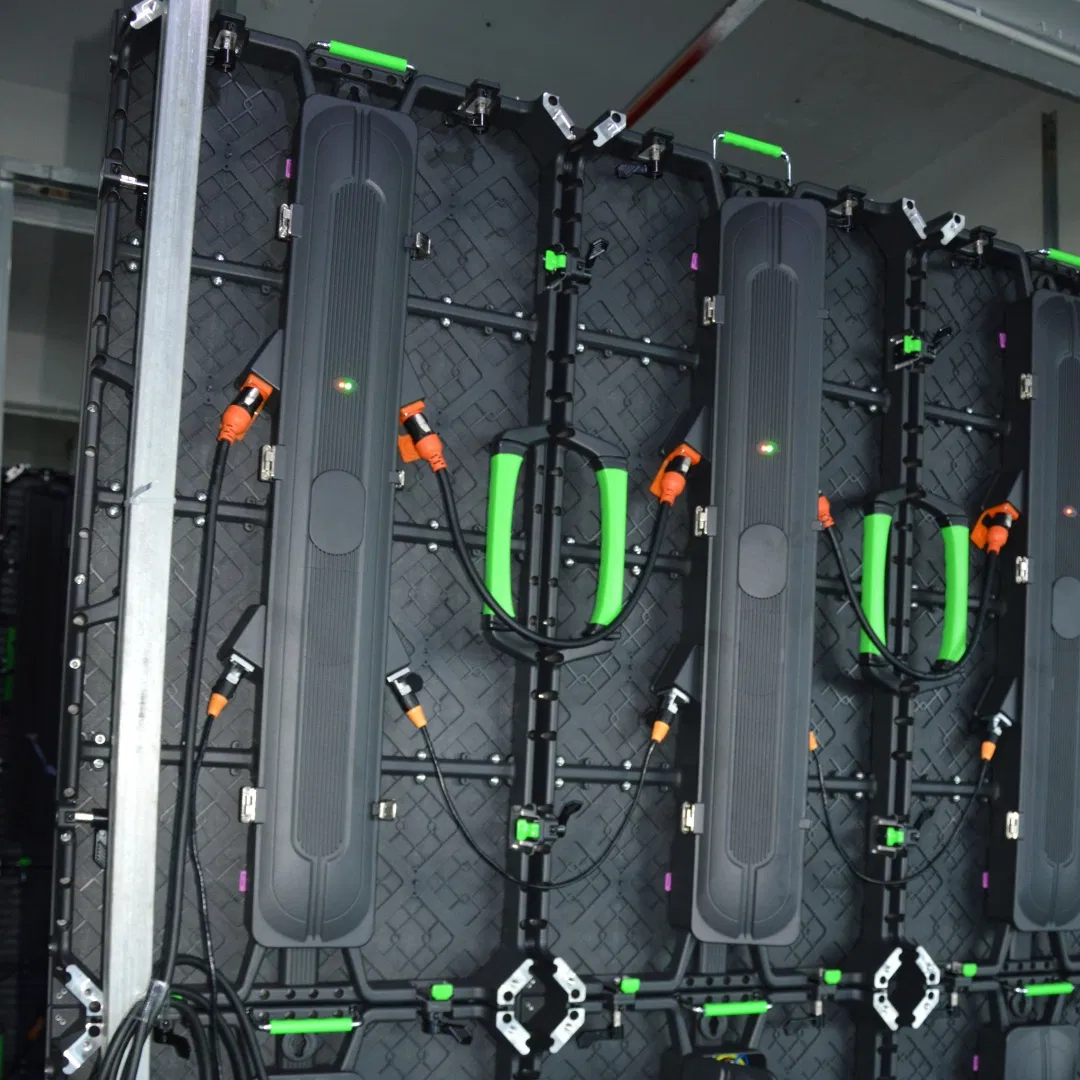

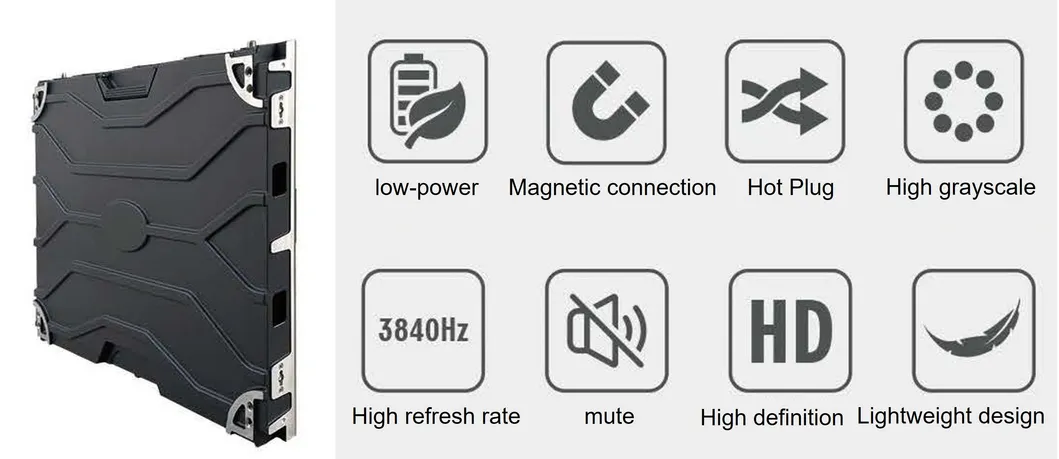

1. 640*640mm/640*480mm options, compatible with all 320*160mm modules.
2. Ultra-thin design: Cabinet thickness is only 6cm.
3. Precision engineering for seamless splicing.
| Item | P2 | P2.5 | P3 | P4 | P5 |
|---|---|---|---|---|---|
| Pixel Pitch | 2.0mm | 2.5mm | 3mm | 4mm | 5mm |
| Pixel Density (dot/sqm) | 250,000 | 160,000 | 111,111 | 62,500 | 40,000 |
| Module Size | 320*160mm | 320*160mm | 192*96mm | 256*128mm | 320*160mm |
| Brightness | ≥600cd | ≥600cd | ≥600cd | ≥600cd | ≥600cd |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Viewing Angle | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |

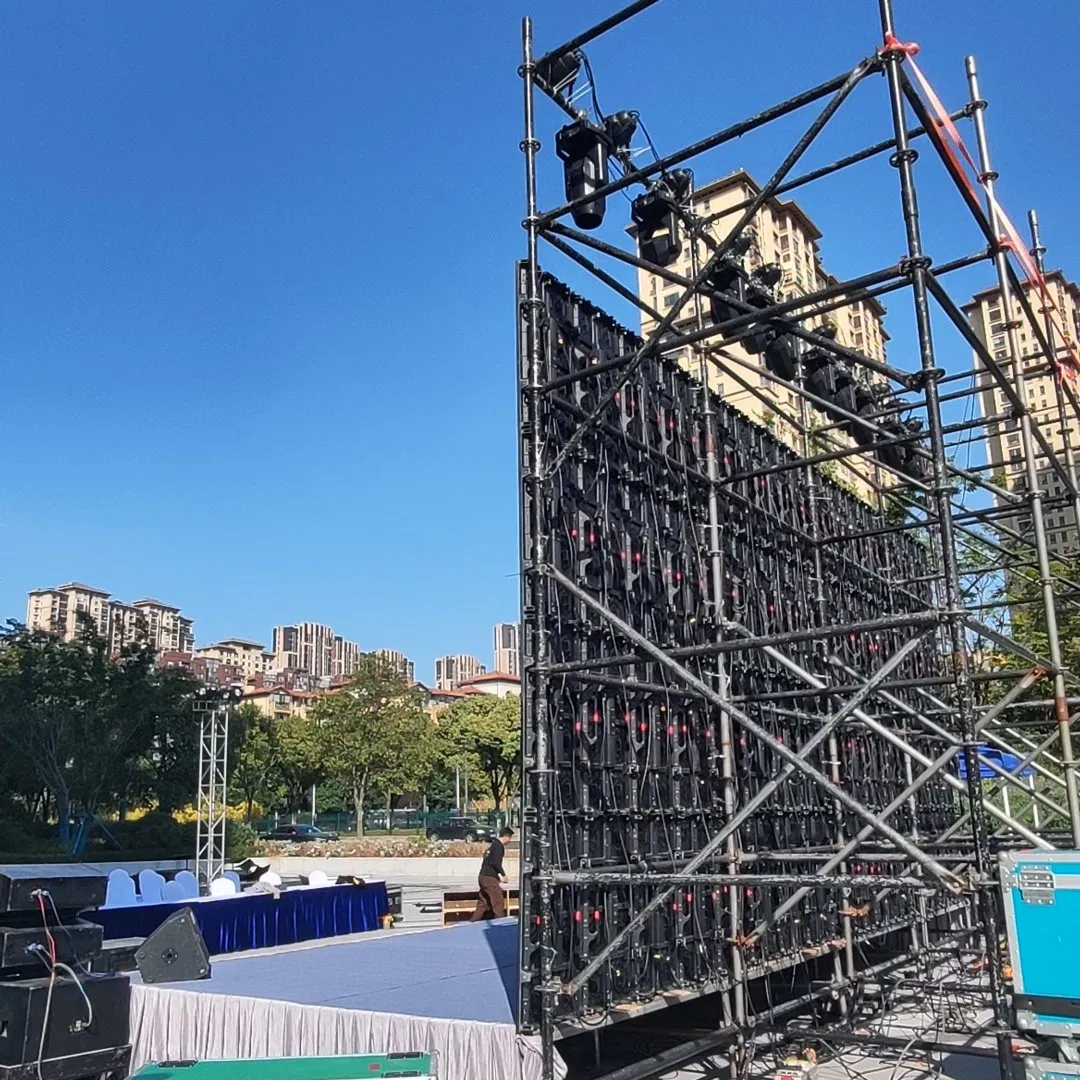

We are a professional expert in performing arts technology and full-scene solution services. Since 2008, we have focused on the LED display field, including chip packaging, module production, aging testing, and full-screen installation. We provide intelligent equipment integration and innovative application solutions for global stage performing arts, cultural venues, and commercial spaces.
