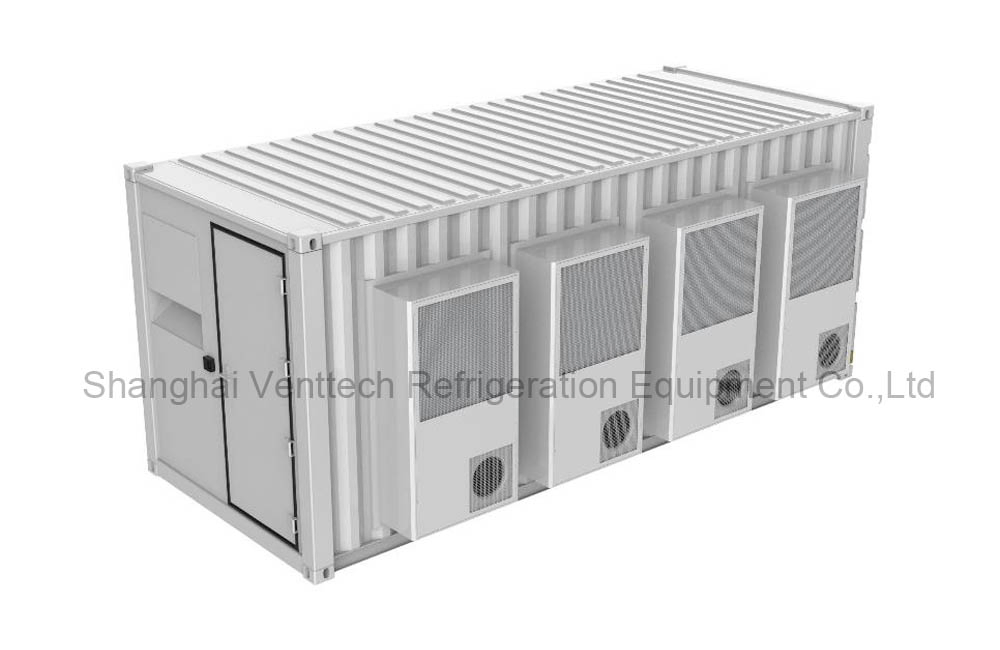

20FT/ 40FT Cabinet Prefabricated Data Centers for Oil & Gas

1 / 5

20FT/ 40FT Cabinet Prefabricated Data Centers for Oil & Gas

Customization:	Available
Cooling Method:	Indirect Cooling
Certification:	RoHS, ISO

Send Inquiry

Product Description

Basic Information

Model NO.

Customized

Condition

New

Multiple Sizes

10FT/20FT/40FT

Quality

Good

Transport Package

Wooden Box

Specification

customized

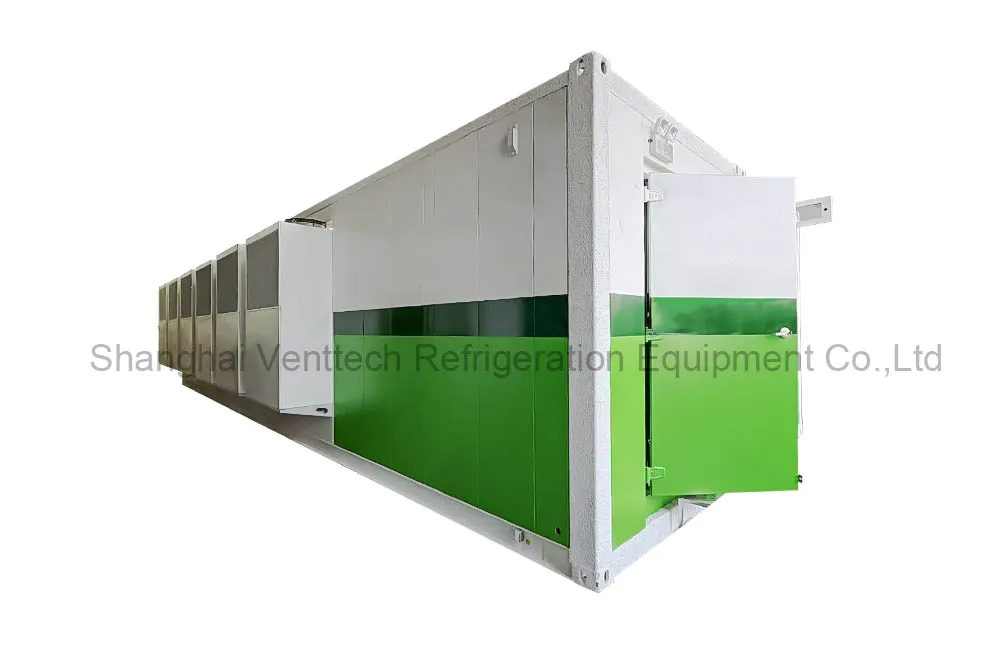

Container Data Center

Introduction

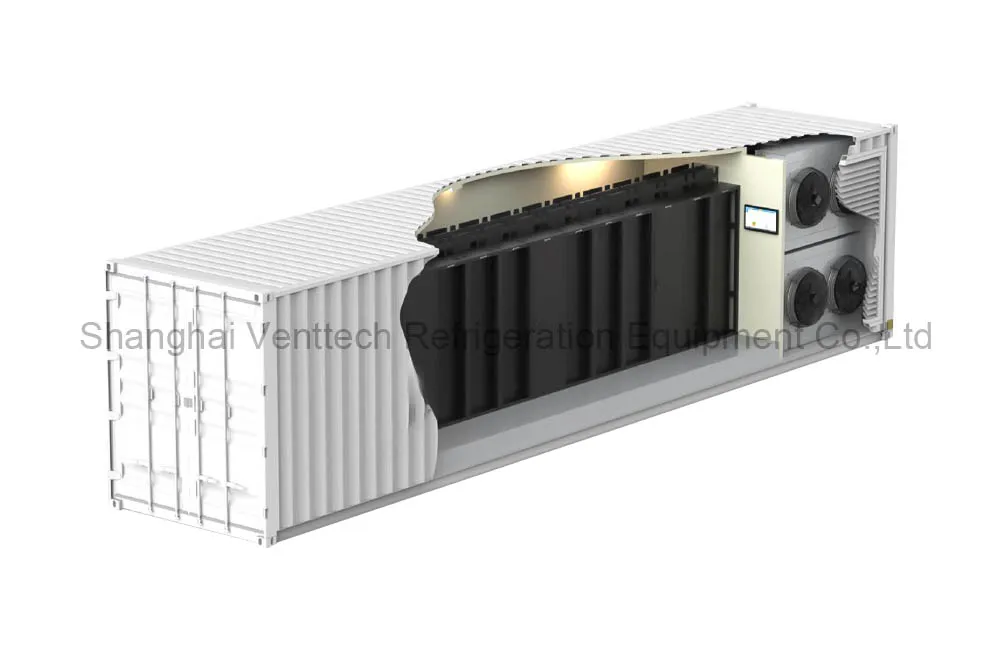

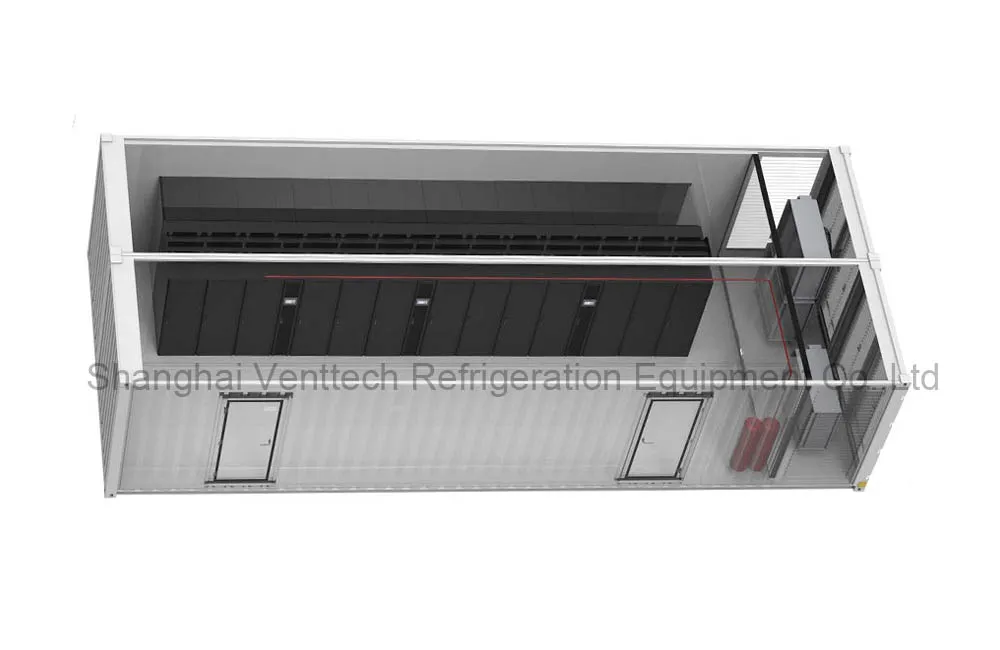

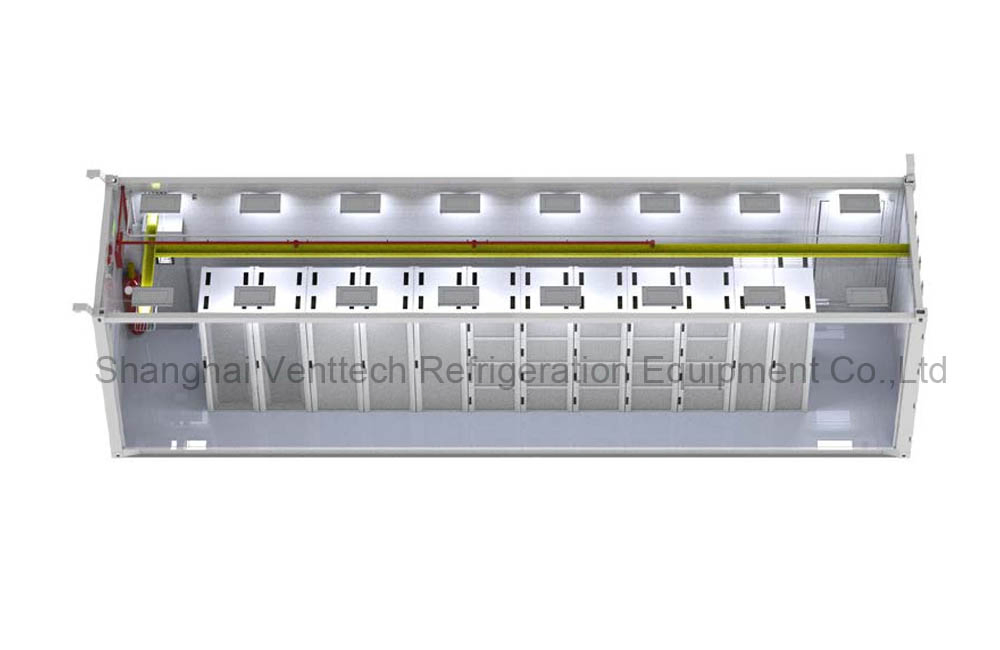

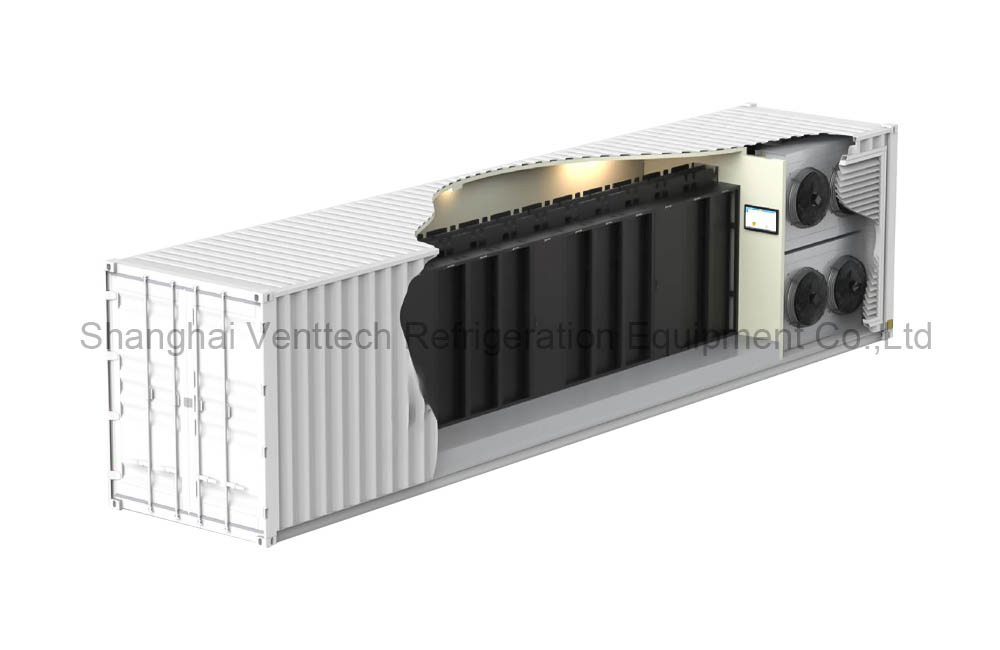

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment. It supports deep customization for clients and is suitable for various specific application scenarios.

Core Features

⚙️ Tailored Customization

Highly professional R&D and manufacturing for customized system availability, protection capabilities, container size, cooling types, and power standards.

🚀 Rapid Deployment

Pre-integrated infrastructure (UPS, cooling, racks) tested and configured in-factory. Simple on-site installation with delivery as fast as 40 days.

🛡️ Safe and Reliable

IP55 standard protection (up to IP65), corrosion/fire/explosion-proof, and bulletproof options. Equipped with advanced fire and access control systems.

⚡ Continuous Operation

Excellent protection and high-availability power distribution/cooling designs ensure uninterrupted client business operations.

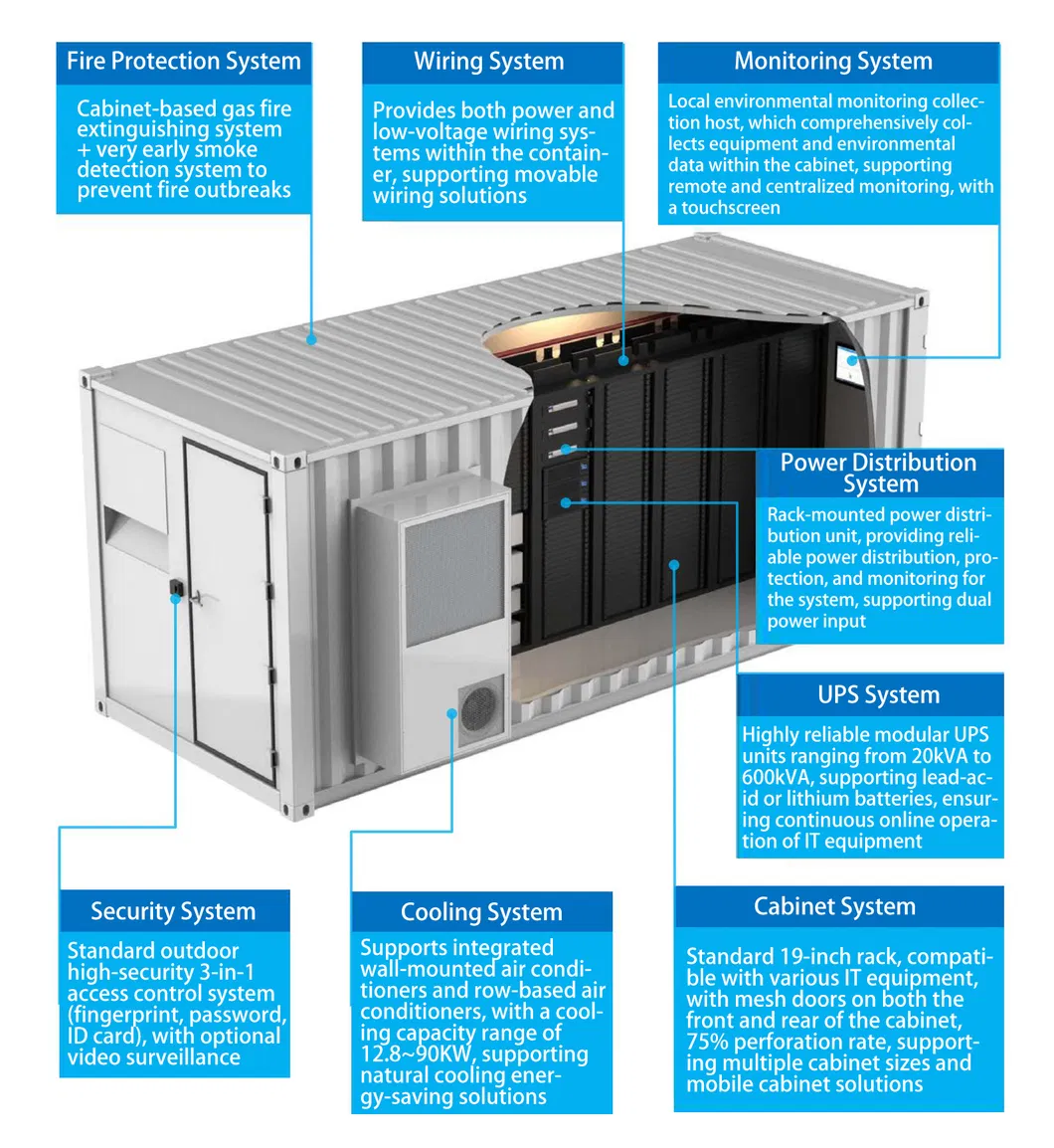

System Components

Container Construction

Built to ISO container standards.
Salt spray standard: 750h.
Thermal protection with rock wool.
Withstands 30 m/s wind speed under working conditions.
Fire protected options up to 120min.
Bullet proof and C5M High Corrosion Protection options available.
IP55 water/dust protection; Operating temp: -40ºC~55ºC.

Precision Cooling System

5.5-31.5kW wall mount cooling as standard design.
5.6-90kW Inrow cooling options.
5.5-122.9kW Room cooling options.
Works up to 55C ambient temperature with free cooling options.

IT Rack System

1800kg static loading capacity IT racks.
Widths (600/800mm) and depths (1100/1200mm) options.
Optional cold/hot aisle containment systems.
Sliding front/rear direction for easier service.

UPS Power System

3-60kVA rack UPS standard; up to 600kVA modular floor mount options.
60A-1200A 48VDC rectifier available.
VRLA or Lithium battery configurations.
Power distribution panels configurable to T1~T4 uptime levels.

DCIM & Control Systems

DCIM: Full communication with UPS, cooling, and sensors; Remote web/SMS/Email access.
Access Control: IP55 3-in-1 (pin/password/fingerprint) protection.
Fire Protection: Early detection with Novec1230/FM200 smart panels.

Frequently Asked Questions

1. What is the typical delivery time for a container data center?

Deployment is highly efficient, with delivery and setup possible as fast as 40 days thanks to factory pre-integration.

2. What protection standards do these containers meet?

Our standard containers meet IP55 protection levels, with customization options available for IP65, C5M high corrosion protection, and fire resistance up to 120 minutes.

3. Can the system operate in extreme weather conditions?

Yes, the units are designed to operate in temperatures ranging from -40ºC to 55ºC and can withstand wind speeds up to 30 m/s.

4. What cooling options are available?

We offer multiple cooling solutions including wall-mount (5.5-31.5kW), Inrow cooling (5.6-90kW), and large room cooling options up to 122.9kW, including free cooling.

5. Are the IT racks customizable?

Yes, we offer various widths (600/800mm) and depths (1100/1200mm) with a static loading capacity of 1800kg and optional aisle containment.

6. How is the data center monitored?

The system features a comprehensive DCIM system that integrates UPS, cooling, fire protection, and access control, accessible remotely via Web, SMS, or Email.
