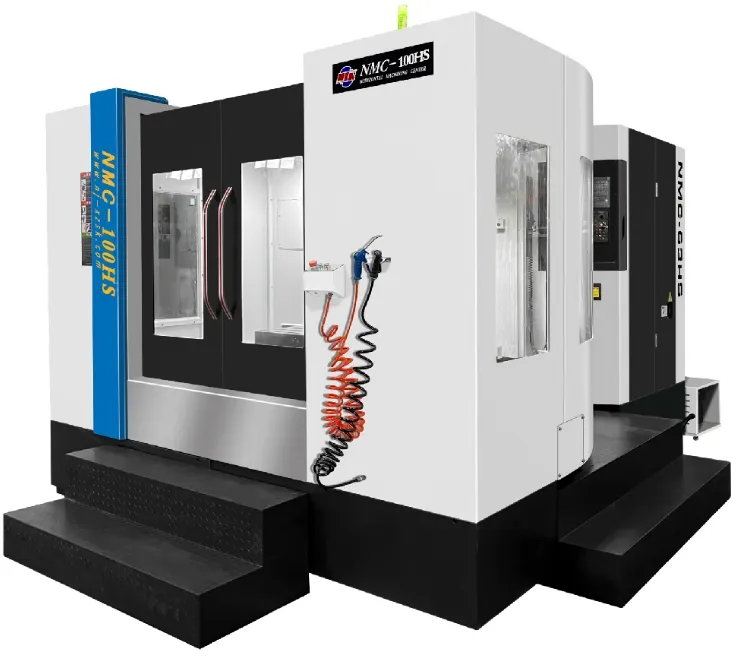

Nmc100HS Horizontal Machining Center with High - Speed Ethernet Connectivity for Data Transfer

Basic Specifications

Model NO.

NMC100HS

Application

Metal Cutting

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

GS, CE, RoHS, ISO 9001

Product Name

Horizontal Machining Center

Table Size

1000X1000 mm

X/Y/Z Travelling

1600/1000/1000 mm

Spindle Power

15 / 18.5 kW

Machine Weight

25,000 kg

Core Features & Advantages

01

Adopts the internationally popular inverted T-shaped moving column overall bed structure for high rigidity and stability.

02

Main castings utilize high-grade resin sand molded cast iron with secondary aging treatment to ensure long-term precision.

03

Fully enclosed protection with double-sided spiral chip removal and large-capacity cutting fluid tank.

04

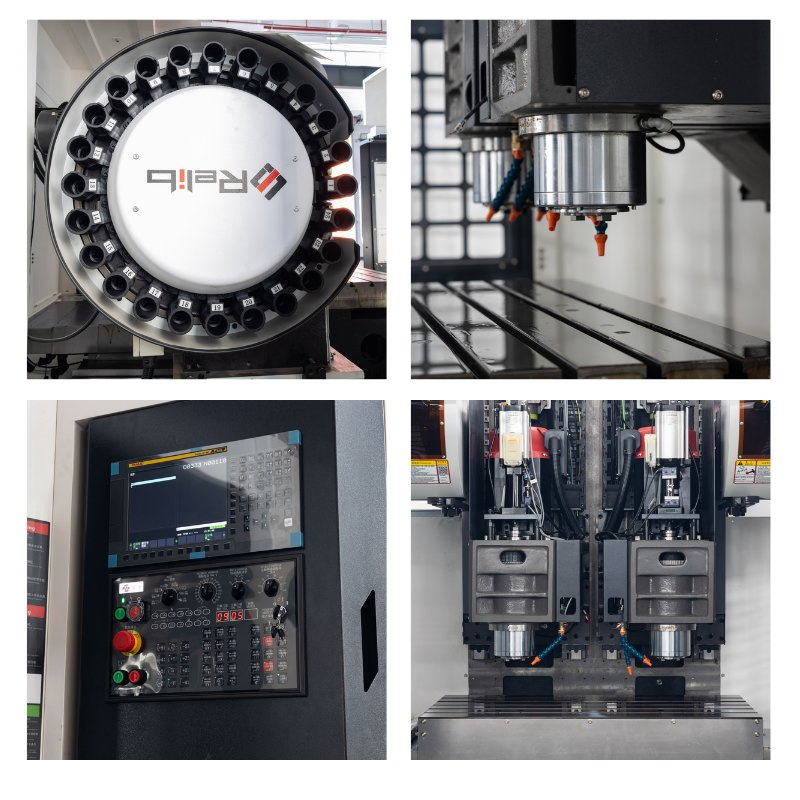

BT50 ring spray spindle with air curtain protection and circulating oil cooling to prolong service life.

05

Fast cam manipulator tool change (30-60 tool options) with nearest-tool selection for reliability.

06

Environmentally friendly oil-water separation design with centralized lubricating oil recovery.

07

Three-axis ball screw pre-stretched with double supports to optimize rigidity and reduce thermal deformation.

08

High-torque FANUC wide spindle servo motor reaching up to 525Nm for heavy-duty cutting capacity.

09

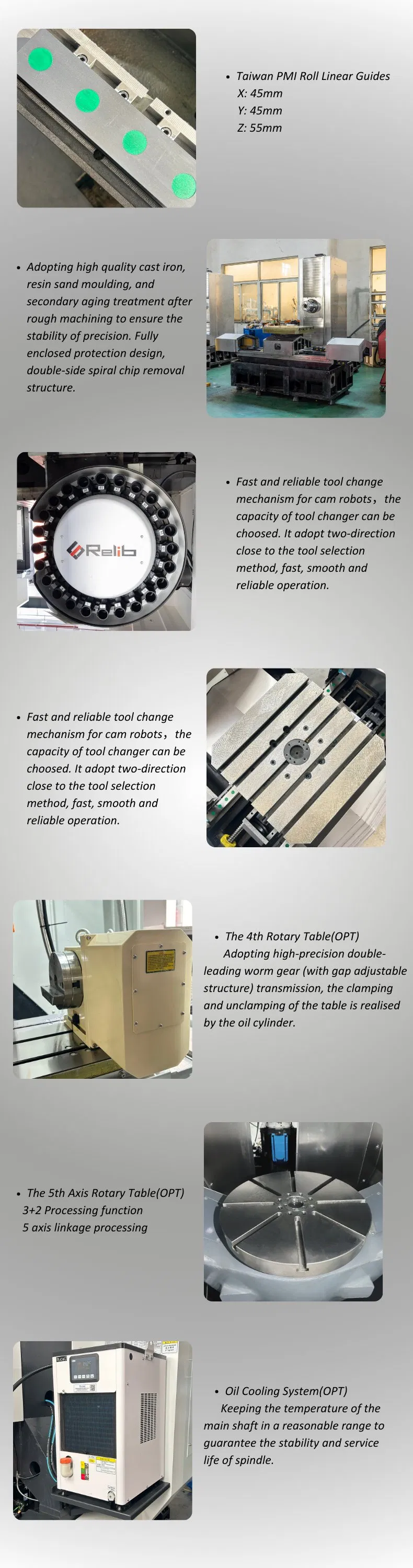

Imported heavy-duty roller linear guides with V3 level preload for high load capacity.

10

High-precision 1°×360 bidirectional positioning turntable or optional CNC double-lead worm gear turntable.

Detailed Parameters

Specification Item	Unit	NMC-100HS Data
Worktable size (W×L)	mm	1000 × 1000
Table indexing / Pallet exchange	Deg	1°×360 Indexing turntable
Max. loading of worktable	kg	1600
Spindle center to table distance	mm	120 ~ 1120
X/Y/Z axis travelling	mm	1600 / 1000 / 1000
Rapid move speed (X/Y/Z)	m/min	20 / 20 / 18
Spindle speed range	r/min	25 ~ 6000
Max. tool weight	kg	20
Tool change time (Tool to Tool)	sec	5 (Random)
Positioning accuracy (X/Y/Z)	mm	0.020 / 0.016 / 0.016
Repeatability (X/Y/Z)	mm	0.008
Machine Dimensions (L×W×H)	mm	4800 * 4200 * 4100

Product Gallery

Frequently Asked Questions

Q1: What industries is the NMC100HS suitable for?

A: It is ideal for building material shops, manufacturing plants, and general metal processing industries requiring high-precision CNC machining.

Q2: What is the maximum tool weight the machine can handle?

A: The machine is designed to handle a maximum tool weight of 20kg with its BT50 shank form.

Q3: How does the machine ensure spindle precision?

A: The spindle sleeve is cooled by circulating oil, and it is equipped with an air curtain protection device to prevent the penetration of dust and cutting fluids.

Q4: What type of guide ways are used in this machining center?

A: The three-axis feed drive utilizes imported heavy-duty roller linear guides with a V3 level preload for stable precision and high load capacity.

Q5: What is the positioning accuracy of the X/Y/Z axes?

A: The positioning accuracy is 0.020mm for the X-axis and 0.016mm for the Y and Z axes, tested according to the VDI/DGQ 3441 standard.

Q6: Is there a chip removal system included?

A: Yes, the machine features a double-sided spiral chip removal structure, and an optional chain plate type chip removal lifting device is also available.
