Product Description

Basic Specifications

Model NO.

SL-150R

Type

Air-Cooled

Cooling Water

Server GPU Liquid Cooling

System Type

Closed System

Fans Species

Frequency Fan

Noise Level

Low

Application

Data Center

Certification

Condition

New

Cabinets

30 Cabinets

Power Density

5 Kw

Redundancy

N+1

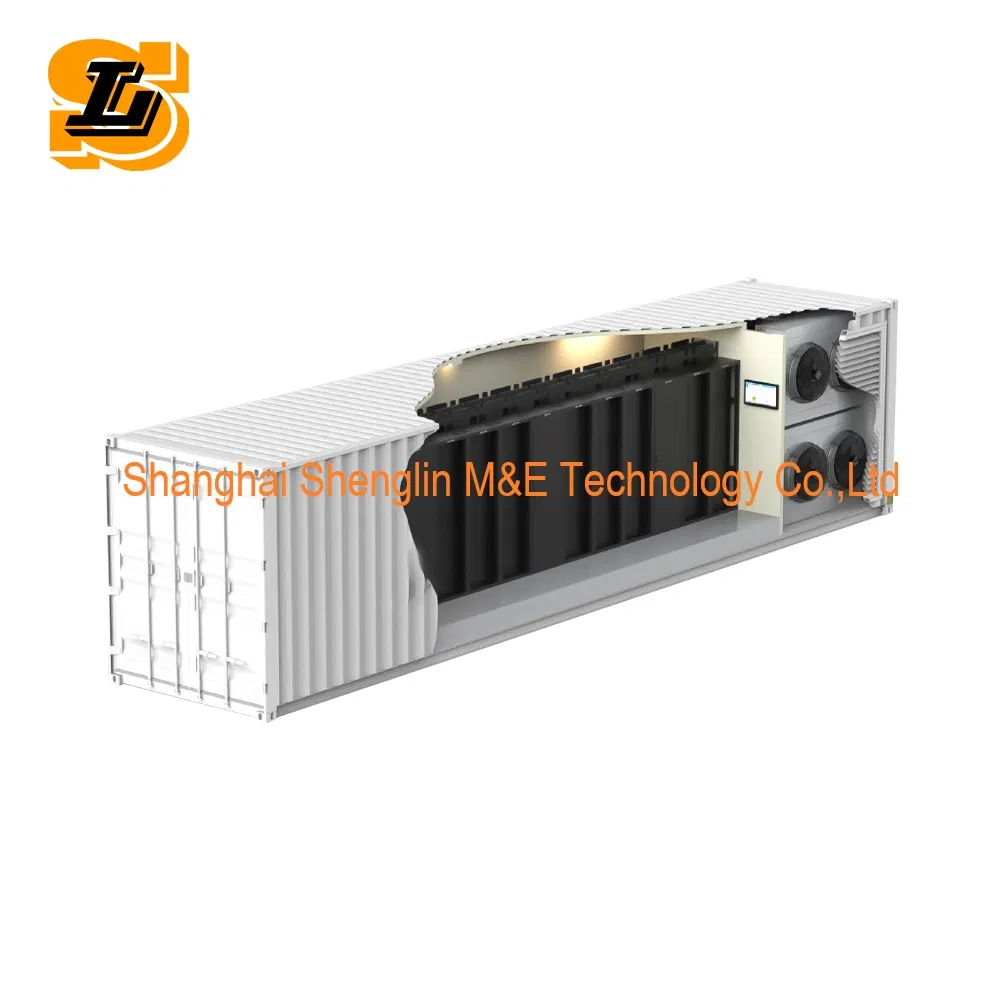

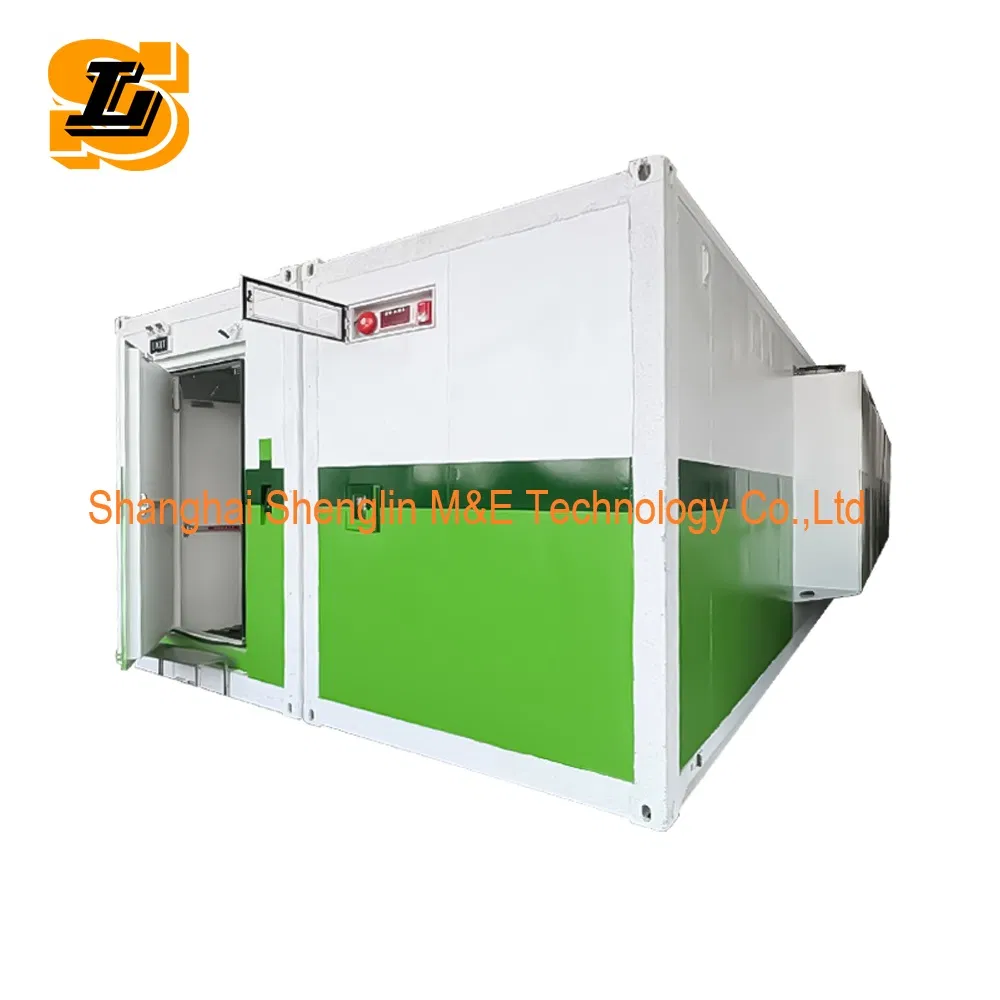

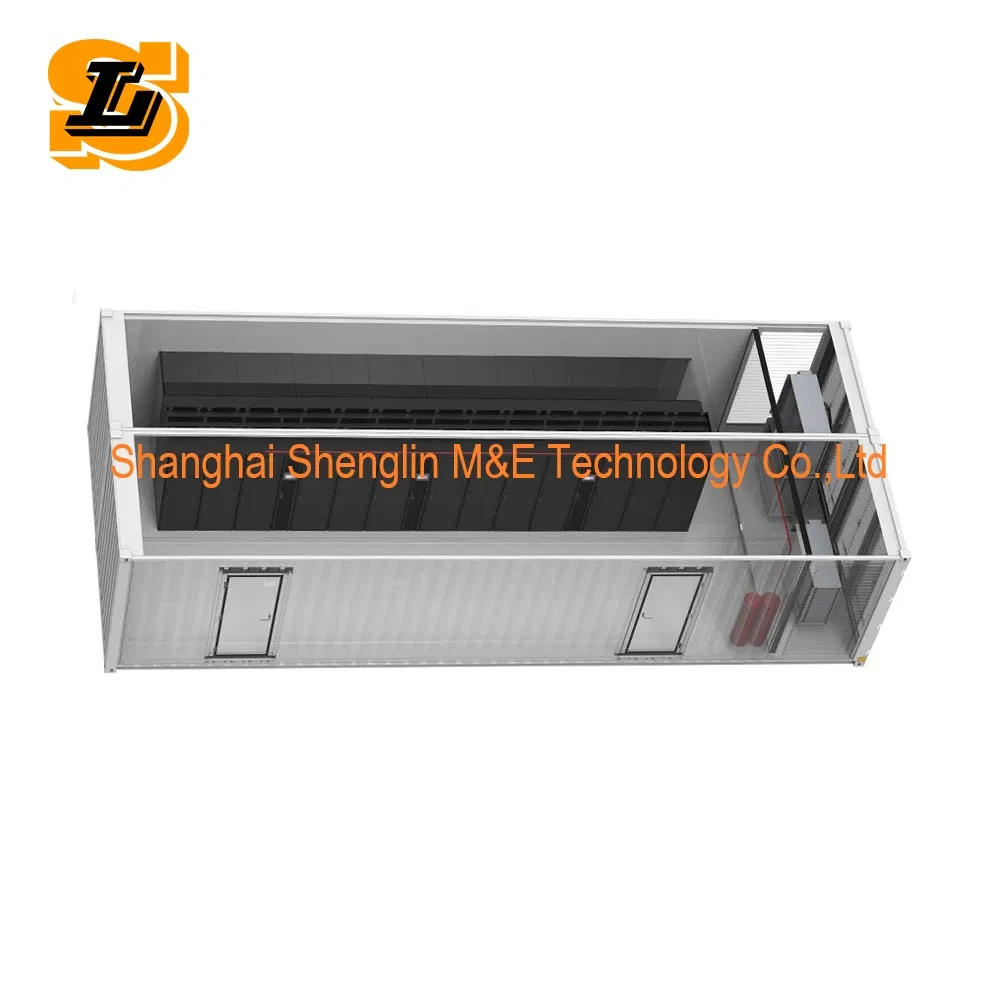

Movable Prefabricated Modular Data Centers

This dual row cold aisle enclosed micro module data center integrates server cabinet systems, enclosed aisle systems, precision air conditioning, UPS power supply and distribution, dynamic environment monitoring, and security systems. Designed with a fully modular architecture, it can be flexibly configured to meet specific power density, equipment quantity, and reliability requirements, providing superior infrastructure support for IT equipment.

Key Advantages

✓
Expert Technical Support: Reliability throughout the entire lifecycle from planning and design to operation.
✓
Standard Compliance: Meets GB50174 A/B/C and TIER 1-4 standards with fully customized solutions.
✓
High Reliability: Core subsystems like UPS and precision cooling feature MTBF > 100,000 hours.
✓
Smart Monitoring: Integrated module-level environment monitoring with real-time multi-channel alerts.
✓
Factory Pre-tested: Modular design ensures all functional components are verified before delivery.

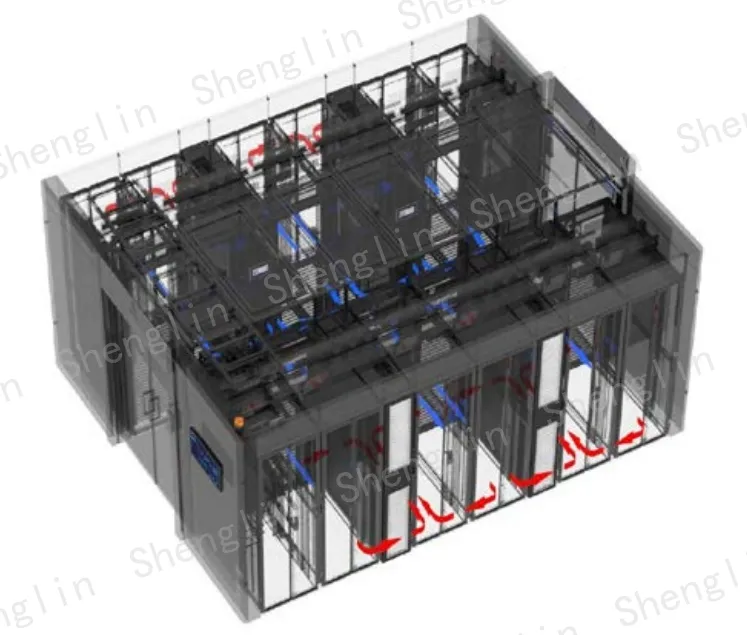

One-Stop Integration & Minimalist Delivery

Main Configuration Details

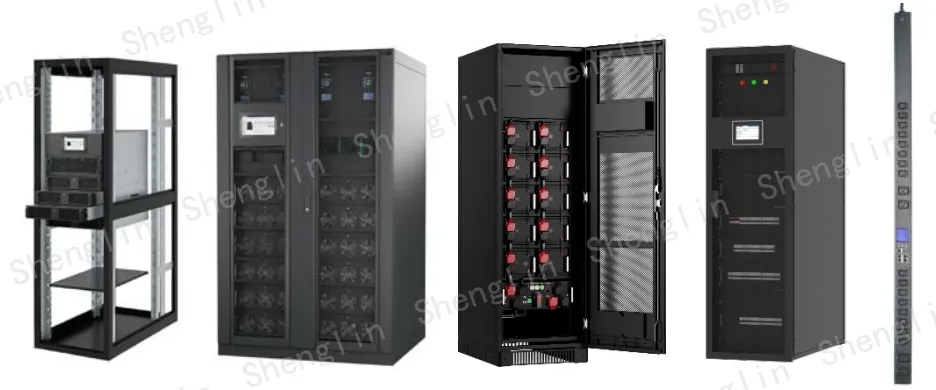

Power Supply & Distribution

UPS: Modular Unit 15~600kVA / High Frequency Unit 20~800kVA

Battery: Lead-acid or Lithium battery options

Distribution: Integrated or precision cabinets, small busbar PDU

Precision Temperature Control

In-row AC: Air-cooled 12-65kW, Chilled water 25-60kW

Room AC: Air-cooled 12~120kW, Chilled water 30~200kW

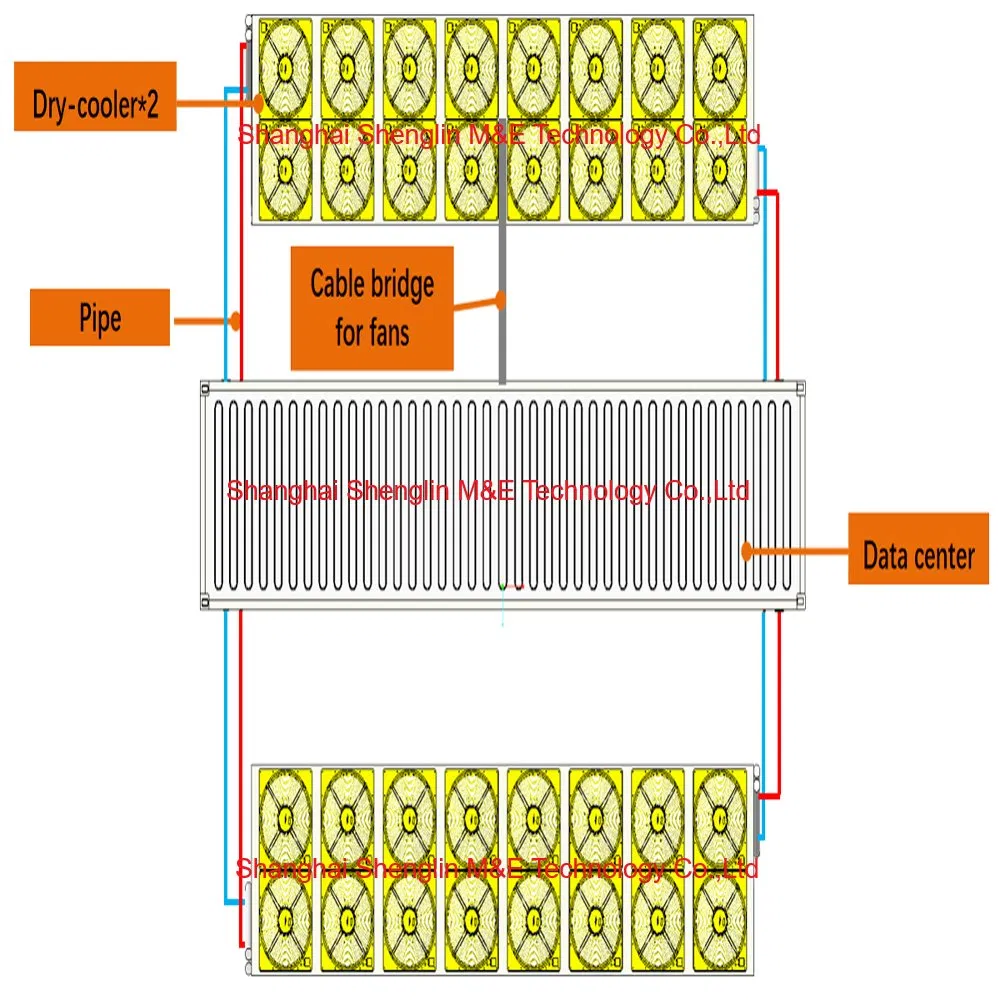

Liquid Cooling: Cold plate solutions 50~500kW

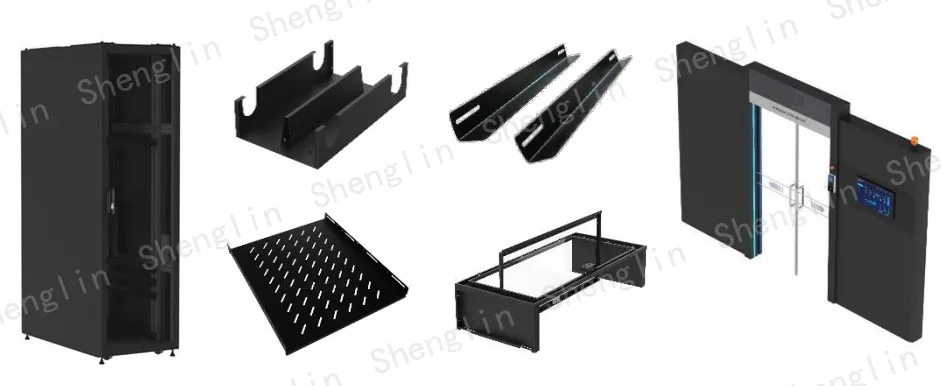

Cabinet & Channel System

Dimensions: Width 600/800mm, Depth 1000-1400mm, Height 2000-2500mm

Containment: Choice of cold or hot channel containment

Attachments: Blind plates, guide rails, cable racks, and lighting

Intelligent Monitoring System

Monitoring: UPS, battery, power, fire protection, humidity, smoke, water immersion, access control, and video.

Interface: Multi-size touch screens and door lintel displays.

Alarms: Voice, SMS, sound/light, email, and mobile APP notifications.

Standard Model Comparison

Model	SL-60R	SL-90R	SL-120R	SL-150R	Customization
Total Cabinets	12	18	24	30	< 48
T Cabinets	11	17	23	28	< 48
Power Density (kW/cab)	5	5	5	5	< 20kW
Redundancy	N+1	N+1	N+1	N+1	N/N+1/2N
Cabinet Depth (mm)	600	600	600	600	600/800
Cabinet Height (mm)	2000	2000	2000	2000	2000/2200/2500
Channel Width (mm)	1200	1200	1200	1200	Custom

Frequently Asked Questions

What is a modular data center?

A modular data center is a portable method of deploying data center capacity. It consists of purpose-engineered modules and components like cabinets, cooling, and power units that are pre-integrated and tested in the factory.

Is this system suitable for AI and HPC workloads?

Yes, our systems are designed to handle high-density AI and HPC (High-Performance Computing) requirements, offering liquid cooling options that can support up to 500kW.

What cooling methods are available?

We offer multiple cooling solutions including air-cooled in-row units (12-65kW), chilled water systems, and advanced cold plate liquid cooling.

Can the cabinet configuration be customized?

Absolutely. Cabinets can be customized in terms of quantity (up to 48), depth (1000-1400mm), and height (up to 2500mm) to fit your specific facility space.

How does the monitoring system handle emergencies?

The intelligent monitoring system provides real-time warnings via voice, SMS, sound and light, email, and a dedicated mobile app for parameters like fire, water leakage, and power status.

What are the redundancy options for power?

Standard models use N+1 redundancy, but we can provide N, N+1, or 2N redundancy configurations based on the desired TIER reliability level.
