Modular Container Data Center PMDC Data Center

1 / 5

Modular Container Data Center PMDC Data Center

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

CDC

Type

Air-Cooled

Cooling Water

Industrial Water

System Type

Open System

Fans Species

Frequency Fan

Noise Level

Ultra Low

Application

Electronics

Certification

RoHS

Dimensions

10 FT/ 20FT/ 40FT

Inlet Temp.

60 Degree C

Outlet Temp.

40 Degree C

Power Supply

380V/3p/50Hz

Container Data Center Solution

Professional dry air cooler for bitcoin immersion cooling systems, condensers, and evaporators with over 17 years of experience in HVAC.

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery.

Tailored Customization

Custom designs for system availability, protection capabilities, container size, and cooling types to meet specific client needs.

Rapid Deployment

Pre-integrated infrastructure tested in factory, allowing delivery as fast as 40 days and simple on-site installation.

Safe & Reliable

Meets IP55 protection (customizable to IP65) with corrosion resistance, fireproofing, and explosion-proof capabilities.

Multiple Sizes & Scalability

10ft Cabinet

20ft Cabinet

40ft Cabinet

Dual Bay Solution

Multi Containers Solution

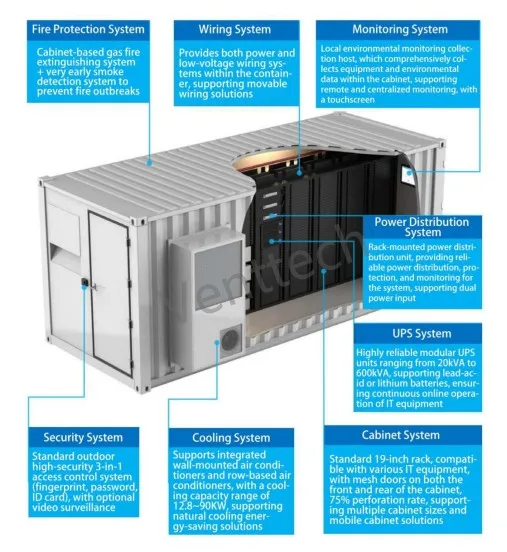

System Components

1. Container Construction

ISO standard build with 750h salt spray resistance.

Thermal protection with rock wool.

IP55 water/dust protection, operating at -40ºC~55ºC.

2. Precision Cooling System

5.5-31.5kW wall mount cooling standard.

5.6-90kW Inrow cooling and Room cooling options.

Free cooling options available for high efficiency.

3. IT Rack System

1800kg static loading capacity.

Optional cold/hot aisle containment.

4. UPS Power System

3-60kVA rack UPS or up to 600kVA modular floor mount.

VRLA or Lithium battery configurations.

5. DCIM & Security

Full integration with cooling, power, and sensors.

Access control (pin/password/fingerprint).

Fire agent suppression (Novec1230/FM200).

Waterproof Salt Spray Protection Mold Prevention Fire Insulation Seismic Resistance Explosion Protection

Logistics & Service

Frequently Asked Questions

Q: What container sizes are available for the data center?

A: We offer standard 10ft, 20ft, and 40ft cabinets, as well as dual-bay and multi-container modular solutions.

Q: What is the delivery timeline for a prefabricated unit?

A: Thanks to our pre-integrated factory model, delivery can be as fast as 40 days depending on the level of customization.

Q: Can these containers operate in extreme environmental conditions?

A: Yes, they are designed to operate in temperatures ranging from -40ºC to 55ºC and can withstand wind speeds up to 30 m/s.

Q: What cooling options do you provide?

A: We provide wall-mounted, Inrow, and Room cooling options ranging from 5.5kW to over 122kW, including various free cooling solutions.

Q: How is the equipment protected against fire and theft?

A: The systems include early fire detection with Novec1230/FM200 agents, and the cabinets offer IP55 protection with integrated access control and video surveillance.

Q: Do you support salt spray protection for coastal sites?

A: Yes, we offer C5M High Corrosion Protection options specifically designed for high-salinity coastal environments.
