Micro Modular Data Center Portable Modular Data Center

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Basic Specifications

Model NO.

CDC

Type

Air-Cooled

Cooling Water

Industrial Water

System Type

Open System

Fans Species

Frequency Fan

Noise Level

Ultra Low

Application Fields

Electronics

Certification

RoHS

OEM Customization

Supported

Medium

Water/Oil/Glycol/Electrolyte

Power Supply

380V/3p/50Hz

Dimensions

10 FT/ 20FT/ 40FT

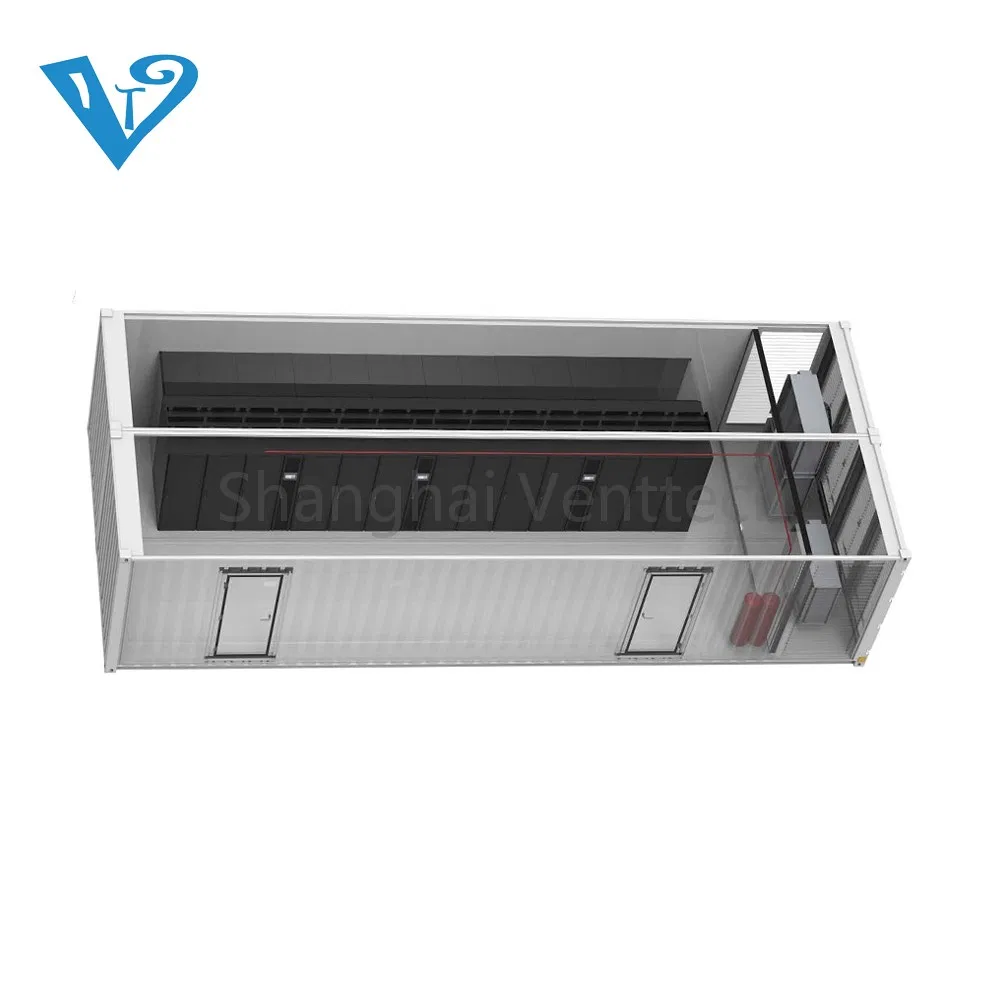

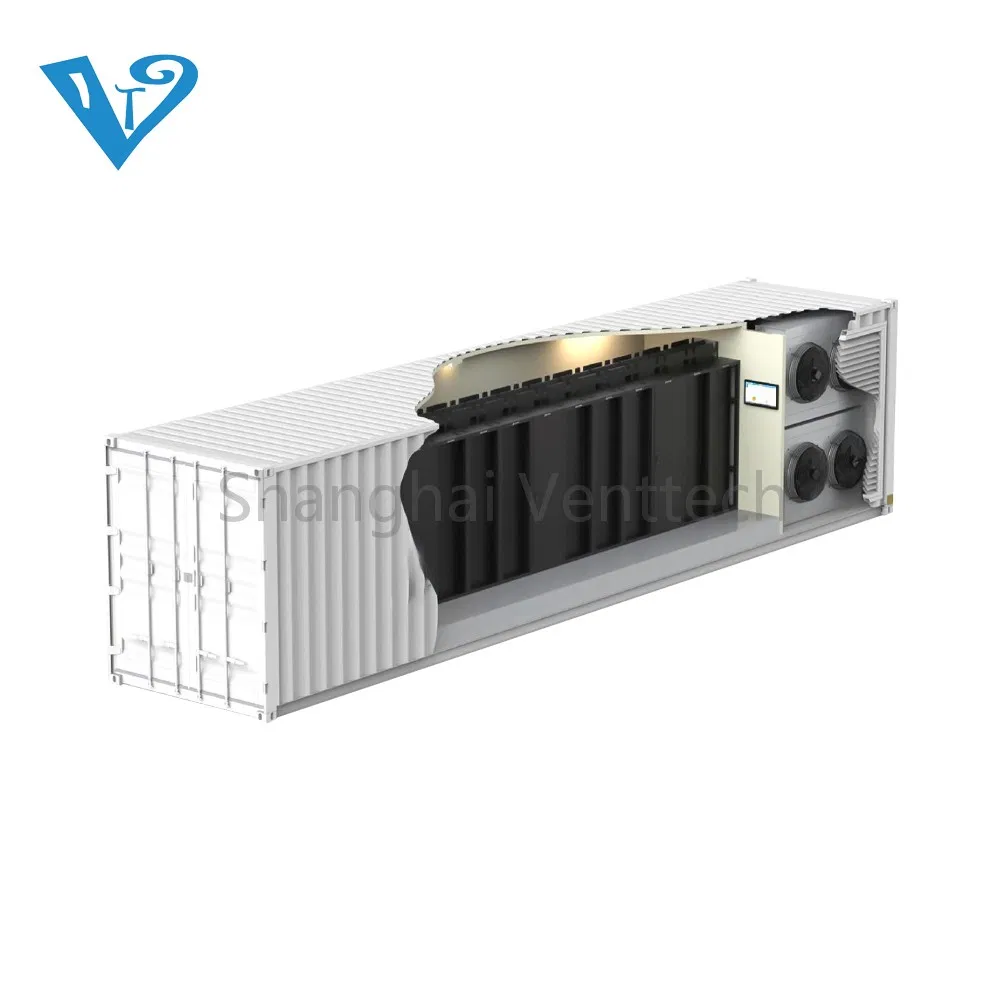

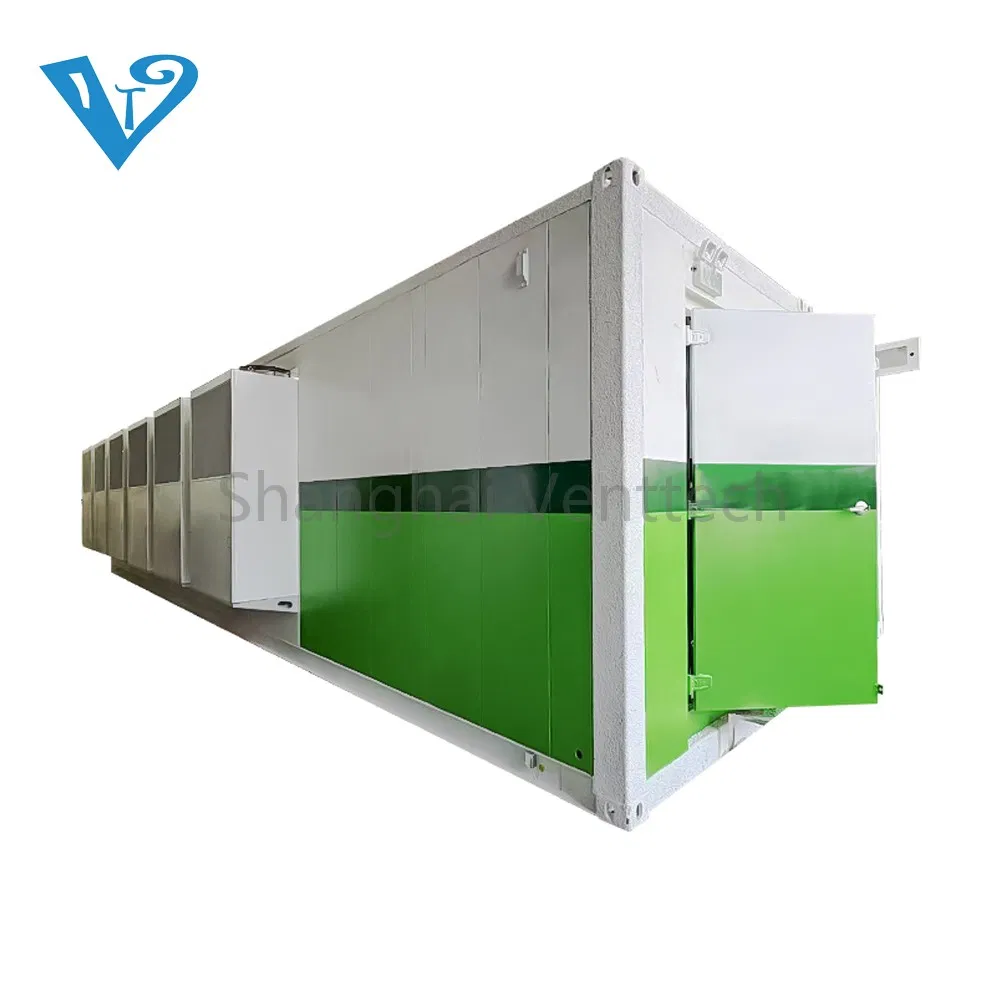

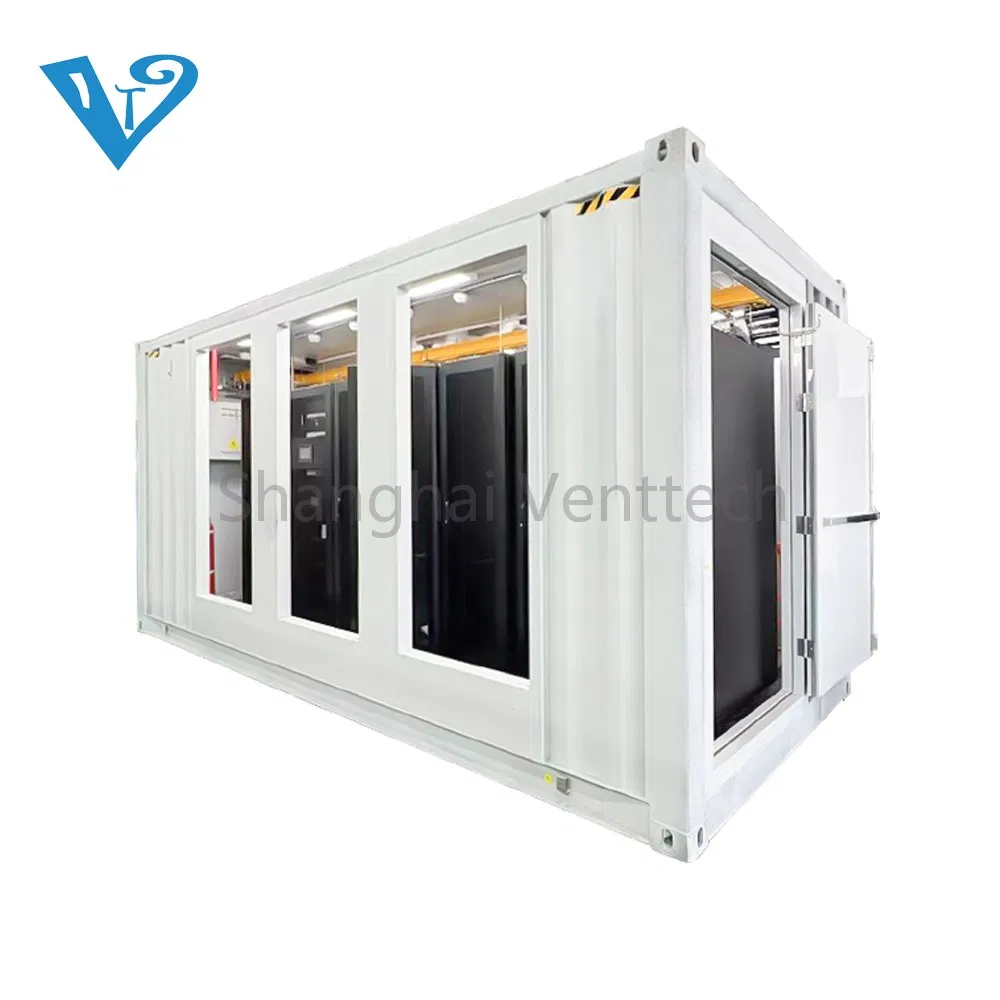

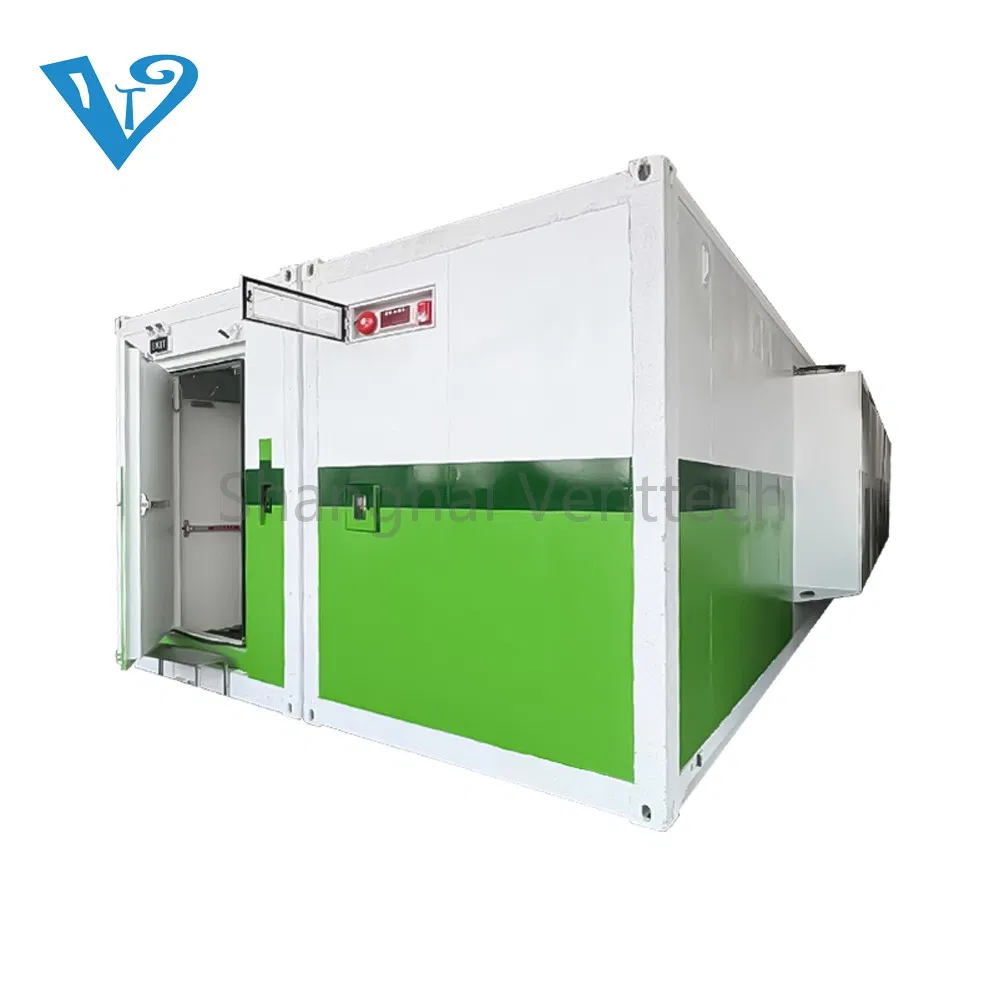

Container Data Center Solution

A professional manufacturer specializing in dry air coolers for immersion cooling systems, condensers, and evaporators with over 17 years of experience in the HVAC area. Our container data center solution adopts a prefabricated model, using the container as a protective shell for infrastructure including IT racks, UPS, precision air conditioning, and power distribution.

Key Features

⚙️

Tailored Customization

Customized availability, protection levels, container sizes, and cooling types based on client requirements.

⚡

Rapid Deployment

Pre-integrated and factory-tested infrastructure allowing delivery as fast as 40 days.

🛡️

Safe and Reliable

Standard IP55 protection (up to IP65), corrosion resistance, fire resistance, and security systems.

🔄

Continuous Operation

High availability power and cooling designs ensure client business stays online 24/7.

Multiple Size Solutions

Specialized Configurations

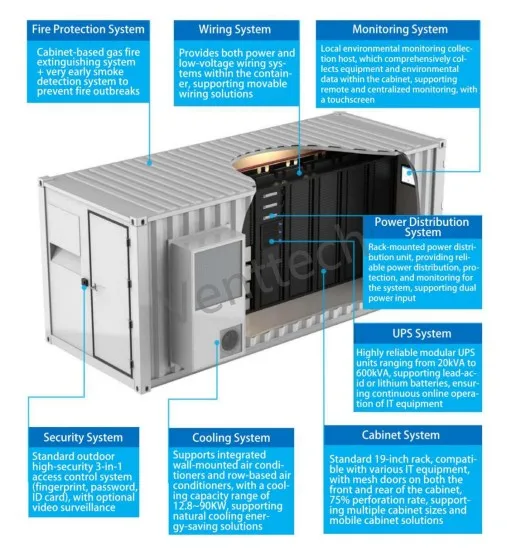

Integrated System Components

Container Construction: Built to ISO standards, 750h salt spray resistance, IP55 dust/water protection, and thermal insulation.
Precision Cooling: 5.5kW-122.9kW options including wall-mount, in-row, and room cooling for high ambient temperatures.
IT Rack System: 1800kg static capacity racks with optional cold/hot aisle containment.
UPS Power System: Rack-mount or floor-mount UPS (3kVA to 600kVA) with VRLA or Lithium battery options.
DCIM & Monitoring: Full communication with cooling, power panels, and sensors via touch screen or remote web access.
Security & Fire Protection: IP55 access control and early fire detection systems using Novec1230/FM200 agents.

Advanced Cabinet Protection

🔹 Waterproof and Moisture-Proof
🔹 Salt Spray Protection
🔹 Mold Prevention
🔹 Fire and Heat Insulation
🔹 Seismic Resistance
🔹 Theft and Explosion Protection

Logistics & Service

Frequently Asked Questions

Q: What is the typical delivery time for a container data center?

A: Thanks to our prefabricated model and factory integration, we can achieve rapid deployment with delivery times as fast as 40 days.

Q: What sizes of containers are available?

A: We offer standard ISO sizes including 10ft, 20ft, and 40ft units, as well as dual-bay and multi-container modular solutions.

Q: Can the cooling system handle high ambient temperatures?

A: Yes, our precision cooling systems are designed to operate effectively in ambient temperatures ranging from -40ºC up to 55ºC.

Q: What protection ratings do the containers have?

A: Our standard containers meet IP55 protection levels, with options for IP65, C5M high corrosion protection for coastal sites, and bulletproof security.

Q: Is it possible to monitor the data center remotely?

A: Yes, the integrated DCIM system allows for local touch-screen control and remote access via Web, SMS, Email, and Modbus-TCP.

Q: What fire suppression systems are used?

A: We use smart fire panels and early detection systems combined with fire agents such as Novec1230 or FM200 for maximum safety.
