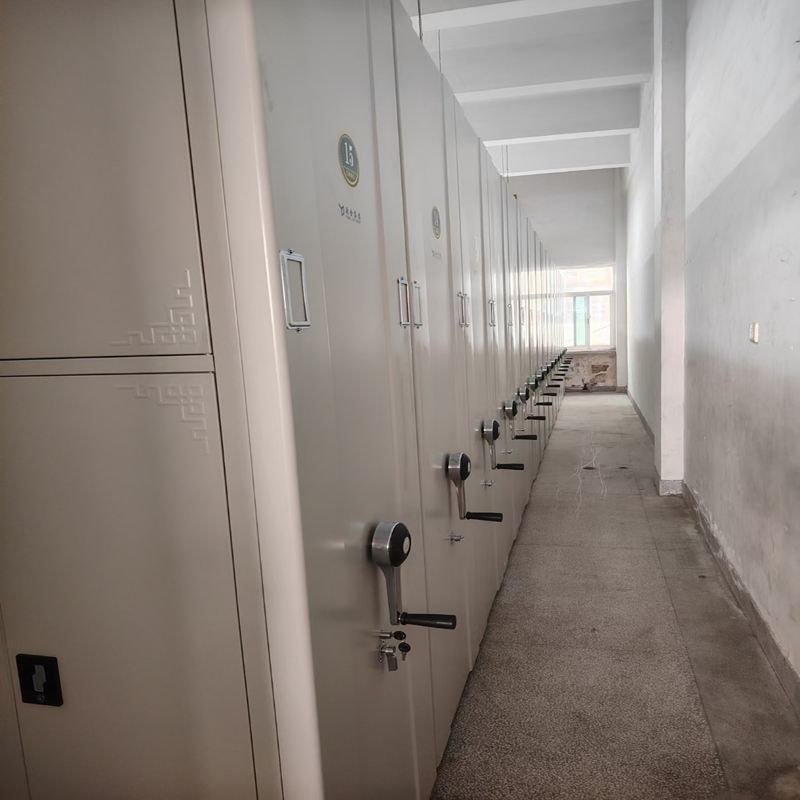

Library Compact Shelving System Hand Steering Operation Mobile Cabinet

1 / 5

Library Compact Shelving System Hand Steering Operation Mobile Cabinet

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

YJ25-M008

Size

W900*D700*H2400/Bay

Layer

6 Layers

Side Number

Double Sided

Style

Modern

Door

2 Doors

Fire Standard

ISO 8191

Color

Light Grey, Putty, Beige, White, Black

Certification

ISO9001/ISO14001/OHSAS18001

Surface

Epoxy Powder Coating

Warranty

10 Years

Origin

China

Product Description

Library Compact Shelving System Hand Steering Operation Mobile Cabinet

Manual mobile shelving is controlled by a hand wheel. Usually divided into two kinds of single and double sided frames. It is the most common type of archives cabinet, also a top-selling solution, suitable for various archives information rooms, record rooms, archives storehouses, library files, books, medical records, etc. Product specifications can be produced according to specific requirements.

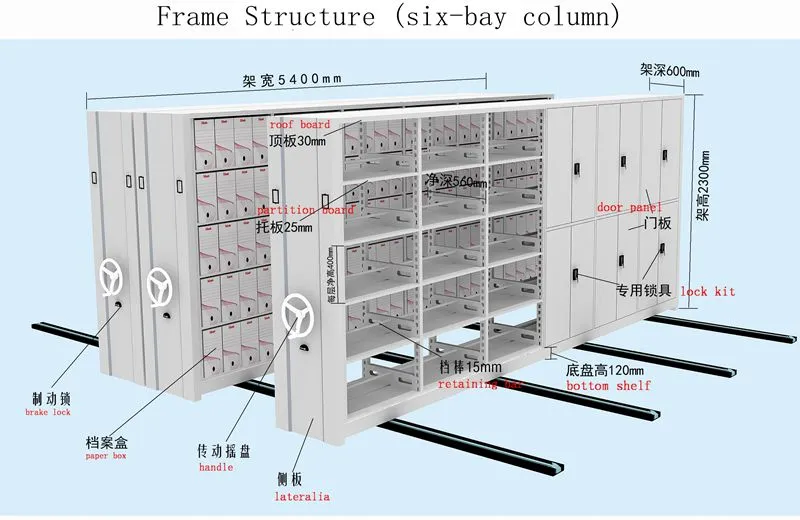

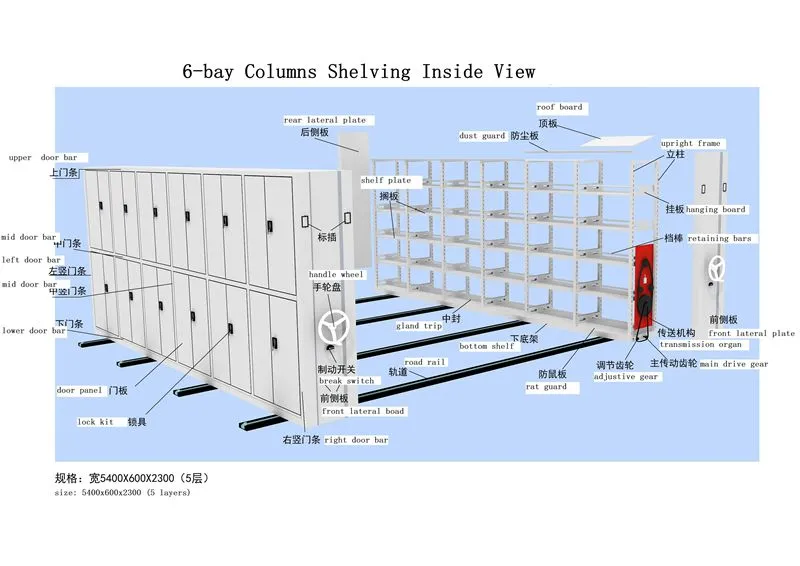

Technical Specifications

Item No.	YJM-04
Material	High-quality cold-rolled steel Q235
Layers	5 storage spaces (6 levels)
Chassis	2.8mm hot-rolled steel, GB710-88
Rail	20*20 solid square steel, GB699-88
Upright	1.5mm cold-rolled steel, GB710-88
Partition Board	1.0mm cold-rolled steel
Load Capacity	60-80pcs/20FCL, 150-170pcs/40HQ
Preprocessing	Zn phosphorization, ISO9001 certified
Transmission	Φ20 solid steel 45# shaft with motorcycle chain

Key Features

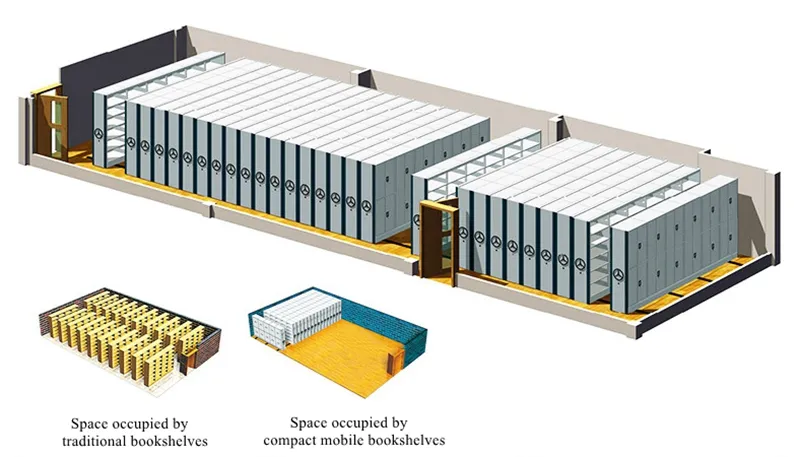

Maximum space utilization and perfect seal, neat/elegant for file storage.

Good performance, easy to disassemble and install.

High reliability anti-tilting ability for safety.

Strong, durable and steady mechanical structure.

Security access control with specialized locking systems.

Smooth hand-steering with soft start and soft stop.

Frequently Asked Questions

What is manual mobile shelving?

Manual mobile shelving is a high-density storage system where shelving units are mounted on tracks and moved using a hand-operated mechanical steering wheel.

Where can this compact shelving system be used?

It is ideal for law libraries, public and private libraries, healthcare storage, government offices, archival storage, and banks where space optimization is critical.

What materials are used in the construction?

The system is built using high-quality cold-rolled steel (Q235). The chassis uses 2.8mm hot-rolled steel, and uprights are 1.5mm thick for maximum durability.

Does the system provide security for sensitive files?

Yes, it features a side column lock kit and buckle-type square locks for the gates, ensuring controlled access to stored materials.

What is the weight capacity and warranty?

The system is designed for heavy-duty archival use and comes with a 10-year warranty, covering various sizes and customized requirements.
