Kexint N8560-64c, 64-Port Ethernet L3 Data Center Switch

1 / 5

Kexint N8560-64c, 64-Port Ethernet L3 Data Center Switch

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.100G Data Center Switches

Transmission Rate10/100/1000Mbps

Ports24

Packet Buffer1.5MB

Jumbo Frame9,000

Input Voltage100-240VAC

Stackabilityup to 6 Units

Production Capacity5000

🚀

Product Description

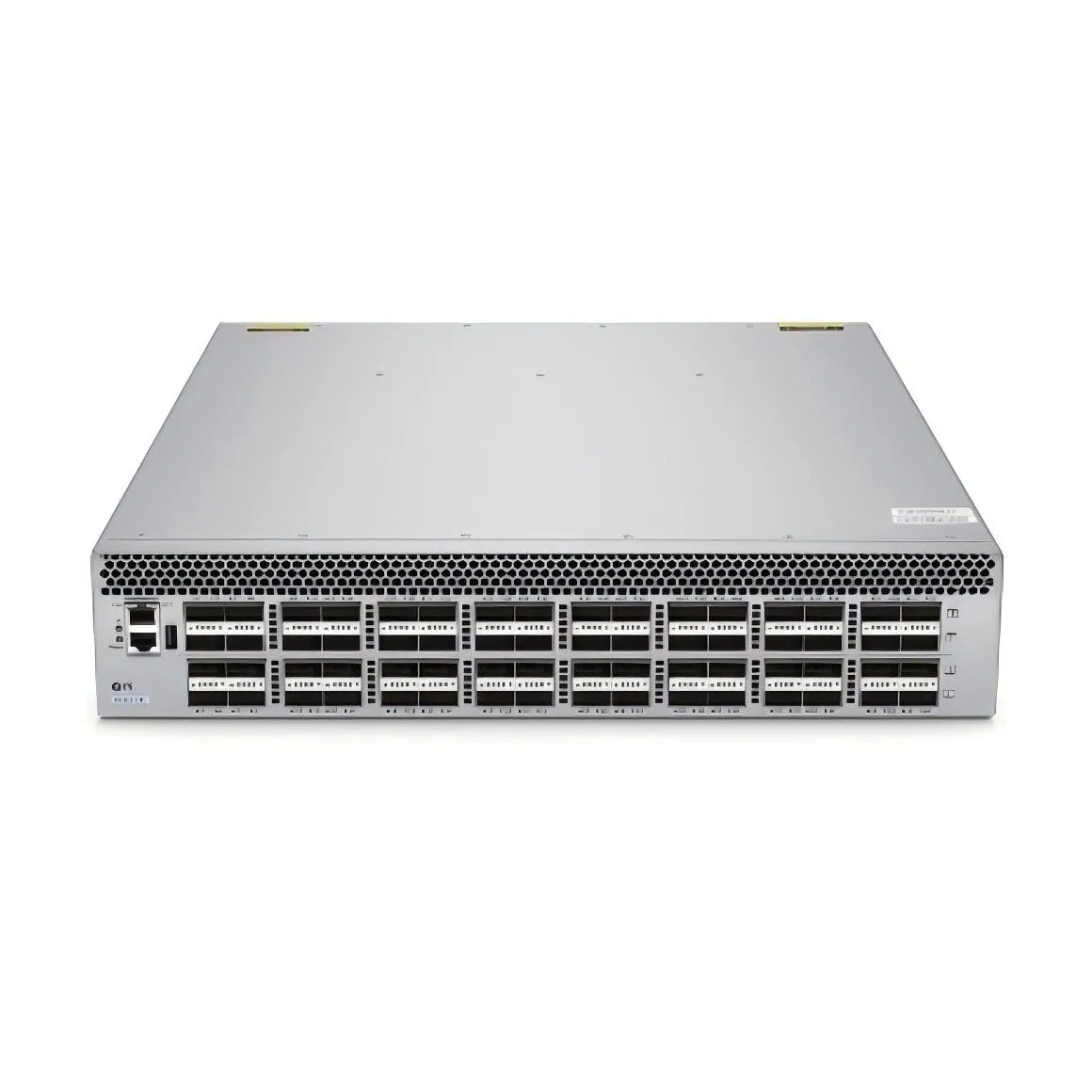

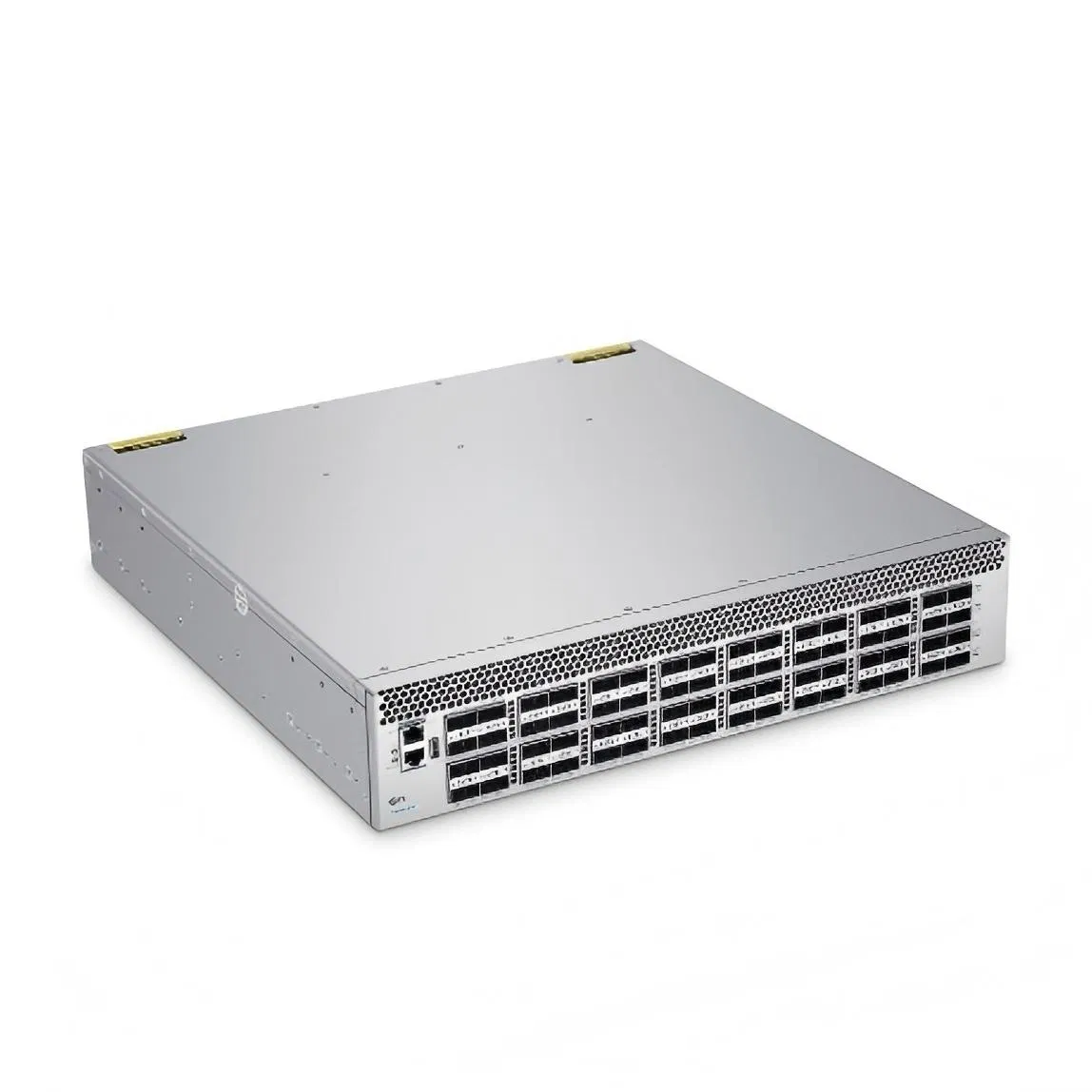

N8560-64C, 64-Port Ethernet L3 Data Center Switch

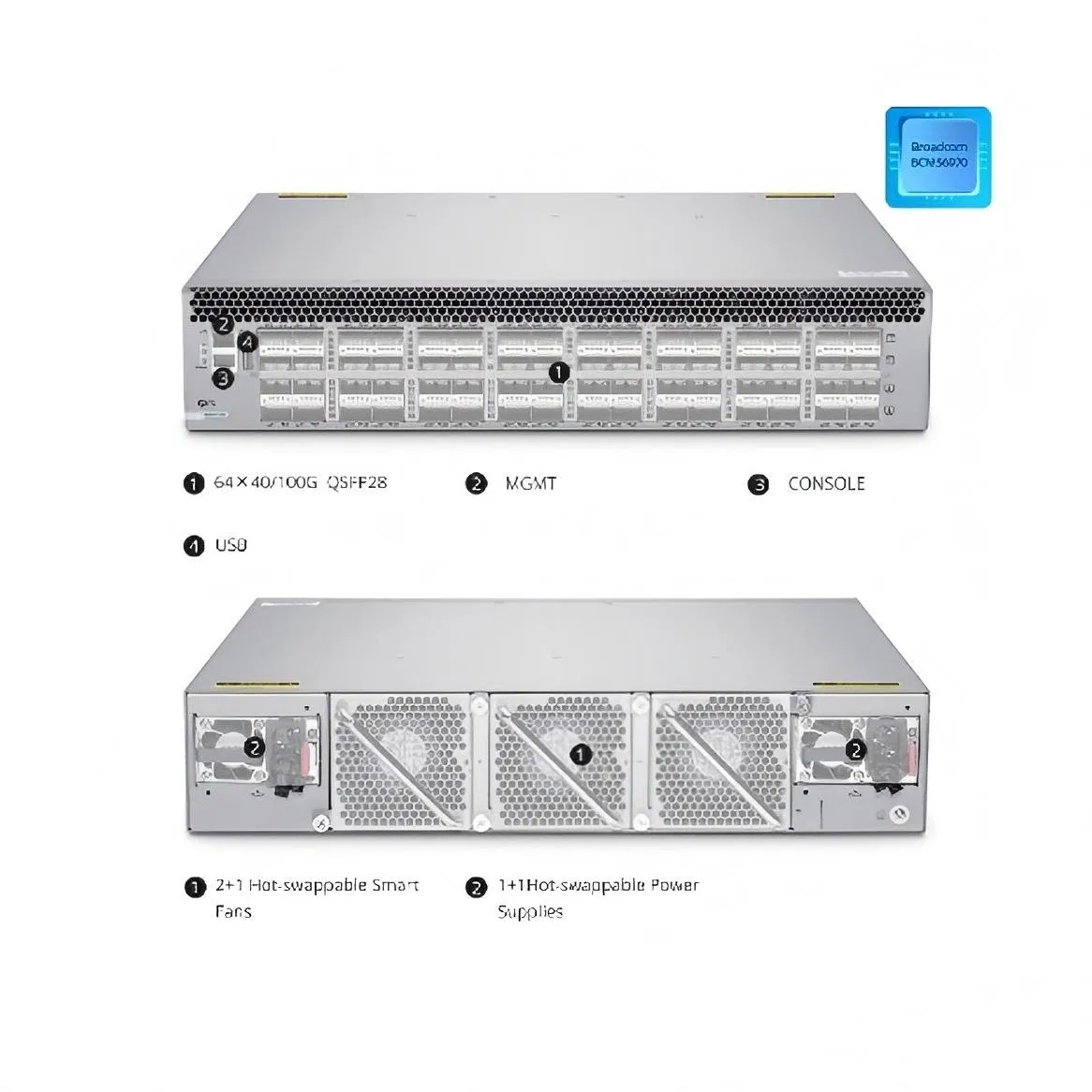

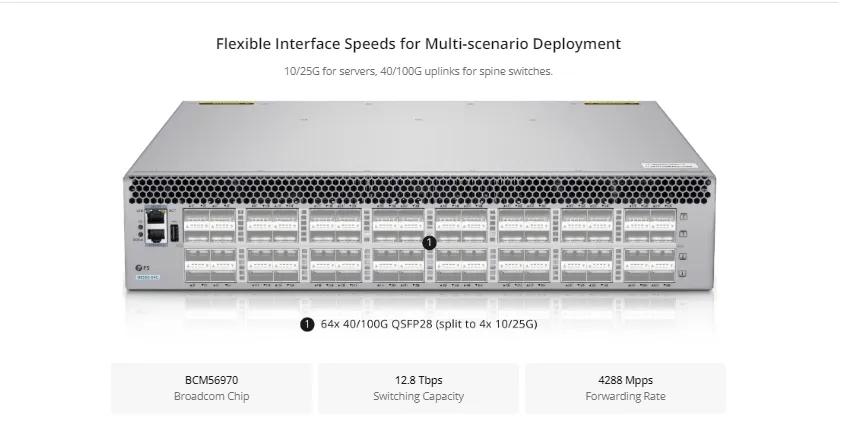

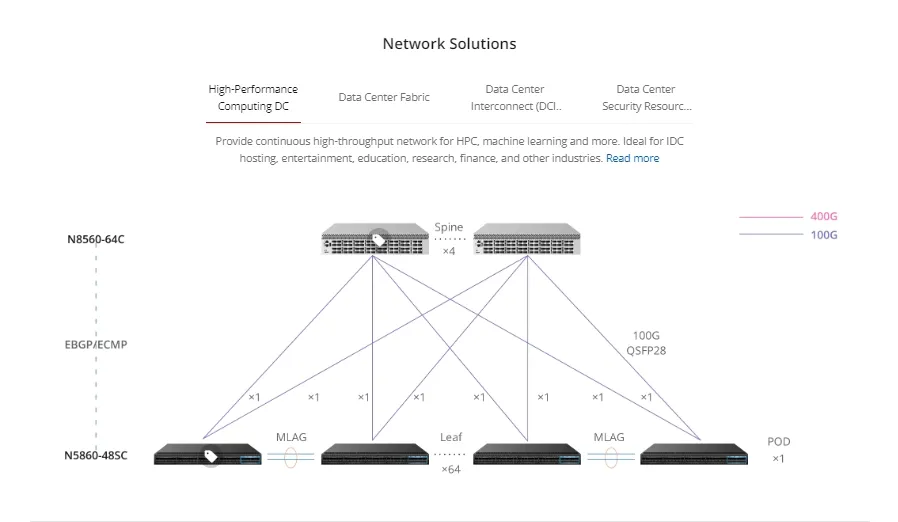

The N8560-64C 64-port 100GbE data center switch provides line-rate L3 switching across the 64x QSFP28 ports. The QSFP28 ports can be configured as 40/100GbE, or as 4x 25GbE or 4x 10GbE via breakout cables. The 2U switch can be deployed as a top-of-rack (ToR) switch supporting 10/25GbE to servers with 40/100GbE, or as a spine switch supporting 40/100GbE spine interconnects.

This switch supports PFC, DCBX and ECN to deliver low-latency, zero packet loss, non-blocking lossless Ethernet. It supports features like GR, BFD mechanisms to ensure normal operation during abundant services and heavy traffic, designed specifically for cloud data centers.

⚙️

Technical Specification

Ports	64x 100G QSFP28	Switch Chip	BCM56970
CPU	Cavium CN7230 (Quad-core, 1.5 GHz)	Number of VLANs	4K
Switching Capacity	12.8 Tbps	MAC Address	72K
Forwarding Rate	4288 Mpps	Jumbo Frame	9,216
SDRAM	4GB	ARP Entries	90,000
Packet Buffer	42MB	Latency	<1μs
Power Supplies	2 (1+1 Redundancy)	Max Consumption	<600W

🌟

Product Spotlights

✔ Flexible 10/25/40/100GbE Interface Speeds

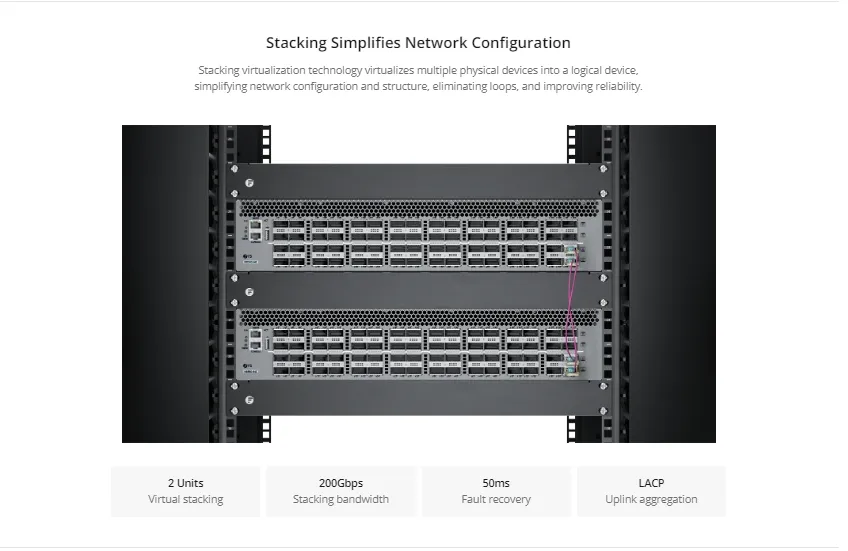

✔ Support MLAG/Stacking, BGP4/BGP4+, REUP, GR, BFD

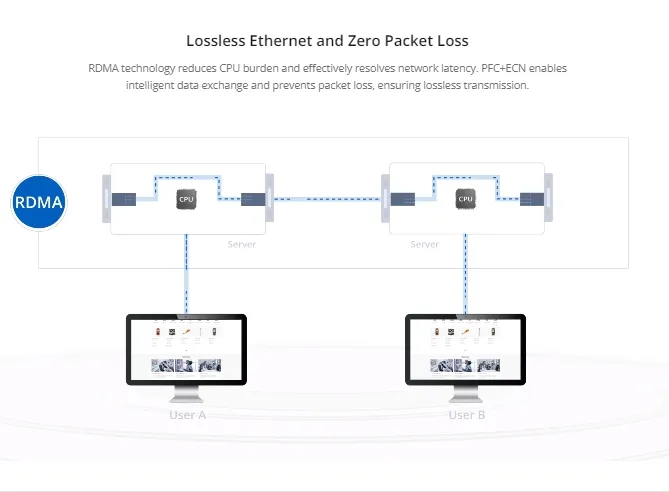

✔ RDMA over Converged Ethernet Lossless (PFC and ECN)

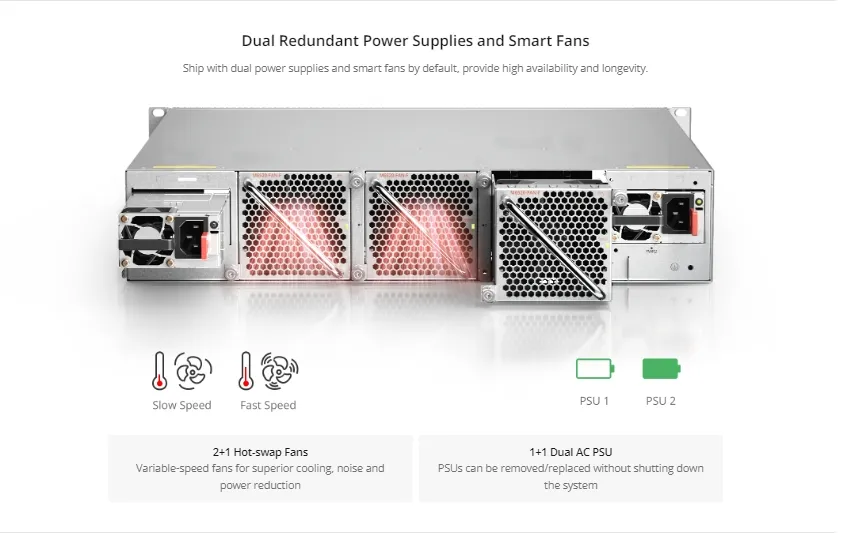

✔ 1+1 Hot-swappable Power Supplies, 2+1 Smart Fans

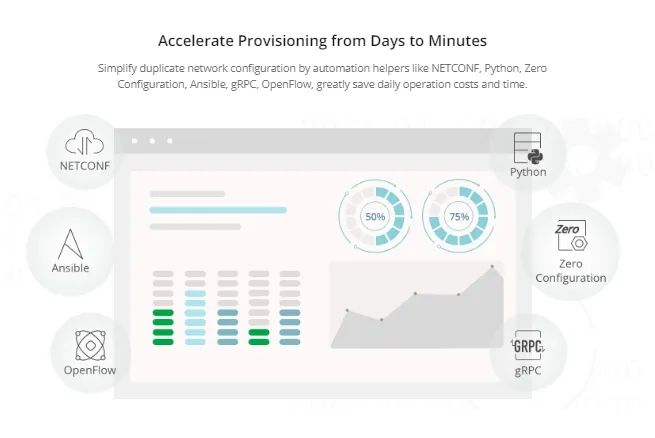

✔ Support Ansible, OpenFlow, NETCONF Automation Tools

✔ In-band Network Telemetry (INT) for Visibility

🖼️

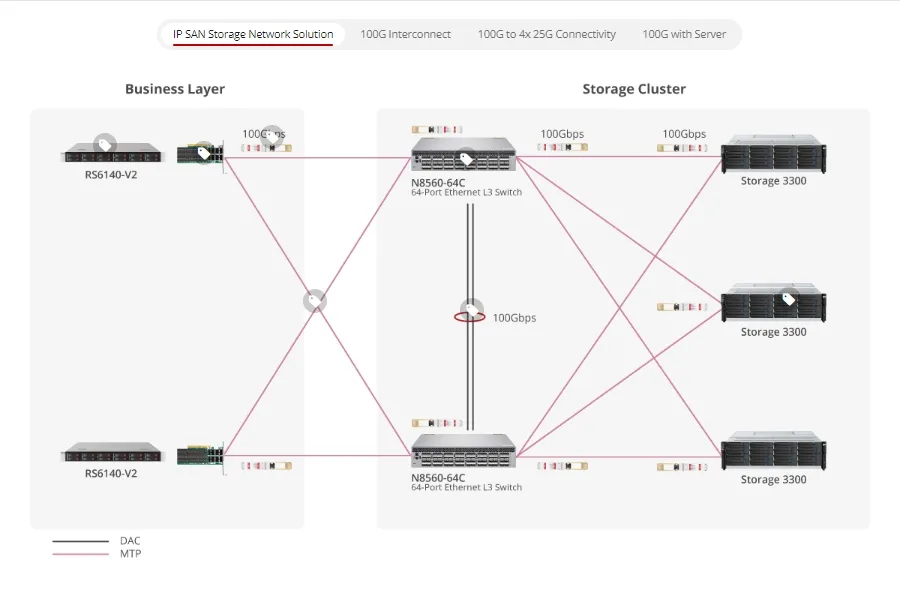

Connectivity & Visuals

🏭

Manufacturing Excellence

❓

Frequently Asked Questions

What are the primary applications for the N8560-64C switch?

It is primarily designed for high-density 100GbE cloud data centers, serving as either a Top-of-Rack (ToR) switch for 10/25GbE servers or a Spine switch for 40/100GbE interconnects.

Does this switch support low-latency requirements?

Yes, with a packet buffer of 42MB and latency of less than 1μs, combined with PFC and ECN support, it ensures lossless, low-latency Ethernet performance.

How many 100G ports are available?

The switch features 64 x 100G QSFP28 ports, all of which can be configured for different speeds including 40GbE or breakout into 10/25GbE.

Is the power supply system redundant?

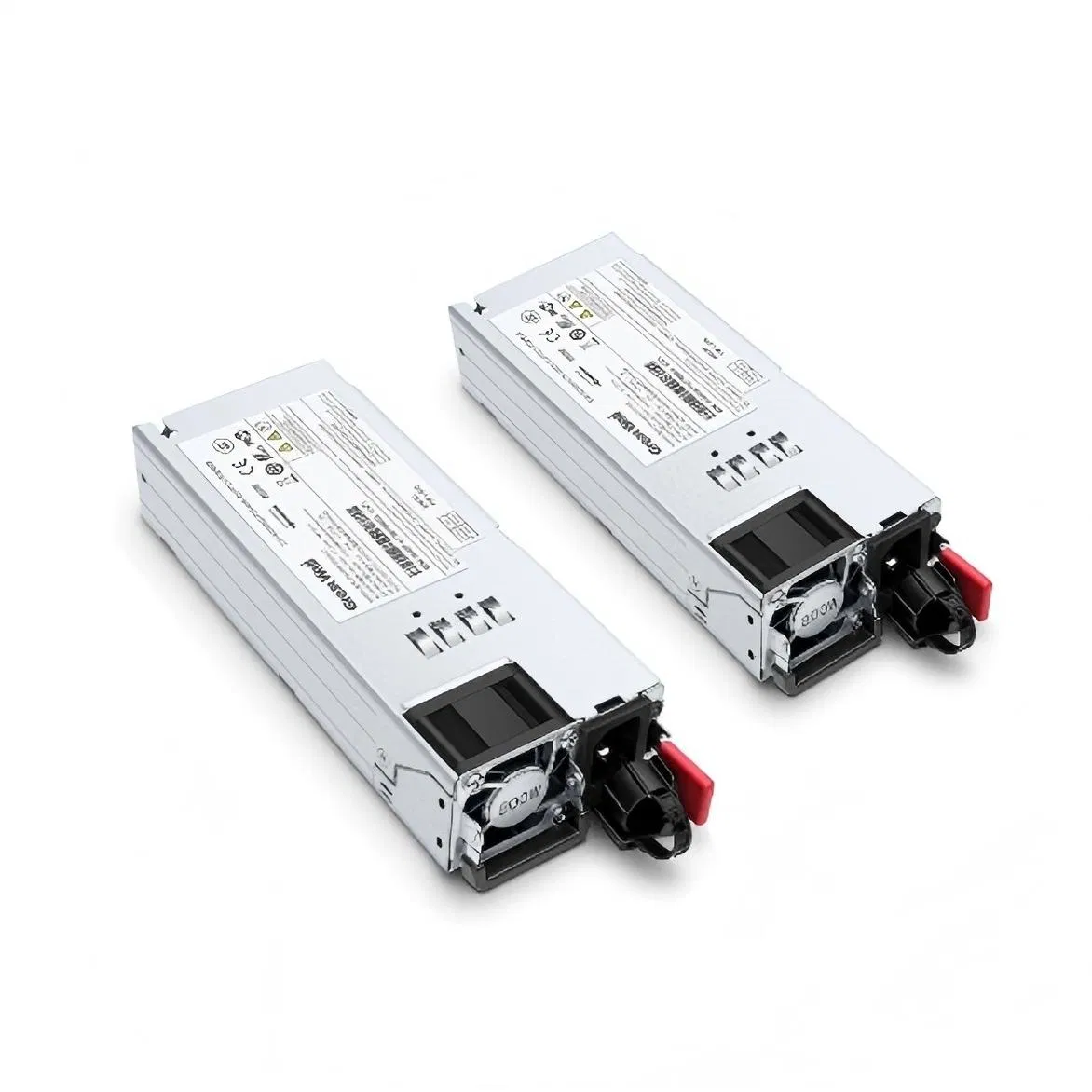

Yes, it comes with 1+1 hot-swappable AC power supplies and 2+1 smart redundant fans for high availability.

What network management protocols are supported?

It supports a wide range of management tools including SNMP v1/v2/v3, CLI, Telnet, SSH, and automation tools like Ansible and NETCONF.
