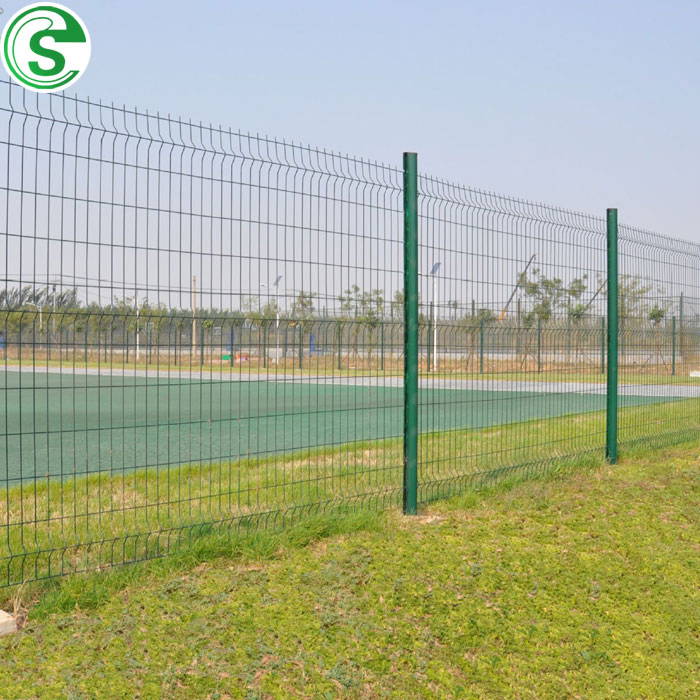

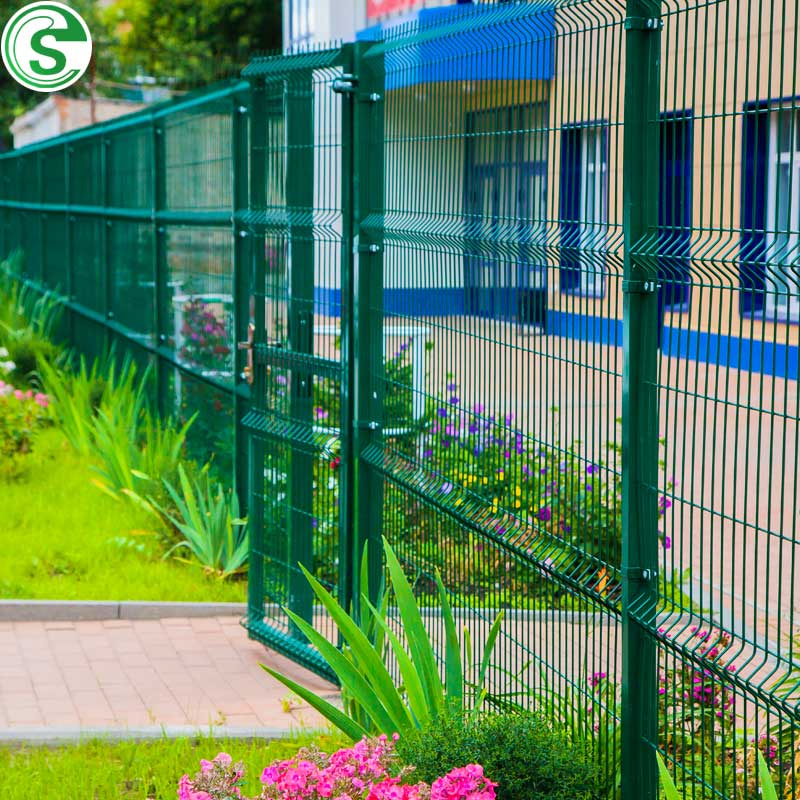

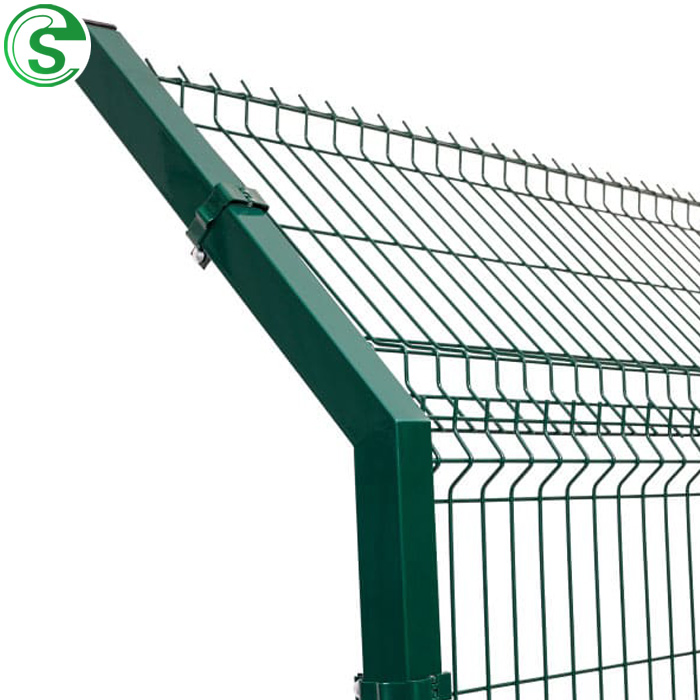

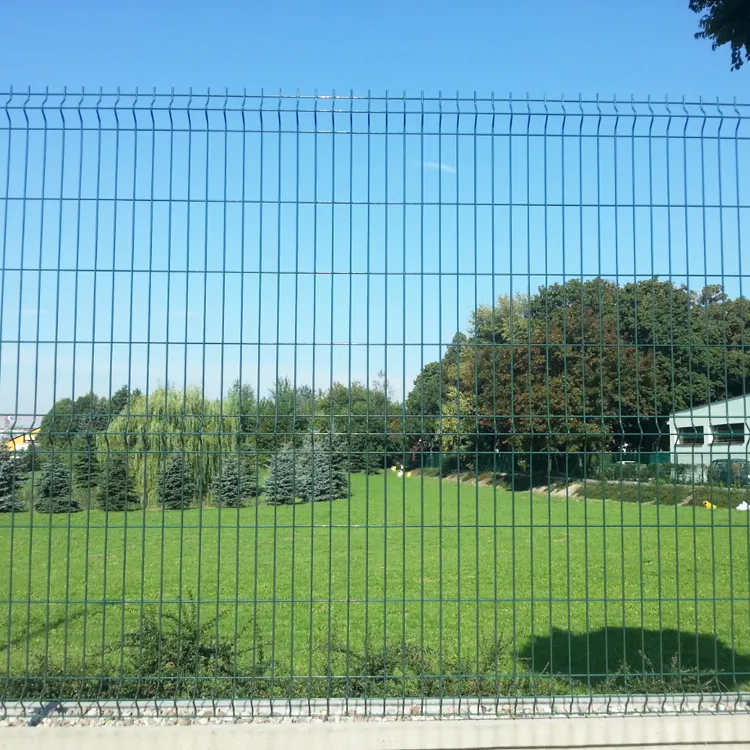

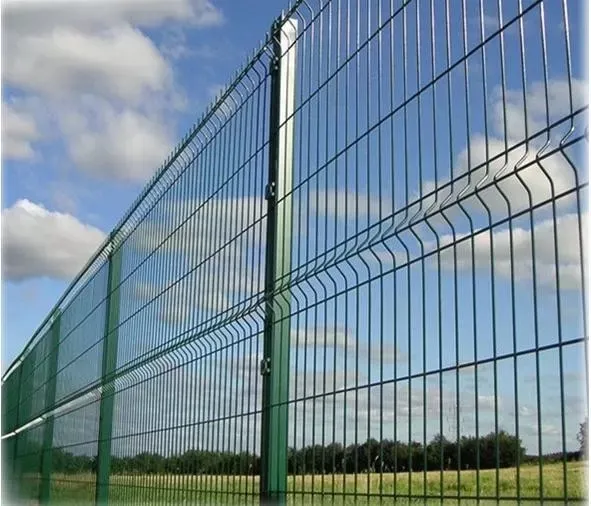

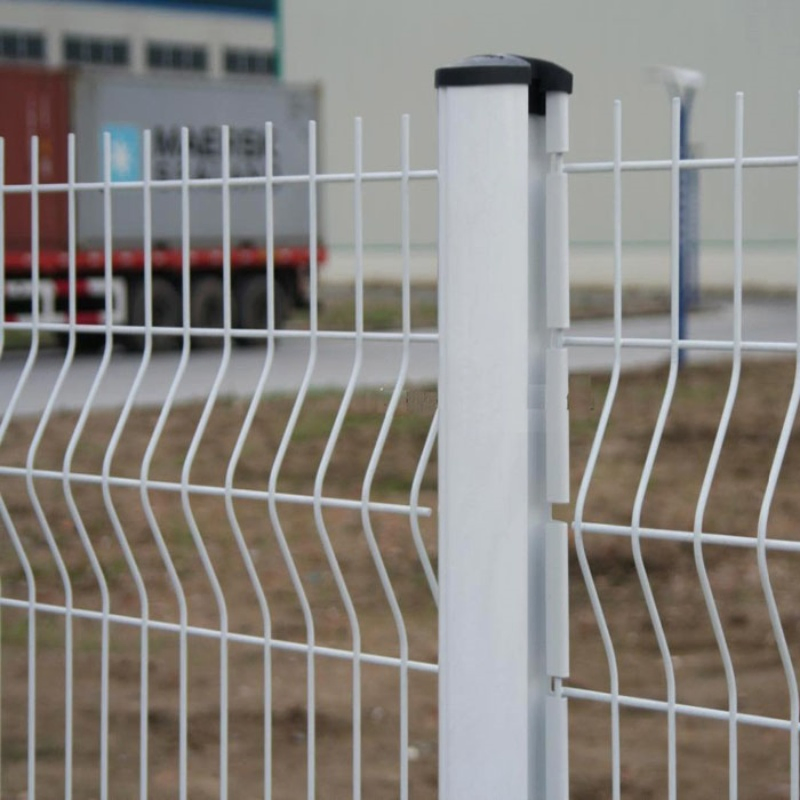

Industry Fencing Wire Mesh Fence Panels 3D Fence with Square Post
Curvy Welded Mesh Fence are made of high strength welded wire mesh, can be used with various types of columns. This fence is not only of aesthetic appeal, but also 3D fence pattern provides strong, durable and flexible construction. The closely spaced wire mesh Fence construction gives your fence linear strength, mesh and post's connection mode is diversified, and it's convenient and quick to install.
| Height(mm) | 1000; 1200; 1500; 1800; 2000; 2200; 2500; 3000 |
| Post distance(mm) | 1500; 2000; 2500; 3000 |
| Wire diameter(mm) | 3.5; 4.0; 4.5; 5.0; 5.5; 6.0 |
| Mesh size(mm) | 50*100; 50*150; 50*200; 60*120; 65*200; 75*150 |
| Post(mm) | 50*50; 60*60; 80*80; 40*60; 40*80; 50*70; 70*100 |

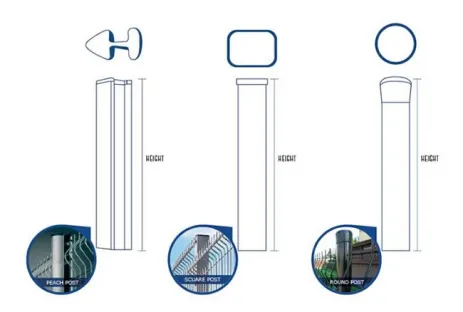

| Optional post | square post, round post, peach post, I post, trapezoid post |
| Surface treatment | PVC coated; Powder coated; Hot galvanized |
Material: Galvanized wire, galvanized steel
Surface treatment: Powder coated in a colour of your choice

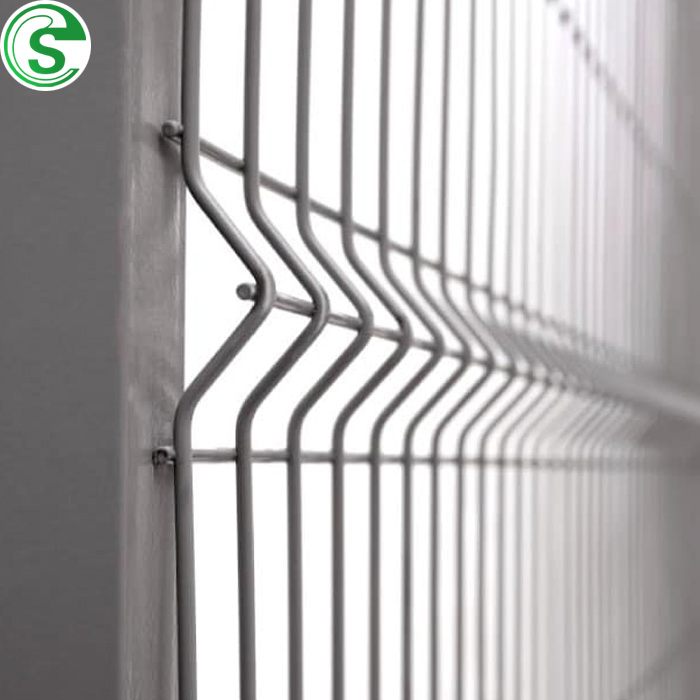

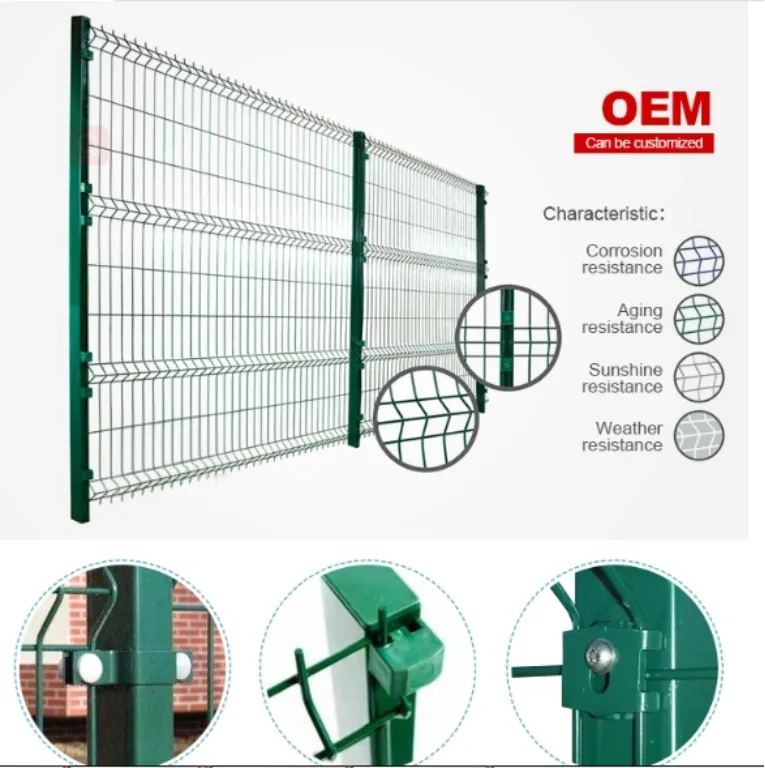

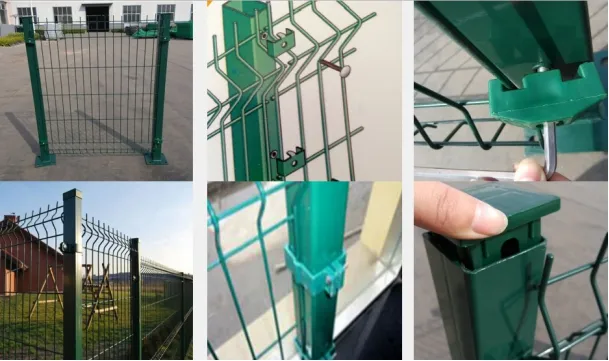

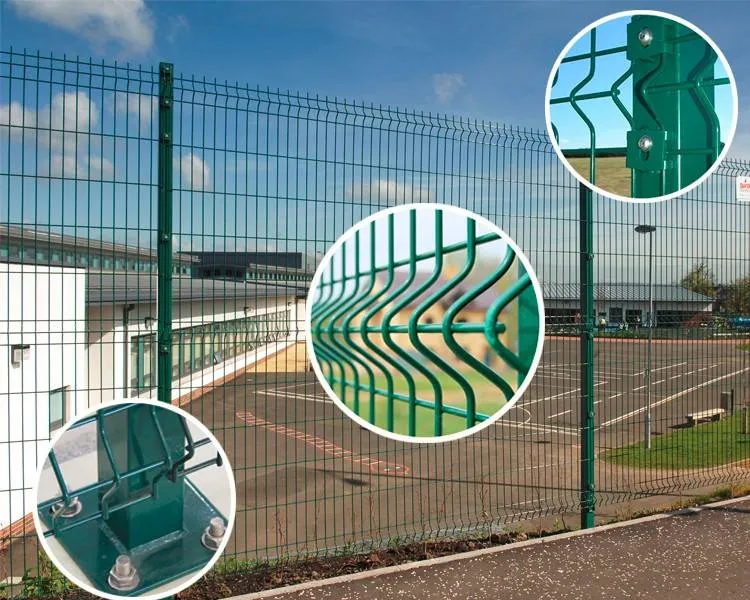

Triangle bending wire mesh fence panel + Square post + Clamp (plastic M clamp/plastic square clamp/Metal Claw Clamp) + plastic rain hat. We have different clamps and posts, which can be matched as per customer requirement.

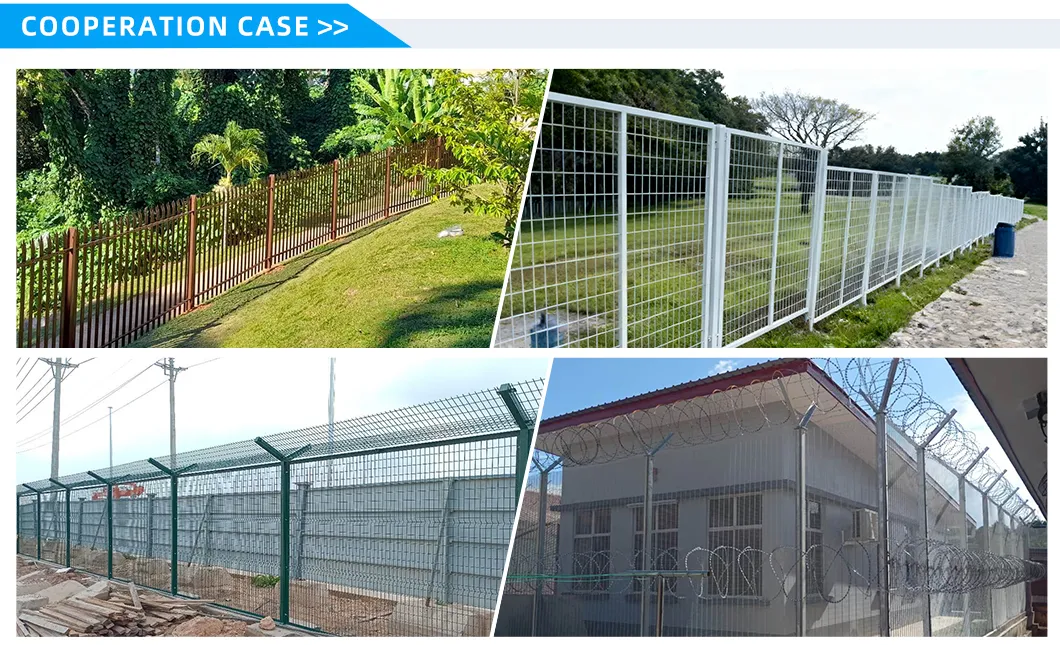

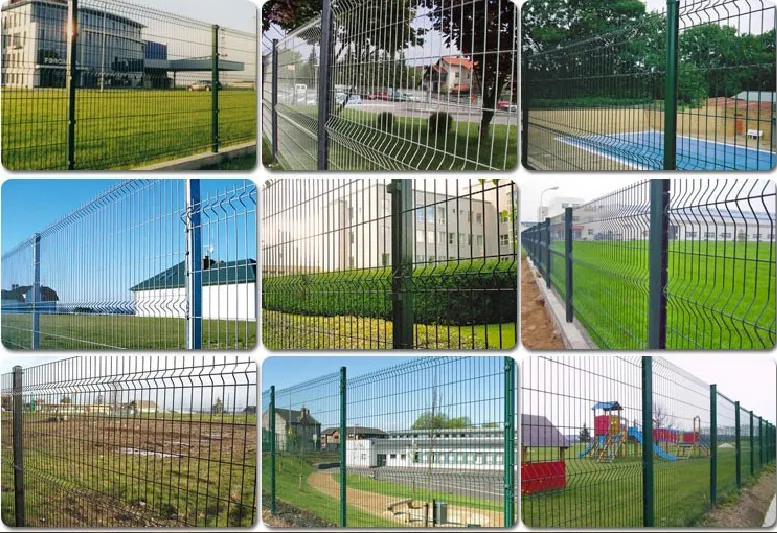

Factory, warehouse, sites, railways, roads, airports, garden, yard, for perimeter of a project.
