Hpc Prefabricated Modular Container Data Center All-in-One

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

📋 Basic Information

Model NO.

CDC

Type

Air-Cooled

Cooling Water

Industrial Water

System Type

Open System

Fans Species

Frequency Fan

Noise Level

Ultra Low

Application

Electronics

Certification

RoHS

7 Systems (A)

Container/Cooling/Rack

7 Systems (B)

UPS/DCIM/Fire Protection

Medium

Water/Oil/Glycol

Ambient Temp

25 - 60 Degree C

Dimensions

10 FT/ 20FT/ 40FT

Power Supply

380V/3p/50Hz

🚀 Introduction

Professional dry air cooler for bitcoin immersion cooling system, condenser, and evaporator solutions with extensive HVAC experience.

Container Data Center Solution: Adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.

⭐ Key Features

⚙️

Tailored Customization We provide customized container data centers including system availability, protection capabilities, container size, power supply standards, and cooling types.

⏱️

Rapid Deployment Pre-integrated infrastructure (UPS, cooling, racks) tested and configured in-factory. Simple on-site installation with delivery as fast as 40 days.

🛡️

Safe and Reliable Meets IP55 (up to IP65). Corrosion, fire, explosion, and bulletproof capabilities. Equipped with fire protection, access control, and video surveillance.

🔄

Continuous Operation High availability power distribution and cooling designs ensure continuous online operation for critical business needs.

📏 Multiple Sizes & Solutions

10ft Cabinet Solution

20ft Cabinet Solution

40ft Cabinet Solution

Dual Bay Solution

Multi Containers Solution

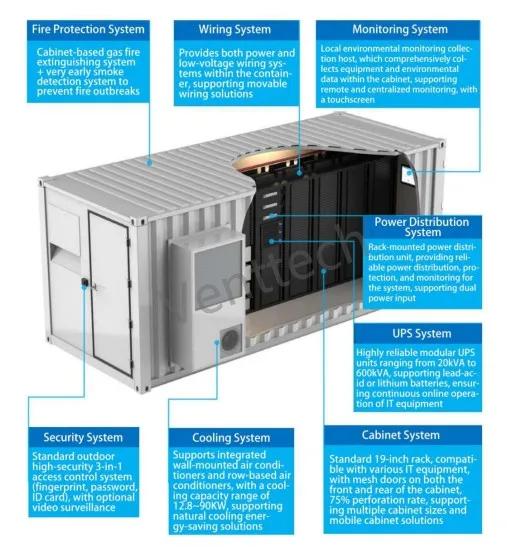

🛠️ System Components

1. Container Construction

ISO standard scratch build
Salt spray standard: 750h
Thermal protected with rock wool
IP55 water/dust protection
Operating temp: -40ºC~55ºC

2. Precision Cooling

5.5-31.5kW wall mount standard
5.6-90kW Inrow cooling options
5.5-122.9kW Room cooling options
Works up to 55C ambient

3. UPS Power System

3-60kVA rack UPS standard
60-600kVA modular UPS options
VRLA / Lithium battery configuration
T1~T4 uptime level configurable

4. DCIM & Security

Full communication with all sensors
Integration with access control & video
Early fire detection (Novec1230/FM200)
Remote access (Web, SMS, Email)

🛡️ Multiple Protective Cabinet Design

• Waterproof • Moisture-Proof • Salt Spray Protection • Mold Prevention • Heat Insulation • Seismic Resistance • Explosion Protection

📦 Logistics & Service

Professional Packing & Shipping

Comprehensive Service Support

Frequently Asked Questions

Q1: What is a Container Data Center (CDC)?

A: It is a prefabricated modular data center solution that uses a standard shipping container as the shell. It integrates IT racks, cooling, UPS, and monitoring systems for rapid deployment.

Q2: How fast can a unit be delivered and deployed?

A: All components are pre-integrated and tested in the factory. On-site installation is simple, and delivery can be as fast as 40 days from the order date.

Q3: What environments are these containers suitable for?

A: They are designed for extreme conditions, with an operating temperature range of -40ºC to 55ºC and IP55 to IP65 protection levels, including salt spray resistance for coastal sites.

Q4: Can the cooling system be customized for high-density computing?

A: Yes, we offer various precision cooling options including wall-mount, Inrow, and Room cooling, with capacities ranging from 5.5kW up to 122.9kW.

Q5: What security features are included?

A: The systems include IP55/IP65 protection, fire detection/suppression (Novec1230/FM200), access control (PIN/Fingerprint), and optional bulletproof or explosion-proof construction.

Q6: What sizes of containers are available?

A: We offer standard 10ft, 20ft, and 40ft containers, as well as dual-bay and multi-container modular solutions to meet different scale requirements.
