High-Performance Shanghai Venttk Container Data Center

1 / 5

High-Performance Shanghai Venttk Container Data Center

Customization:	Available
Cooling Method:	Indirect Cooling
Certification:	RoHS, ISO

Send Inquiry

Product Description

Technical Specifications

Model NO.

Customized

Condition

New

Multiple Sizes

10FT / 20FT / 40FT

Transport Package

Wooden Box

Specification

Customized

Container Data Center Overview

All-in-One Prefabricated Infrastructure

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment. It supports deep customization for clients and is suitable for various specific application scenarios.

Core Features

Tailored Customization

Customized system availability, protection capabilities, container size, power supply standards, and cooling types based on specific project requirements.

Rapid Deployment

Pre-integrated and factory-tested components allow for simple on-site installation, with delivery times as fast as 40 days.

Safe and Reliable

Standard IP55 protection (up to IP65). Built with corrosion resistance, fire resistance, and options for explosion-proof or bulletproof construction.

Continuous Operation

High availability power and cooling designs combined with superior protection ensure client business remains online without interruption.

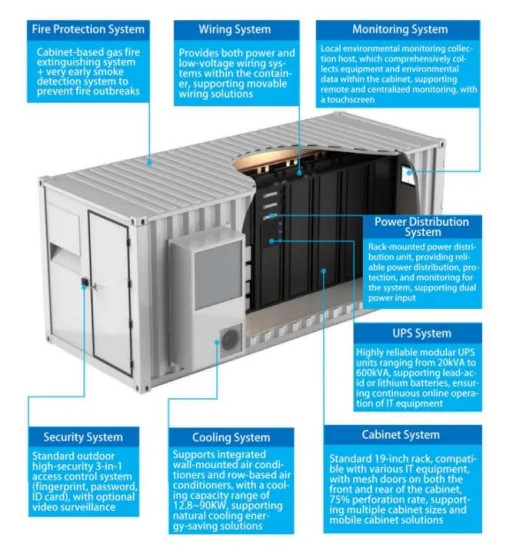

System Components

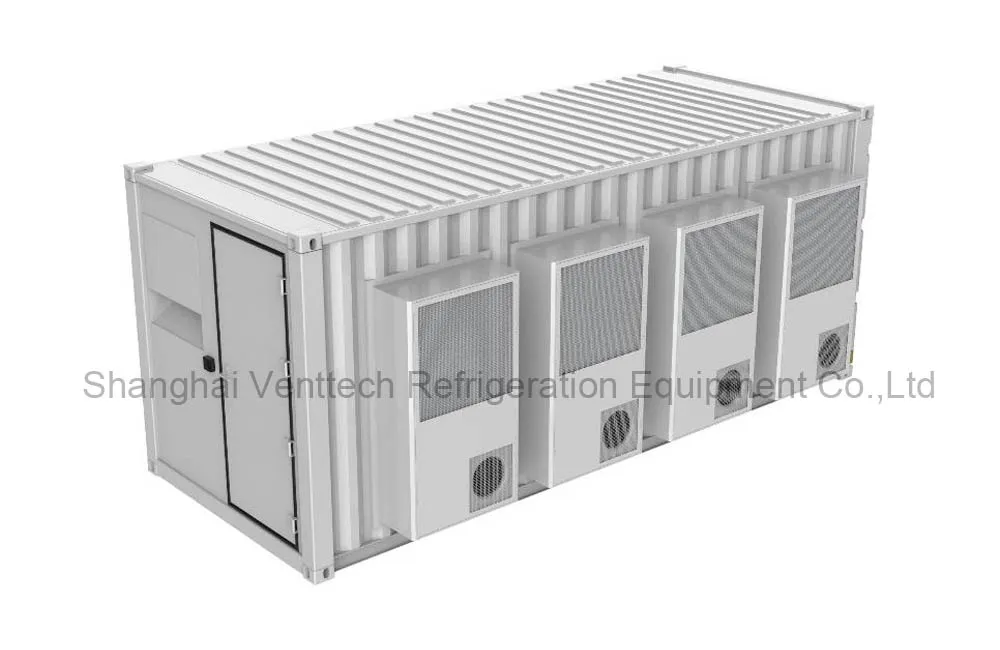

1. Container Construction

Built to ISO container standards with rock wool thermal protection.
Salt spray resistance: 750h; IP55 water/dust protection.
Withstands 30 m/s wind speed; Operating temp: -40ºC to 55ºC.
Options for 120min fire protection, bullet proof, and C5M high corrosion protection.

2. Precision Cooling System

Wall mount cooling (5.5-31.5kW) as standard.
Inrow cooling (5.6-90kW) and Room cooling (5.5-122.9kW) options.
Supports ambient temperatures up to 55°C with free cooling options.

3. IT Rack System

1800kg static loading capacity per rack.
Multiple size options (Width: 600/800mm, Depth: 1100/1200mm).
Cold/hot aisle containment and sliding service access available.

4. UPS Power System

Standard 3-60kVA rack UPS; Modular options up to 600kVA.
VRLA or Lithium battery configurations available.
Power panels configurable to T1~T4 uptime levels.

5. DCIM & Monitoring

Full integration with UPS, cooling, power panels, and sensors.
Local touch screen display (10/21/42 inch).
Remote access via Web, SMS, Email, and Modbus-TCP/SNMP.

6. Specialized Protection

Access Control: IP55 3-in-1 (PIN/Password/Fingerprint).
Fire Protection: Early detection with Novec1230/FM200 agents.
Cabinet Design: Seismic resistance, theft protection, and moisture-proof.

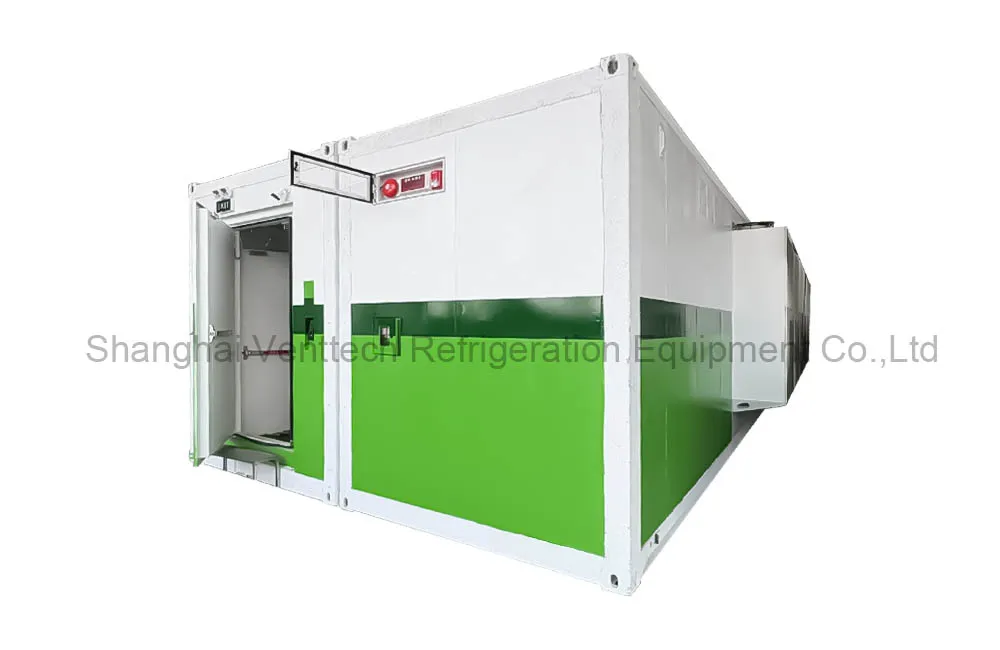

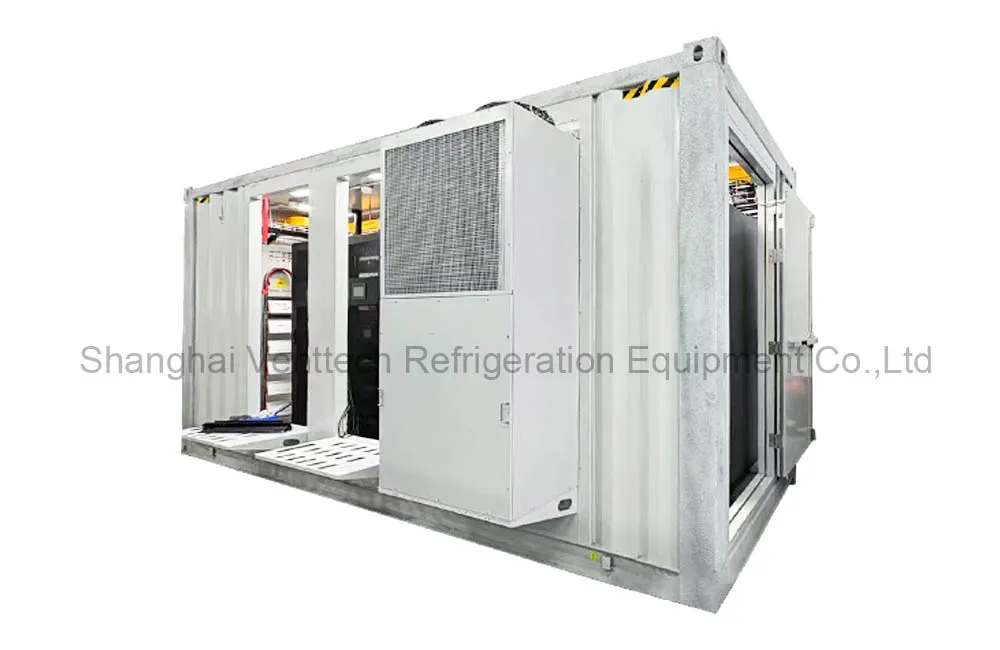

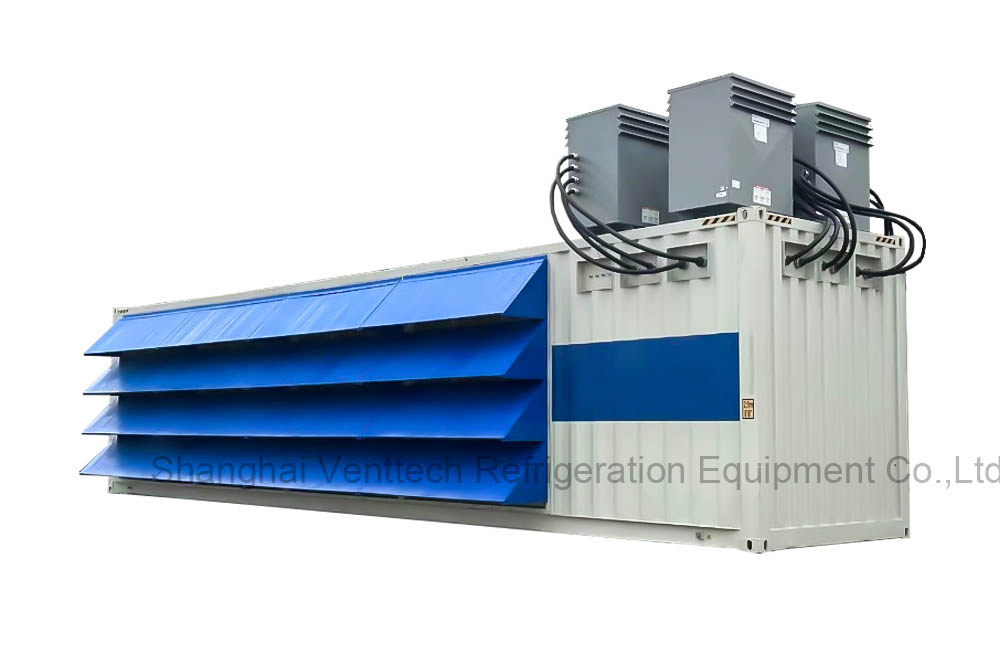

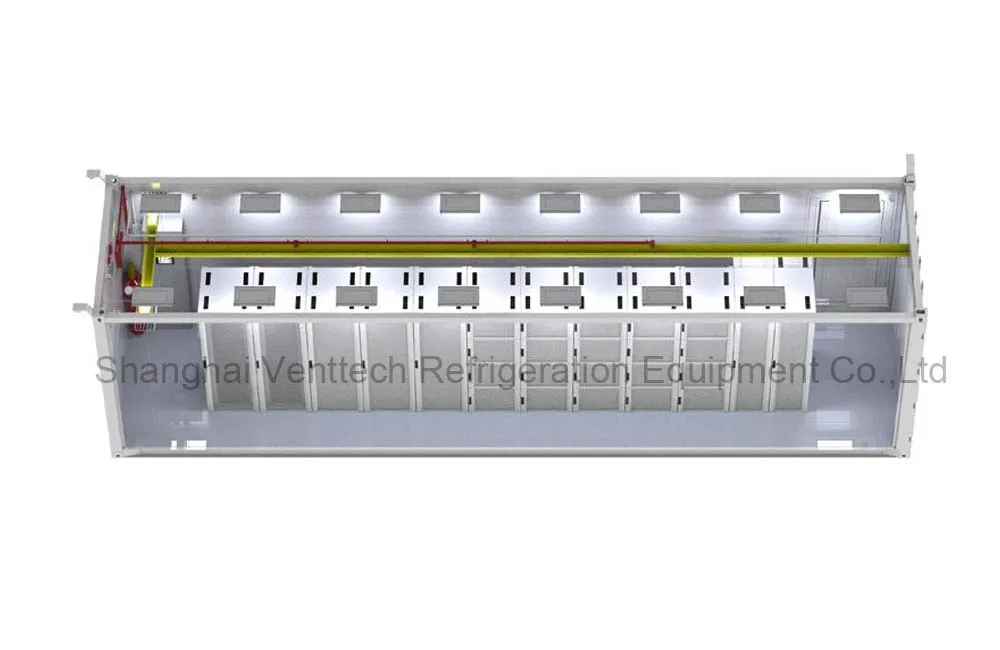

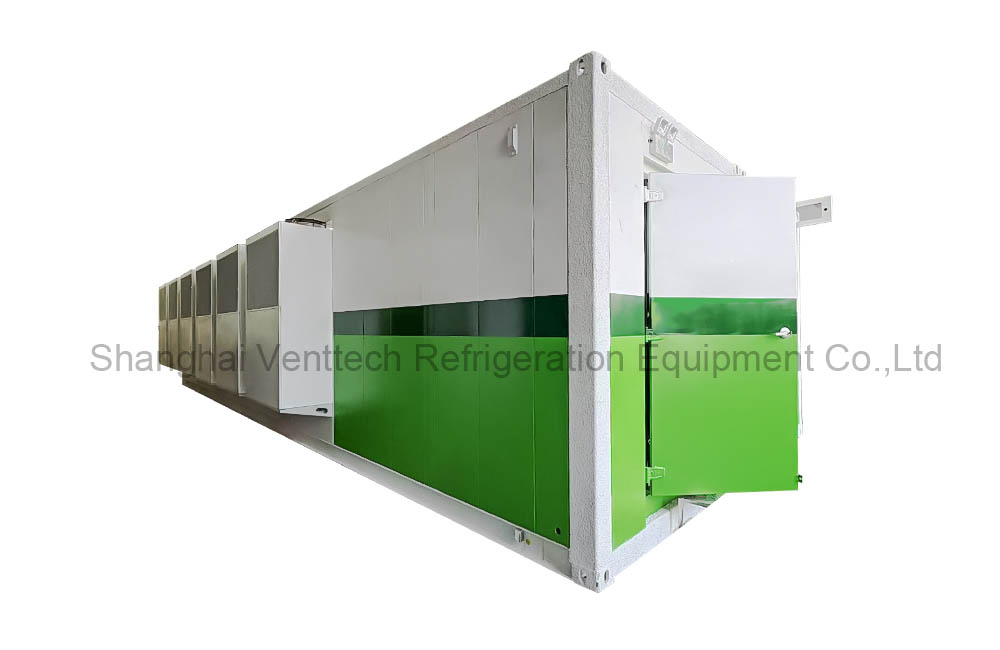

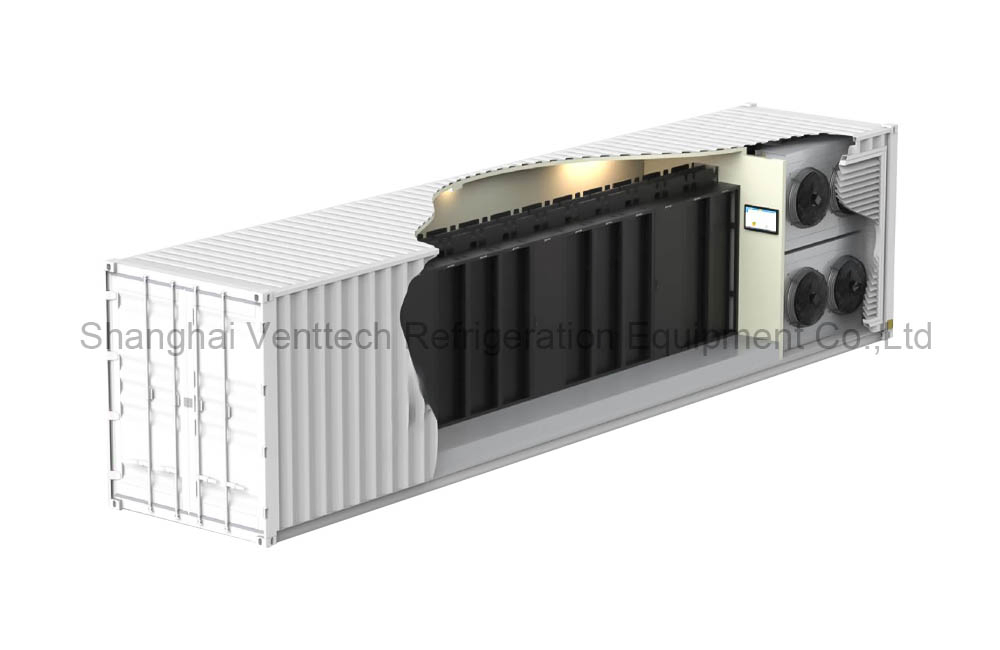

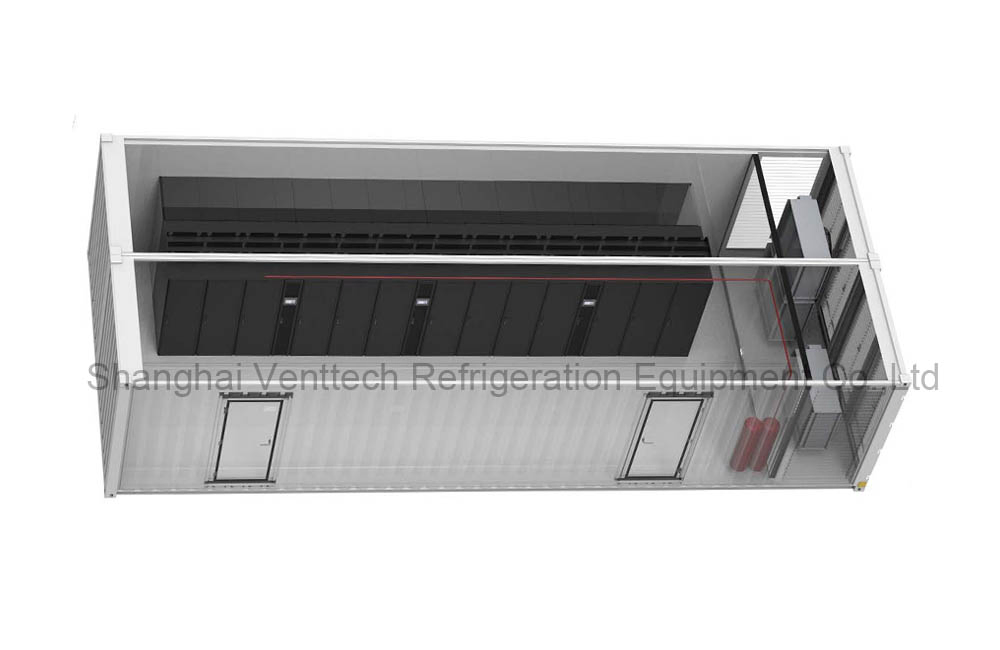

Product Showcase

Frequently Asked Questions

Q1: What container sizes are available for the data center? We provide standard sizes of 10FT, 20FT, and 40FT, all of which can be further customized to meet specific space and equipment requirements.

Q2: How quickly can the container data center be deployed? Because all components are pre-integrated and tested in the factory, we can achieve delivery and rapid deployment in as little as 40 days.

Q3: What is the maximum cooling capacity supported? We offer various cooling options including wall-mount, Inrow, and room cooling, with capacities ranging from 5.5kW up to 122.9kW per unit.

Q4: Does the container protect against harsh outdoor environments? Yes, our containers meet IP55 standards as baseline, with IP65 options available. They feature salt spray protection, seismic resistance, and can operate in temperatures ranging from -40ºC to 55ºC.

Q5: What kind of fire suppression systems are used? Units are equipped with smart fire panels and early detection systems using advanced fire suppression agents such as Novec1230 or FM200.

Q6: Can the power system be managed remotely? Absolutely. The integrated DCIM system allows for full remote monitoring and settings via Web interface, SMS, Email, and Modbus-TCP.
