Good Sale Shanghai Venrttk Containerized Data Centers

Customization:	Available
Cooling Method:	Indirect Cooling
Certification:	RoHS, ISO

Send Inquiry

Product Description

Basic Information

Model NO.

Customized

Condition

New

Multiple Sizes

10FT/20FT/40FT

Transport Package

Wooden Box

Specification

Customized

Product Overview

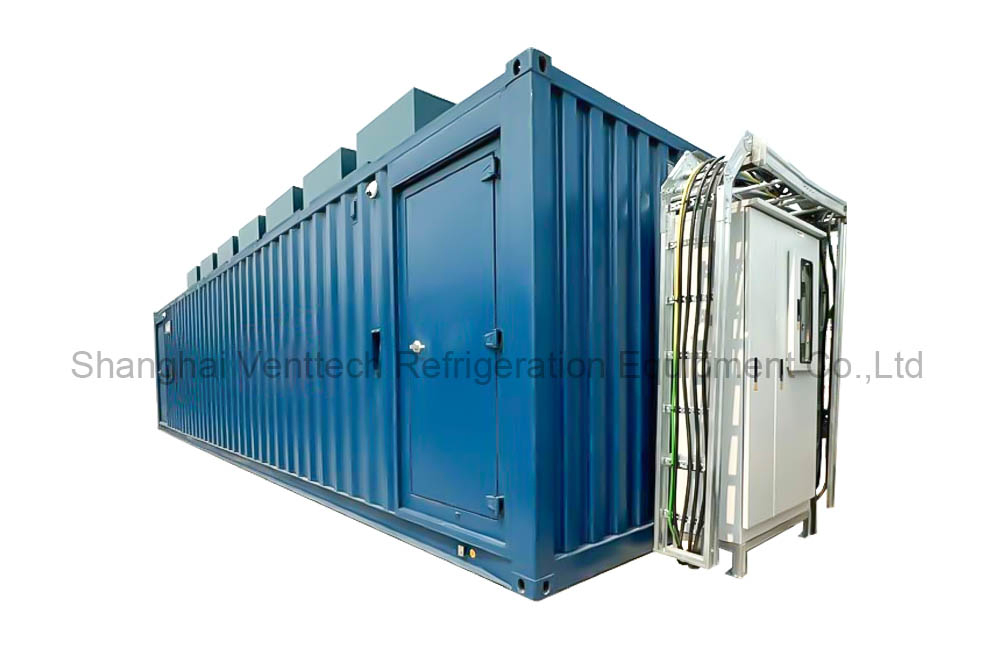

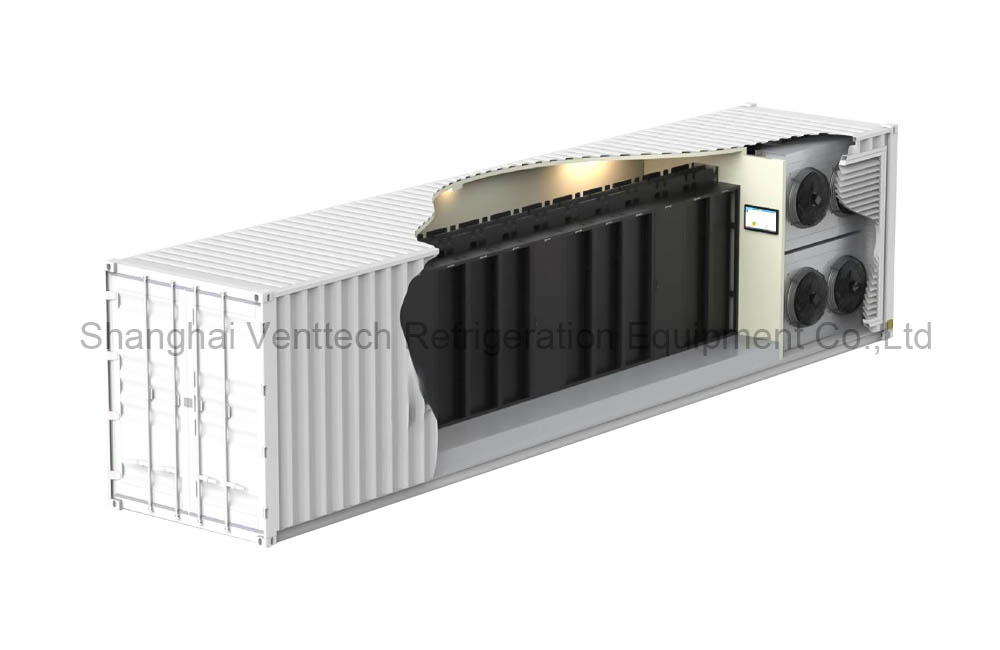

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment. It supports deep customization for clients and is suitable for various specific application scenarios.

Core Features

⚙️ Tailored Customization

Providing customized containers including system availability, protection capabilities, size, power supply standards, and cooling types based on special requirements.

⚡ Rapid Deployment

Pre-integrated components tested in-factory allow for simple on-site installation, with delivery as fast as 40 days.

🛡️ Safe and Reliable

Meets IP55/IP65 protection levels with corrosion resistance, fire resistance, and optional explosion-proof or bulletproof capabilities.

🔄 Continuous Operation

High availability power distribution and cooling designs ensure continuous online operation of client business services.

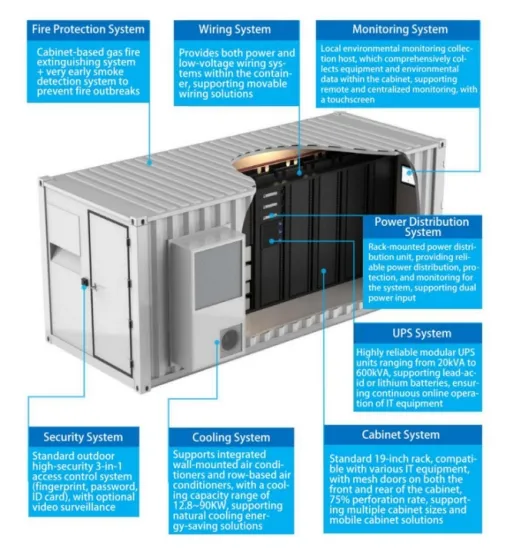

System Components

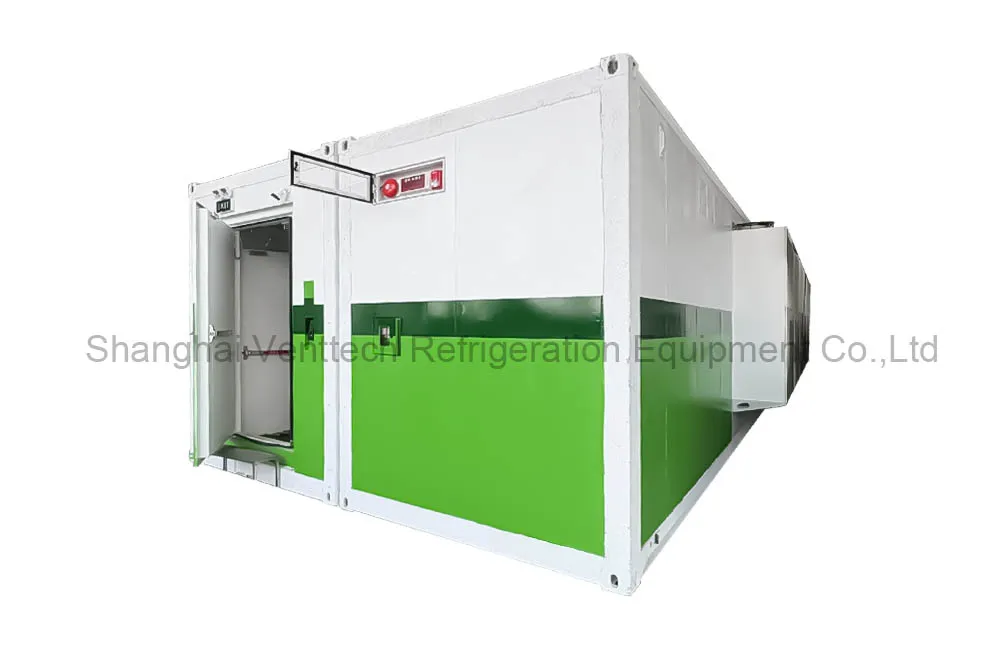

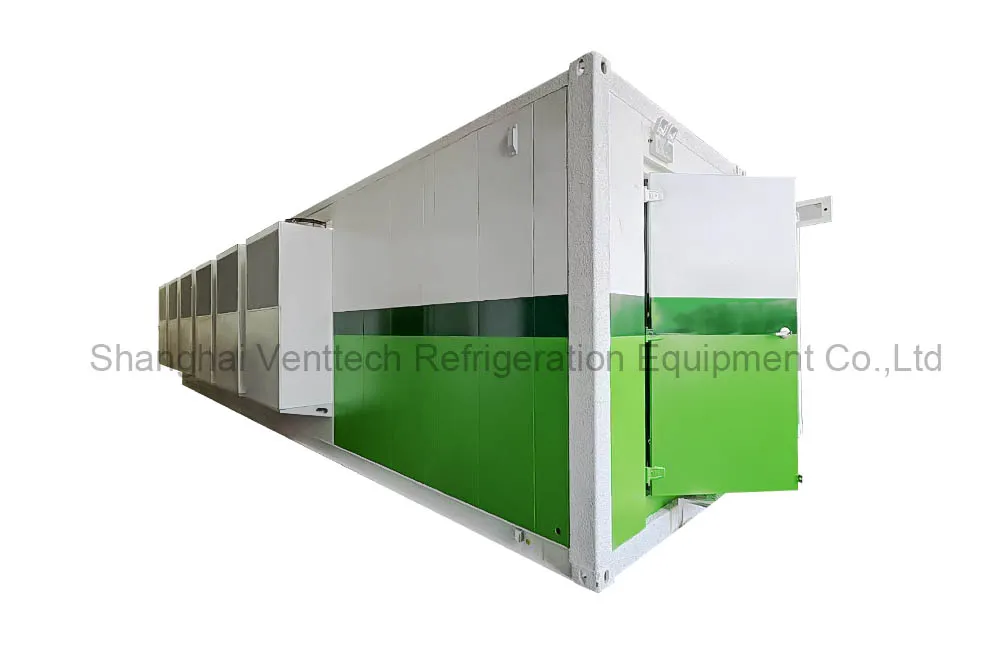

Container Construction

Built to ISO container standards with IP55 water/dust protection.
Thermal protection with rock wool and salt spray resistance (750h).
Withstands 30 m/s wind speed; Fire protection options up to 120min.
Operating temperature range: -40ºC to 55ºC.

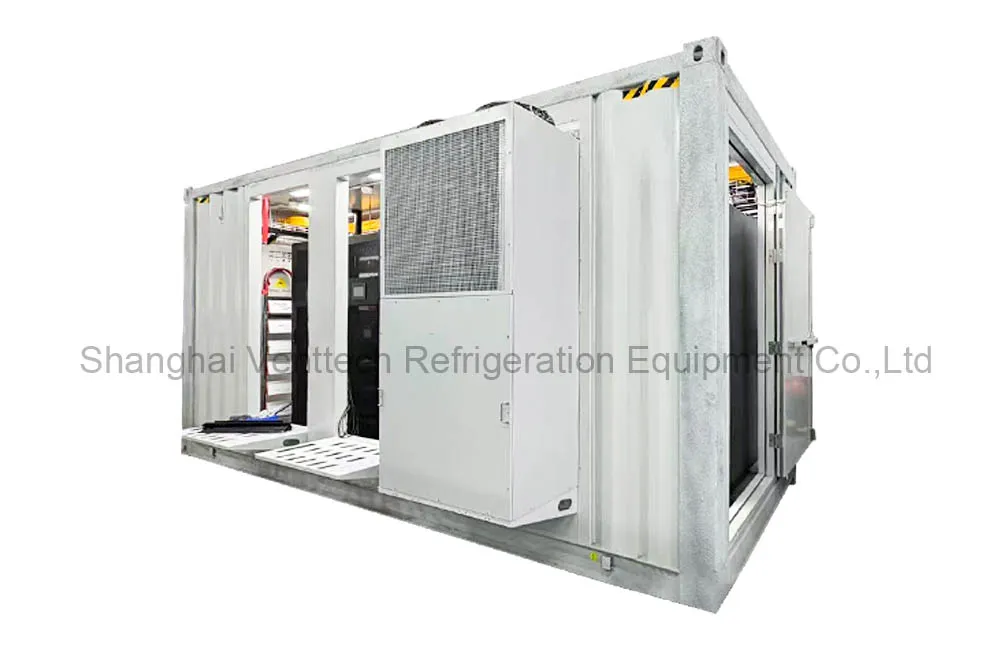

Precision Cooling System

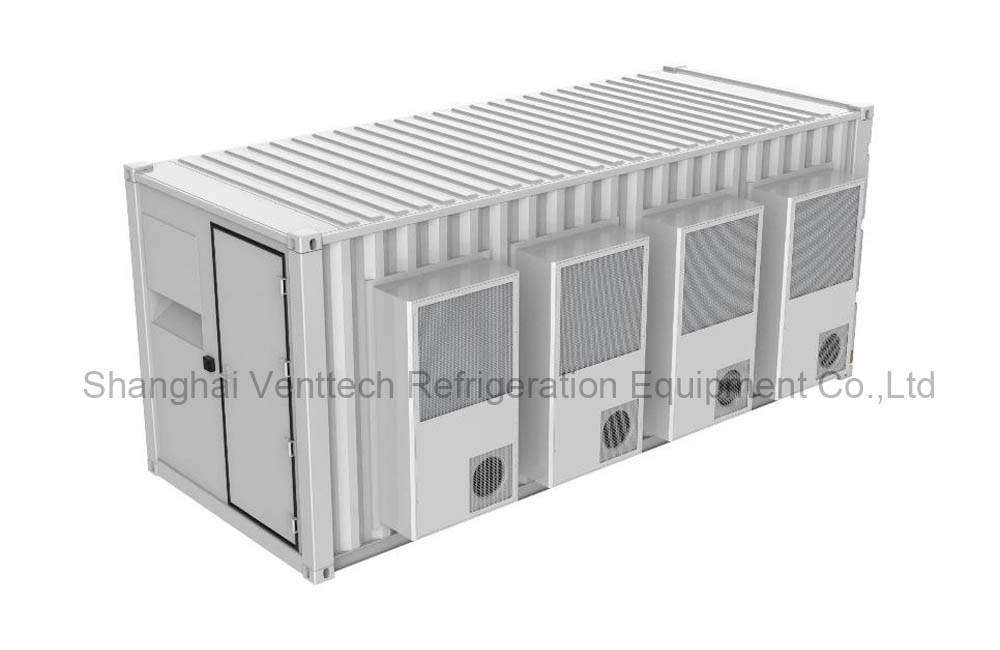

Standard 5.5-31.5kW wall mount cooling.
Inrow cooling options (5.6-90kW) and Room cooling options (5.5-122.9kW).

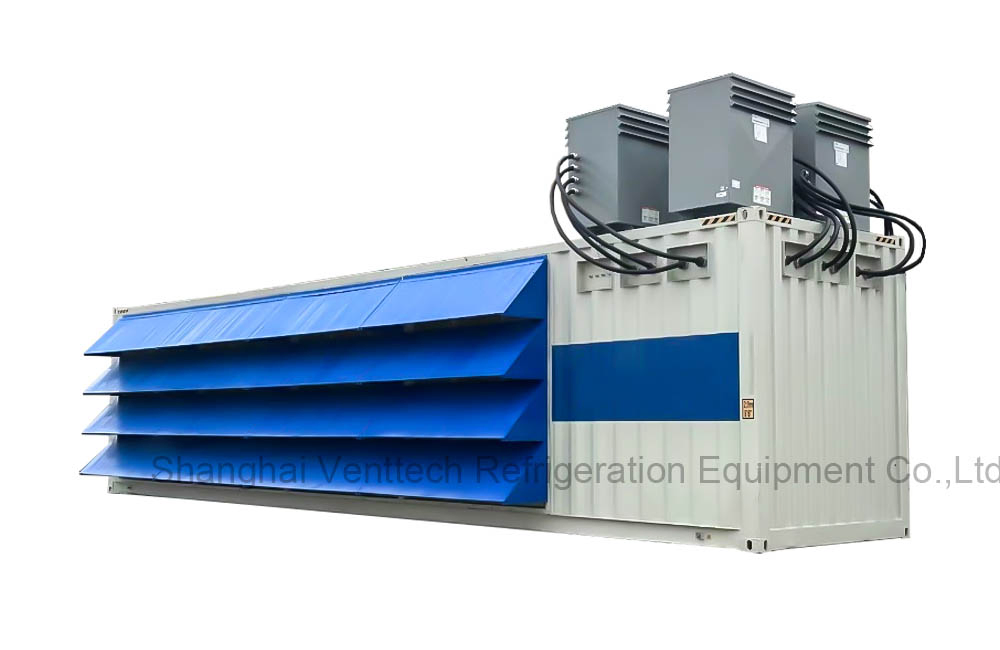

All types of free cooling options for various ambient temperatures.

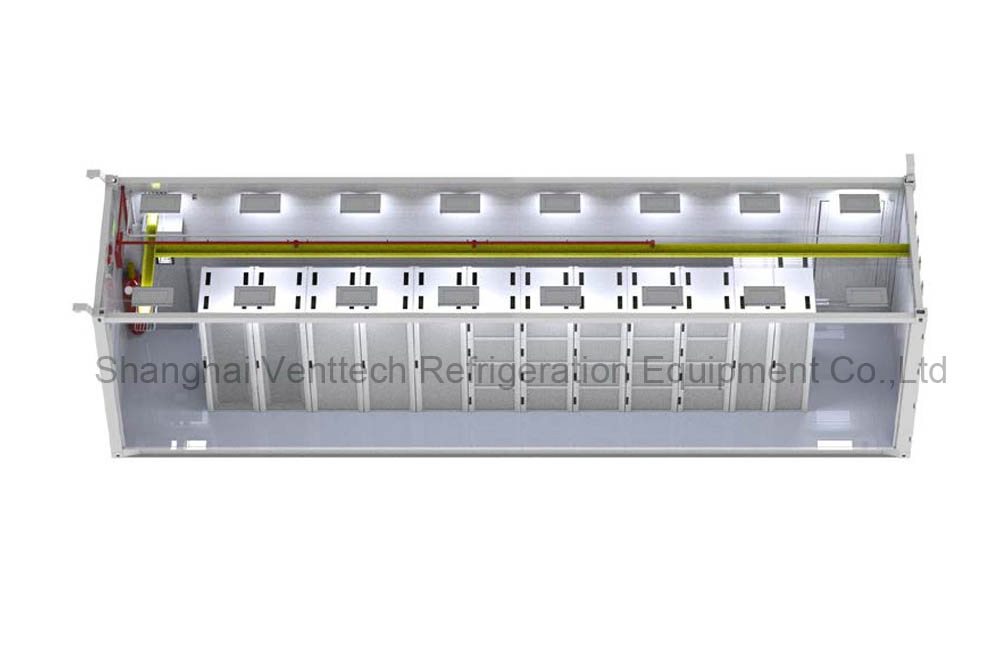

IT Rack & UPS Power

1800kg static loading capacity IT racks with optional cold/hot aisle containment.
UPS options from 3kVA rack units up to 600kVA modular floor mounts.
VRLA or Lithium battery configurations available.

DCIM & Security

Full communication with UPS, cooling, and sensors via touch screen or remote web/SMS.
3-in-1 Access Control (Pin/Password/Fingerprint) and video surveillance integration.
Early fire detection and gas suppression (Novec1230/FM200).

Protective Cabinet Design

● Waterproof & Moisture-Proof

● Salt Spray Protection

● Mold Prevention

● Fire & Heat Insulation

● Seismic Resistance

● Theft & Explosion Protection

Frequently Asked Questions

1. How fast can a container data center be delivered? Our prefabricated model allows for extremely fast deployment, with delivery times starting from as little as 40 days depending on the level of customization.

2. What protection standards do the containers meet? The standard units meet IP55 protection. We also offer customization for IP65, corrosion resistance (C5M), fire protection up to 120 minutes, and bulletproof options.

3. Can the data center operate in extreme climates? Yes, the systems are designed to operate reliably in ambient temperatures ranging from -40ºC to 55ºC, making them suitable for both arctic and desert environments.

4. What type of cooling systems are available? We provide multiple options including wall-mounted cooling (5.5-31.5kW), Inrow cooling (up to 90kW), and large-scale room cooling (up to 122.9kW), along with various free cooling solutions.

5. Are the IT racks and power systems customizable? Absolutely. We offer various rack dimensions, UPS power systems from 3kVA to 600kVA, and your choice of VRLA or Lithium battery configurations.

6. How is the system monitored? Every unit includes a comprehensive DCIM system that integrates UPS, cooling, security, and fire systems with local touch screen displays and remote access via Web, SMS, or Email.
