Basic Information
| Parameter |
Specification |
| Type | Air-Cooled |
| Cooling Water | Industrial Water |
| System Type | Closed System |
| Fans Species | Double-speed fan |
| Noise Level | Low |
| Application Fields | Power Plant Genset Cooling |
| Tube Material | Stainless Steel, Aluminum, Hot DIP Carbon Steel |
| Fin Material | Aluminum, Stainless Steel, Hot DIP Carbon Steel |
| Mounting | Floor Standing |
| Package | Wooden Package |
Product Description
A gas or diesel generator is an ideal solution for numerous prime and standby power applications. Whether you're working in a location without access to a "standard" power supply, or need an emergency backup in case the electricity goes out, you need a generator. For that generator to operate at its best, you need to keep it cool, and for that, you need an air cooled remote radiator for your custom cooling solutions.

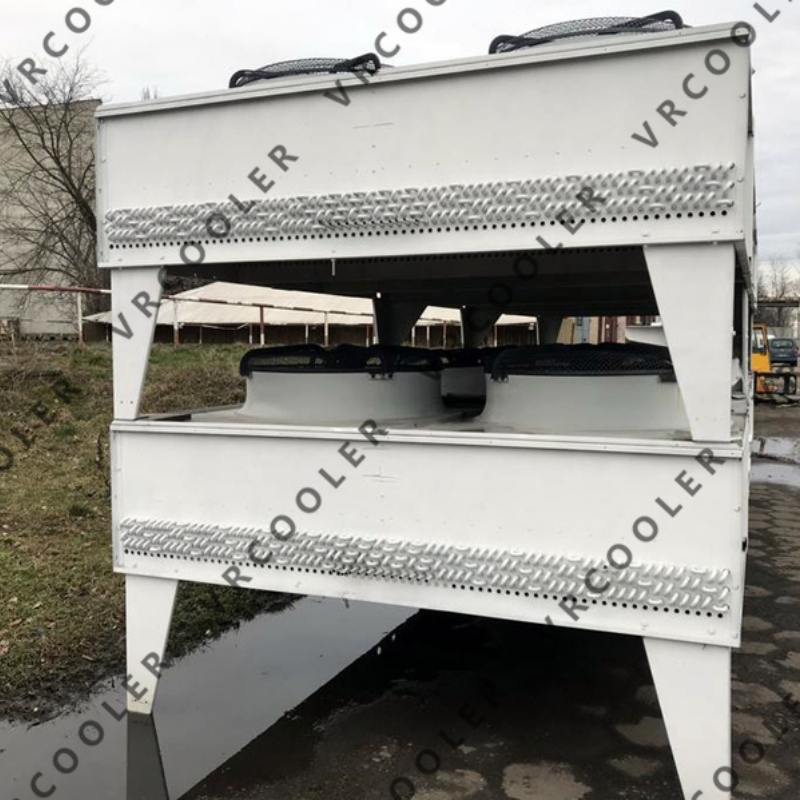

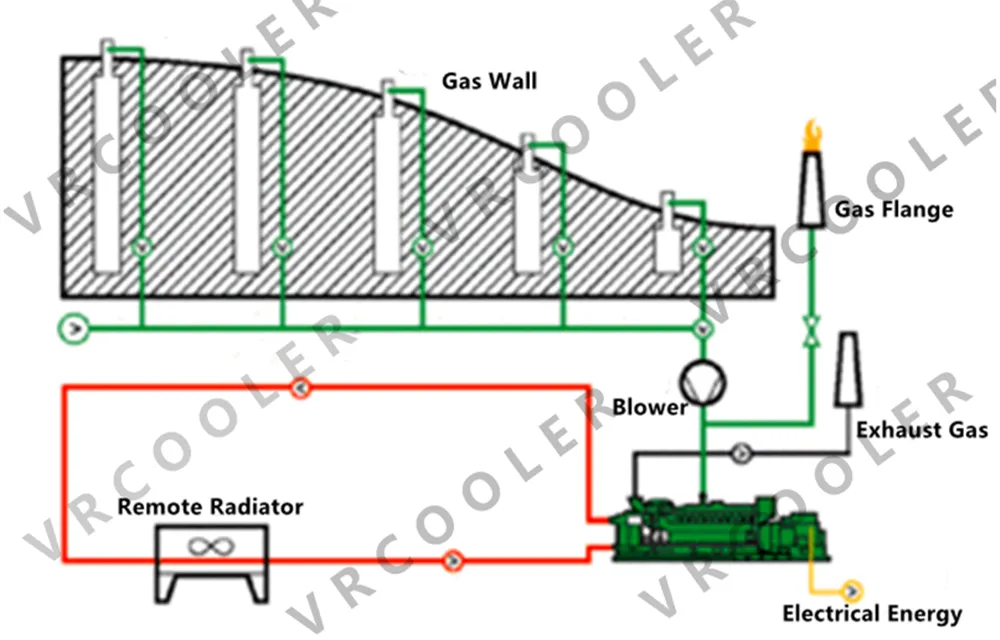

A remote radiator cools a generator when the generator is in a space where a regular radiator will not fit beside it. Placed at a distance from the generator, a remote radiator cools the system and keeps it from overheating. Our remote vertical and horizontal radiators are designed to cool diesel engines of varying sizes.

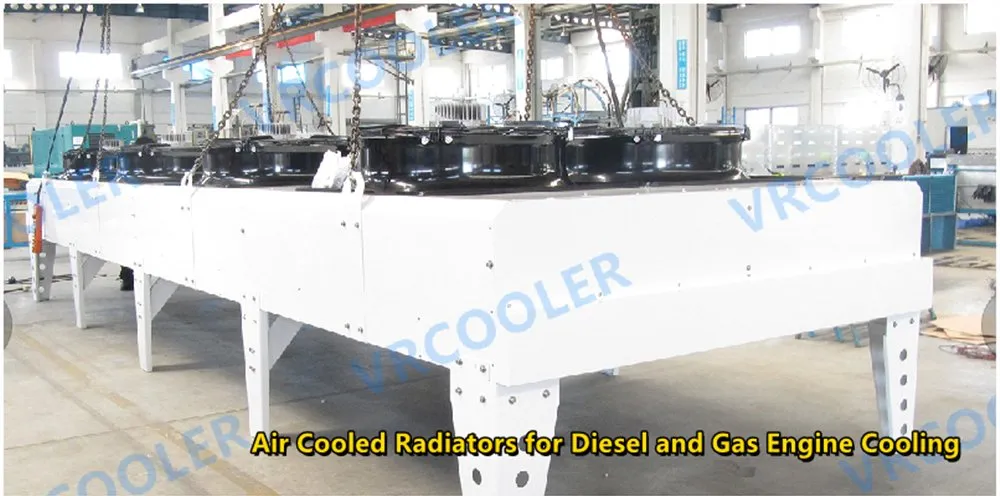

Dry Cooling Technology
Air flow and surface area are key to maximizing the effect of dry cooling. This transfer of energy is facilitated by running process fluid through a series of highly conductive aluminium fins. By constantly drawing large quantities of air through the fins, heat is quickly removed from the system and discharges to the atmosphere.
Key System Components
1. Material Options
- Heavy-gauge hot-dip galvanized steel for panels and structural elements.
- High-performance zinc aluminium coatings.
- Customizable casing including aluminum and stainless steel.
2. Heat Transfer Media
- Staggered and seamless copper tubes (15.9mm or 12.7mm diameter).
- Aluminium, rippled and corrugated fins for optimal turbulence.
- Pressure tested at 15 bar for safety and durability.
- Anti-corrosion options: special pre-coated aluminium or copper fins.
3. Air Movement System
- Axial fan with compact direct drive integrated motor.
- Dynamic single plane balancing (Balance grade G6.3).
- Bearings seals and motor encapsulation for long service life.
- Completely maintenance-free fan and motor units.
Detailed Component View

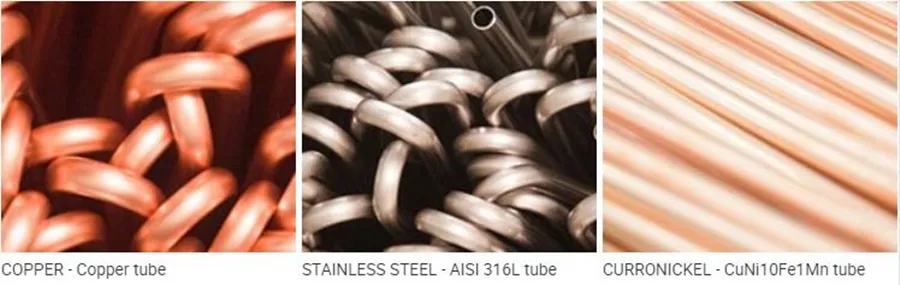

High Performance Tubes
Options include 304/316 Stainless steel, copper, titanium, or aluminum. Inline arrangement for maximum heat transfer.
Corrugated Fins
Die-formed waffle configuration to encourage turbulent airflow and improve efficiency.

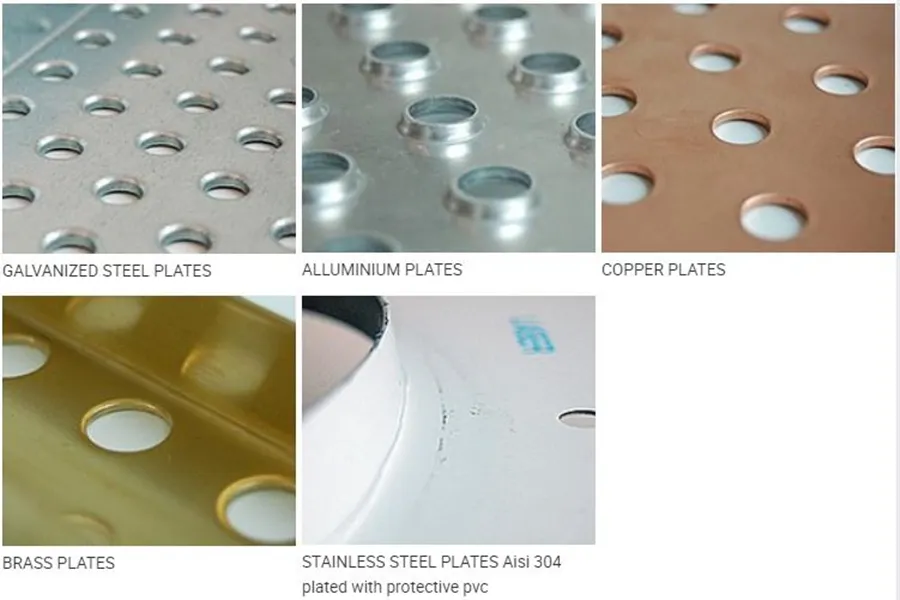

Robust Cabinet
Corrosion-resistant galvanized steel casing, also available in aluminum and stainless steel.
Technical Specifications
| Feature |
Specifications |
| TUBES |
Material |
Aluminium, copper, stainless steel, cu-ni, titanium |
| Sizes |
12 mm, 1/2", 5/8", 20mm, 25mm |
| FINS |
Material |
Aluminum, copper, stainless steel, titanium |
| CASING |
Thickness |
1 - 3 mm |
| Material |
Galvanized steel, Aluminium, Stainless steel, Copper, Brass |
Global Applications

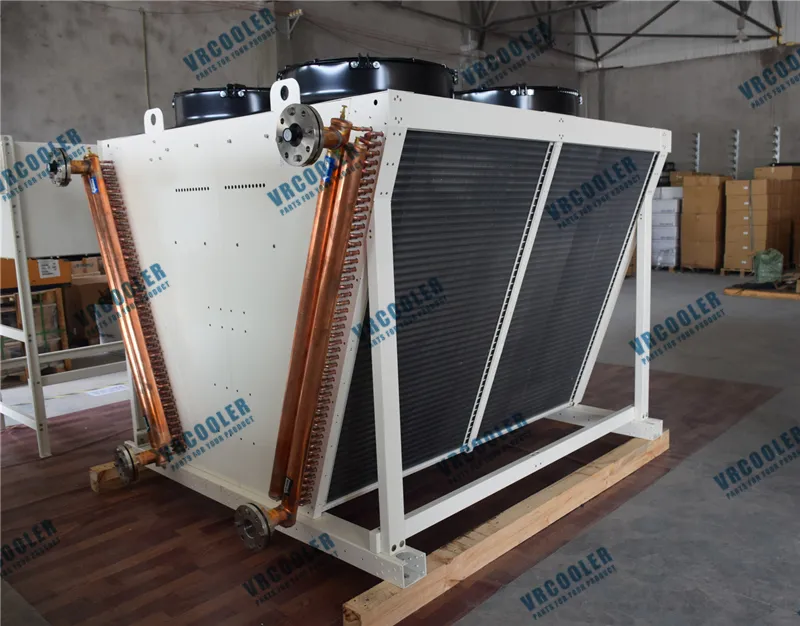

Bitcoin Immersion Cooling (USA)
Capacity: 250kw
Medium: Oil (100gpm flow rate)
Temp: Inlet 60°C / Outlet 40°C
Material: Cu tube, golden coated AI fin

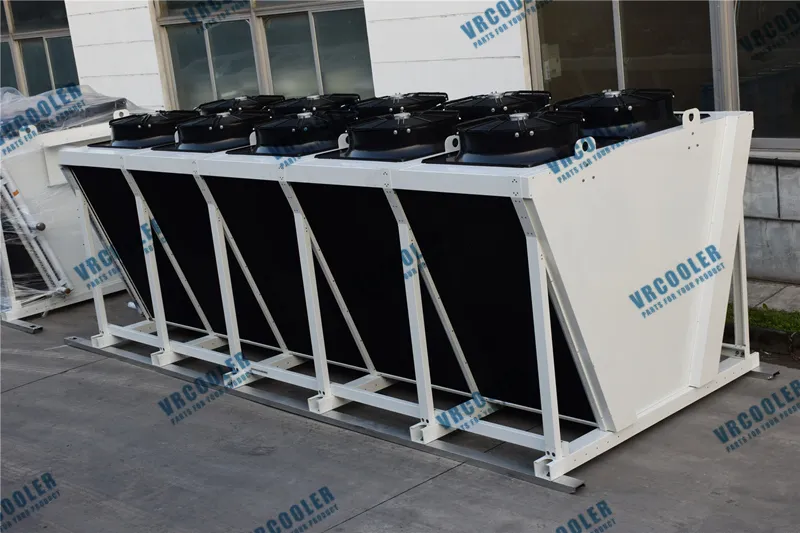

Power Plant Cooling (Philippines)
Capacity: 1410kw
Medium: Oil (104.6m3/h flow rate)
Temp: Inlet 66°C / Outlet 54°C
Ambient Air: 45°C

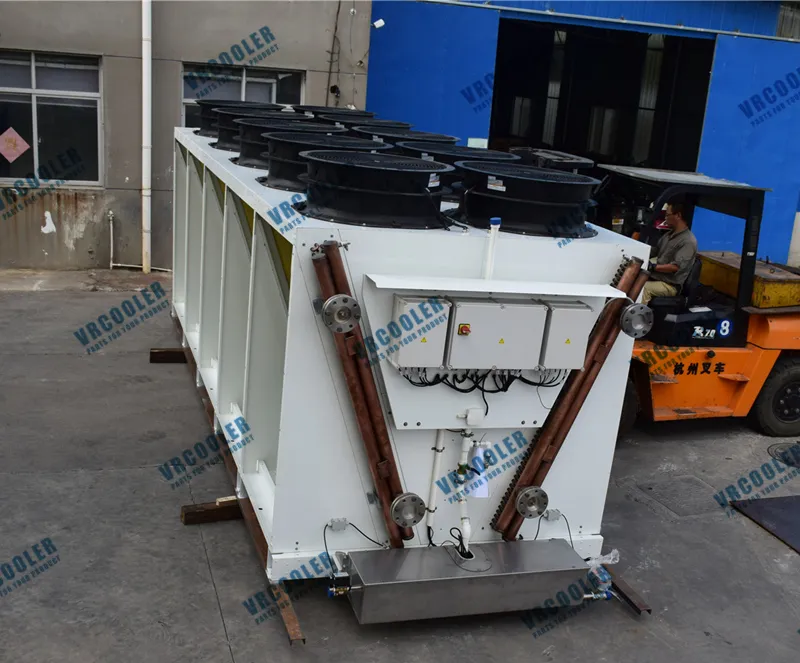

Injection Molding Factory (Algeria)
Capacity: 694kw
Medium: Water (60l/s flow rate)
Temp: Inlet 35°C / Outlet 25°C
Why Partner With Us

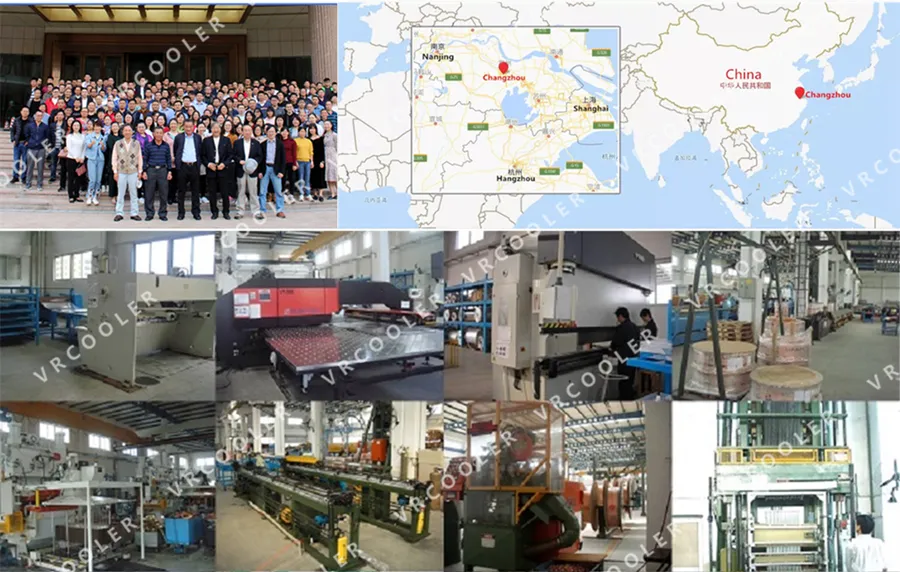

With over 15 years of success since 2004, we specialize in researching, manufacturing, and exporting high-quality heat exchangers, evaporators, and condensers. Our mission is to provide dedicated industrial solutions based on integrity and responsiveness.
- Custom Engineering: We design products tailored to your specific technical requirements.
- Global Presence: Proven track record with exports to the USA, Germany, Canada, Israel, and more.
- Rapid Response: Technical inquiries addressed within 24 hours.
- Quality Assurance: Commitment to the most efficient service and excellent industry reputation.
Frequently Asked Questions
Q1: What are the primary applications for remote radiators?
Remote radiators are ideal for gas or diesel generators located in confined spaces where standard radiators cannot fit. They are widely used in power plants, data centers, and industrial factories.
Q2: Can the radiators be customized for aggressive environments?
Yes, we offer specialized options for harsh environments, including anti-corrosion pre-coated aluminium fins, copper fins, and stainless steel cabinets.
Q3: Do you support immersion cooling for Bitcoin mining?
Absolutely. We have significant experience providing dry coolers specifically designed for oil-based immersion cooling systems in crypto mining server farms.
Q4: What technical information is needed for a prompt quotation?
Please provide the cooling capacity (kW), required medium (water/oil), inlet/outlet temperatures, ambient air temperature, and local voltage/frequency requirements.
Q5: Are the fan systems maintenance-free?
Yes, our axial fan systems feature integrated motors with high-grade seals and encapsulation, designed for long service life with no regular maintenance required.
Q6: What materials are available for the heat exchanger tubes?
We provide a wide range of materials including seamless copper, 304/316 stainless steel, titanium, aluminum, and hot-dip galvanized steel.
