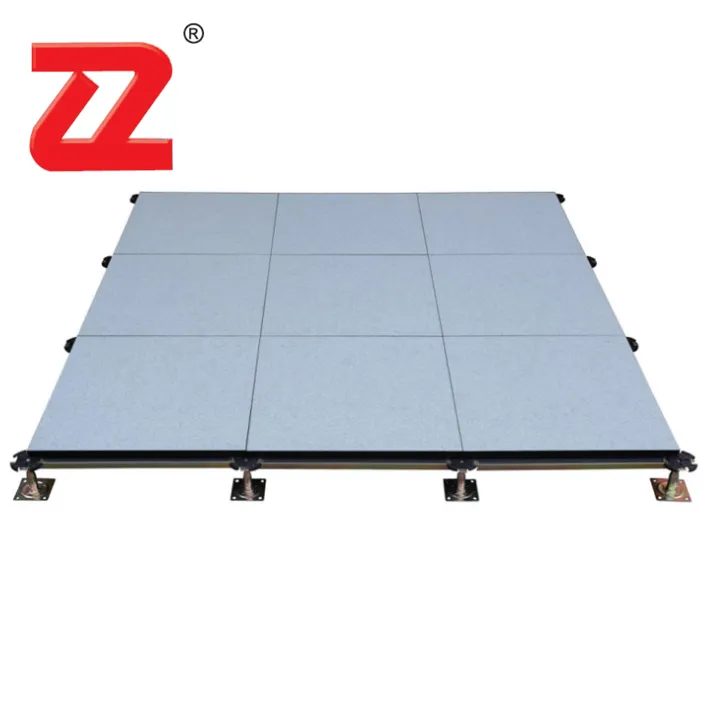

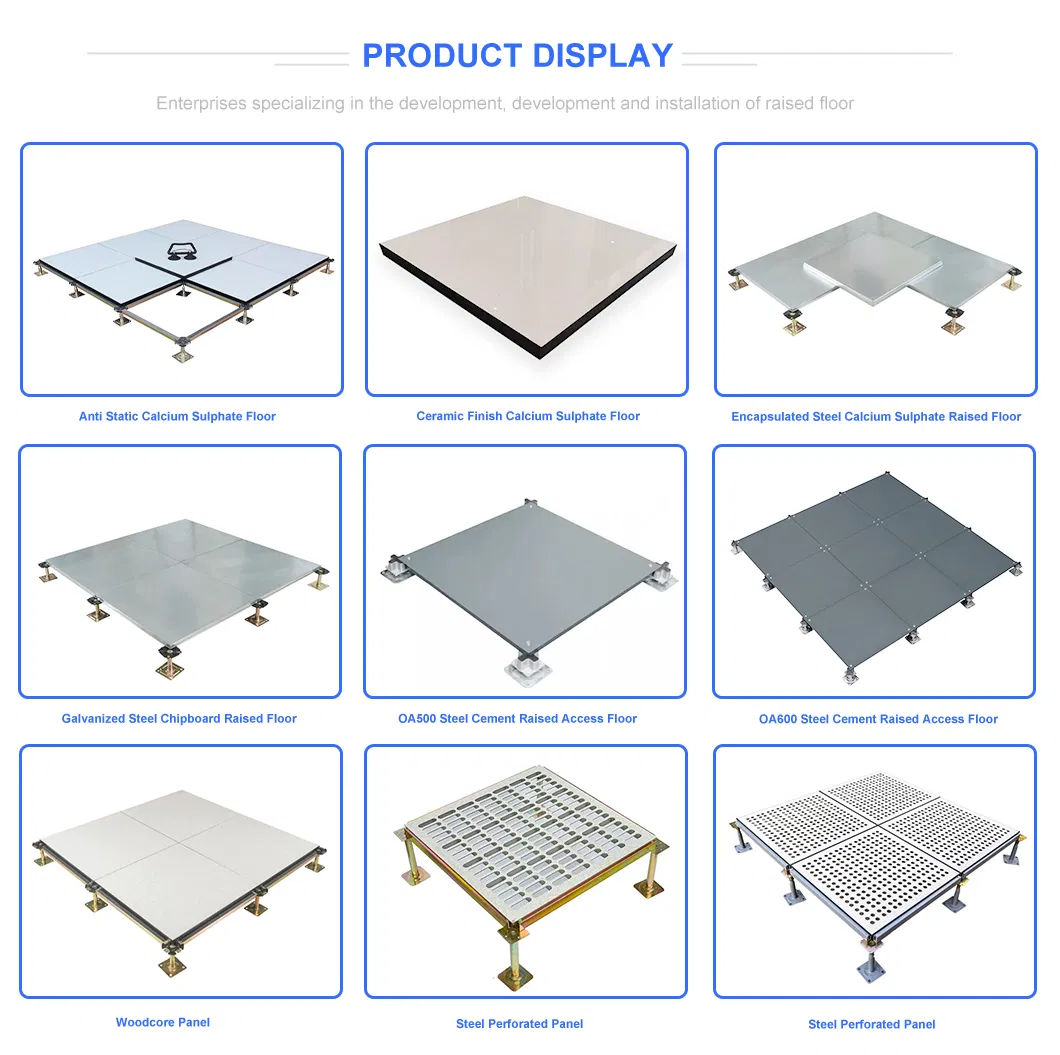

Anti-static Calcium Sulphate Raised Floor

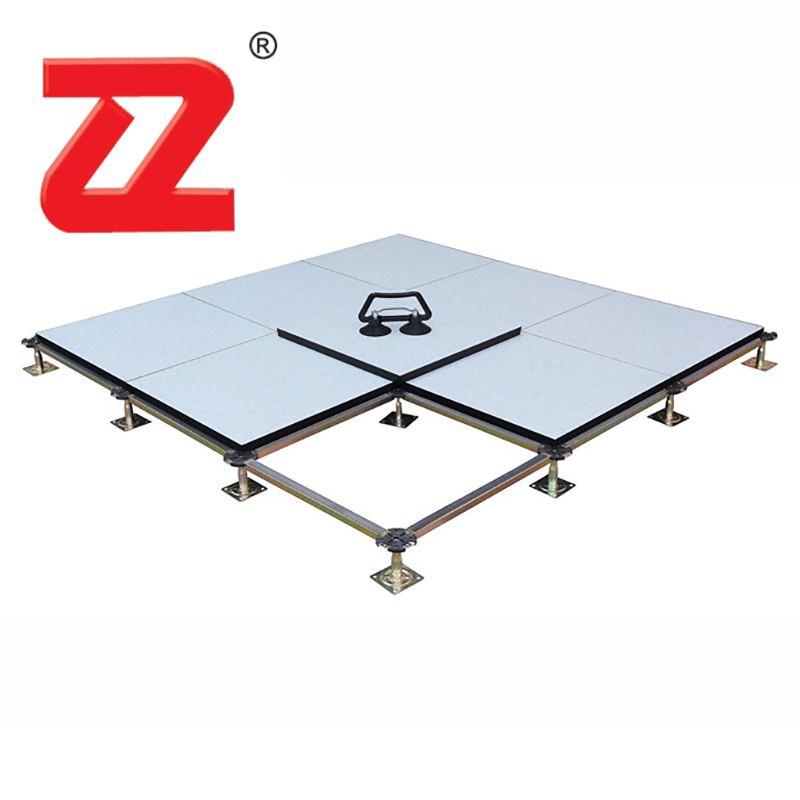

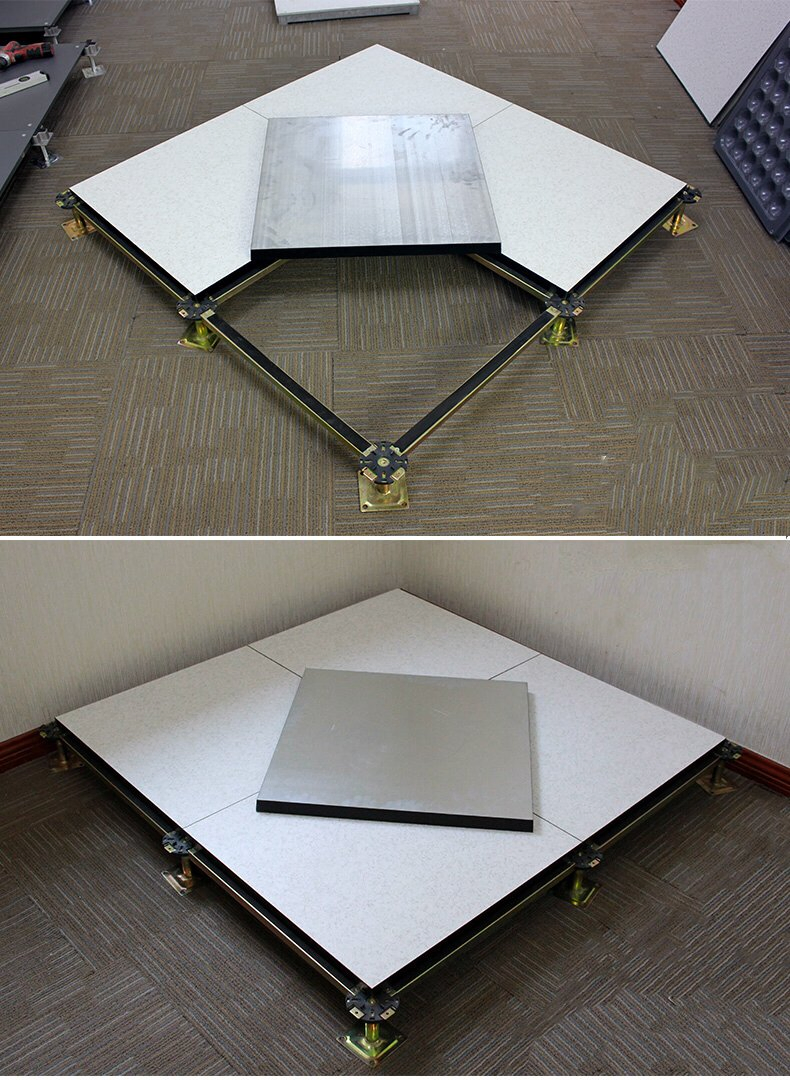

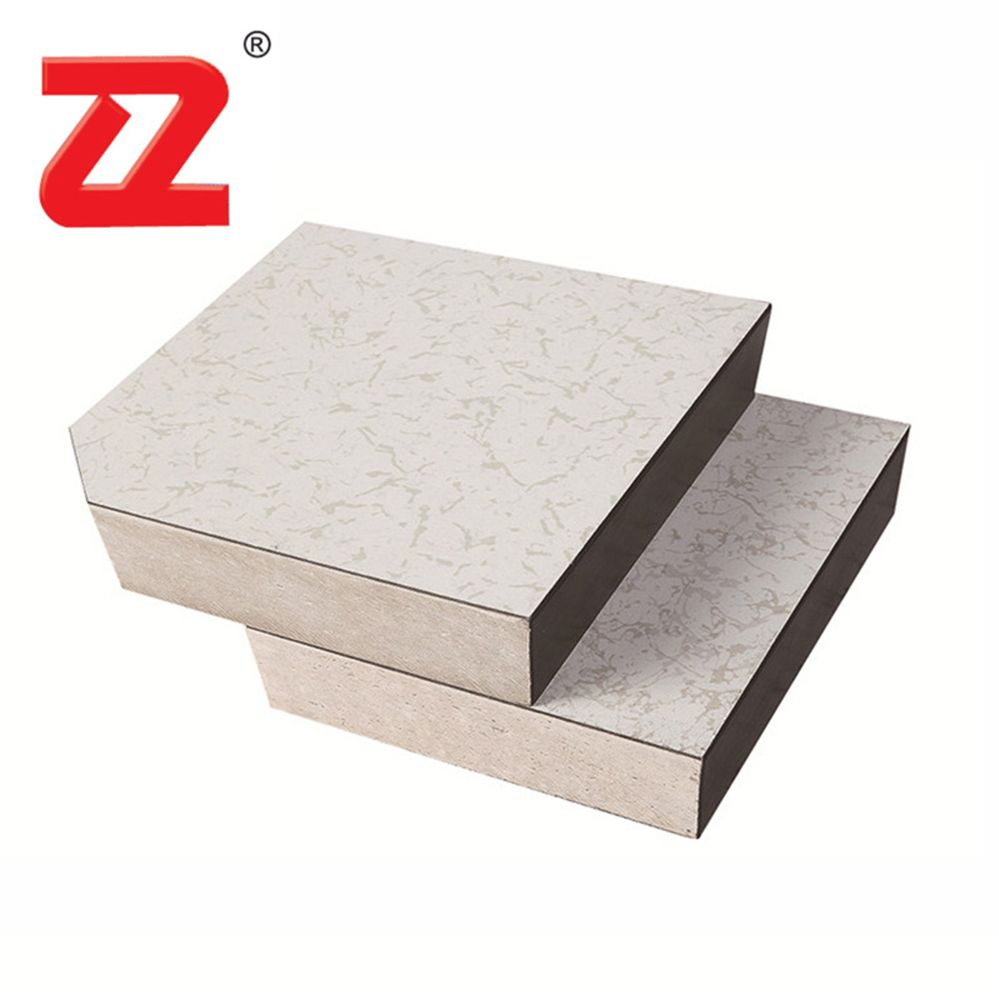

Anti-static calcium sulphate raised access floor consists of high-strength calcium sulphate core. Steel sheet is bonded to the bottom of core. HPL, PVC or anti-static ceramic tiles is bonded to the top of core. PVC edging strip is glued to each edge of the panel, avoiding common occurrences of floor bubbling and unglued phenomena.
Main Characteristics
| Parameter Item | Specification Details |
|---|---|
| Finished Floor Height | 100-2000mm |
| Density | 1500-1700 kg/m3 |
| Panel Size | 500*500mm, 600*600mm and special size |
| Core Panel Thickness | 22-38mm |
| Upper Covering | Bare, 1.0-2.0mm Anti-static Laminate HPL, 2.0-3.0mm PVC, 10mm Ceramic, Marble, Granite, Nature Wood |
| Under Covering | Bare, 0.3-2.0mm Galvanized steel, 0.1-2.0mm Aluminum Foil |

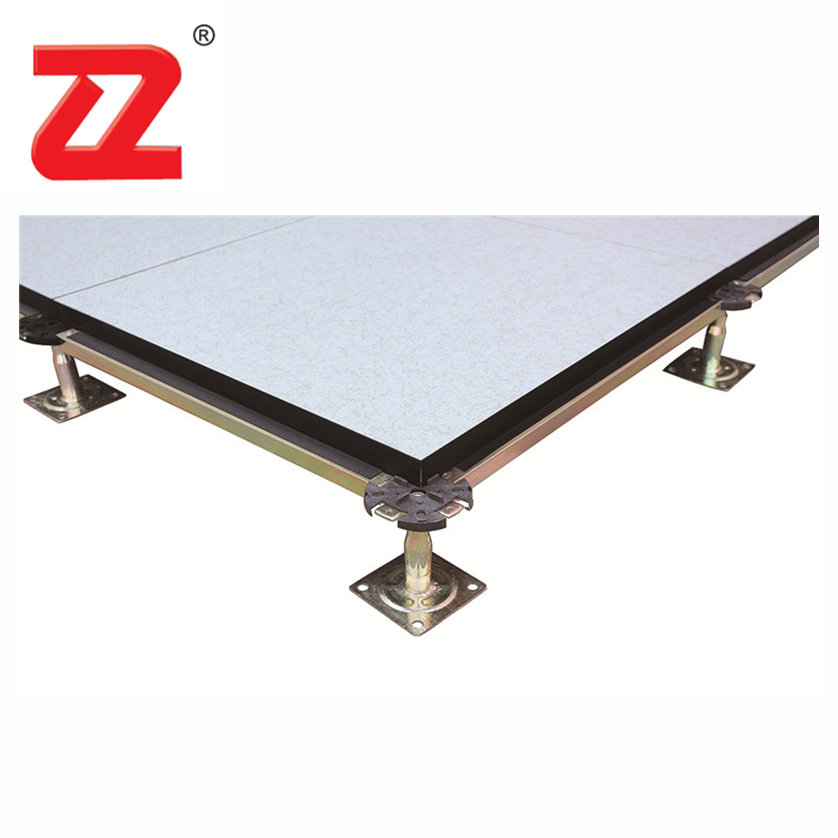

| Installation | Without or with stringer system |
| Type | Rolling Load | Uniform Load | Ultimate Load | Concentrated Load |
|---|---|---|---|---|
| FS1000 | 3.56KN / 2.67KN | 22.22KN/m² | 14.50KN | 4.45KN |
| FS1250 | 4.45KN / 3.56KN | 27.78KN/m² | 18.36KN | 5.56KN |
| FS1500 | 5.56KN / 4.45KN | 33.34KN/m² | 22.17KN | 6.68KN |
| FS2000 | 6.68KN / 5.56KN | 44.45KN/m² | 29.42KN | 8.89KN |
| FS2500 | 8.89KN / 6.68KN | 57.79KN/m² | 37.34KN | 11.11KN |

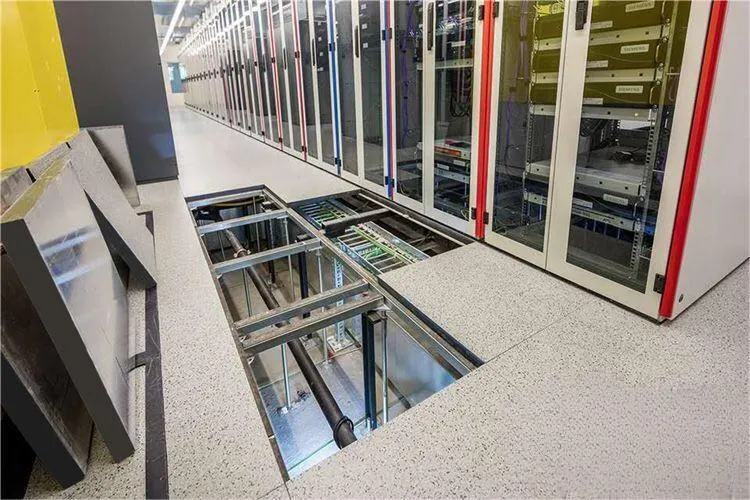

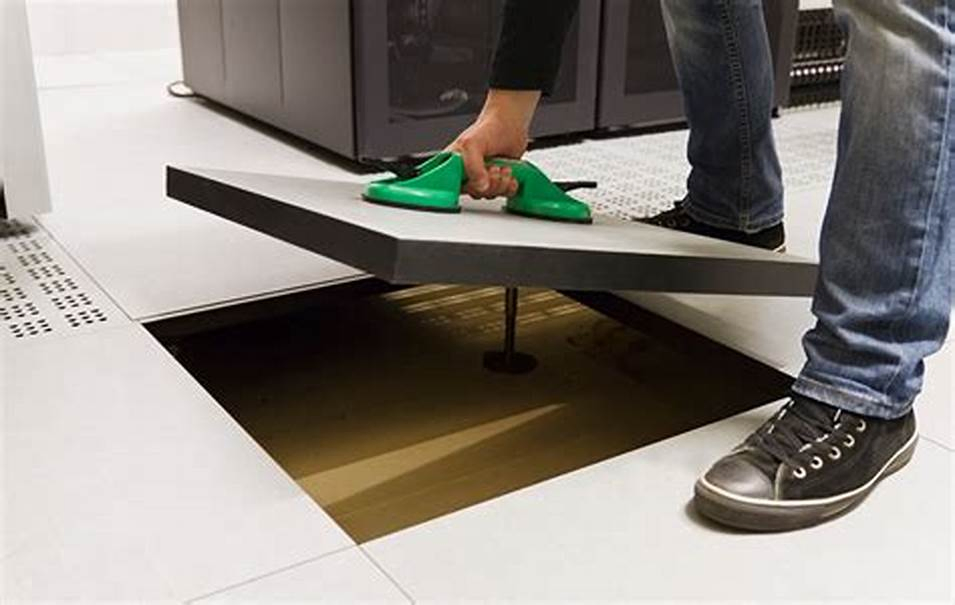

Anti-static calcium sulphate raised access floor is widely used in telecommunication room, power station, computer room, factory clean room and other anti-static requiring places.
We provide stable social and economic effects with an annual production capacity of 1,000,000 square meters of various anti-static access elevated floors. Our products are widely used in research, education, communication, power, and finance sectors.
