Fire Safety Equipment Library Fire Fighting High Pressure Water Mist Automatic Fire Extinguishing Device

A water mist system is a highly efficient fire protection solution that utilizes extremely fine water sprays. These small droplets control and extinguish fires through three main mechanisms:

• ❄️
  Heat Absorption: Rapidly cools both the flame and surrounding gases via evaporation.
• ☁️
  Oxygen Isolation: Displaces oxygen in the immediate fire vicinity as water turns to steam.
• 🛡️
  Radiant Heat Blocking: Small droplets attenuate radiant heat, protecting the surrounding structure.

Our high-pressure system features specialized tubing and precision nozzles. The smaller the droplet size, the more effective the system becomes at extinguishing high-temperature fires.

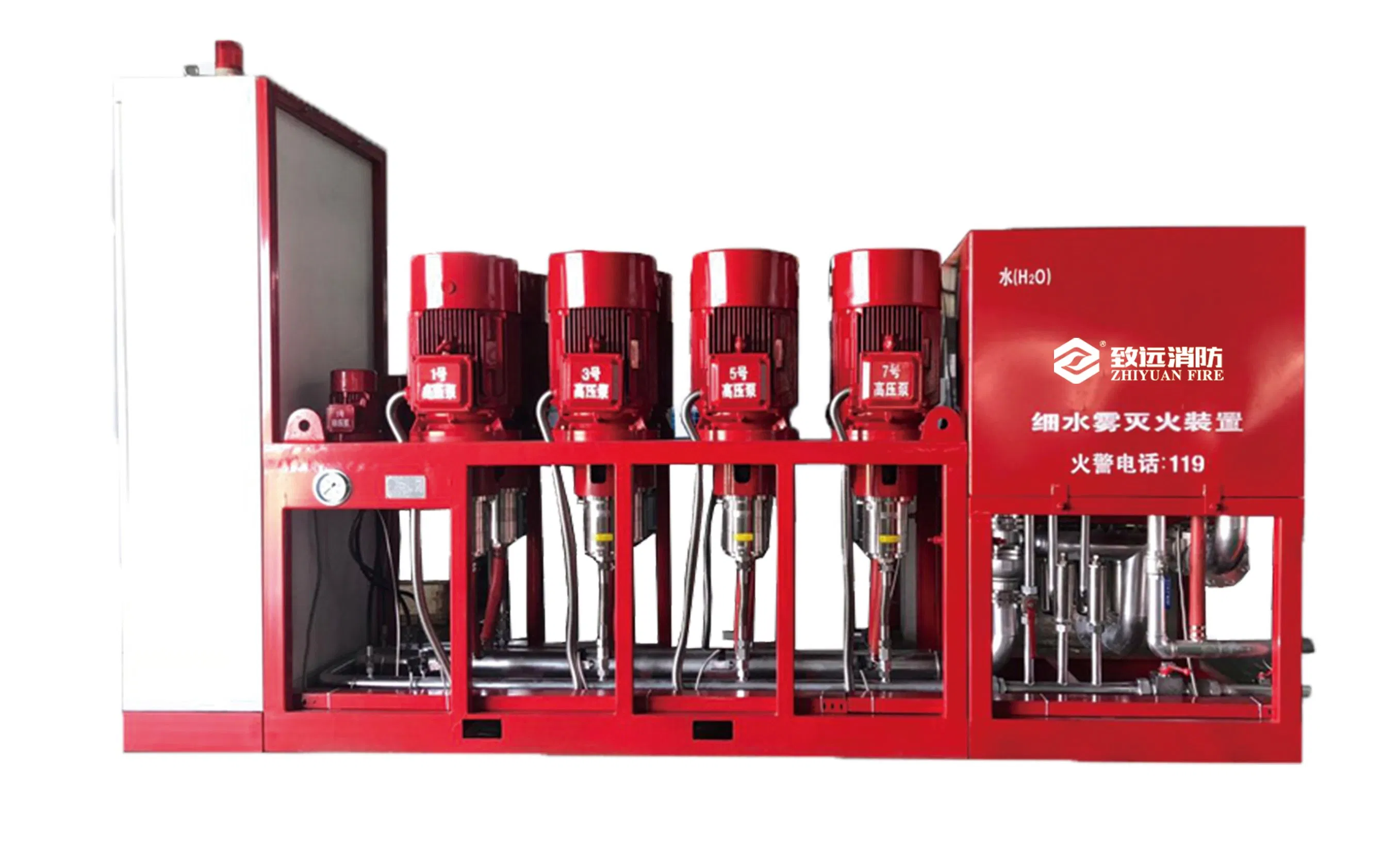

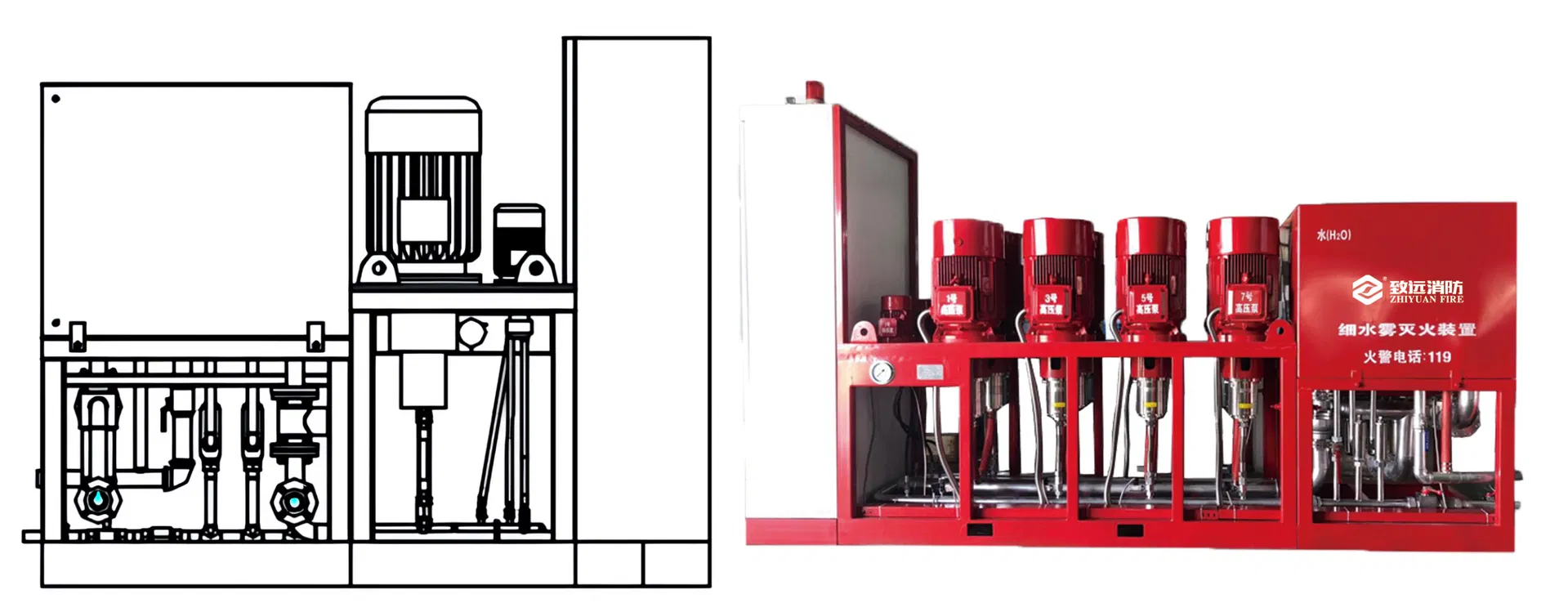

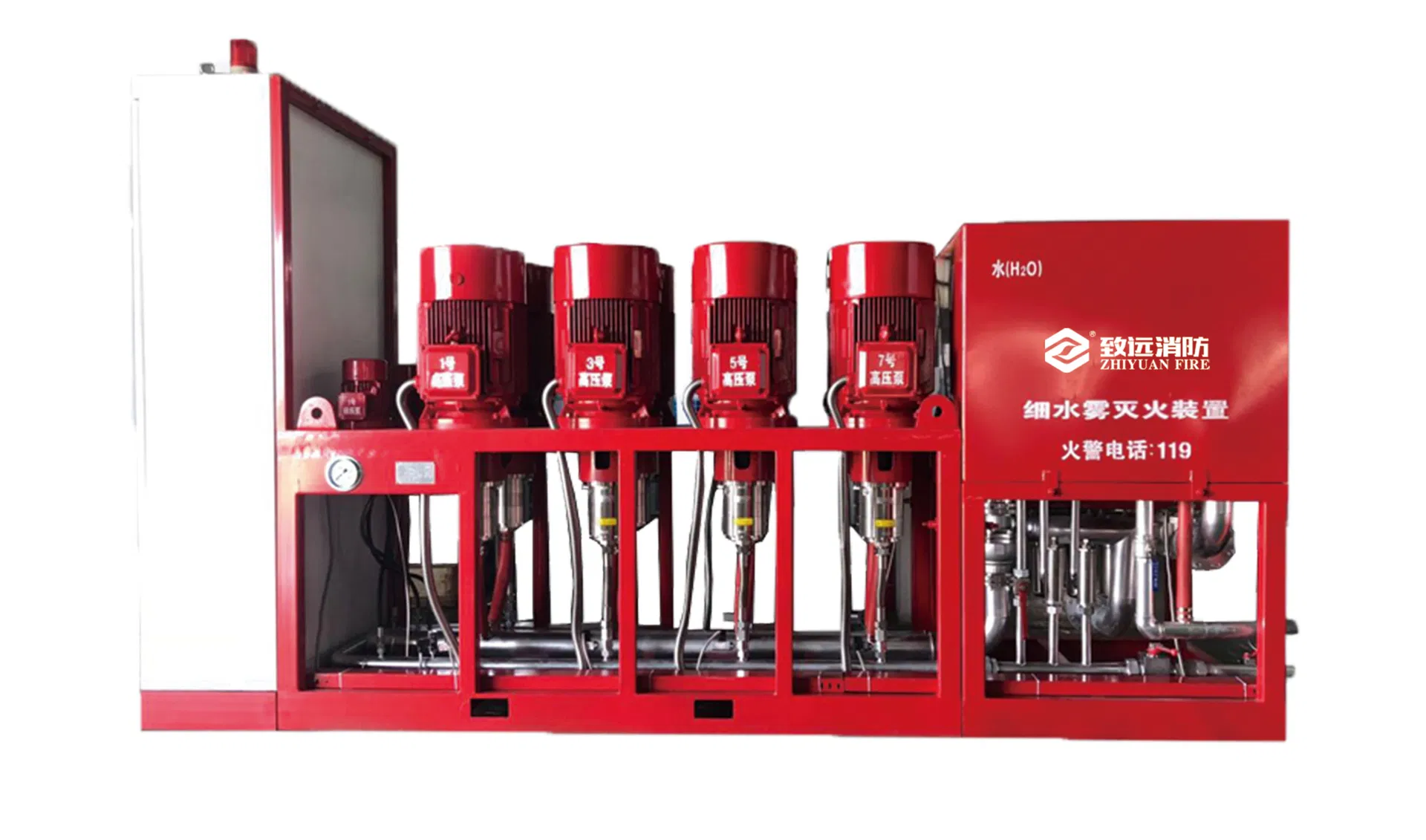

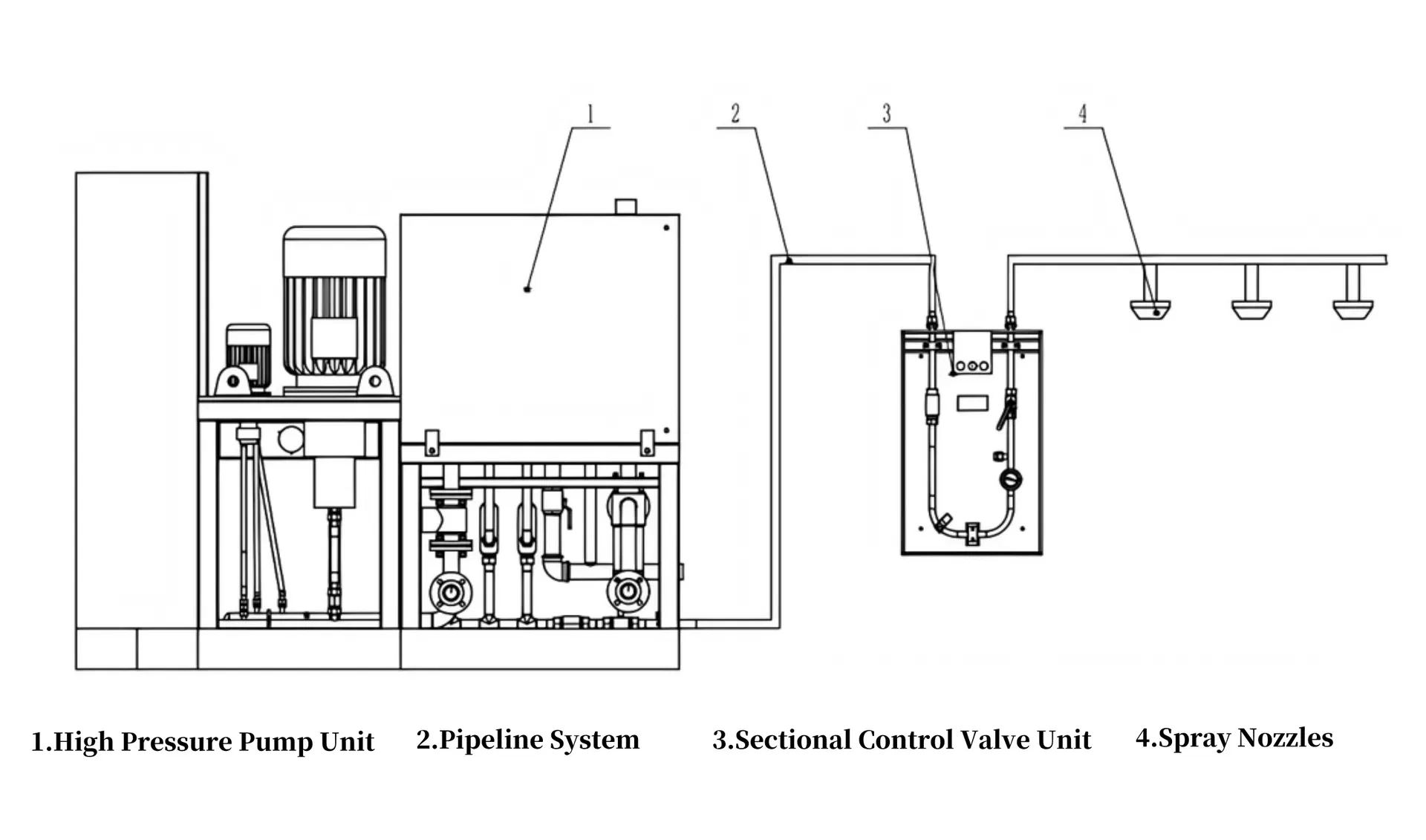

The pump-type micro mist system consists of a water box, high-pressure pump group, control panel, pressure switches, nozzles, and partition control valves.

Working Principle: The system maintains a standby pressure of 1.0~1.2 MPa. If the pressure drops below 1.0 MPa, the stabilizing pump activates. For fire emergencies, the main pump can be triggered via fire alarm controllers, manual buttons, or remote control terminals.

• ✅Eco-friendly – Water-based, no pollution or chemical residue.
• ✅High Efficiency – Rapid cooling and flame suppression for Class A, B, C, and Electrical fires.
• ✅Safe Operation – Non-toxic and safe for use in occupied spaces.
• ✅Standards Compliant – Manufactured and tested under XF1149-2014 standards.

This device is ideal for preventing and extinguishing fires in various commercial and industrial environments:

• 📍Transformer rooms and power stations
• 📍Cable tunnels and subways
• 📍Archives, museums, and libraries
• 📍Industrial plants and machinery spaces

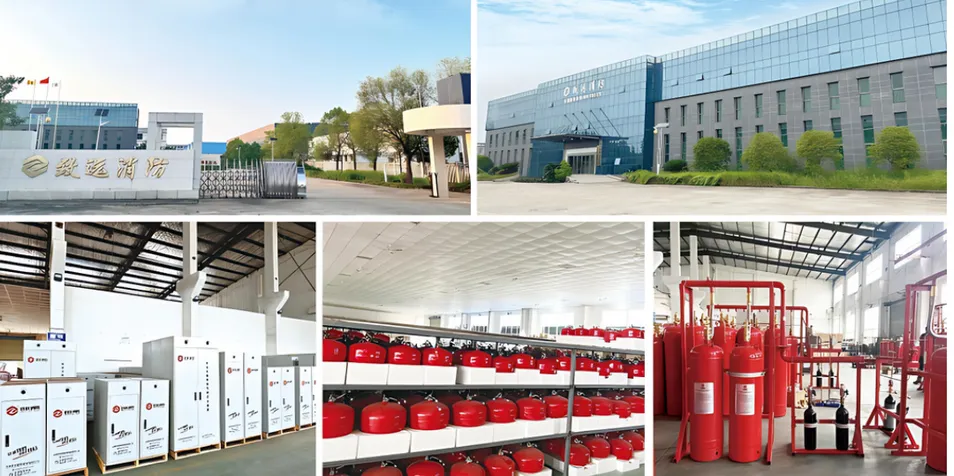

Our facility is a high-tech fire safety enterprise integrating R&D, design, and manufacturing. We hold Grade I professional contracting qualifications and special equipment inspection certificates for seamless and fiber winding cylinders.
