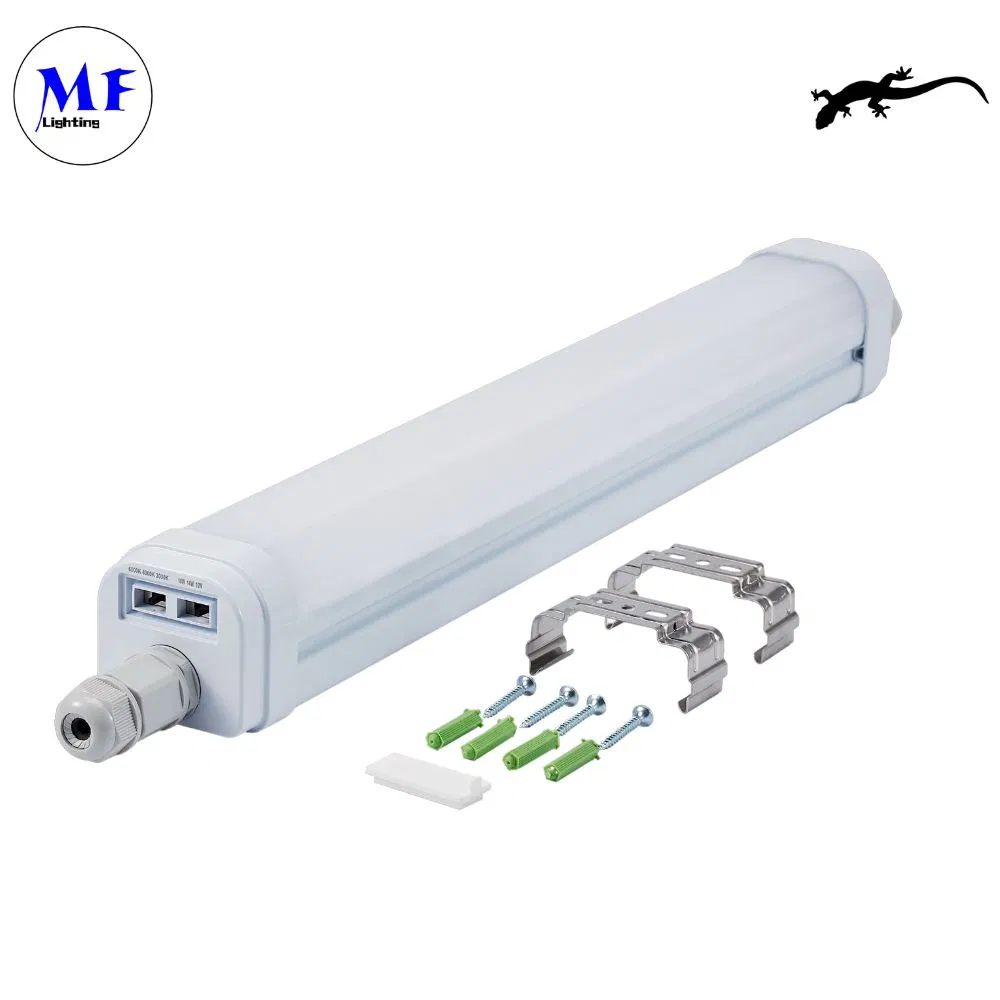

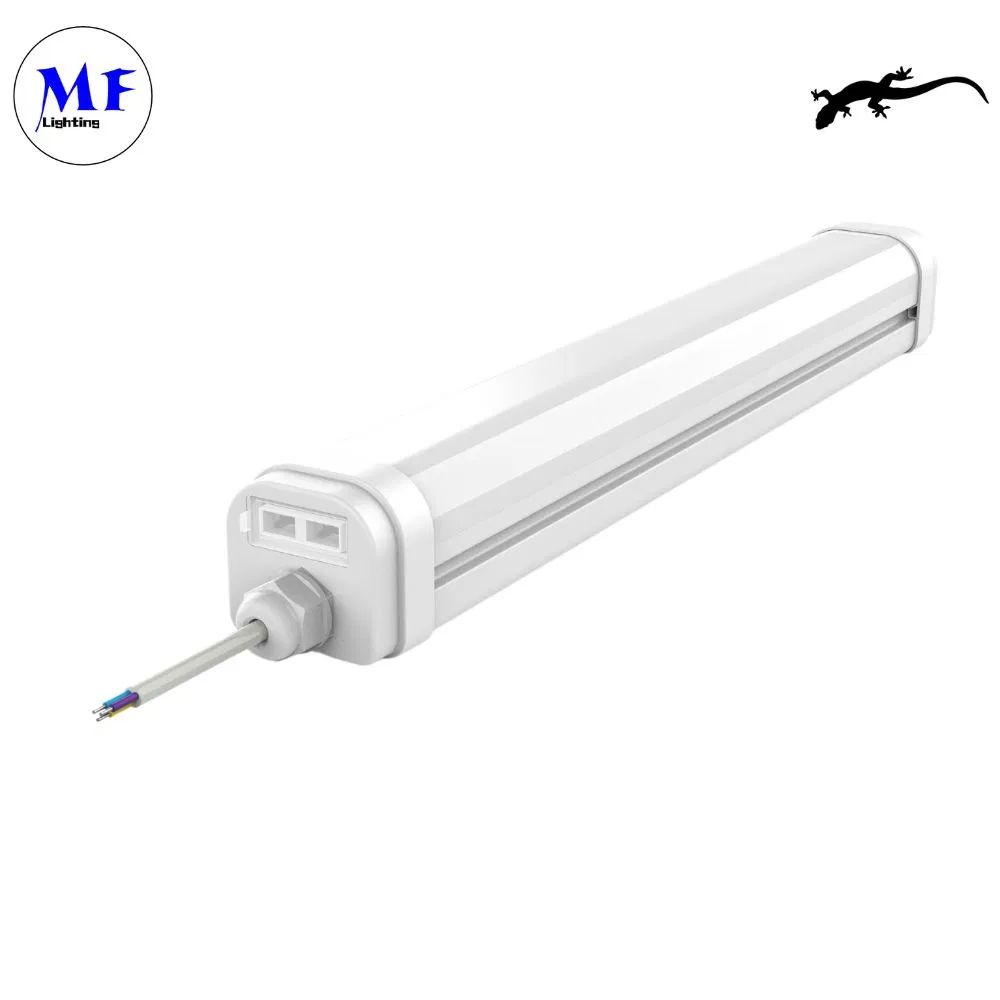

Product Description
Key Advantages:

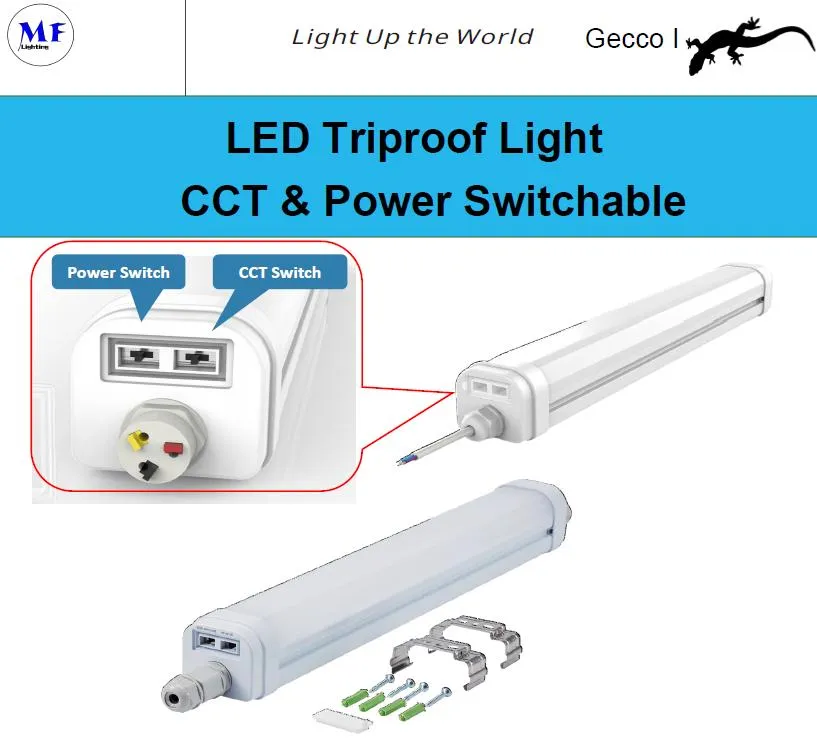

1. CCT + 3 power switchable: One lamp can replace 9 items, significantly reducing stock requirements.
2. Elegant appearance with patent design; imported fire-proof PC material for enhanced safety.

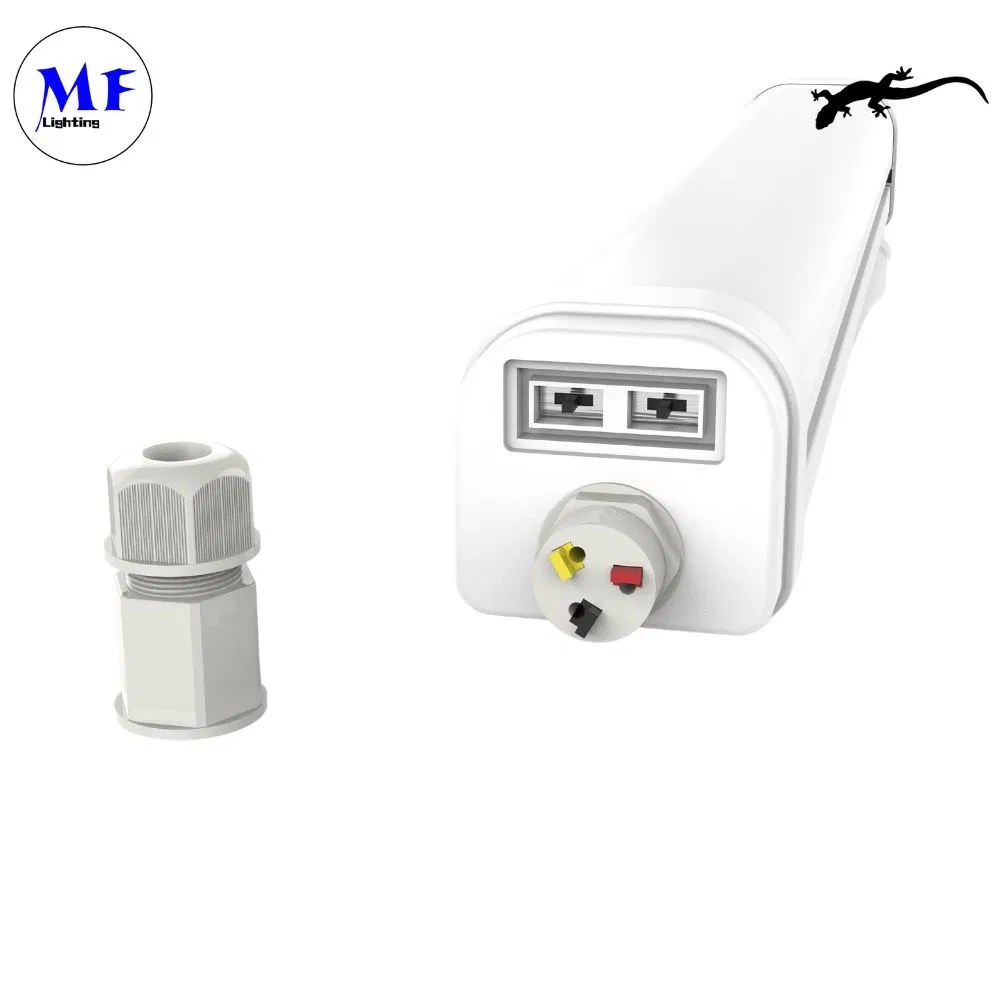

3. Barb-type mounting clip: anti-drop and easy to install.

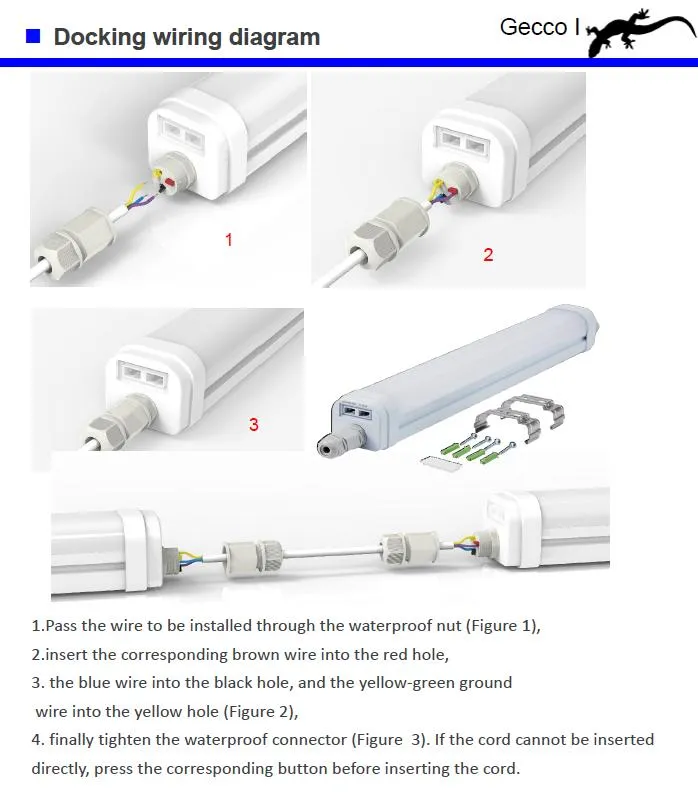

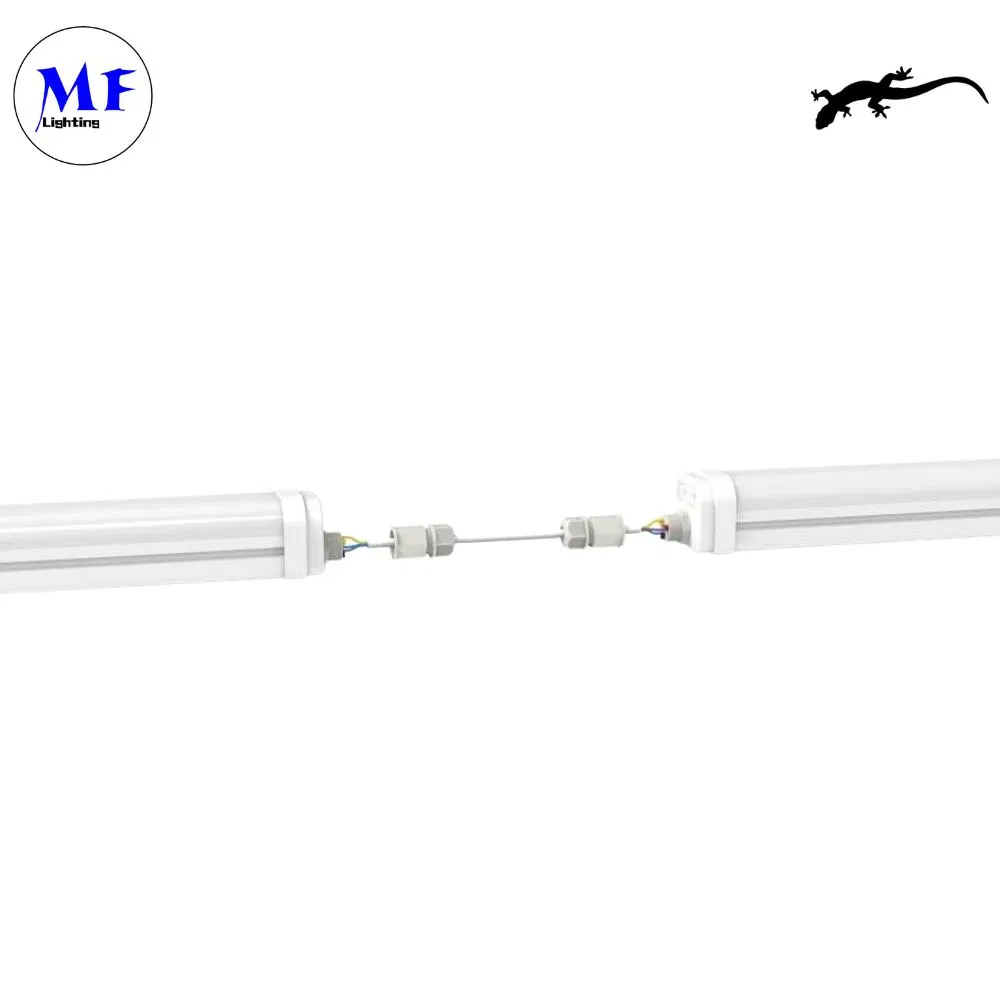

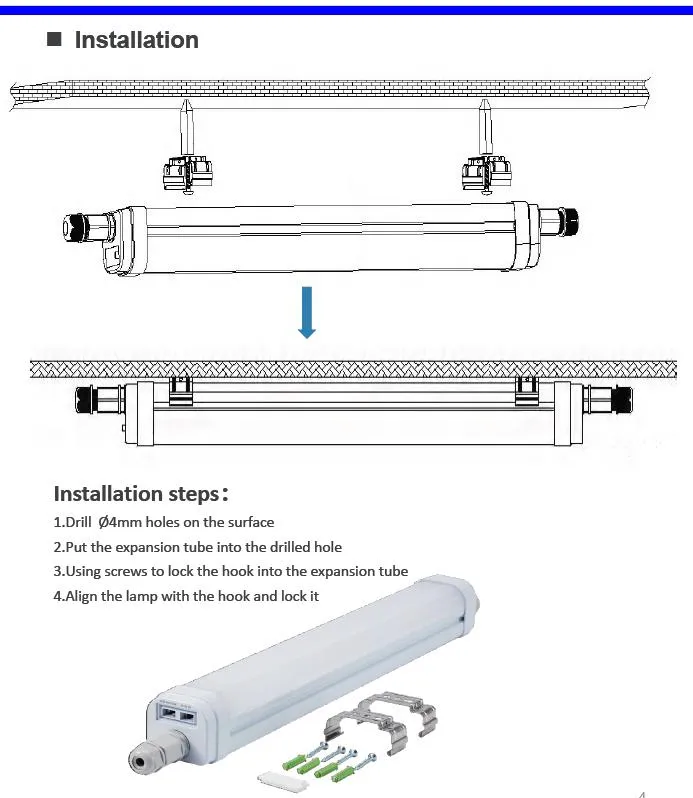

4. Multiple installation methods: linkable or standalone, ceiling, hoisting, or wire rope hanging.
5. Pass EMC power supply standards.

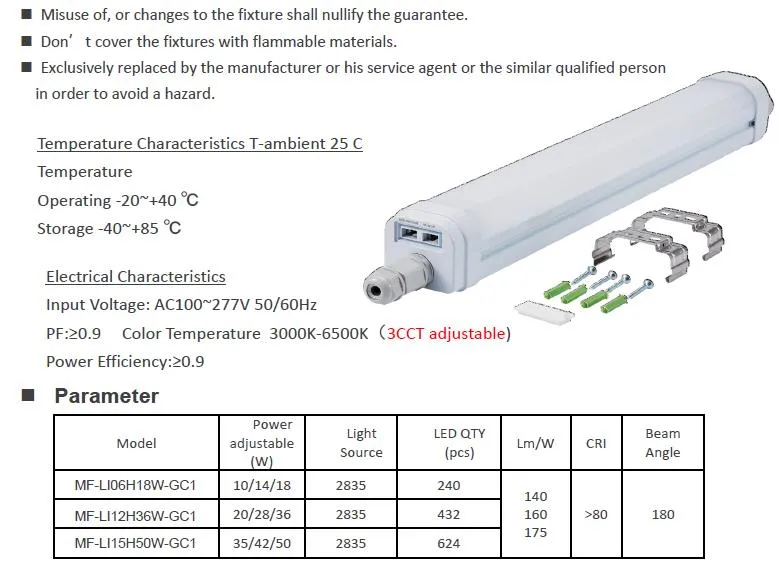

Electrical & Thermal Characteristics:
• Operating Temperature: -20~+40 ºC
• Input Voltage: AC100~277V 50/60Hz
• PF: ≥0.9
• Efficiency: ≥0.9
| Power |
Size |
Lumen & Functions |
| 18W |
2ft |
150-175lm/w, CCT & Power Switchable |
| 36W |
4ft |
150-175lm/w, CCT & Power Switchable |
| 50W |
5ft |
150-175lm/w, CCT & Power Switchable |
Applications & Standards

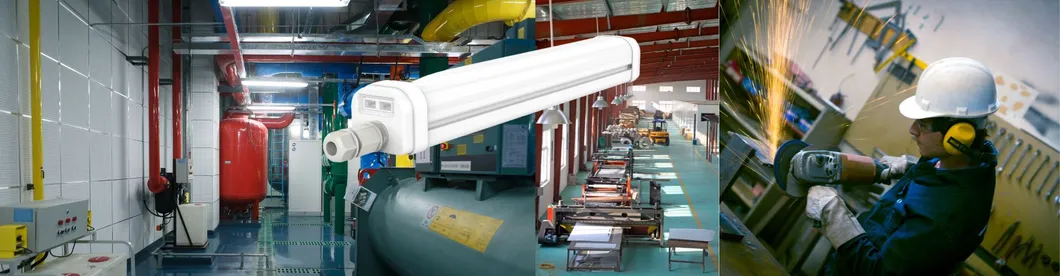

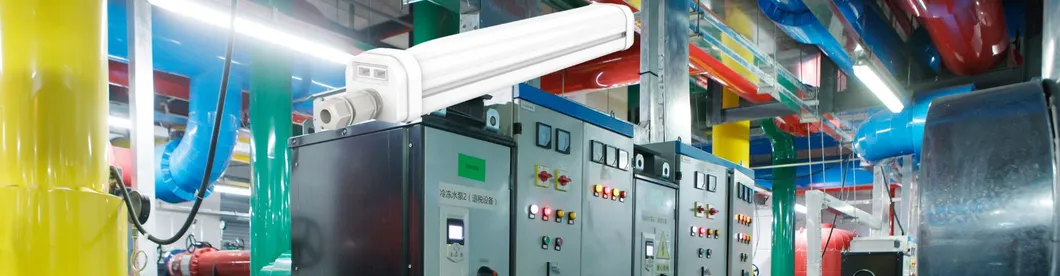

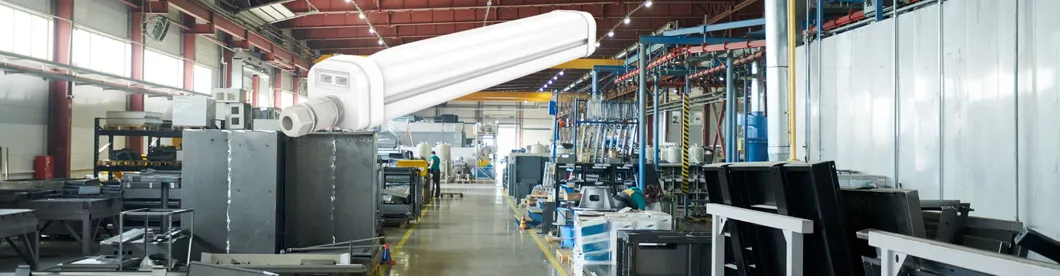

Tri-proof lights are designed for harsh environments, providing protection against water, dust, and corrosion. They are ideal for clean rooms, power plants, steel mills, petrochemical facilities, underground parking lots, and warehouses.

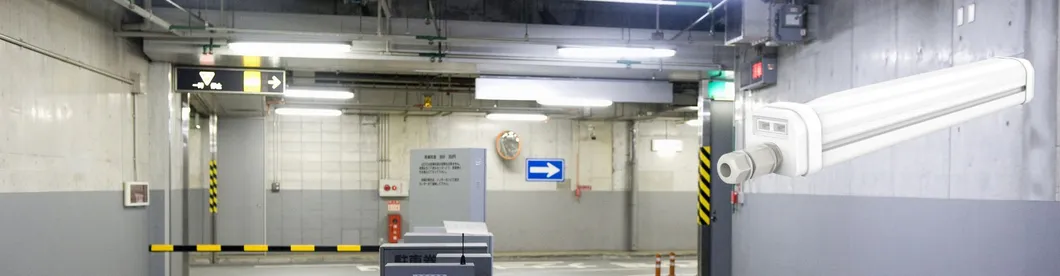

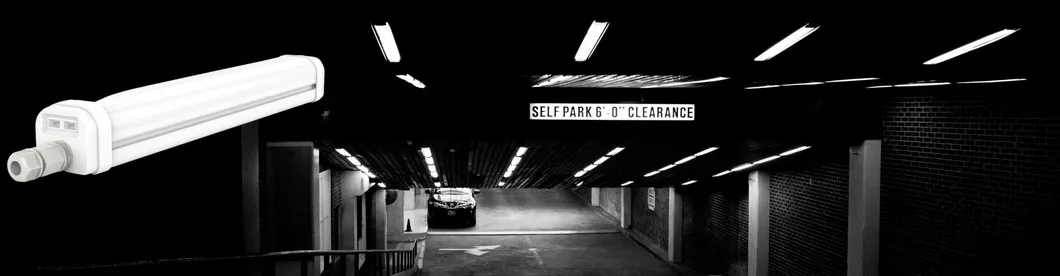

Lighting Standards for Parking Lots:
According to GB50582-2010 and CJJ45-2015, horizontal illumination for parking lots should be around 20lx-30lx, with entrance areas requiring no less than 50lx to ensure safety for drivers and pedestrians.
Frequently Asked Questions
What does "Tri-proof" specifically mean?
Tri-proof refers to lighting fixtures that are waterproof, dustproof, and anti-corrosion, designed to withstand harsh industrial and outdoor environments.
How can one lamp replace 9 different items?
The lamp features 3-stage CCT switching (3000K/4000K/6000K) and 3-stage power switching (e.g., 18W/14W/10W), providing 9 different configuration combinations in a single unit.
What are the available sizes and wattages?

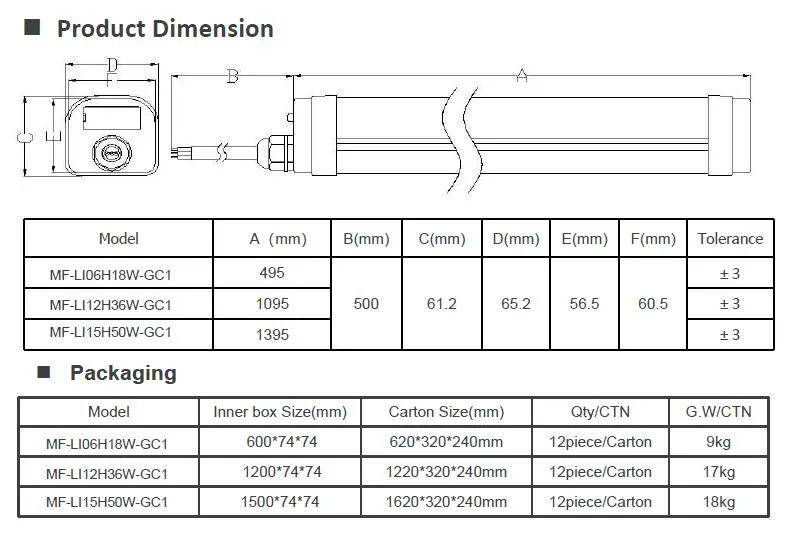

The lights come in three standard lengths: 2FT (18W), 4FT (36W), and 5FT (50W), catering to various space requirements.
What is the light efficiency of these lamps?
Depending on the model, the luminous efficiency ranges from 140lm/W up to high-efficiency options of 175lm/W.
Which installation methods are supported?

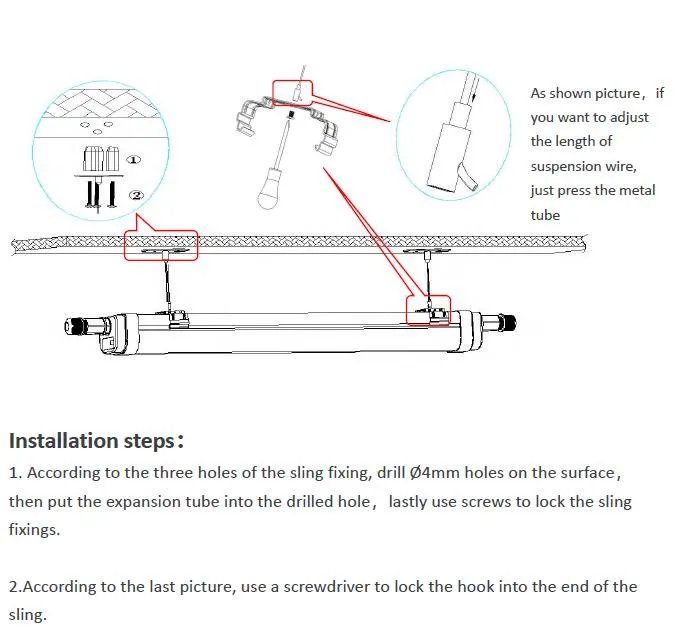

They support a variety of methods including ceiling mounting, suspension with wire ropes, and linkable configurations for continuous light rows.
Are these lights safe for corrosive environments?
Yes, they are manufactured using high-strength alloy shells and imported fire-proof PC materials with special surface sealing to resist humidity and corrosion.
