Air Tube Material
Galvanized Sheet
Operating Voltage
380/400 VAC
Application Fields
Mechanical Engineering
Control Mode
Wireless, VRF, Auto Monitor

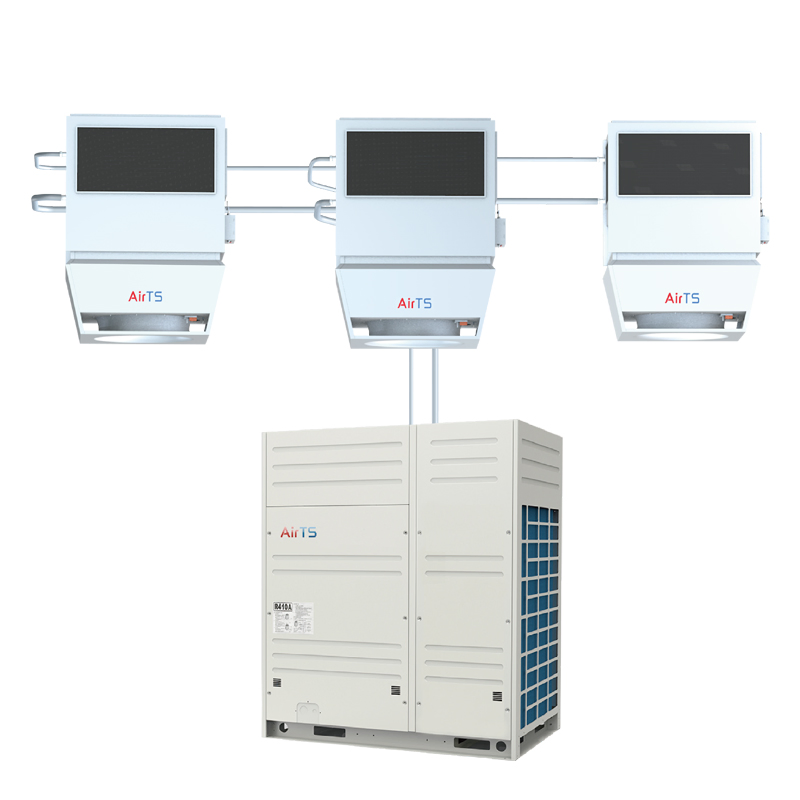

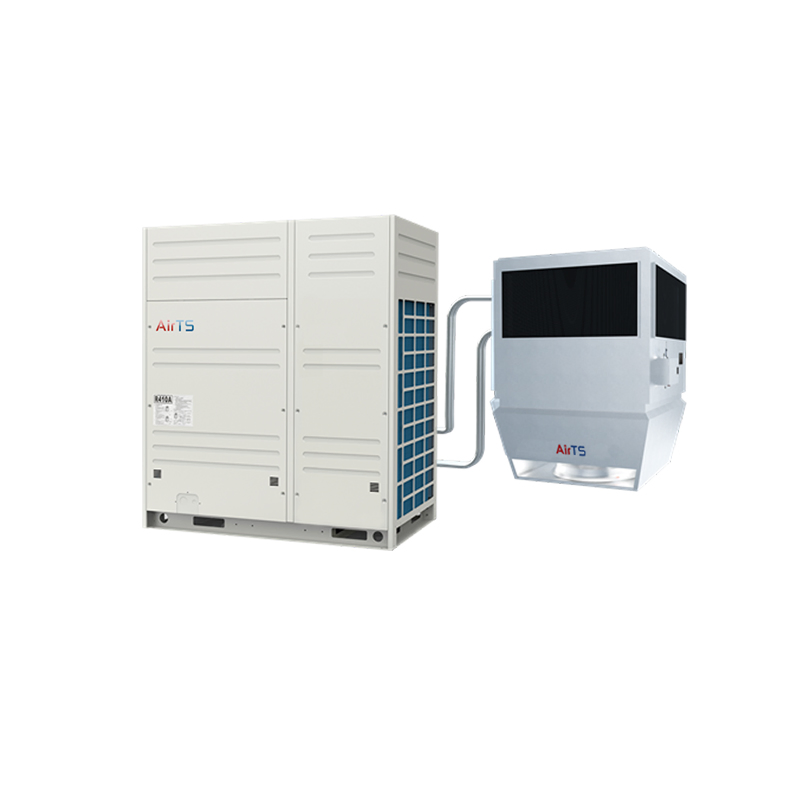

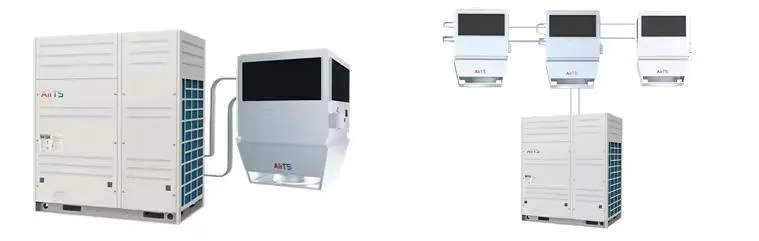

Working Principle: The VRF (Variable Refrigerant Flow) system, also known as "one-to-many," connects one outdoor unit to several independent indoor units. It utilizes a temperature sensor to adjust the compressor speed and refrigerant flow, meeting precise cooling and heating loads for various spaces.
The system's multi-unit design offers several key advantages:
- Energy Savings: Automatic adjustment of refrigerant flow based on demand reduces overall operational costs.
- Space Efficiency: Outdoor units are rooftop-mountable, preserving floor space and reducing construction height requirements.
- Simplified Installation: A straightforward setup with fewer components compared to traditional water systems ensures reliable operation.
- Flexible Zoning: Different rooms can be controlled independently to meet diverse temperature requirements simultaneously.
| Model (AirTS-) |
250AX |
280AX |
335AX |
400AX |
450AX |
500AX |
560AX |
900AX |
| Power (HP) |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
32 |
| Cooling Capacity (kW) |
25.2 |
28.5 |
33.5 |
40 |
45 |
50.4 |
56 |
90 |
| Heating Capacity (kW) |
27 |
31.5 |
37.5 |
45 |
50 |
56 |
63 |
100 |
| Airflow (m³/h) |
12000 |
12000 |
12000 |
13980 |
13980 |
13980 |
25800 |
27000 |
| Machine Size (mm) |
930×860×1690 |
1240×860×1690 |
1500×860×1690 |

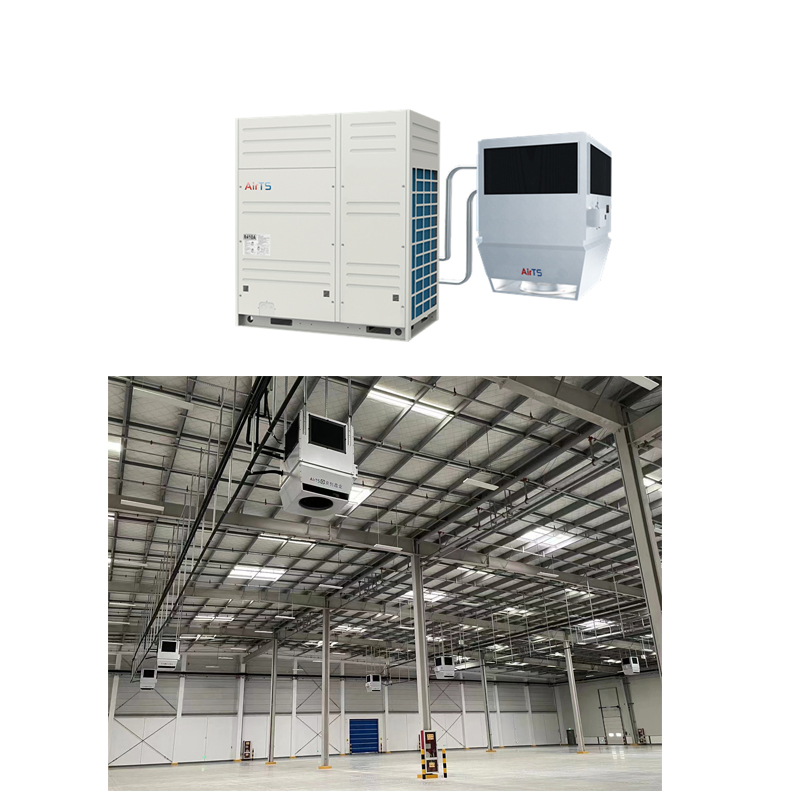

Tailored for large spaces ranging from 4 to 30 meters in height, these units are ideal for warehouses, workshops, factories, schools, and auditoriums. They provide comprehensive control over heating, cooling, ventilation, and dust removal.
?
Frequently Asked Questions
How does a VRF system differ from traditional industrial air conditioning?
VRF systems allow for variable refrigerant flow, meaning the system only works at the capacity needed for the current load. This provides significant energy savings and more precise temperature control compared to traditional fixed-speed systems.
What height limits are suitable for these units?
These solutions are specifically tailored for large buildings with heights ranging from 4 meters up to 30 meters, such as industrial workshops and auditoriums.
What refrigerant is used in the system?
The system utilizes R410A refrigerant, which is efficient and commonly used in modern industrial HVAC systems.
Can the system handle both heating and cooling simultaneously?
Yes, depending on the specific configuration, the multi-unit system can cool one area while heating another, optimizing energy consumption and comfort across different zones.
How is the quality of the units guaranteed?
Quality is ensured through pre-production samples and a rigorous final inspection before shipment, adhering to ISO and CE certification standards.
What is the expected lifespan of the equipment?
The units are designed with high-durability materials like galvanized sheets, offering a service lifetime of over 20 years with proper maintenance.
