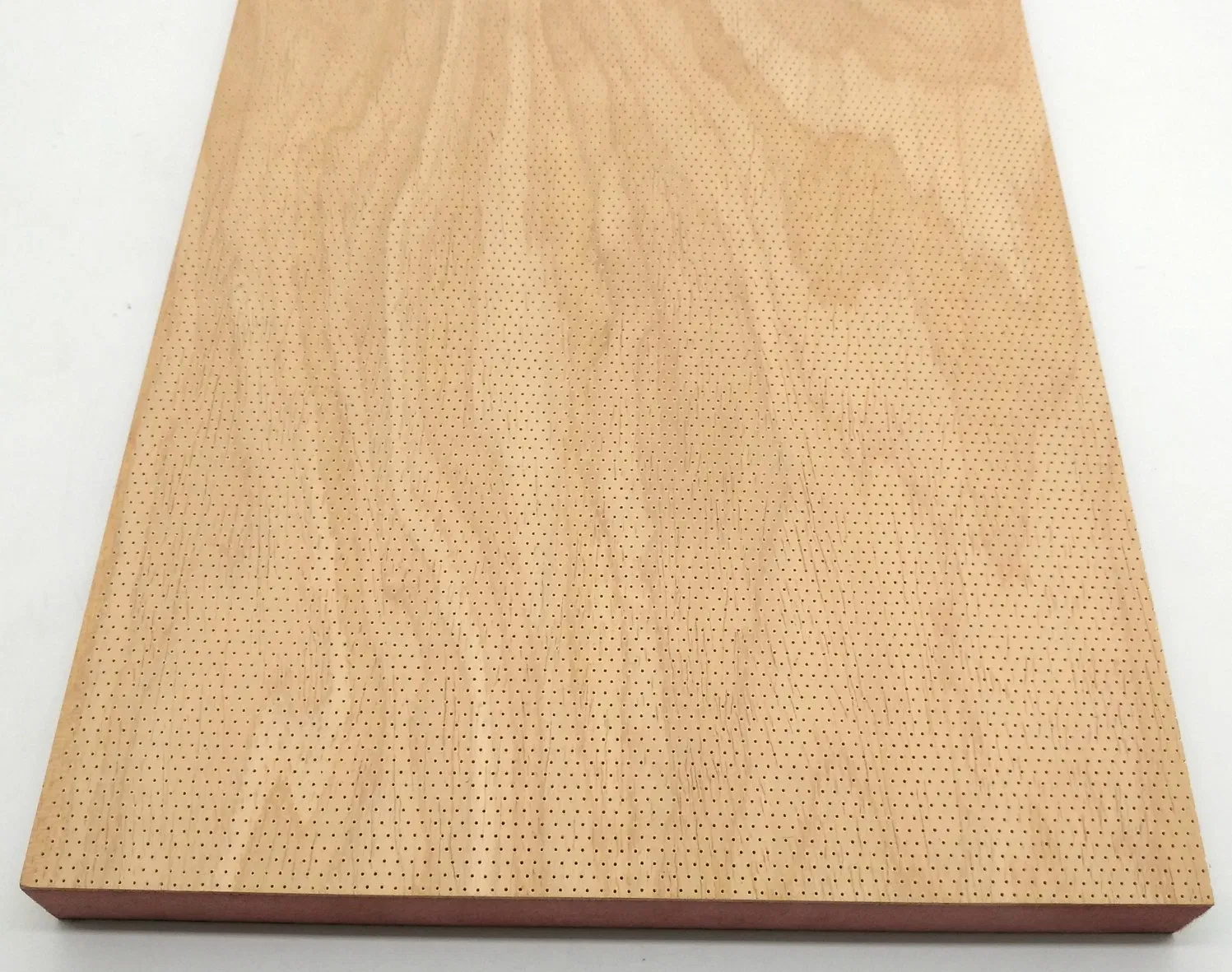

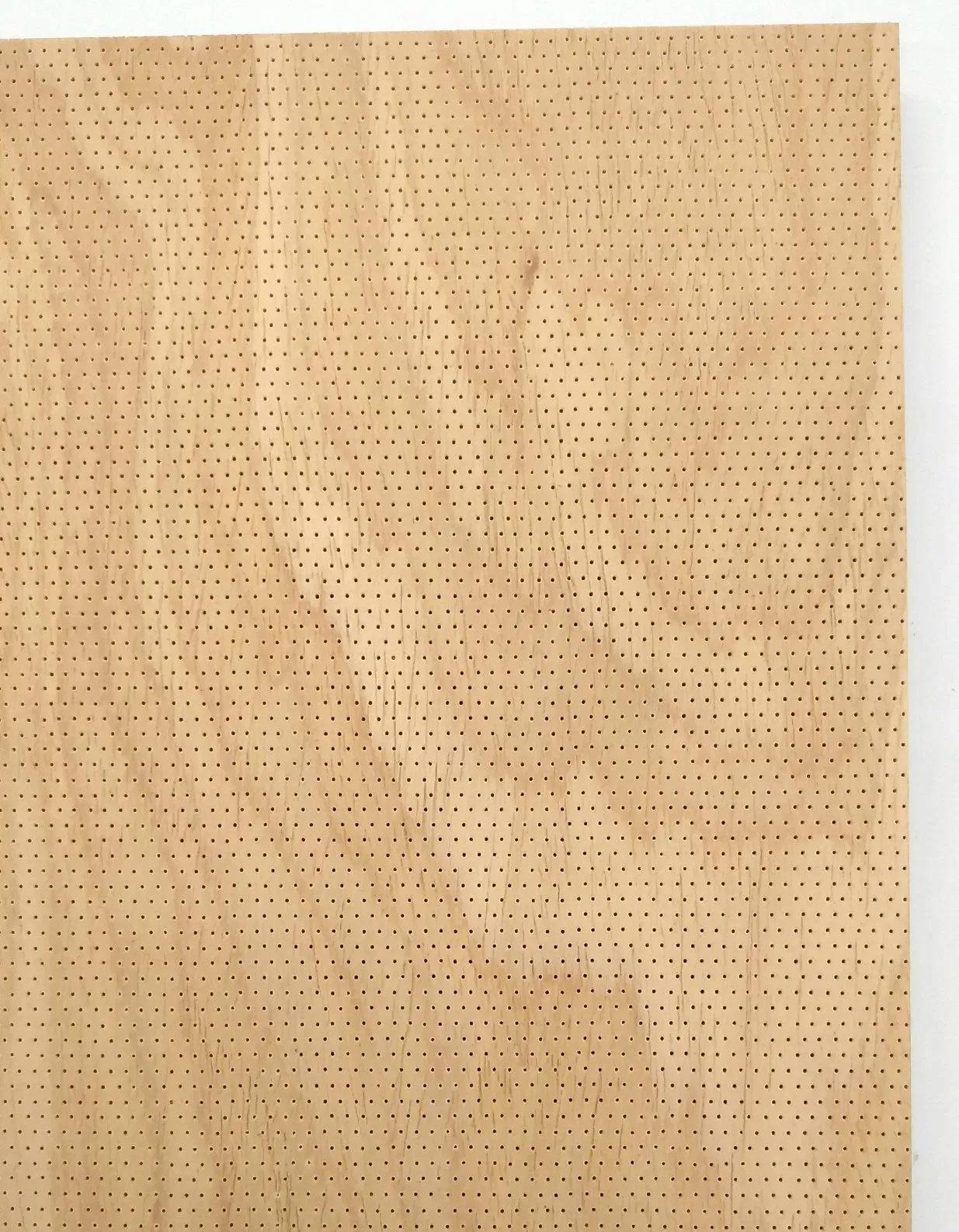

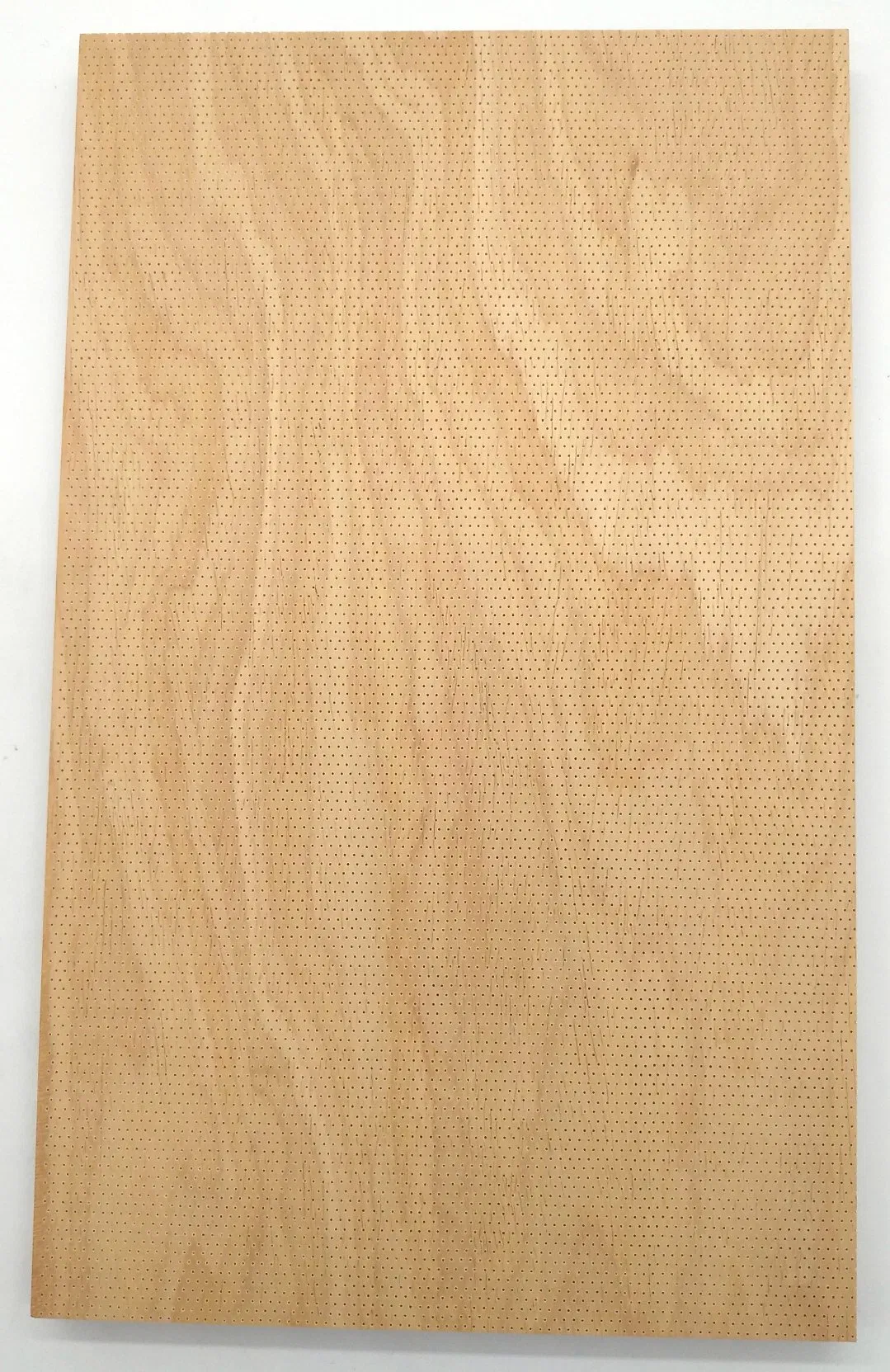

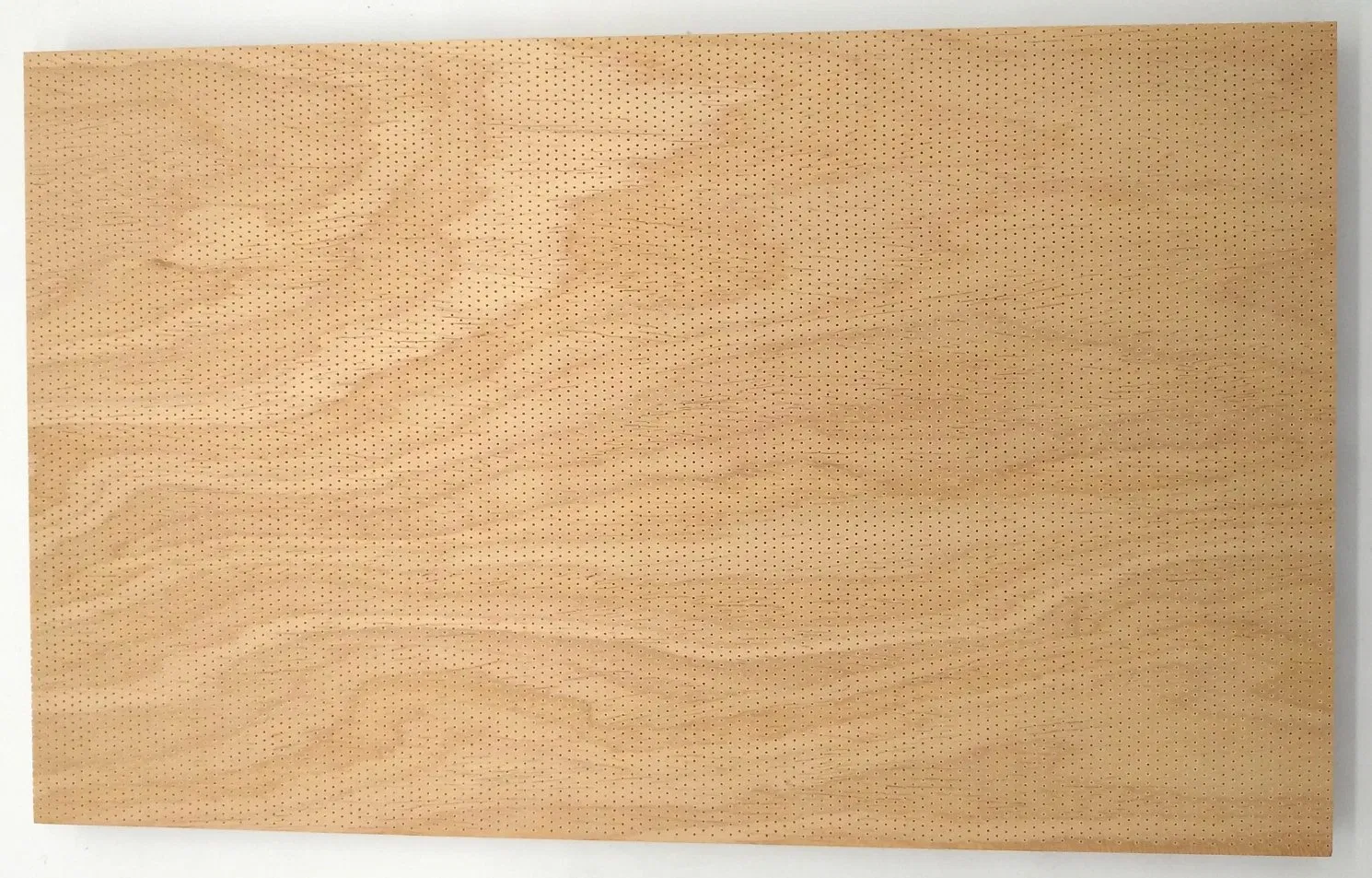

Auditorium Wall Panel Maple Veneer 0.5mm Nano Microperforated Sound Absorption Material

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
0.5mm micro hole
Color
Oak Veneer
Certification
Environmental E0
Fire Rating
Class B / Class A (Tested)
Installation
Clip System
Core Material
MDF (Red/Black)
Thickness
15mm / 18mm / 21mm
NRC
0.9 (ISO354-2003)
Standard Size
2400*1200mm
Max Customs
3020*1200mm

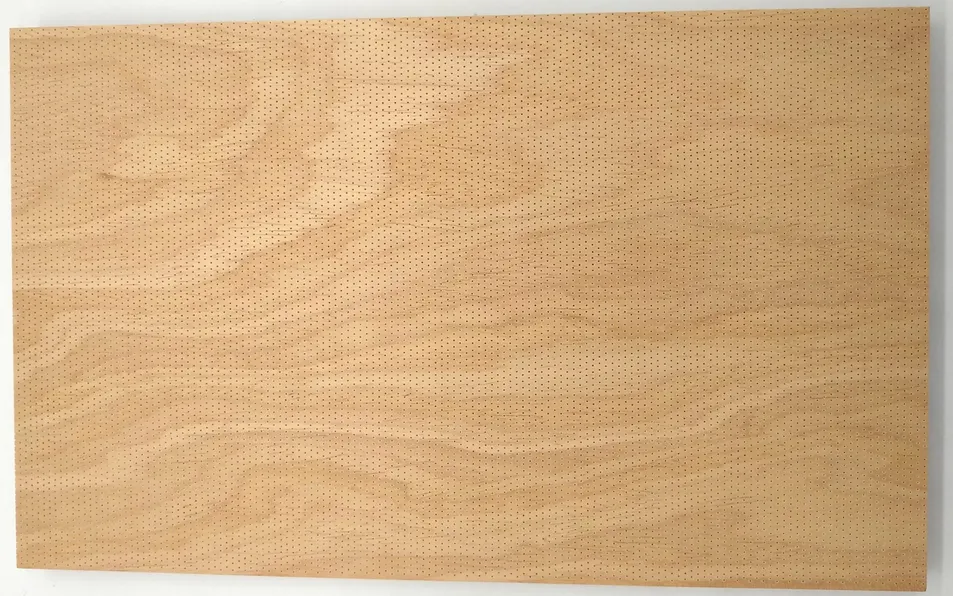

Microperforated Sound Absorption Material
Acoustic Wall Panel View

Product Description

🎯 Precision-Engineered Micro Perforations: Acoustic panels featuring ultra-fine perforations of 0.5mm diameter. This technology delivers superior sound absorption across a broad frequency spectrum without visible holes, maintaining a smooth and elegant surface finish.
Hole Pattern 2/2/0.5mm (2mm gap, 0.5mm diameter)
Perforation Arrangement 1. Staggered Arrangement
2. Straight Arrangement
Finish Options Laminate, Wood Veneer, or RAL Colors
Acoustic Backing Soundtex Black Fleece

Key Advantages

Superior Aesthetics0.5mm holes are virtually invisible, blending into high-end interior designs.
Broadband AbsorptionEffectively absorbs low-to-mid range frequencies for balanced acoustics.
High DurabilityMade from high-density wood, resistant to wear, moisture, and impact.
HygienicNon-porous surface prevents dust accumulation; ideal for hospitals and offices.
Eco-FriendlySustainable wood resources, avoiding harmful fibrous materials.

📐Perforation & Edge Designs

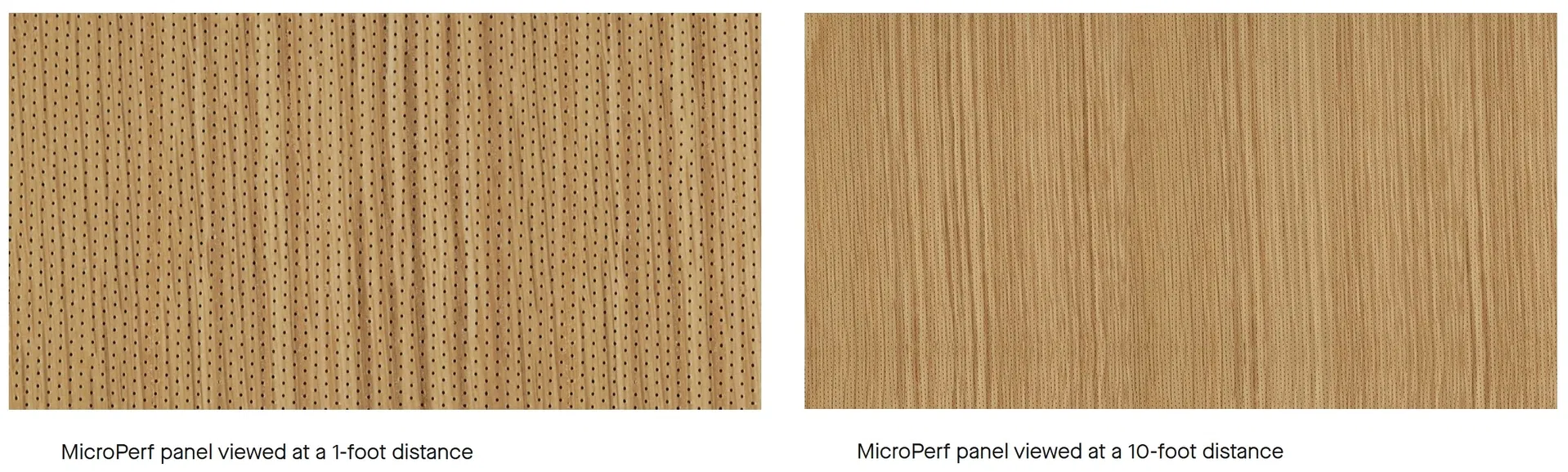

Perforation Diagram

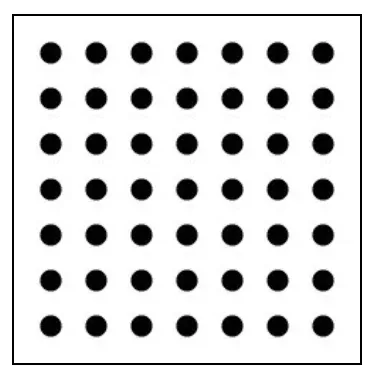

Straight Arrangement

Straight Arrangement

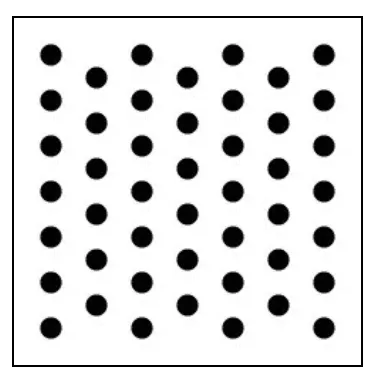

Staggered Arrangement

Staggered Arrangement

🛠️Edge Profiles

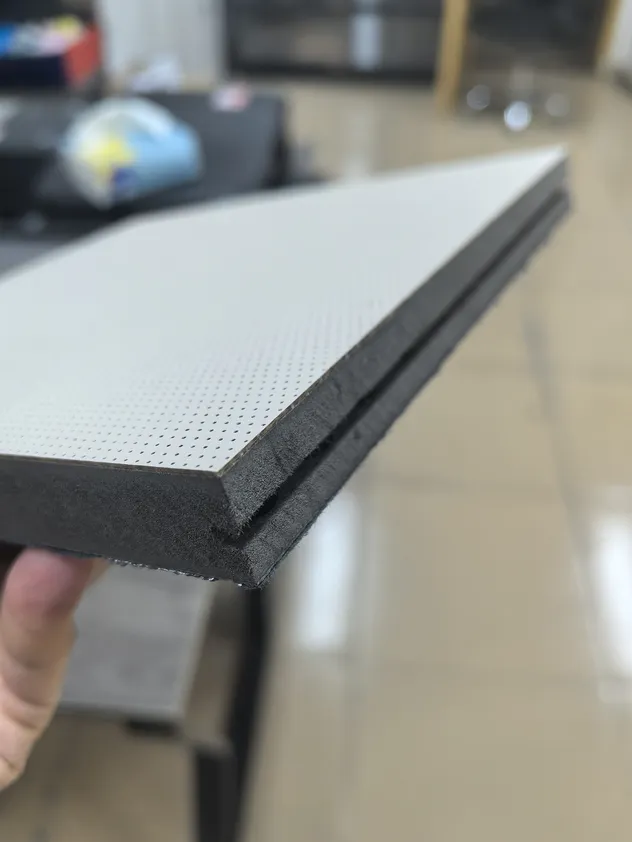

Type A Edge

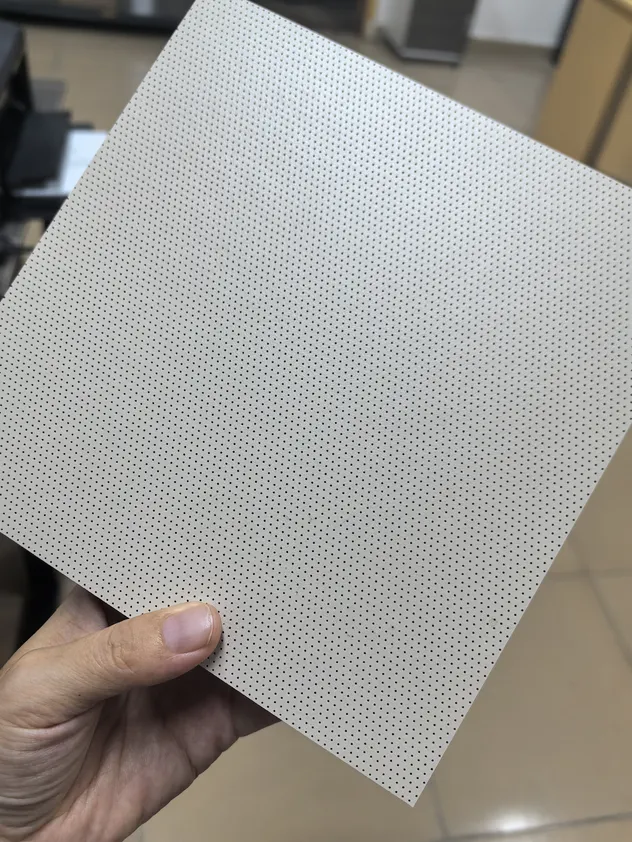

Type C Edge

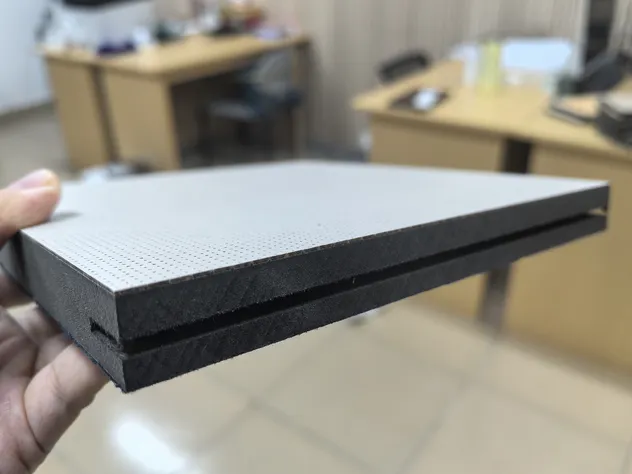

Type D Edge

📊Acoustic & Safety Performance

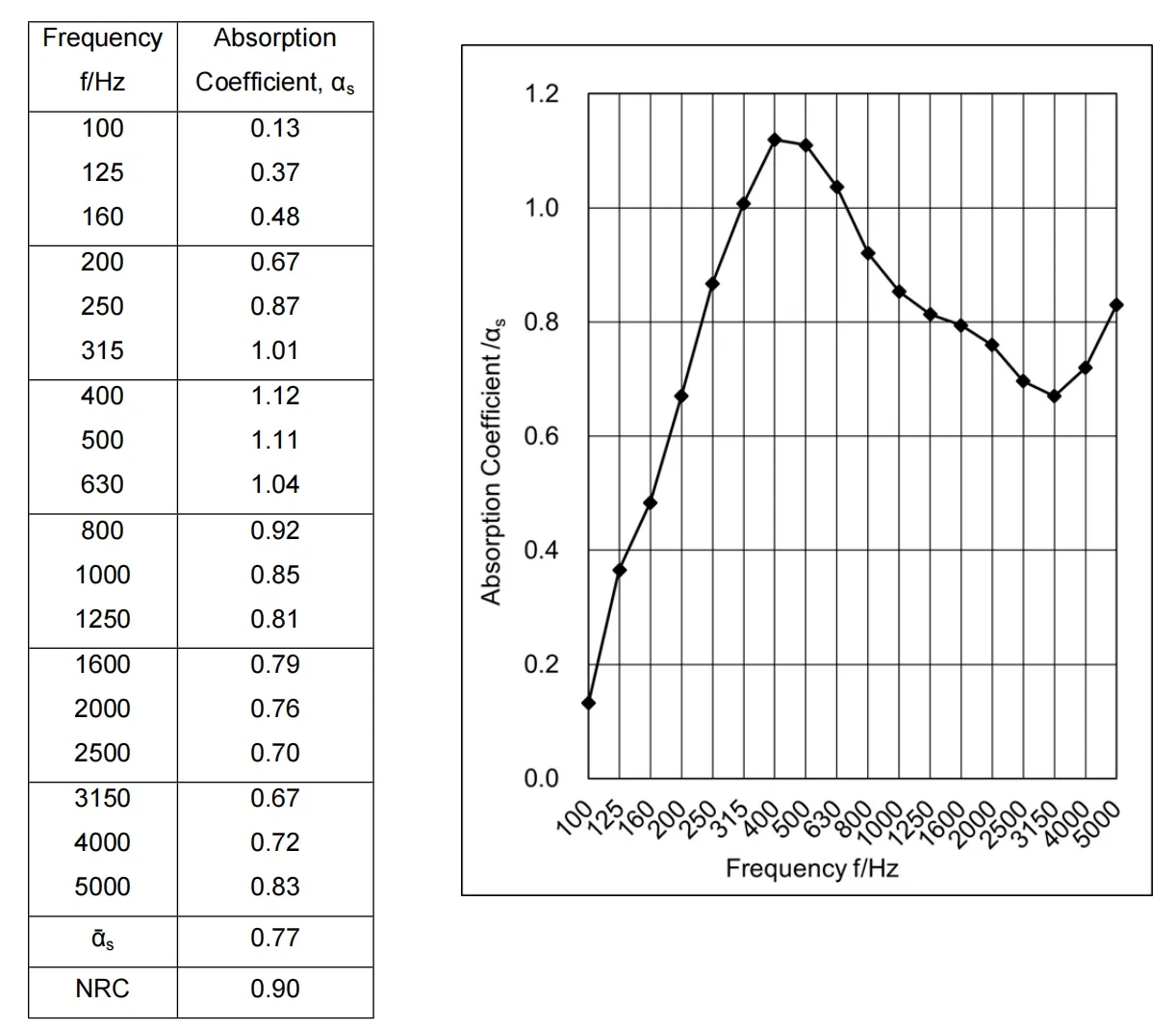

NRC 0.9 Achievement: Tested according to ISO354:2003 for sound absorption in reverberation rooms.
Acoustic Test Graph

🔥Fireproof Class A

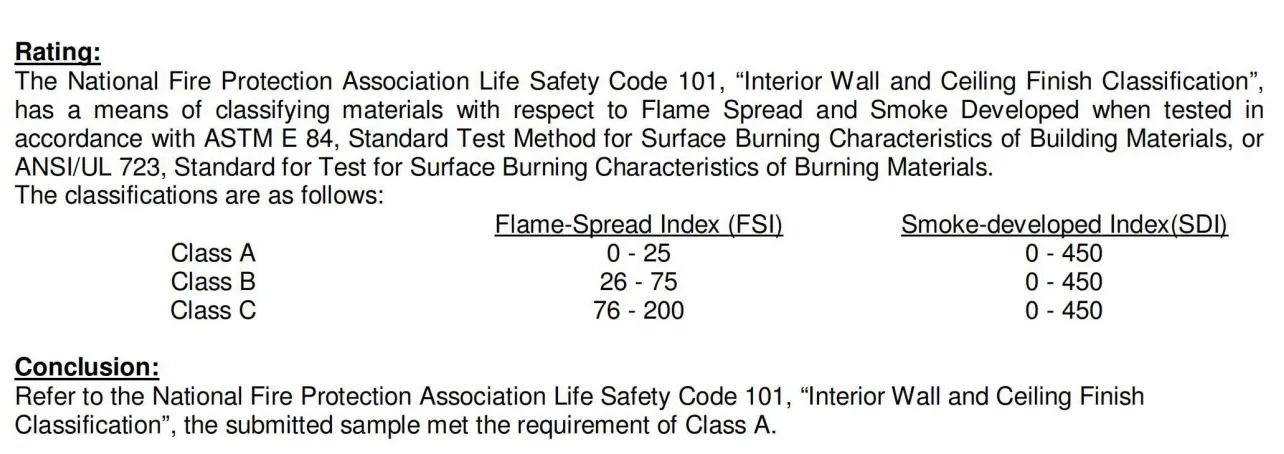

Fireproof Test Result

Flame spread and smoke developed tested in accordance with ASTM E84 standard for building materials.

🌿Eco-Friendly Testing

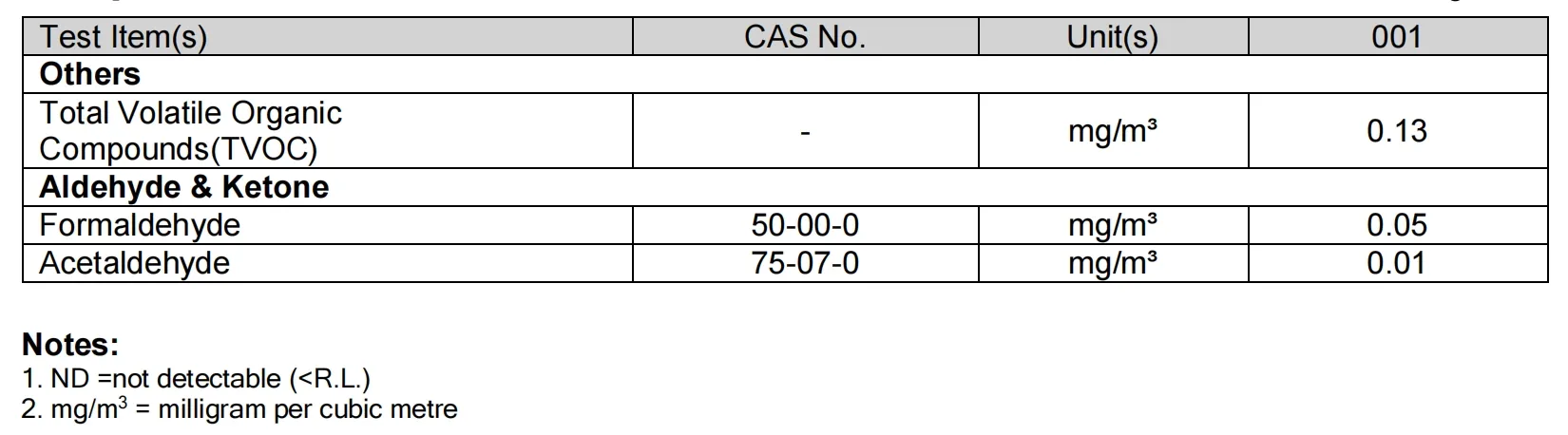

Formaldehyde emission level: 0.05mg/m³. Tested via Environmental Chamber analysis (ISO16000 standards).

Eco Test Result

🎨Finish & Aesthetics

Laminate Options

Laminate options include solid colors and woodgrain patterns. Custom sizes available up to 3050*1220mm.

Natural Veneer Finish

Natural wood veneer options provide the authentic charm of real wood with various matching patterns.

📦Professional Packaging

Goods are wrapped in protective bubble film to shield from moisture and scratches, then secured inside high-strength wooden cartons for transit safety.

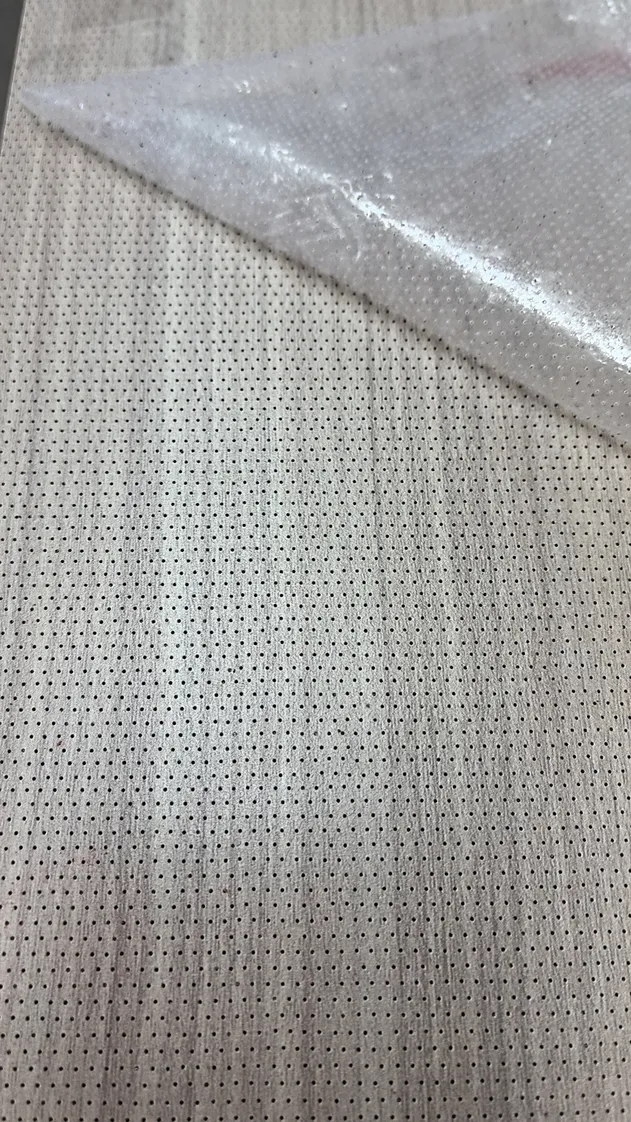

Packaging Detail 1

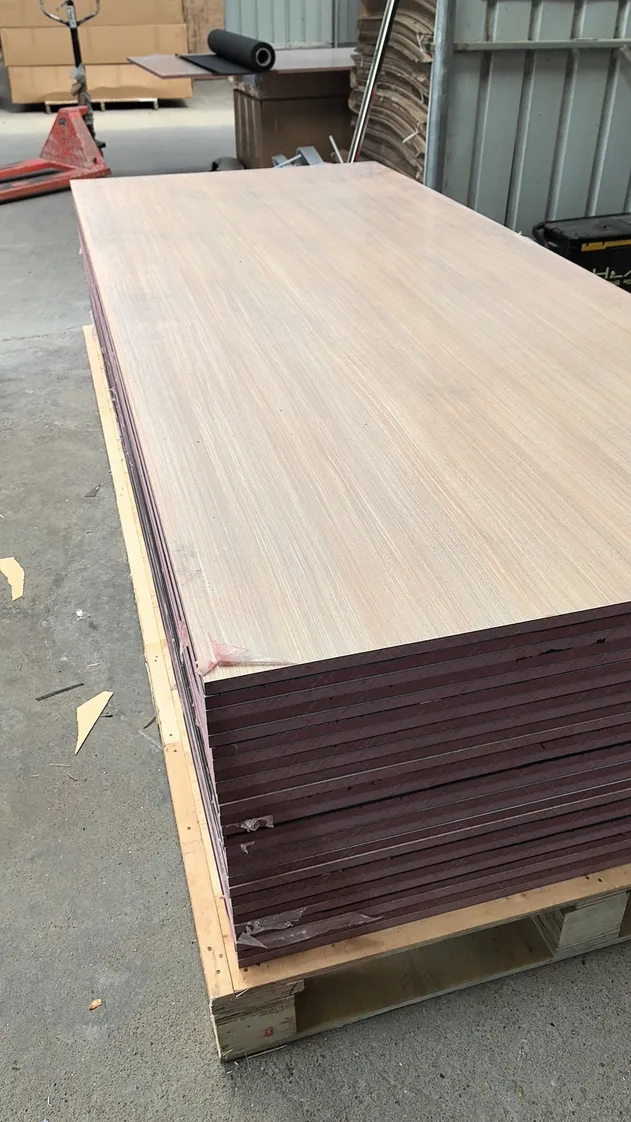

Packaging Detail 2

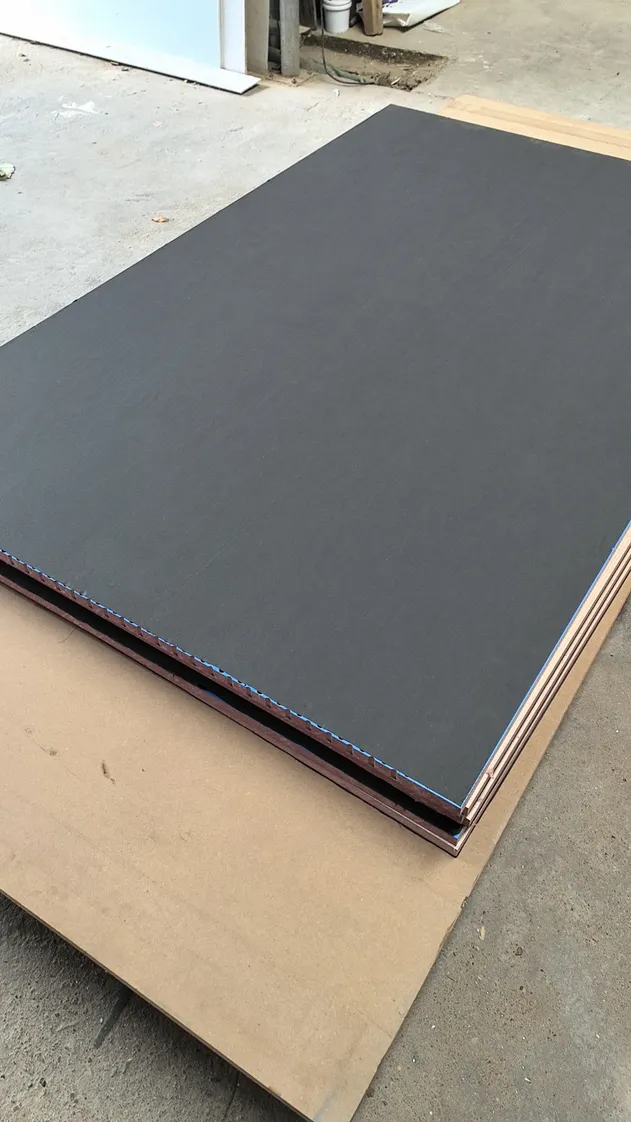

Packaging Detail 3

Frequently Asked Questions

Q1: What makes the 0.5mm micro-perforation better than traditional panels? The 0.5mm holes are virtually invisible to the naked eye, allowing for a seamless aesthetic while still providing high-performance sound absorption (NRC 0.9) by converting sound energy into heat.
Q2: Can the panels be customized for specific project sizes? Yes, while the standard max size is 2400*1200mm, we offer customization for large projects with sizes up to 3020*1200mm (L*W).
Q3: What are the fire safety ratings of these panels? Our panels have been tested according to ASTM E84 standards and achieved a Class A result for surface burning characteristics.
Q4: Are these panels safe for use in hospitals and clean rooms? Absolutely. The smooth, non-porous surface (despite the micro-holes) prevents the accumulation of dust and microbes, making them highly hygienic for sensitive environments.
Q5: What core materials and thicknesses are available? The core is typically high-density MDF (available in red or black) with standard thicknesses of 15mm, 18mm, and 21mm.
Q6: How is the product protected during international shipping? Each panel is wrapped in moisture-proof bubble film and packed in high-strength wooden cartons or pallets to withstand rough handling and stacking during transit.
