Advanced Mobile Data Centers Featuring Innovative Optical Cooling Solutions

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

Customized

Type

Air-Cooled

Cooling Water

Industrial Water

System Type

Open System

Fans Species

Double-speed fan

Noise Level

Low

Application Fields

Industrial

Certification

RoHS, CE

Condition

New

Product Name

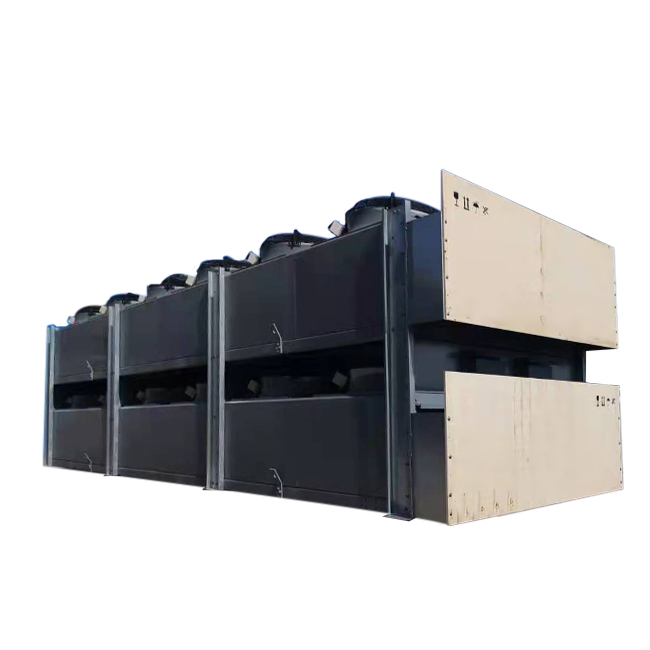

Floorstanding Compact Air Dry Refrigeration Cooler

Cooling Capacity

694kw

Water Flow

60L/Sec

Fan Quantity

14PCS

Power Supply

400V-3pH-50Hz

Total Motor Power

38.5kw

Inlet/Outlet Connection

DN125

Inlet Air Temp

20 Degree C

Inlet/Outlet Water Temp

25 Degree C

HS Code

8415901000

Production Capacity

300 Units/Month

📦 Packaging & Delivery

Package Size

500.00cm * 220.00cm * 224.00cm

Package Gross Weight

1200.000kg

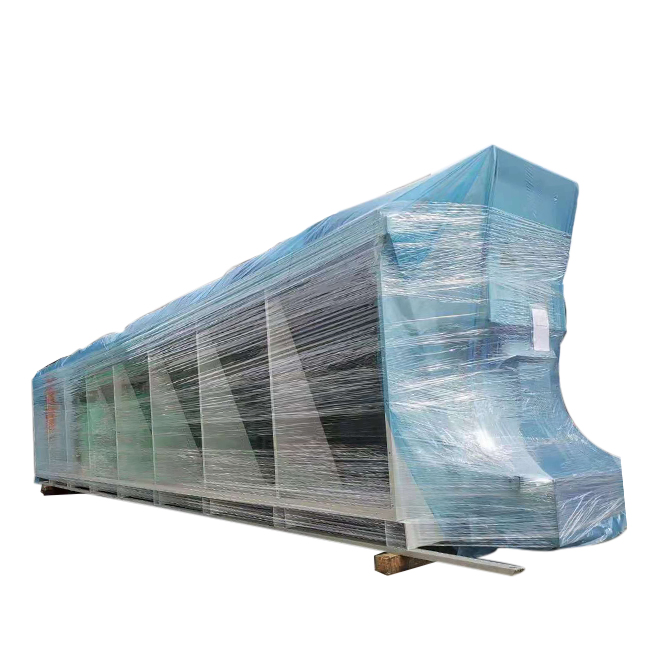

Transport Package

Wrap Film/Pallet

⚙️ Product Description

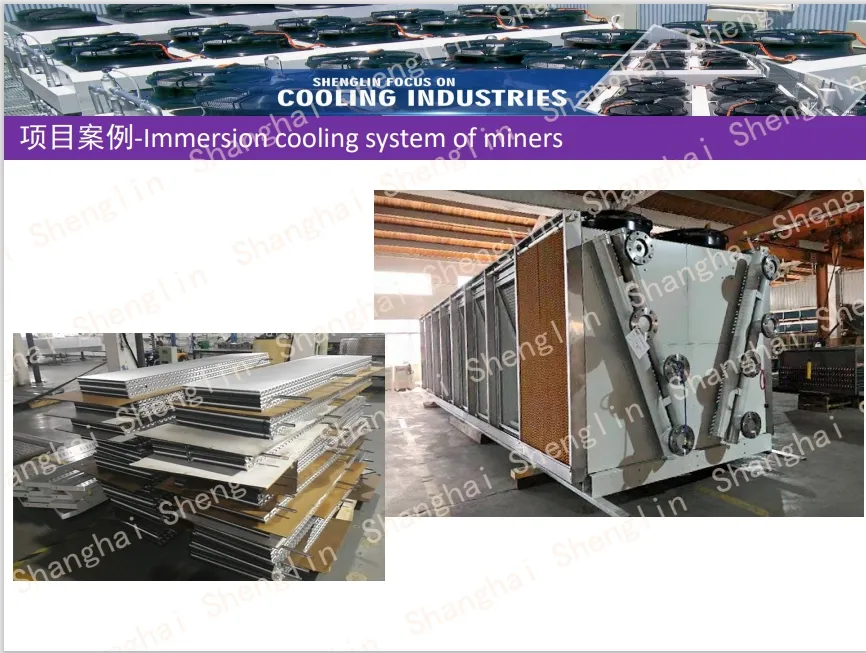

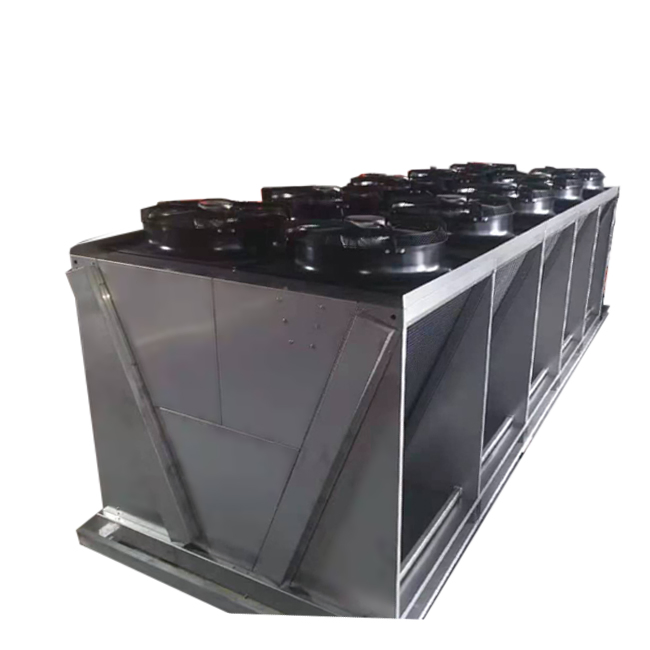

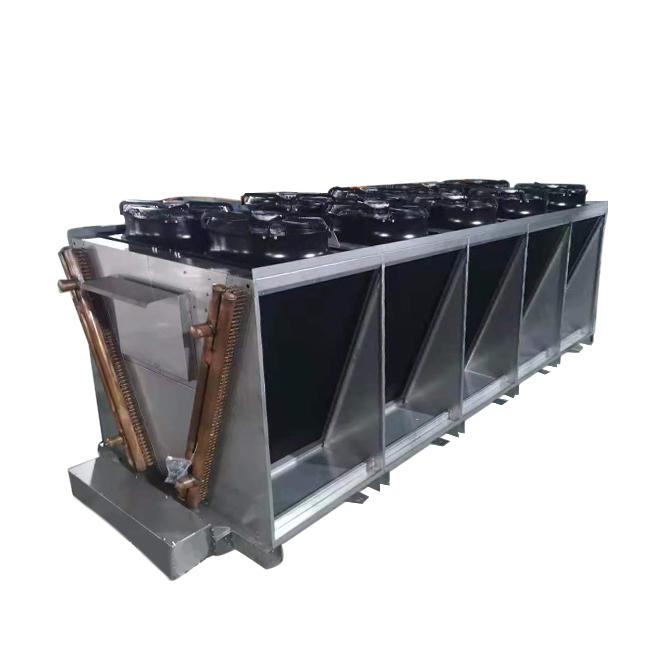

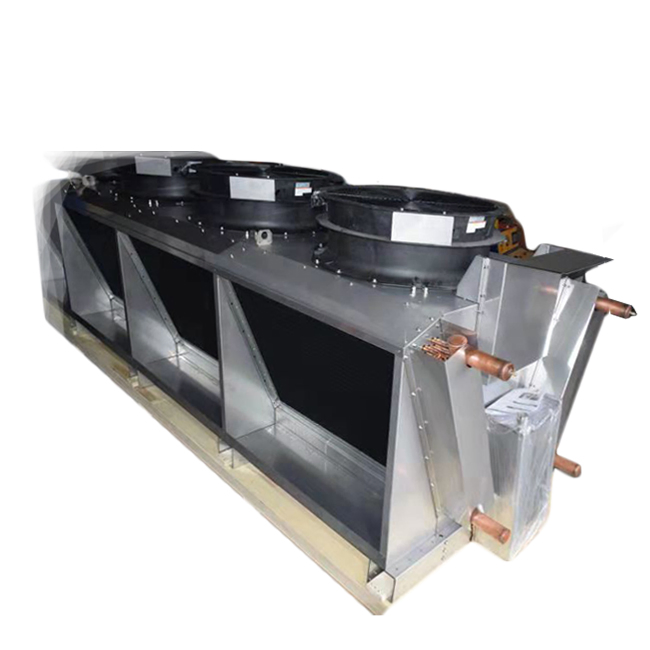

Mobile Datacenters Optical Module Immersion Cooling Dry Coolers

Key Features:

Category	Details
Performance Range	Cooling capacity: 5 to 649 kw Air volume: 2828 to 263503 m3/h Sound pressure level: 31 to 69 dB A(10m)
Heat Exchanger	High efficiency designs for maximizing heat transfer relative to energy consumption. Low pressure drop design (max 100KPa).
Fan System	Low specific energy consumption; Protection class IP 54; Insulation class F; 400V/3N/50Hz.
Testing	Supplied clean and pressure tested at 30 bars.
Custom Options	Media: water, oil, glycol. Multiple circuits, sub-cooling circuits, stainless steel or aluminum casing, explosion-proof motors.

📊 Technical Data (SHSL-D1 Series)

Type	005-1x350	006-1x350	009-1x450	011-1x450	014-1x500	020-1x500
Water Capacity (kW)	4.89	5.90	9.39	10.99	14.32	19.80
Air Flow (m3/h)	2828	2712	6199	5827	8469	7601
Fan Power (W)	140	140	540	540	830	830
Noise dB(A) 10m	31	31	43	43	49	49
Weight (kg)	38	42	55	60	75	91

🖼️ Product Gallery

Frequently Asked Questions

❓ What is the cooling capacity of these dry coolers?

The system offers a wide performance range, with cooling capacities stretching from 5kW up to 649kW, depending on the specific model and configuration.

❓ What types of cooling media can be used?

These coolers are highly versatile and can be designed for various refrigerants and media, including water, oil, and glycol mixtures.

❓ Are the units suitable for outdoor industrial use?

Yes, the units are designed for industrial applications with IP 54 protection class motors and robust casing options like stainless steel or aluminum.

❓ What certifications do the products carry?

Our dry refrigeration coolers are compliant with international standards and carry both RoHS and CE certifications.

❓ Can the fan speed and noise levels be controlled?

The units typically feature double-speed fans designed for low noise levels (ranging from 31 to 69 dB A at 10m) while maintaining high air volume efficiency.

❓ Is customization available for specific site requirements?

Yes, we provide customization for fin spacing, multiple circuits, sub-cooling circuits, and specific motor requirements like explosion-proof designs.
