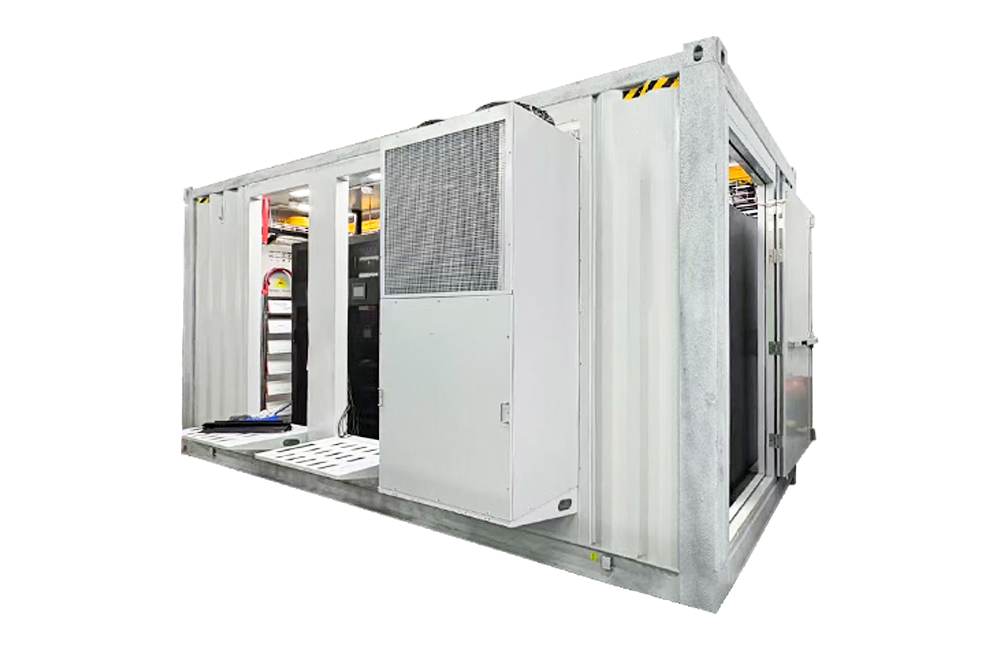

40FT Cabinet Data Center Modular for Cloud Services

1 / 5

40FT Cabinet Data Center Modular for Cloud Services

Customization:	Available
Cooling Method:	Indirect Cooling
Certification:	RoHS, ISO

Send Inquiry

Product Description

Basic Specifications

Model NO.

Customized

Condition

New

Multiple Sizes

10FT / 20FT / 40FT

Transport Package

Wooden Box

Specification

Customized

Product Introduction

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.

It supports deep customization for clients and is suitable for various specific application scenarios.

Core Features

⚙ Tailored Customization

Highly professional R&D and manufacturing capabilities providing customized solutions including system availability, protection levels, and cooling types.

⚡ Rapid Deployment

Pre-integrated infrastructure tested in-factory. Simple on-site installation with delivery cycles as fast as 40 days.

🛡 Safe and Reliable

Meets IP55/IP65 protection levels. Options for corrosion resistance, fire resistance (up to 120min), and explosion-proof capabilities.

🔄 Continuous Operation

High availability power distribution and cooling system designs ensure continuous online operation of critical business systems.

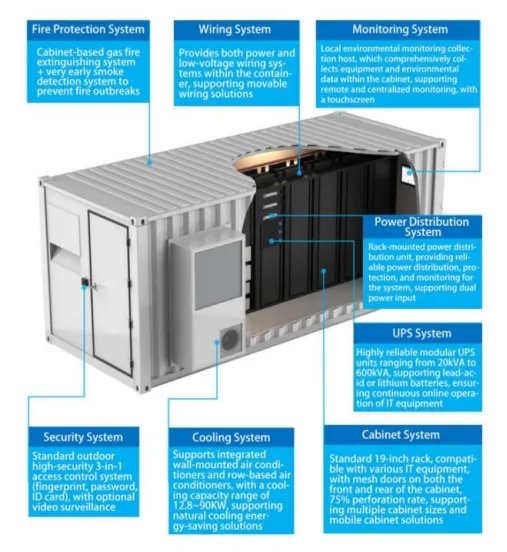

System Components

1. Container Construction

Built from scratch with ISO container standards.
Salt spray standard: 750h.
Thermal protected with rock wool insulation.
Withstands 30 m/s wind speed under working conditions.
Fire protection options up to 120 minutes.
IP55 water/dust protection (Operating Temp: -40ºC~55ºC).

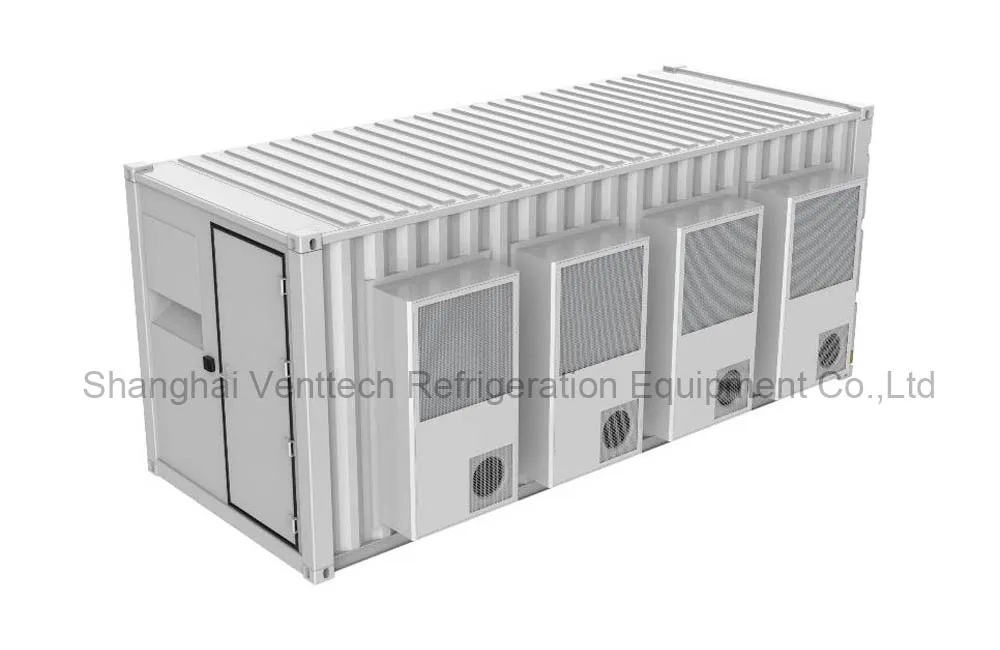

2. Precision Cooling System

5.5-31.5kW wall mount cooling (Standard).
5.6-90kW Inrow cooling options.
5.5-122.9kW Room cooling options.
Works in up to 55°C ambient temperature.

3. IT Rack System

1800kg static loading capacity IT racks.
Widths (600/800mm) and depths (1100/1200mm) options.
Optional cold/hot aisle containment systems.
Sliding mechanism for easier equipment service.

4. UPS Power System

3-60kVA rack UPS / 60-200kVA modular UPS.
VRLA or Lithium battery configurations.
Basic or Smart PDU per requirements.
Configurable to T1~T4 uptime levels.

5. DCIM & Security

Full communication with UPS, cooling, and sensors.
Integrated Access Control (Pin/Password/Fingerprint).
Integrated Video Surveillance system.
Remote access via Web, SMS, Email, and Modbus-TCP.
Fire detection with Novec1230/FM200 agents.

Multiple Protective Design

✔ Waterproof & Moisture-Proof

✔ Salt Spray Protection

✔ Mold Prevention

✔ Fire & Heat Insulation

✔ Seismic Resistance

✔ Theft & Explosion Protection

Frequently Asked Questions

Q1: What are the standard sizes for the container data center? We provide standard ISO sizes including 10FT, 20FT, and 40FT containers, all of which can be customized based on specific project needs.

Q2: How fast can a container data center be deployed? Since all components are pre-integrated and tested in the factory, on-site installation is significantly simplified. Delivery and deployment can be achieved in as little as 40 days.

Q3: What level of environmental protection do these containers offer? Our containers come with a standard IP55 protection level against dust and water, with options to upgrade to IP65 for extreme environments.

Q4: Are the containers suitable for coastal or high-corrosion areas? Yes, we offer C5M High Corrosion Protection options specifically designed for coastal sites to withstand salt spray and humidity.

Q5: What fire suppression systems are integrated? We use advanced fire detection panels and automated fire suppression agents such as Novec1230 or FM200 to ensure maximum safety.

Q6: Can the system be monitored remotely? Yes, the integrated DCIM system allows for remote monitoring via Web interface, SMS, Email, or Modbus-TCP, covering UPS, cooling, and all security sensors.
