2026 Shanghai Venttk Great Container Data Center

Customization:	Available
Cooling Method:	Indirect Cooling
Certification:	RoHS, ISO

Send Inquiry

Product Description

📊

Basic Information

Model NO.:Customized

Condition:New

Application:Data Center

Quality:Great

Package:Wooden Box

Specification:Customized

📦

Container Data Center Solution

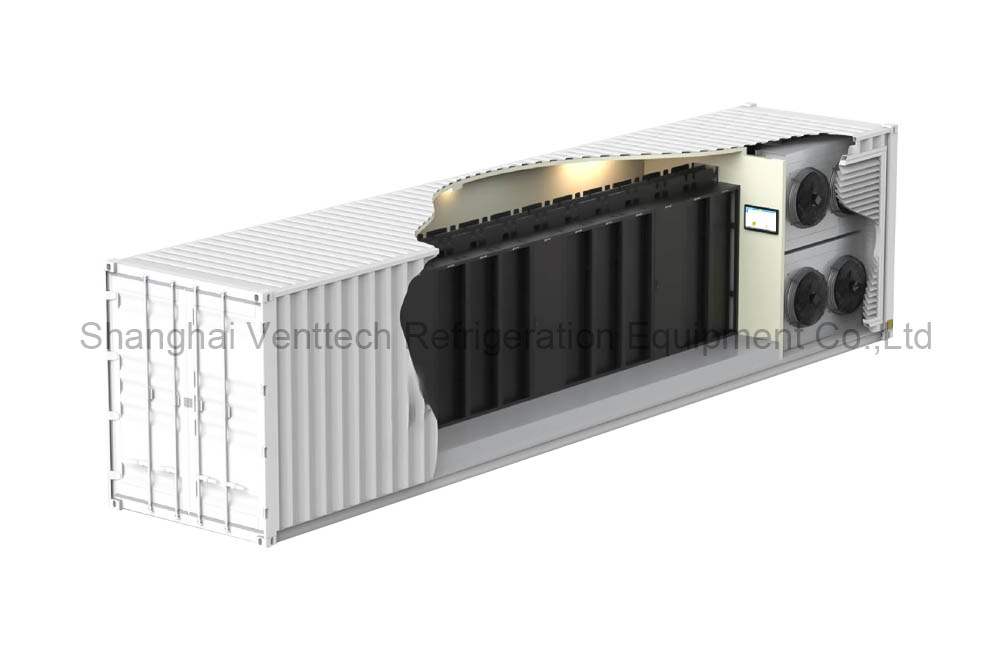

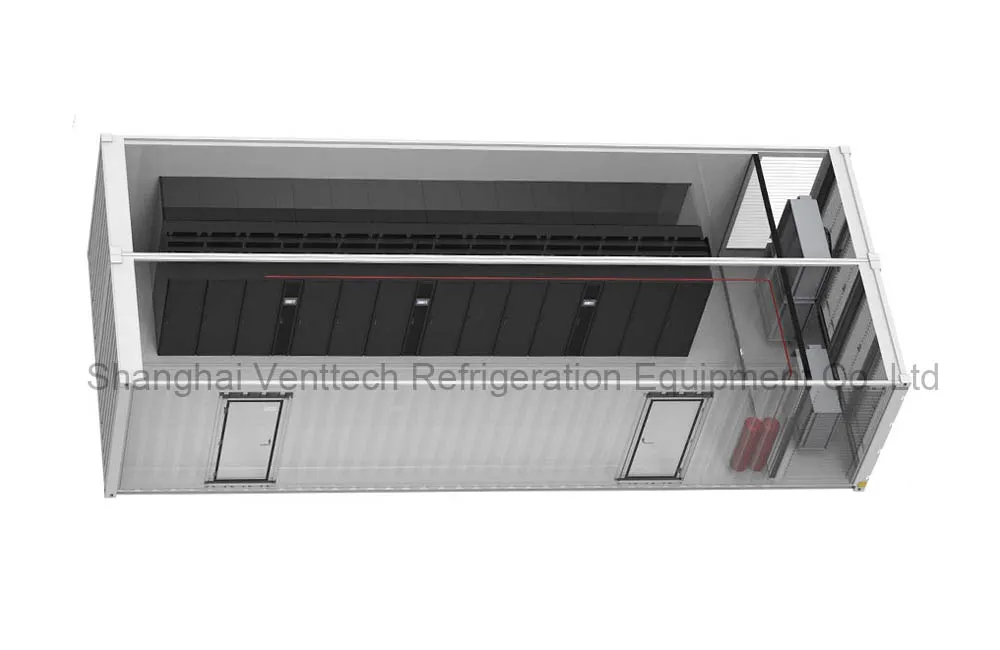

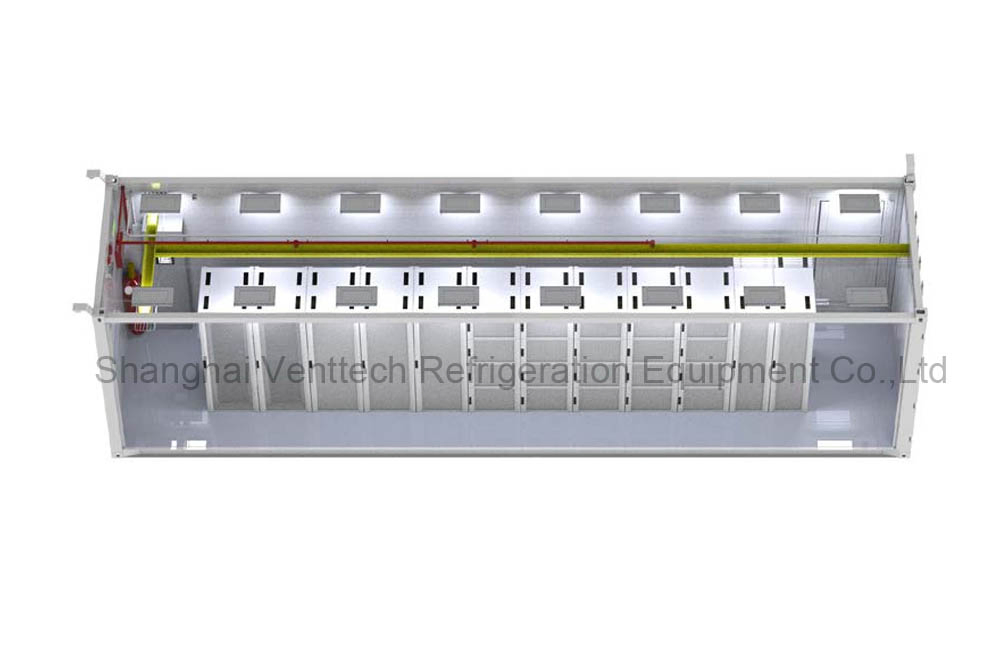

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment. It supports deep customization for clients and is suitable for various specific application scenarios.

🛡️ Tailored Customization

System availability, protection capabilities, container size, power supply standards, cooling types, and other special requirements are fully customizable.

⚡ Rapid Deployment

Pre-integrated infrastructure tested in factory. On-site installation is simplified, with delivery available as fast as 40 days.

🔒 Safe and Reliable

Standard IP55 protection (up to IP65), corrosion resistance, fire resistance, and explosion-proof. Equipped with video surveillance and access control.

🔄 Continuous Operation

High availability power distribution and cooling system designs ensure continuous online operation of client business.

⚙️

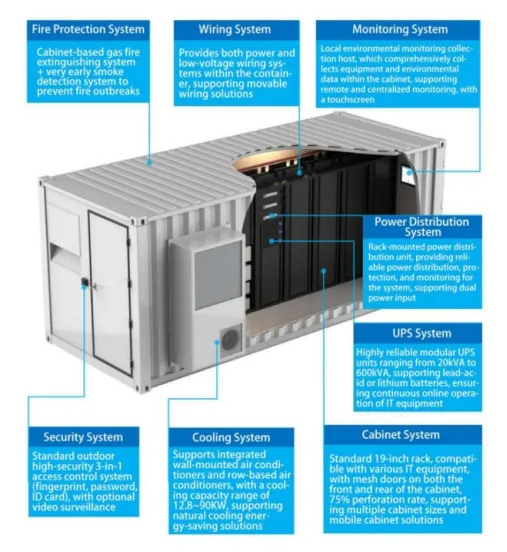

System Components

(1) Container Construction

Build from scratch with ISO container standard
Salt spray standard: 750h
Thermal protected with rock wool
Withstand 30 m/s wind speed
IP55 water/dust protection; Operating temperature: -40ºC~55ºC
Options: Fire protected (120min), Bullet proof, C5M High Corrosion Protection

(2) Precision Cooling System

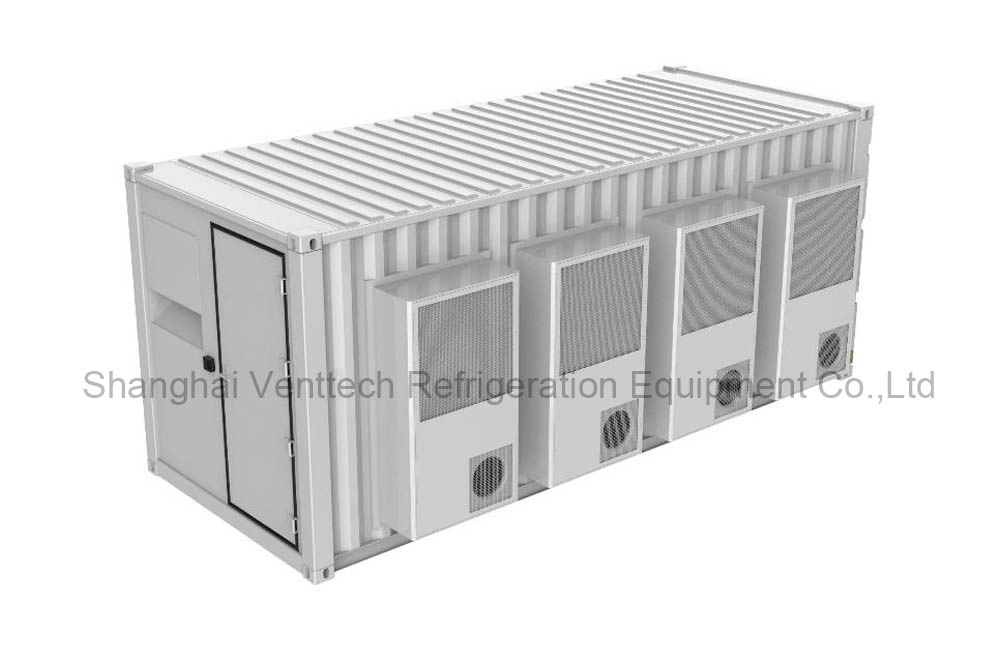

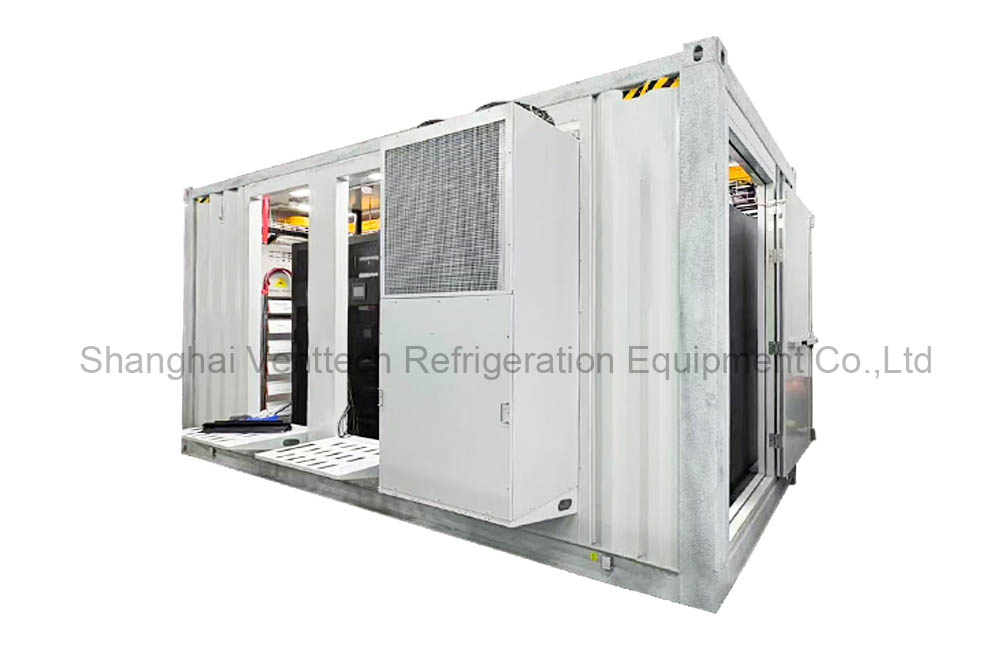

5.5-31.5kW wall mount cooling as standard
5.6-90kW Inrow cooling options
5.5-122.9kW Room cooling options
Free cooling options available for all types

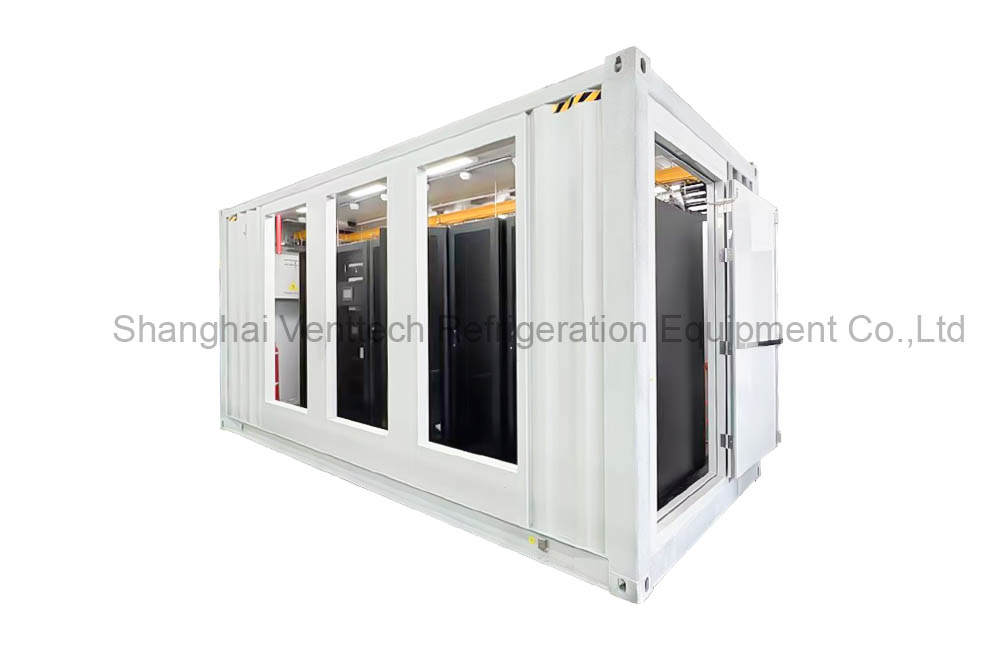

(3) IT Rack System

1800kg static loading capacity racks
Widths (600/800mm), Depths (1100/1200mm)
Optional cold/hot aisle containment
Sliding design for easier service access

(4) UPS Power System

3-60kVA rack UPS; 60-200kVA modular UPS
250-600kVA modular floor mount UPS
VRLA / Lithium battery configurations
Basic/Smart PDU; T1~T4 uptime level configuration

(5) DCIM System

Full communication with UPS, cooling, and sensors
Integration with access control and video surveillance
10/21/42 inch touch screen display options
Remote access via Web, SMS, Email, Modbus-TCP, SNMP

(6) Access Control & (7) Fire Protection

IP55 3-in-1 access (pin/password/fingerprint)
Early fire detection with smart fire panel
Fire suppression agents: Novec1230 / FM200

🛡️

Multiple Protective Cabinet Design

Waterproof & Moisture-Proof

Salt Spray Protection

Mold Prevention

Fire & Heat Insulation

Seismic Resistance

Theft & Explosion Protection

❓

Frequently Asked Questions

Q1: What is a container data center? A: It is a prefabricated, portable data center housed within an ISO standard container, integrating power, cooling, and IT infrastructure for rapid deployment.

Q2: How fast can this solution be delivered? A: Due to factory pre-integration and testing, delivery can be achieved as fast as 40 days from order to site.

Q3: What protection levels does the container provide? A: The containers meet IP55 as standard, with options for IP65, fire resistance up to 120 minutes, and even bulletproof or explosion-proof customizations.

Q4: Can the system handle extreme outdoor temperatures? A: Yes, the system is designed to operate reliably in ambient temperatures ranging from -40ºC to 55ºC.

Q5: Is remote management possible? A: Yes, the integrated DCIM system allows for full remote monitoring and management via Web, SMS, Email, and various industrial protocols.

Q6: Are the IT racks customizable? A: Absolutely. We offer various rack widths (600/800mm) and depths (1100/1200mm) with optional cold or hot aisle containment systems.
