20 FT Modular Data Center Cabinet Data Center

1 / 5

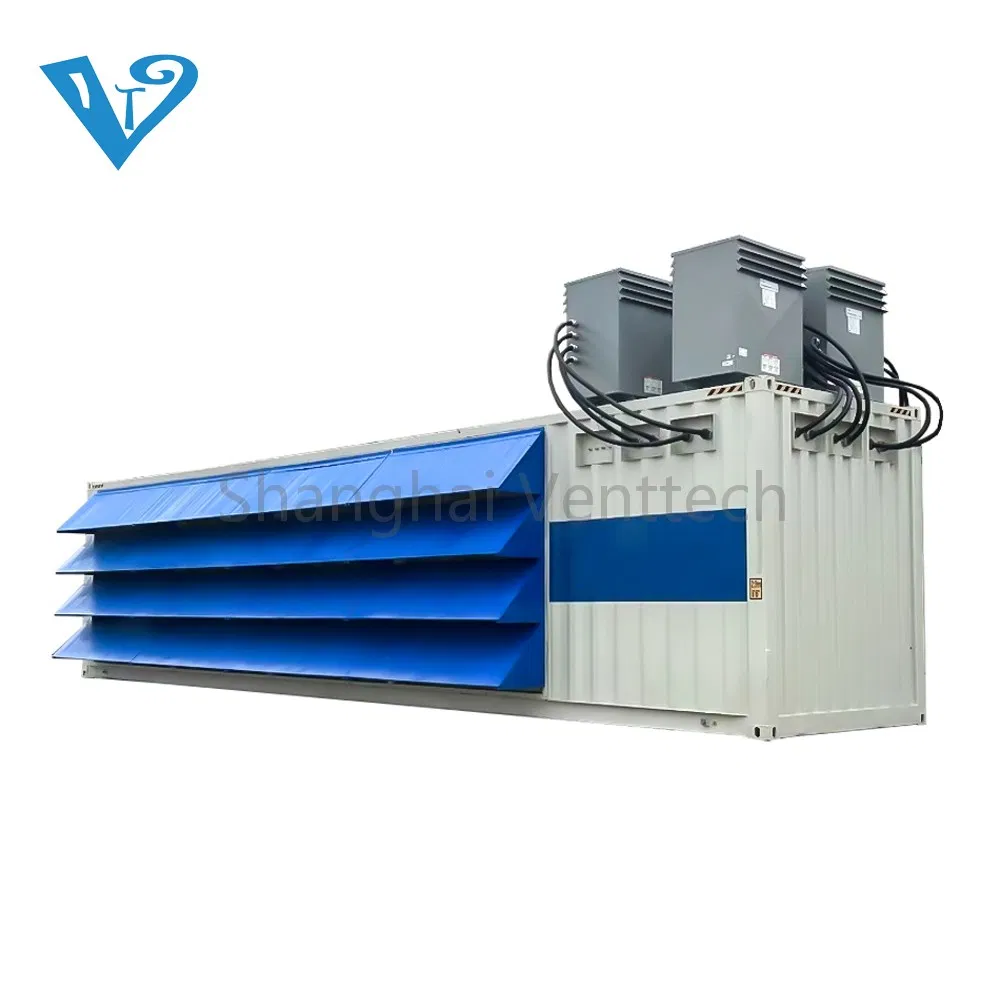

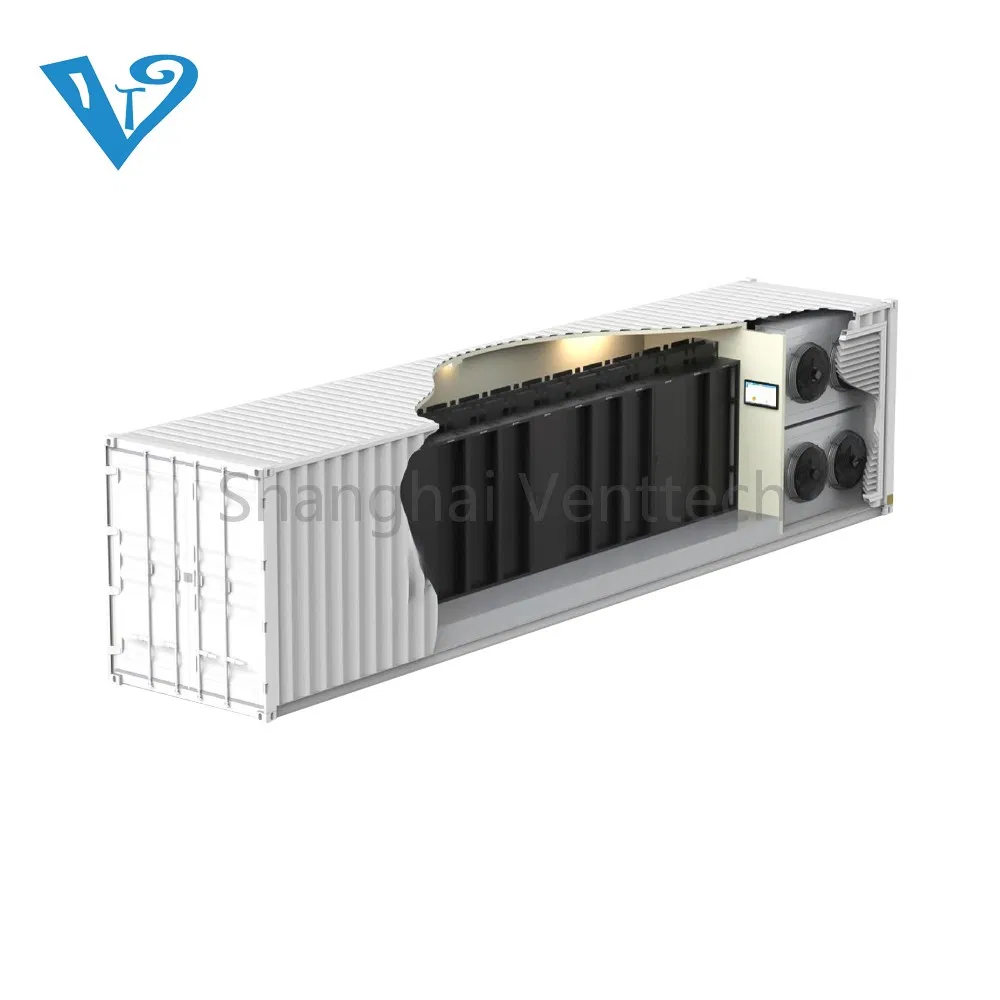

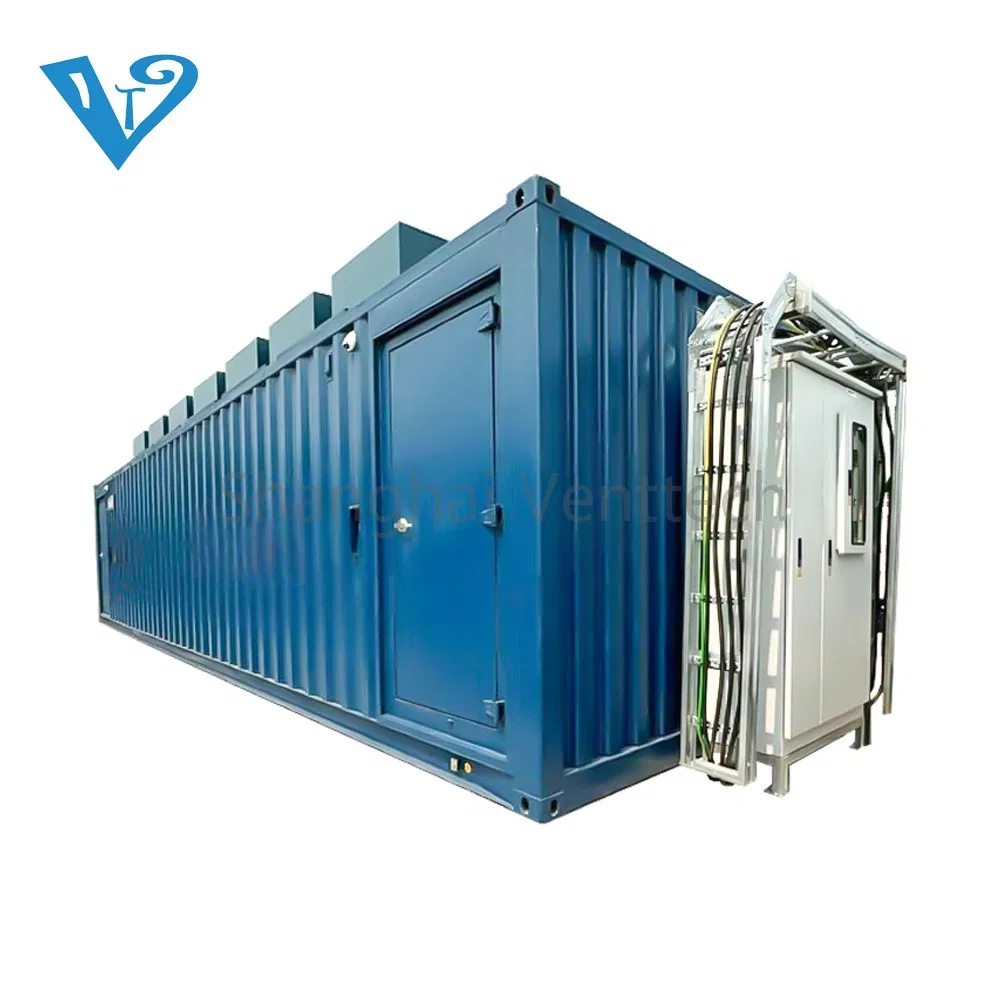

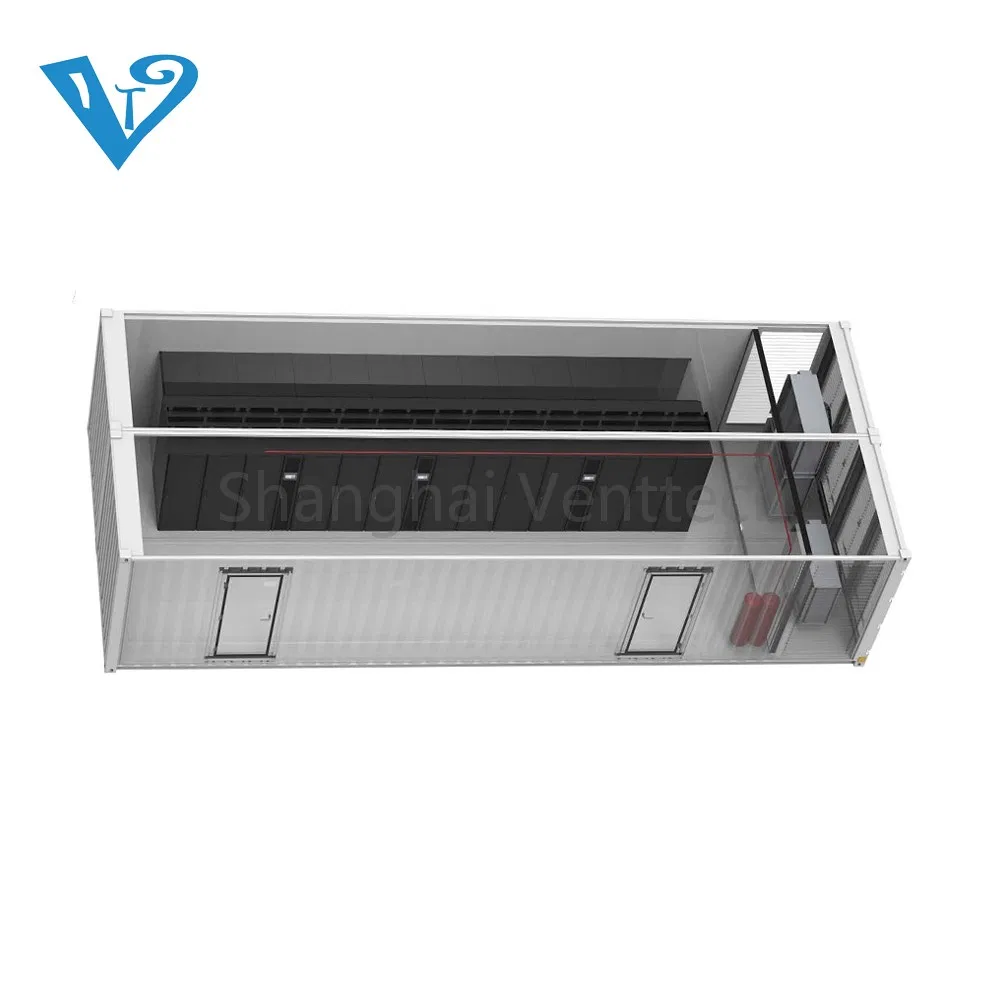

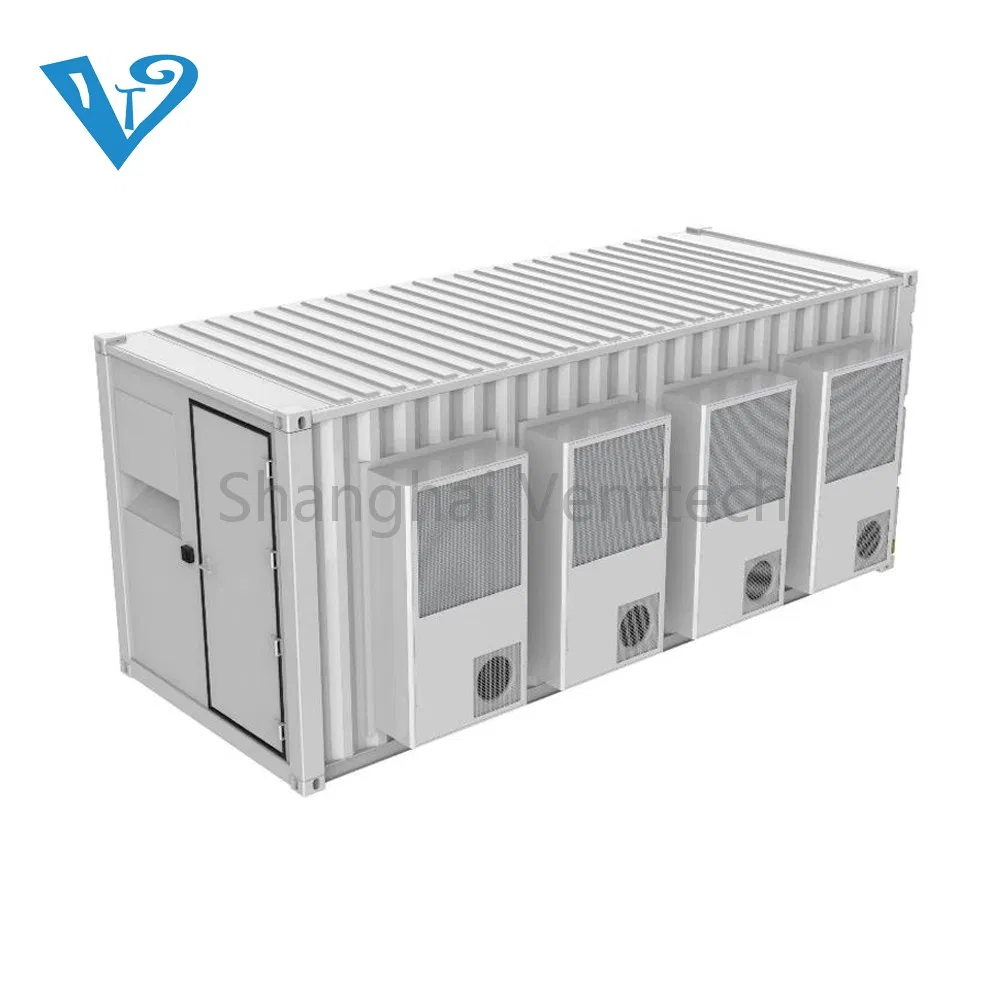

20 FT Modular Data Center Cabinet Data Center

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Type:

Air-Cooled

Cooling Water:

Industrial Water

System Type:

Open System

Fans Species:

Frequency Fan

Noise Level:

Ultra Low

Application Fields:

Electronics

Certification:

ISO

Condition:

New

OEM Customization:

Supported

Medium:

Water/Oil/Glycol/Electrolyte

Inlet Air Temp:

60 Degree C

Outlet Air Temp:

40 Degree C

Dimensions:

10 FT/ 20FT/ 40FT

Production Capacity:

300 Sets/Month

Container Data Center Solution

Professional dry air cooler for immersion cooling systems and pre-integrated data center solutions with over 17 years of experience in the HVAC industry.

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.

⚙️

Tailored Customization

Customized availability, protection levels, container size, and cooling types to meet specific requirements.

🚀

Rapid Deployment

Pre-integrated and factory-tested components allow for simple on-site installation with delivery as fast as 40 days.

🛡️

Safe & Reliable

Standard IP55 protection (up to IP65), corrosion resistance, fire resistance, and explosion-proof capabilities.

Multiple Sizes & Solutions

10ft Cabinet

20ft Cabinet

40ft Cabinet

Custom Modular

Dual Bay Solution

Multi Containers Solution

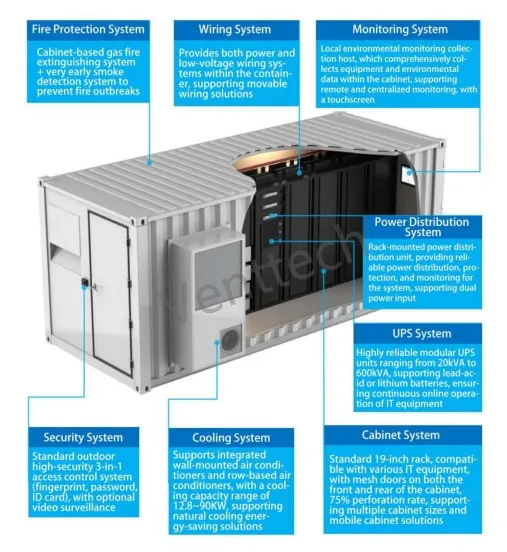

System Components

Container Construction

Built to ISO container standards with rock wool thermal protection.
Salt spray standard: 750h (C5M High Corrosion Protection available).
Withstands 30 m/s wind speeds and offers fire protection up to 120min.
IP55 water/dust protection; Operating temperature: -40ºC to 55ºC.

Precision Cooling & Power

Cooling: Wall mount (5.5-31.5kW), Inrow (5.6-90kW), or Room cooling (5.5-122.9kW).
UPS: 3-60kVA rack UPS as standard; modular options up to 600kVA.
IT Rack: 1800kg static loading capacity with cold/hot aisle containment.

Management & Security

DCIM System: Full communication with UPS, cooling, and sensors via touch screen or remote web/SMS.
Access Control: IP55 3-in-1 (PIN/Password/Fingerprint) system.
Fire Protection: Early fire detection system with Novec1230/FM200 agent.

Multiple Protective Cabinet Design

✓ Waterproof and Moisture-Proof

✓ Salt Spray Protection

✓ Mold Prevention

✓ Fire and Heat Insulation

✓ Seismic Resistance

✓ Theft and Explosion Protection

Logistics & Service

Frequently Asked Questions

What are the primary advantages of a container data center?

Container data centers offer rapid deployment, high scalability, and factory-integrated reliability. They are ideal for remote locations, temporary setups, or expanding capacity without major construction.

How well does the container withstand harsh environments?

The containers are built to ISO standards, featuring IP55/IP65 protection, 750h salt spray resistance, and thermal insulation. They can operate in ambient temperatures ranging from -40ºC to 55ºC.

Can the internal configuration be customized?

Yes, we provide deep customization for UPS capacity, cooling types (Inrow, Room, or Wall-mount), rack dimensions, and security systems like fire protection and access control.

What is the typical lead time for delivery?

Since the modules are pre-integrated in our factory, we can achieve rapid delivery, often as fast as 40 days depending on the level of customization required.

Are the systems suitable for coastal areas?

Absolutely. We offer C5M High Corrosion Protection options specifically designed for coastal or high-salinity environments to ensure long-term durability.

What cooling media are supported?

Our systems are versatile and can work with various cooling media including Water, Oil, Glycol, and Electrolyte, making them suitable for traditional or immersion cooling applications.
