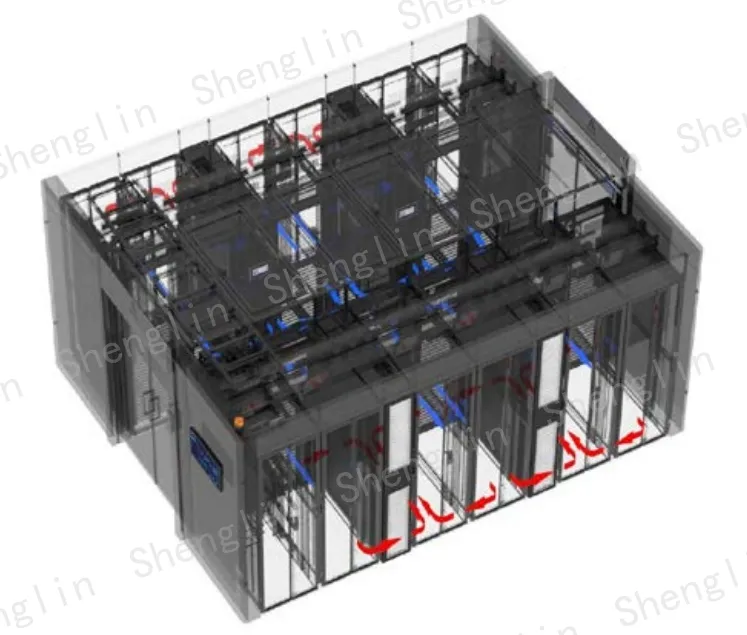

The dual row cold aisle enclosed micro module data center integrates server cabinet systems, enclosed aisle systems, precision air conditioning, UPS power supply and distribution systems, dynamic environment monitoring systems, and security systems. Designed with a fully modular architecture, it can be flexibly configured according to power density, number of IT devices, reliability levels, and PUE index requirements, providing superior infrastructure support for high-performance AI computing.
| System Category | Component Details | Visual Reference |
|---|---|---|

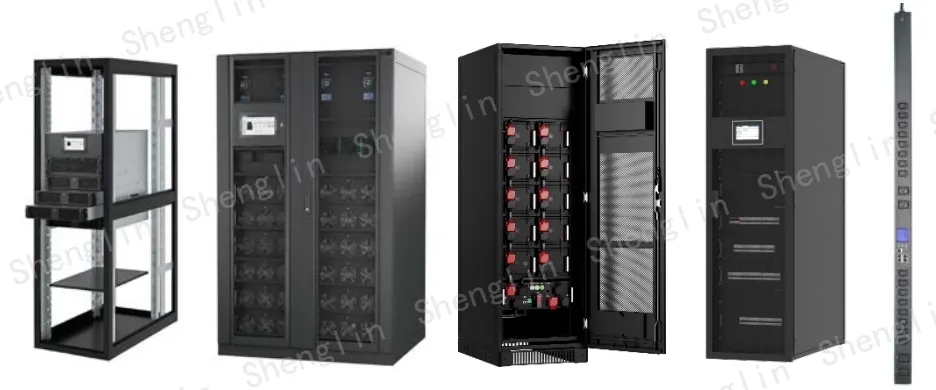

| Power Supply & Distribution |
• UPS: Modular Units (15~600kVA), High Frequency (20~800kVA) • Battery: Lead acid or Lithium battery options • Distribution: Integrated cabinets, precision distribution, busbar PDU |
 |
| Precision Temperature Control |
• In-row AC: Air-cooled (12-65kW), Chilled water (25-60kW) • Room AC: Air-cooled (12~120kW), Chilled water (30~200kW) • Liquid cooling: Cold plate (50~500kW) |
 |

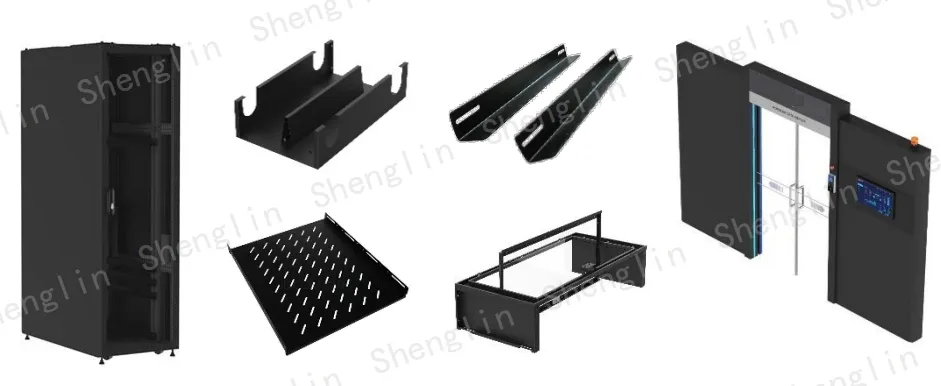

| Cabinet & Channel System |
• Cabinet: W 600/800mm, D 1000~1400mm, H 2000~2500mm • Containment: Cold or Hot channel containment options • Attachments: Blind plates, guide rails, cable racks, lighting |
 |
| Model Parameter | SL-60R | SL-90R | SL-120R | SL-150R | Customization |
|---|---|---|---|---|---|
| Total Cabinets | 12 | 18 | 24 | 30 | Up to 48 |
| Power Density (kW/Cabinet) | 80 | 90 | 90 | 80 | Up to 20kW/cab |
| Redundancy Type | N+1 | N+1 | N+1 | N+1 | N / N+1 / 2N |
| Cabinet Depth (mm) | 600 | 600 | 600 | 600 | 600 / 800 |
| Cabinet Height (mm) | 2000 | 2000 | 2000 | 2000 | 2000 / 2200 / 2500 |
| Channel Length (mm) | 4200 | 6000 | 8400 | 9900 | Up to 15000 |
Tier 4 is the highest level of data center reliability, featuring fully redundant subsystems (2N or 2N+1) and compartmentalized security. It ensures nearly 100% uptime, making it ideal for hyperscale AI operations.
We support multiple cooling technologies, including in-row air-cooled systems, chilled water systems, and advanced liquid cold plate cooling for high-density GPU servers.
By integrating UPS, distribution, cooling, and monitoring in the factory, we reduce onsite installation time by up to 50%, ensure component compatibility, and simplify maintenance.
Yes, our modular systems support flexible power densities ranging from standard 5kW up to high-density 20kW per cabinet configurations to meet AI hardware demands.
Absolutely. The dynamic monitoring system supports voice, SMS, email, and mobile APP alerts, allowing for real-time remote oversight of temperature, power, and security status.
Yes, cabinet heights (2000mm to 2500mm), depths (1000mm to 1400mm), and aisle lengths (up to 15000mm) can be customized to fit your specific facility layout.
