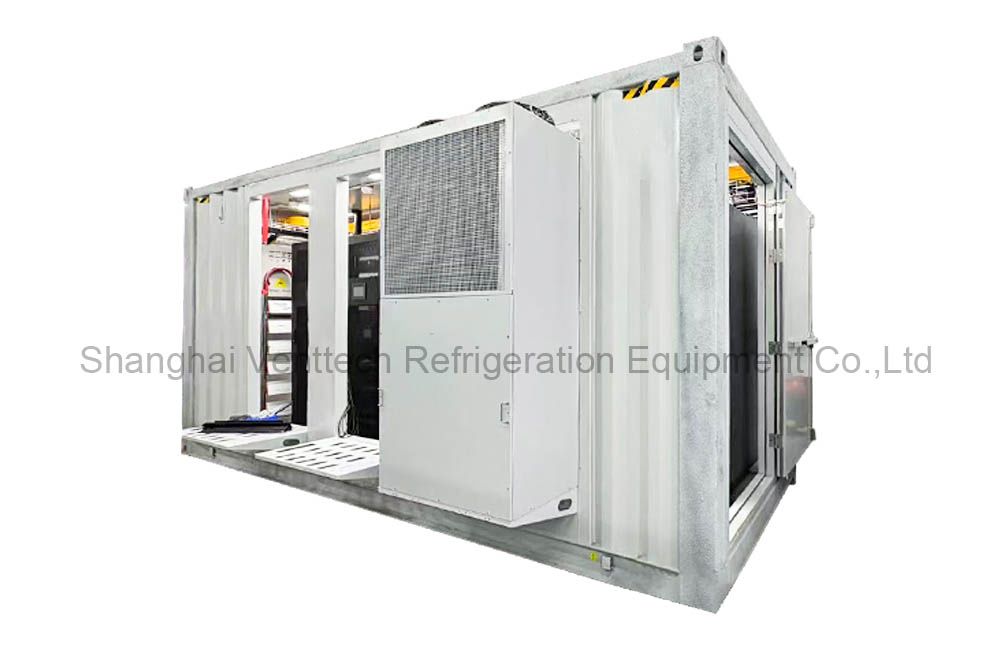

10FT Cabinet Modular Data Center for Telecommunications

1 / 5

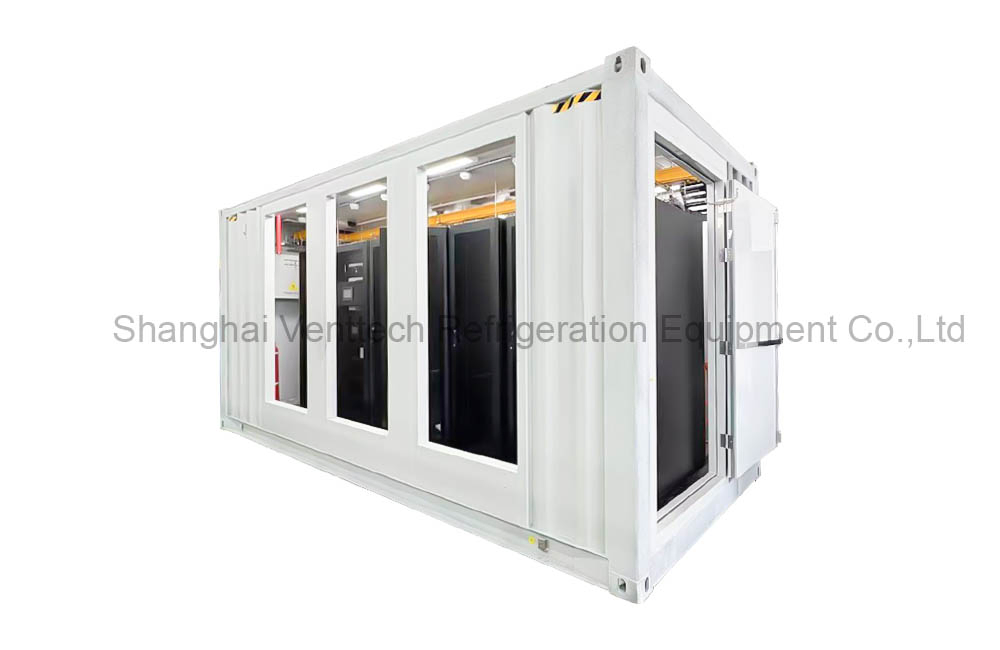

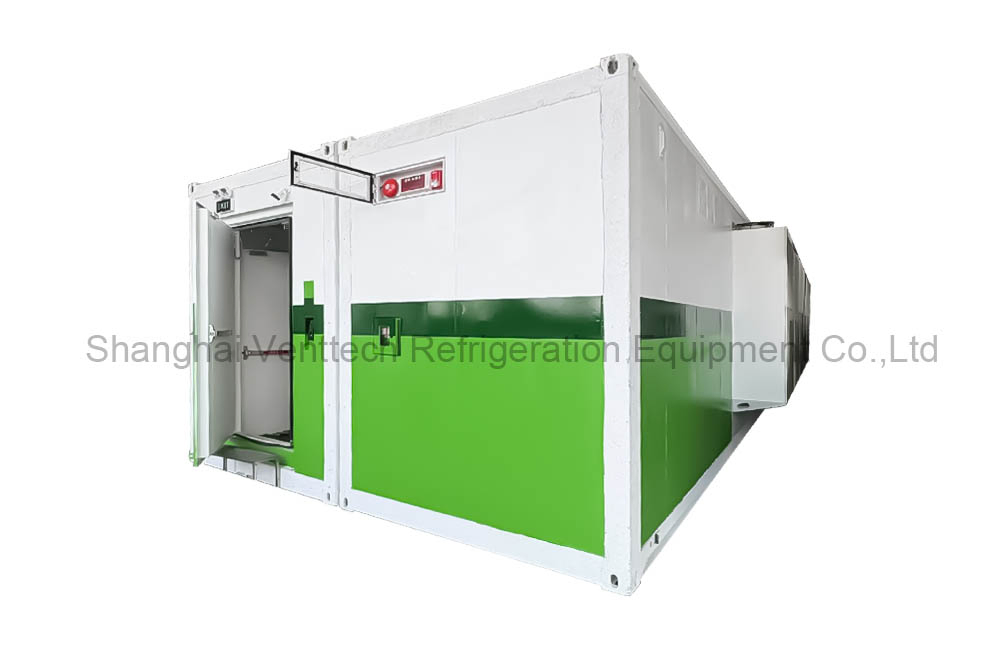

10FT Cabinet Modular Data Center for Telecommunications

Customization:	Available
Cooling Method:	Indirect Cooling
Certification:	RoHS, ISO

Send Inquiry

Product Description

Basic Info

Model NO.

Customized

Condition

New

Application

Data Center

Quality

Great

Transport Package

Wooden Box

Specification

Customized

Container Data Center Solution

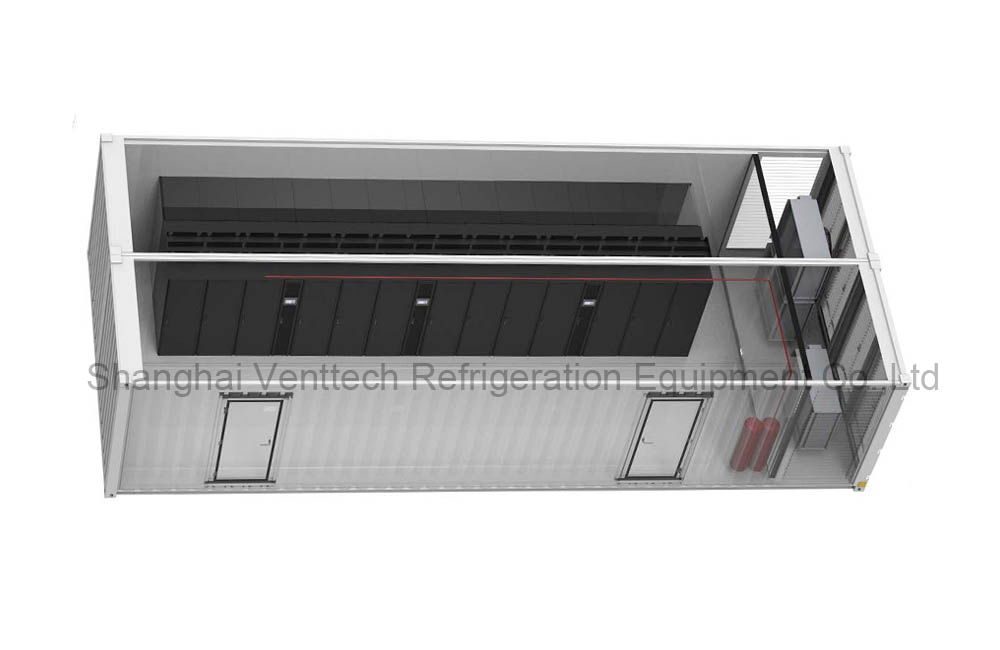

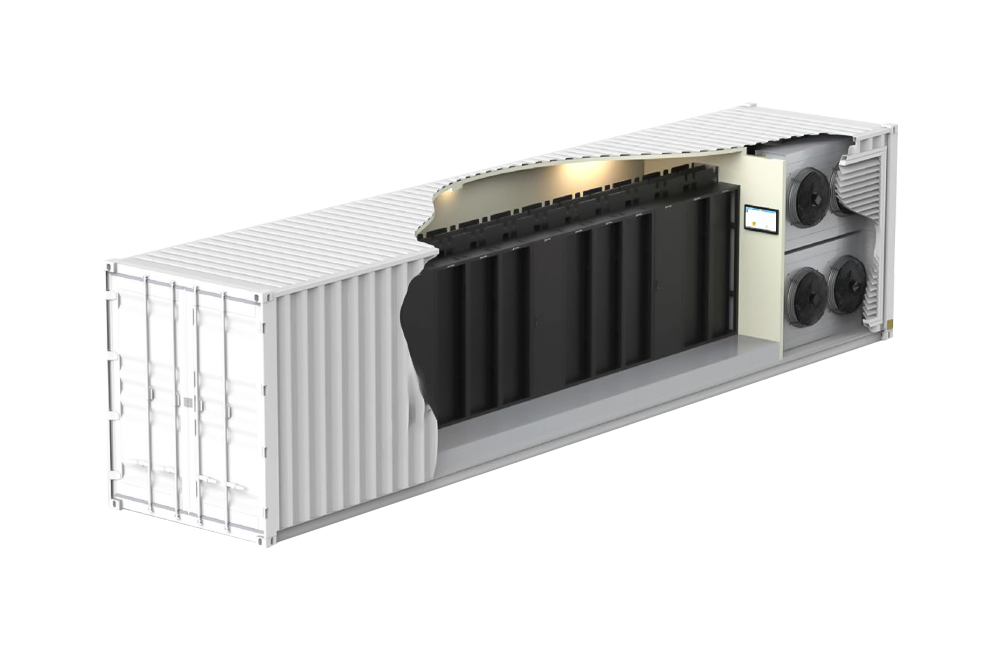

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.

It supports deep customization for clients and is suitable for various specific application scenarios.

Key Features

⚙️ Tailored Customization

Highly professional R&D capabilities for system availability, protection, container size, power standards, and cooling types.

🚀 Rapid Deployment

Pre-integrated components tested in factory. On-site installation is simple, with delivery as fast as 40 days.

🛡️ Safe and Reliable

Meets IP55/IP65 protection. Corrosion resistant, fire resistant, and bulletproof options available.

🔄 Continuous Operation

High availability power distribution and cooling design ensure 24/7 continuous online business operation.

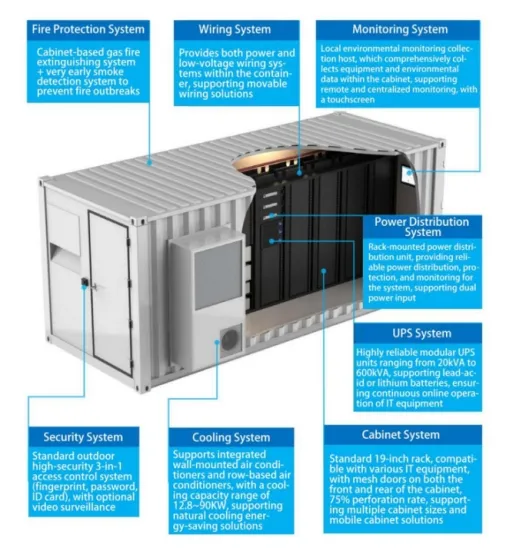

System Components

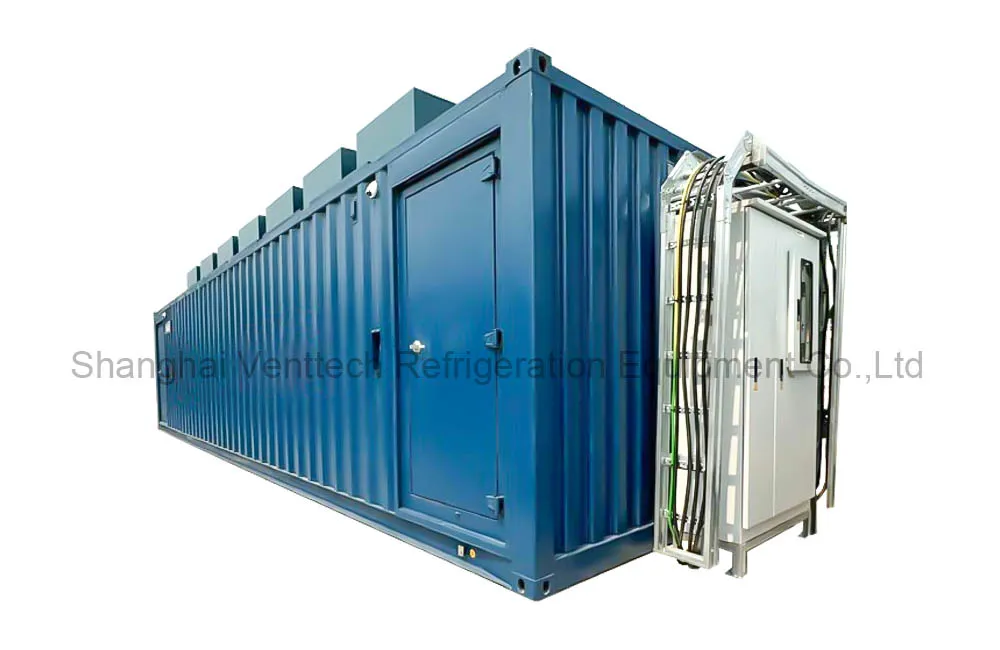

1. Container Construction

ISO standard construction
750h Salt spray standard
Rock wool thermal protection
30 m/s wind speed resistance
IP55 water/dust protection
C5M High Corrosion Protection options

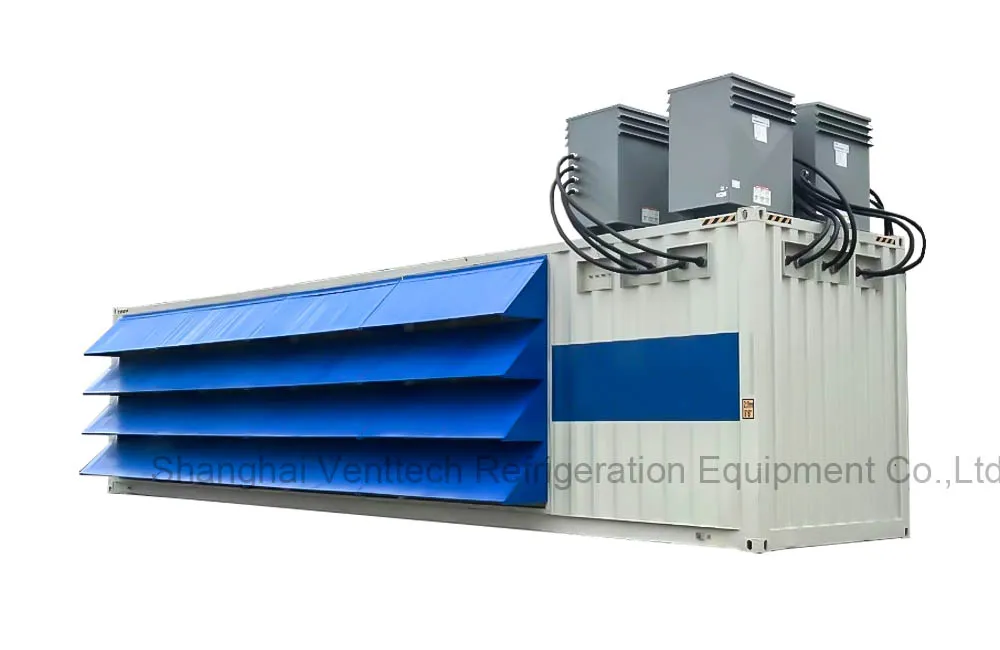

2. Precision Cooling

5.5-31.5kW wall mount standard
5.6-90kW Inrow cooling options
5.5-122.9kW Room cooling options
Operates up to 55°C ambient
Free cooling options available

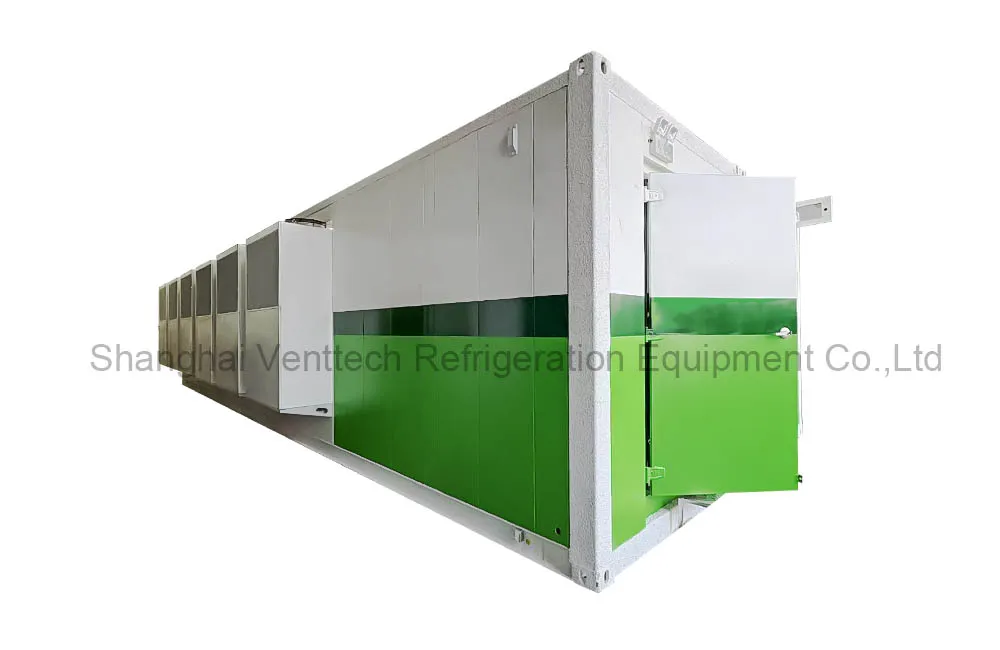

3. IT Rack System

1800kg static loading capacity
Widths (600/800mm), Depths (1100/1200mm)
Cold/hot aisle containment
Sliding design for easier service

4. UPS Power System

3-60kVA rack UPS standard
60-200kVA modular UPS
VRLA / Lithium battery options
Basic/Smart PDU configurations

5. DCIM & Control Systems

DCIM: Full communication to UPS, cooling, and sensors with local touch screen display.
Access Control: 3-in-1 (pin/password/fingerprint) IP55 protection.
Fire Protection: Early fire detection system with Novec1230/FM200 fire agents.

Protective Design

Waterproof and Moisture-Proof
Salt Spray Protection
Mold Prevention

Fire and Heat Insulation
Seismic Resistance
Theft and Explosion Protection

Frequently Asked Questions

What is included in a standard container data center solution?

It includes the container shell, IT racks, UPS power distribution, precision cooling systems, monitoring (DCIM), wiring, and fire protection systems.

How fast can the data center be deployed?

Since all components are pre-integrated and tested in the factory, delivery and on-site setup can be completed in as fast as 40 days.

What environment can these containers operate in?

They are designed to operate in extreme conditions, with an operating temperature range of -40ºC to 55ºC and up to IP65 protection.

Can the cooling and power systems be customized?

Yes, we offer wall-mount, Inrow, and room cooling options ranging from 5.5kW to 122kW, and UPS systems from 3kVA up to 600kVA floor-mount modules.

Is the container protected against corrosion?

Yes, the standard meets 750h salt spray tests, and we offer C5M High Corrosion Protection specifically for coastal or high-salinity sites.

How secure is the data center from physical threats?

The containers offer IP55 protection as standard, with options for fire protection up to 120min, explosion-proof, bulletproof capabilities, and 3-in-1 access control systems.
