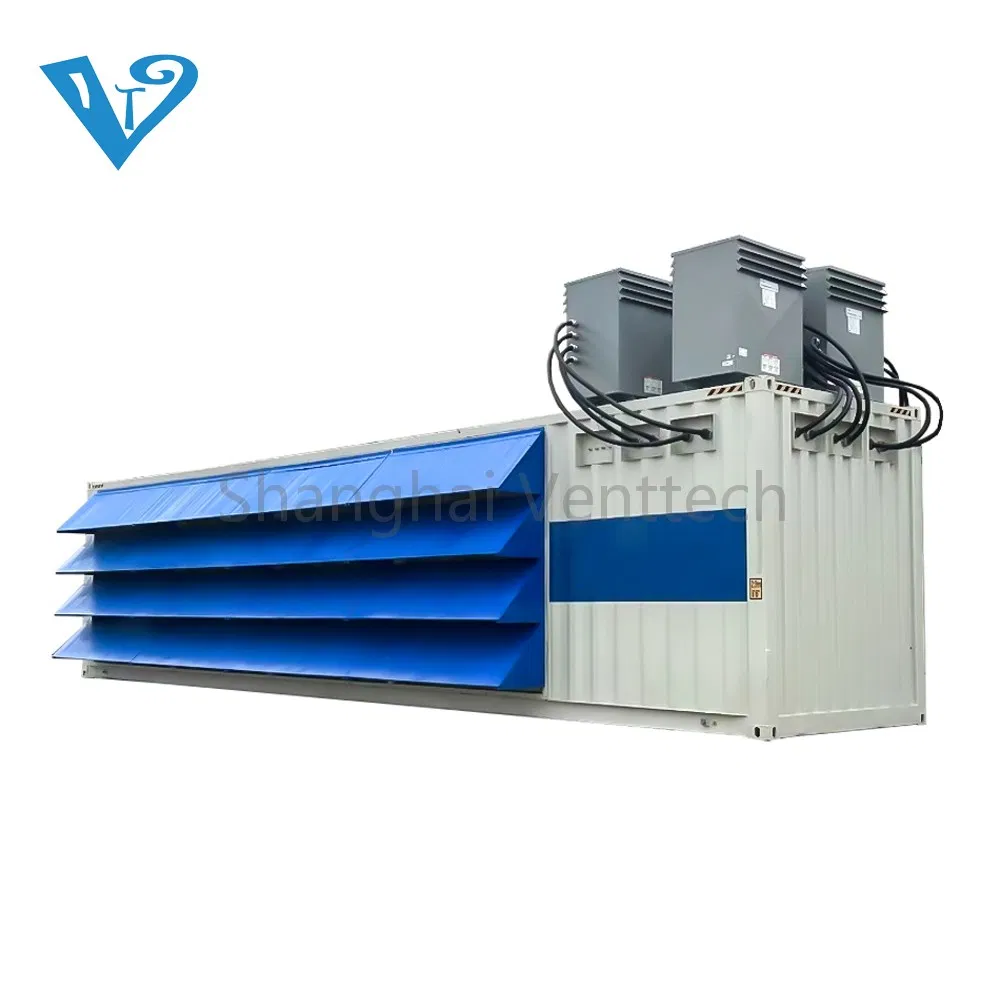

10FT Data Center Container Customized for Server Room

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

Basic Specifications

Model NO.
CDC
Type
Air-Cooled
Cooling Water
Industrial Water
System Type
Open System
Fans Species
Frequency Fan
Noise Level
Ultra Low
Application Fields
Electronics
Certification
RoHS
Condition
New
OEM Customization
Supported
Medium
Water/Oil/Glycol/Electrolyte
Dimensions
10 FT/ 20FT/ 40FT
Inlet/Outlet Air
60°C / 40°C
Power Supply
380V/3p/50Hz

Container Data Center Overview

The container data center solution adopts a prefabricated model, using the container as the shell to house the data center. Key infrastructure such as IT racks, UPS, precision air conditioning, power distribution, monitoring, and wiring are pre-integrated in the factory, offering one-stop delivery. This simplifies on-site engineering and enables rapid business deployment.

It supports deep customization for clients and is suitable for various specific application scenarios.

Key Features

⚙️ Tailored Customization

Highly professional R&D and manufacturing capabilities for customized system availability, size, cooling types, and power standards.

🚀 Rapid Deployment

Pre-integrated infrastructure tested in-factory. Simple on-site installation with delivery as fast as 40 days.

🛡️ Safe and Reliable

IP55 protection (customizable to IP65). Corrosion, fire, explosion-proof, and bulletproof capabilities with integrated surveillance.

🔋 Continuous Operation

High availability power distribution and cooling design ensure continuous online operation for critical business.

Multiple Sizes & Solutions

All in One Solutions

Dual Bay & Multi-Container Solutions

System Components

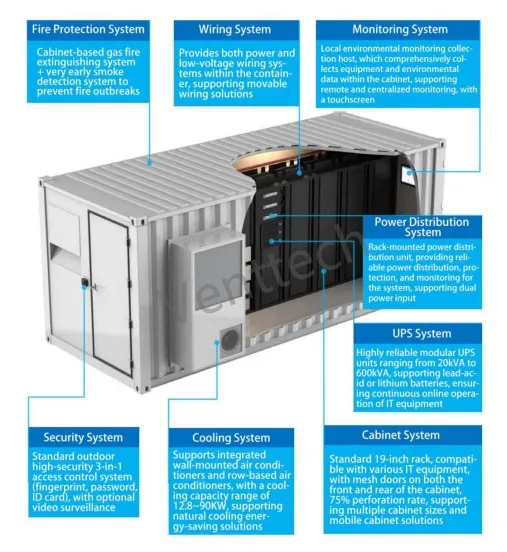

System Components Diagram

1. Container Construction

  • ISO container standard builds
  • Salt spray standard: 750h
  • Thermal protected with rock wool
  • IP55 water/dust protection
  • Operating temperature: -40ºC to 55ºC

2. Precision Cooling

  • 5.5-31.5kW wall mount cooling
  • 5.6-90kW Inrow cooling options
  • 5.5-122.9kW Room cooling options
  • Free cooling options available

3. IT Rack System

  • 1800kg static loading capacity
  • Custom widths & depths
  • Hot/Cold aisle containment
  • Sliding design for easy service

4. UPS Power System

  • 3-60kVA rack UPS options
  • 60-200kVA modular UPS
  • VRLA / Lithium battery configurations
  • T1~T4 uptime level configurable

Integrated Protection Systems

🛡️ DCIM & Security

Full communication with UPS/Cooling, touch screen local display, remote access (Web/SMS), and IP55 access control.

🔥 Fire Protection

Early fire detection system with smart panel and agent options like Novec1230 or FM200.

🌊 Cabinet Durability

Waterproof, moisture-proof, salt spray protection, seismic resistance, and theft protection.

Packing and Shipping

Packing and Shipping Our Service Flow

Frequently Asked Questions

Q1: What is a container data center solution?
A: It is a prefabricated data center housed in a standard ISO container, pre-integrated with IT racks, cooling, UPS, and monitoring systems for rapid deployment.
Q2: How fast can a container data center be delivered?
A: Thanks to our prefabricated factory model, delivery can be as fast as 40 days from the design confirmation.
Q3: What are the protection levels for these containers?
A: Standard containers meet IP55 protection, with customizable options for IP65, including C5M high corrosion protection for coastal environments.
Q4: Can the cooling system be customized?
A: Yes, we offer wall-mounted, Inrow, and room cooling options ranging from 5.5kW to over 122kW, designed to work in ambient temperatures up to 55°C.
Q5: What sizes are available for the data center containers?
A: We provide standard 10ft, 20ft, and 40ft containers, as well as customized dual-bay and multi-container modular solutions.
Q6: Are fire and security systems included?
A: Yes, each unit can be equipped with early fire detection (FM200/Novec1230), smart access control (pin/fingerprint), and video surveillance.
