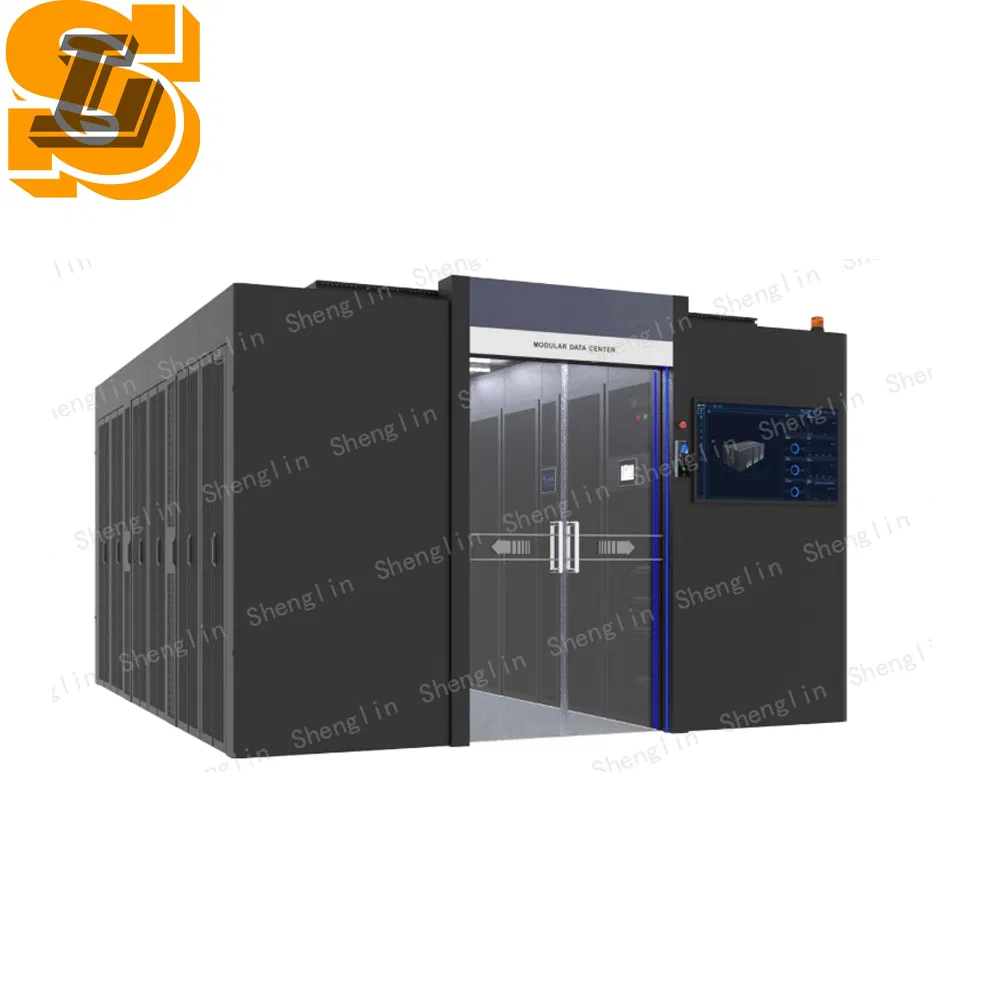

a Package 1 MW Modular Data Center

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

SL-180R

Type

Air-Cooled

Cooling Water

Server GPU Liquid Cooling

System Type

Closed System

Fans Species

Frequency Fan

Noise Level

Low

Application Fields

Modular Data Center

Certification

Condition

New

Product Name

Modular Data Center

Cabinets

30 Cabinets

Power Density

80 Kw Per Rack

Redundancy Type

🌐

Product Overview

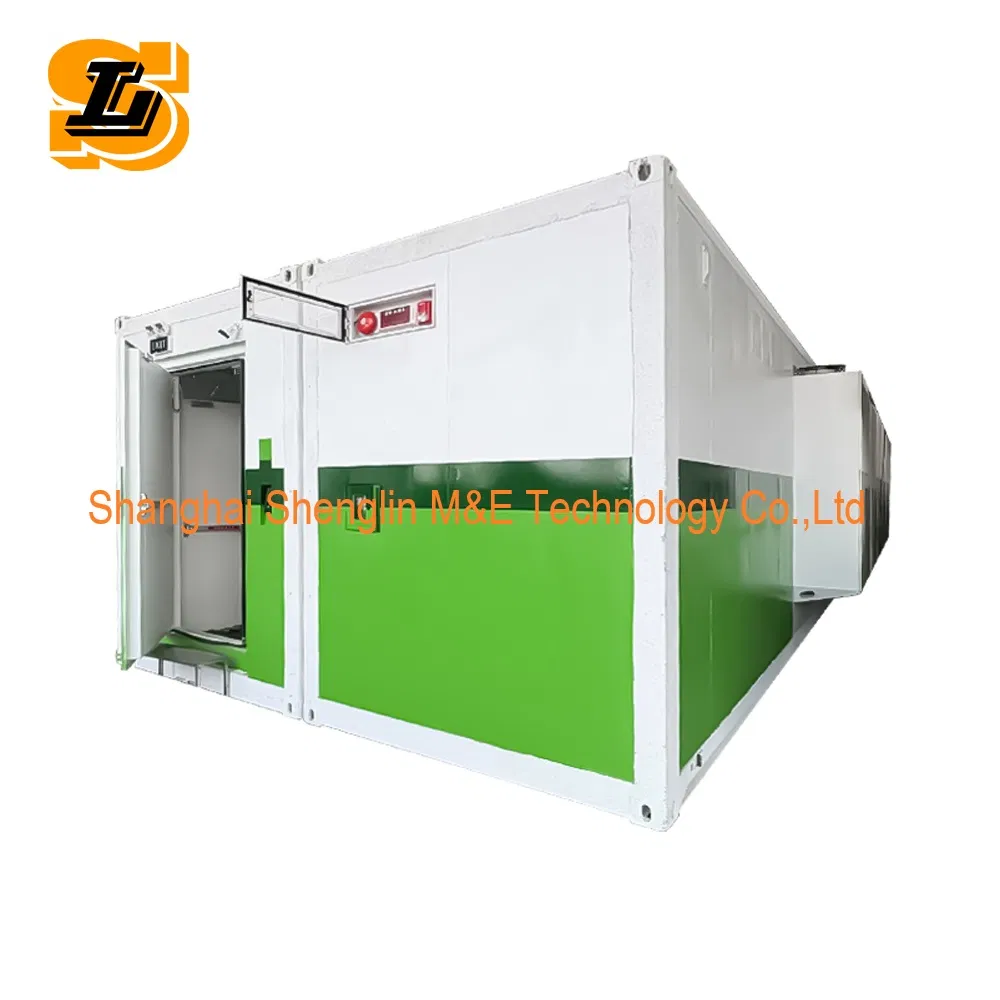

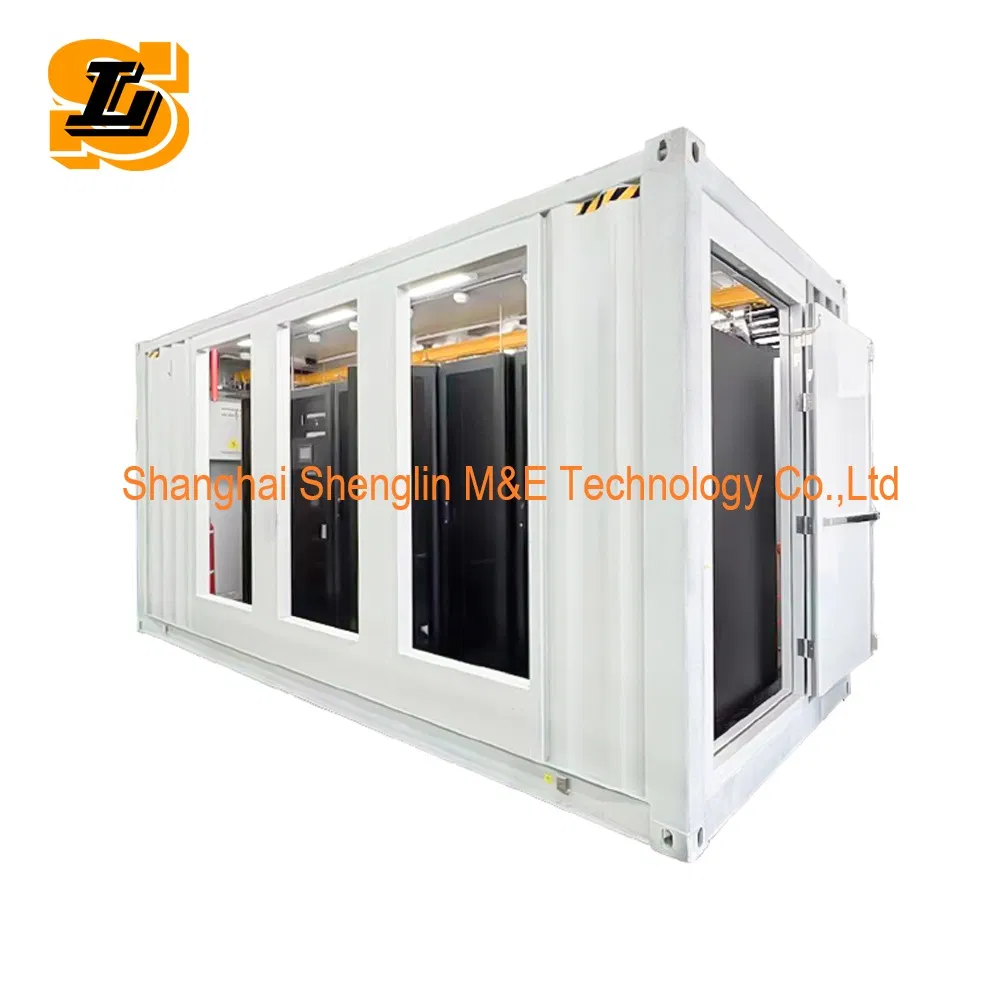

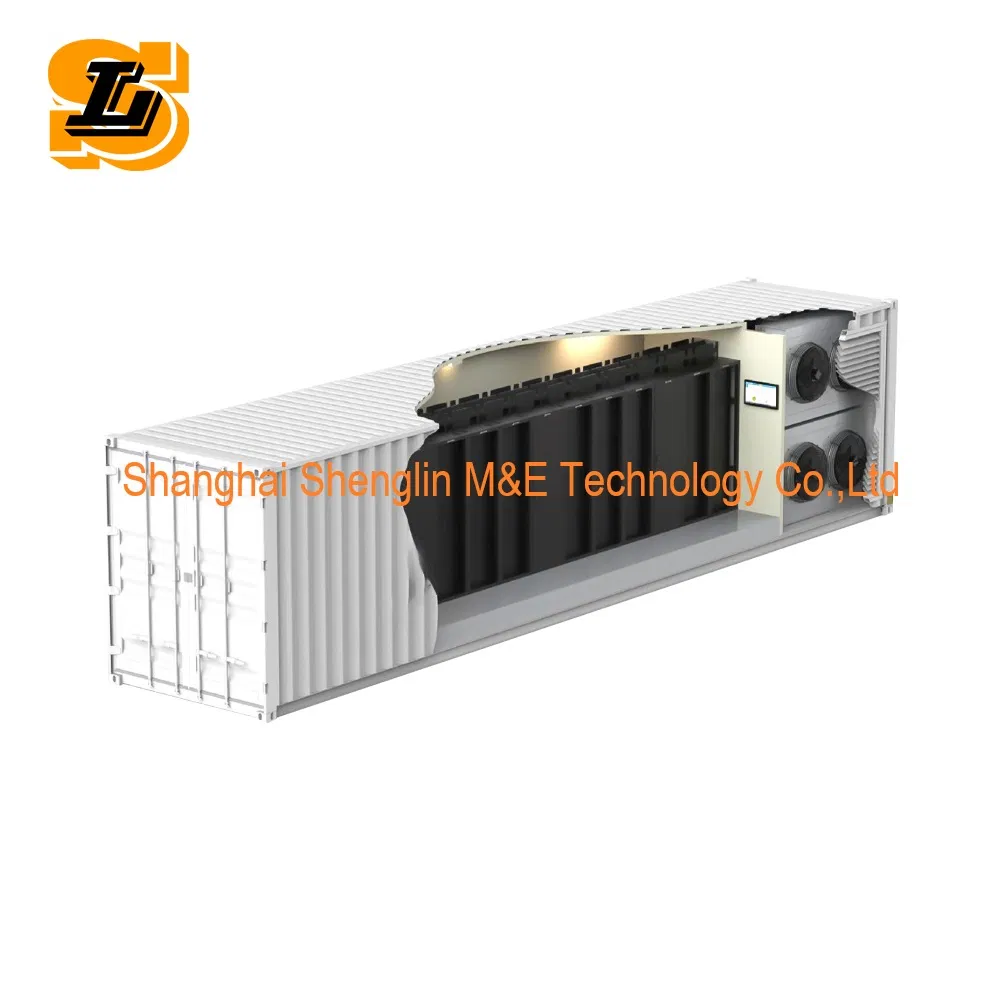

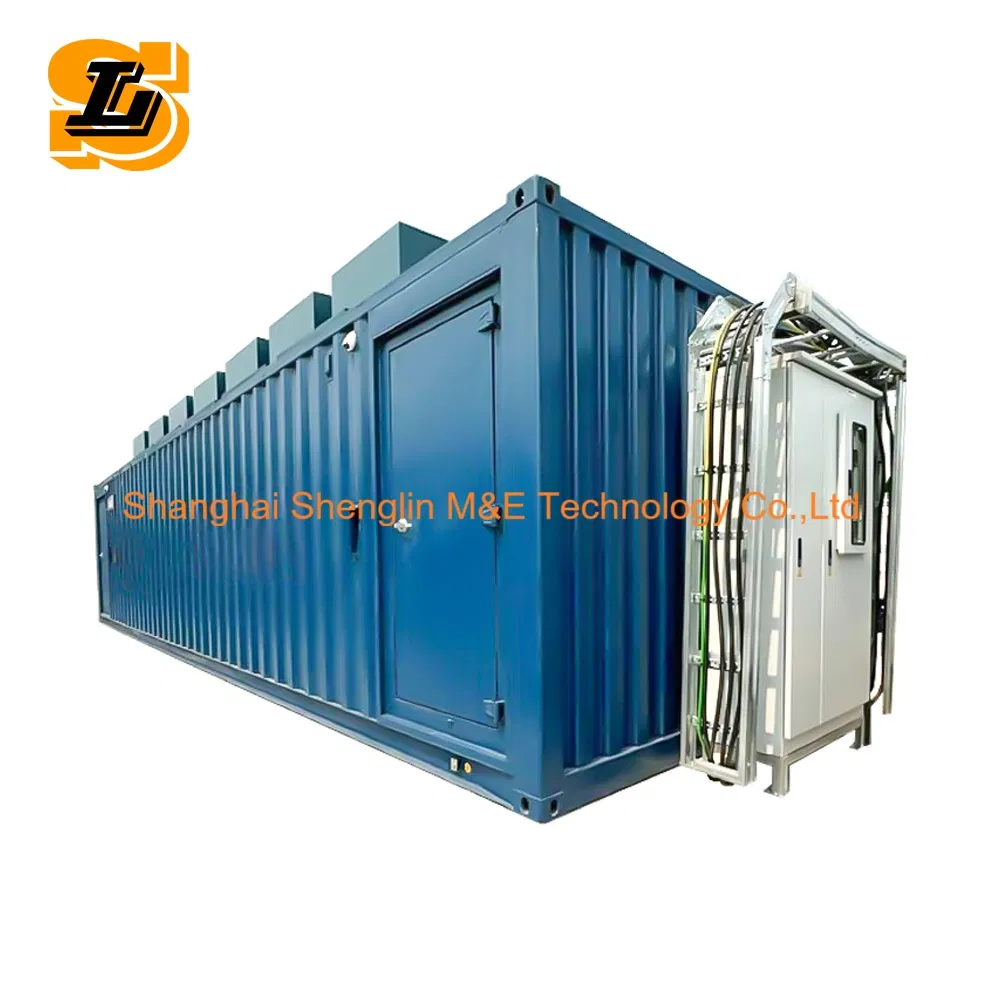

Container package modular data center including cooling system and portable rack

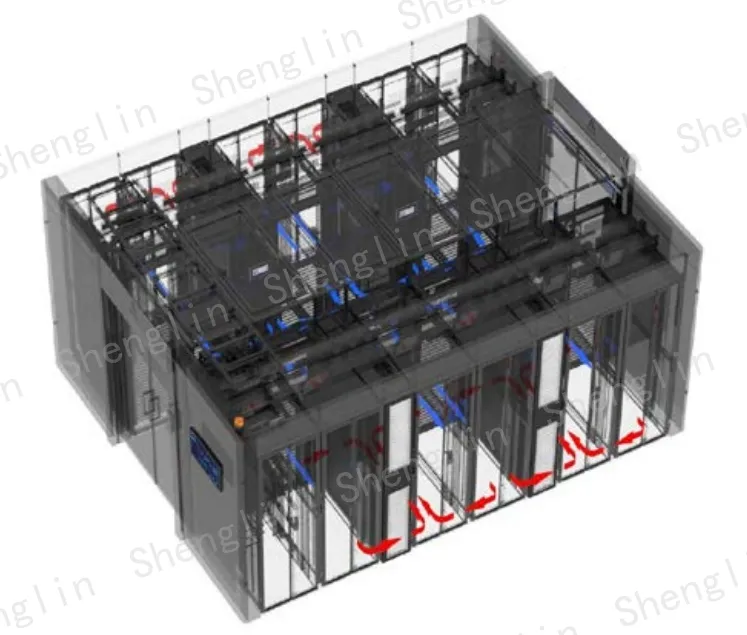

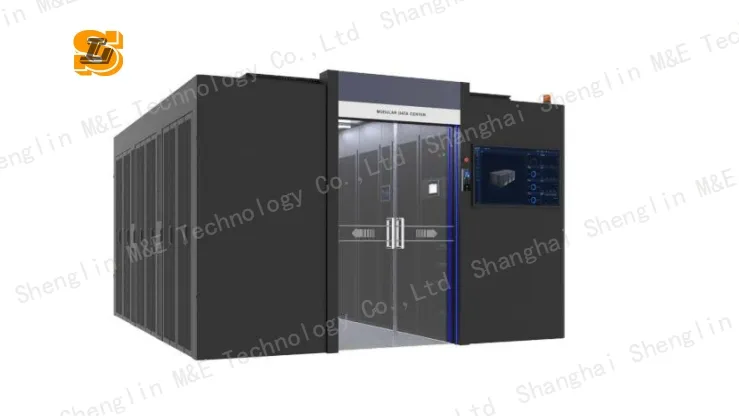

Our dual row cold aisle enclosed micro module data center integrates server cabinet systems, enclosed aisle systems, precision air conditioning, UPS power supply and distribution systems, dynamic environment monitoring, and security systems. Designed with a fully modular architecture, it can be flexibly configured according to power density, device count, and reliability requirements.

💎

Key Advantages

Expert level technical support from planning and design to implementation and operation.

Architectures meeting GB50174 A/B/C and TIER 1-4 standards with customized solutions.

Core subsystems like UPS and precision air conditioning tested for MTBF > 100,000 hours.

Module-level dynamic monitoring with integrated access control and real-time multi-channel alarms.

Standardized design with factory pre-testing to ensure rapid and reliable delivery.

⚙️

Main Configurations

System Type	Details & Components	Visual Reference

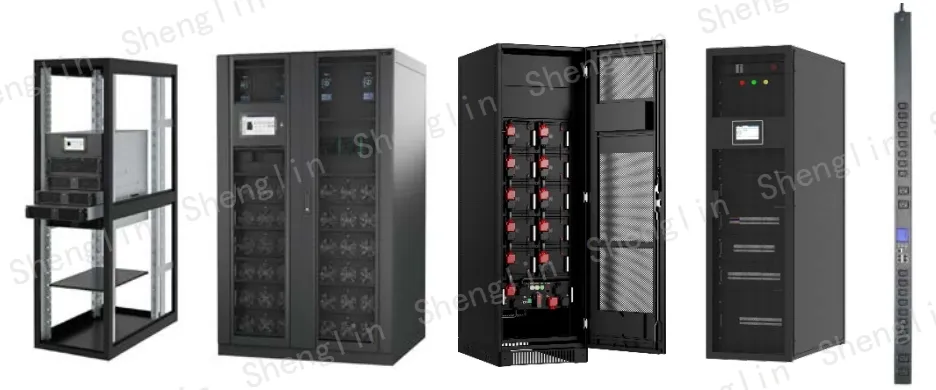

Power Distribution	UPS (15~600kVA), Lead acid/Lithium batteries, Integrated distribution cabinets, PDU.
Temperature Control	In-row air conditioning (12-65kW), Room air conditioning, Liquid cooling plates (50-500kW).

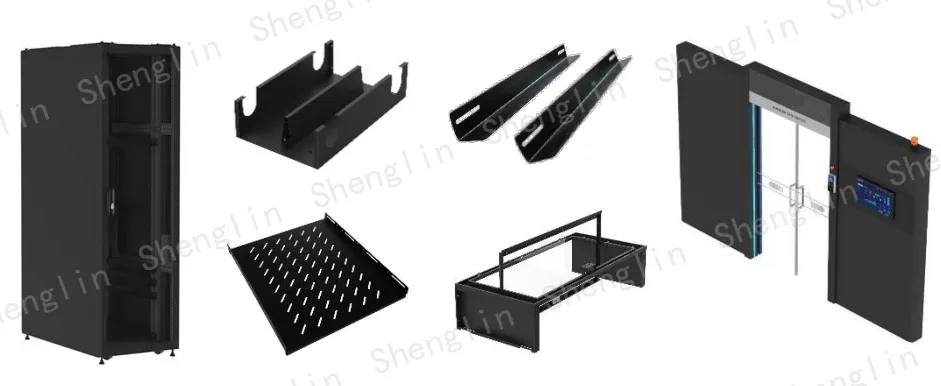

Cabinet & Channel	Width 600/800mm, Depth 1000~1400mm. Cold/Hot channel containment, blind plates, lighting.
Intelligent Monitoring	Environmental monitoring (UPS, fire, smoke, water immersion), touch screens, multi-channel alarms.	Monitoring Console Units

📋

Standard Models

Model	SL-60R	SL-90R	SL-120R	SL-150R	Customization
Total Cabinets	12	18	24	30	< 48
T Cabinets	11	17	23	28	< 48
Power Density	5 kW	5 kW	5 kW	5 kW	< 20kW/cabinet
Redundancy	N+1	N+1	N+1	N+1	N/N+1/2N
Cabinet Depth (mm)	600	600	600	600	600/800
Cabinet Height (mm)	2000	2000	2000	2000	2000/2200/2500

💧

Liquid Cooling & High Density

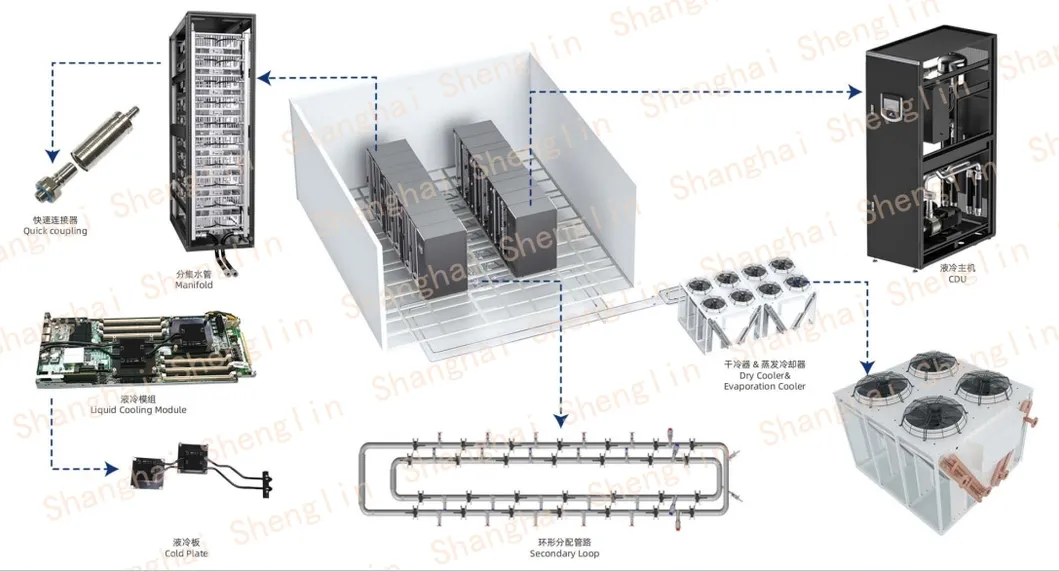

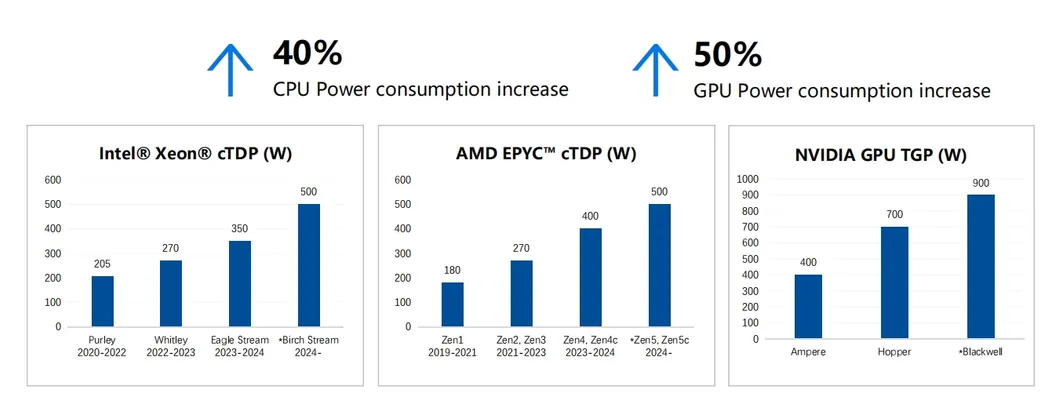

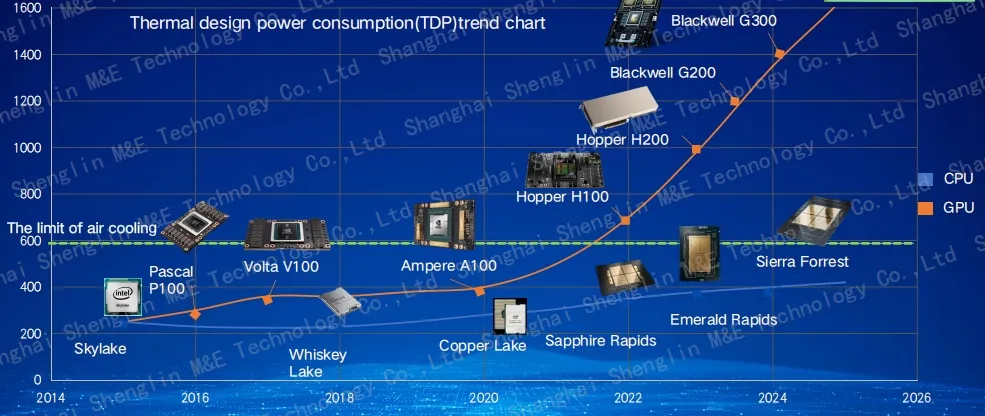

As CPU and GPU power consumption increases, traditional air cooling may not meet high-density requirements. We provide advanced liquid cooling data center solutions for superior heat dissipation.

🚀

1 MW Modular Data Center Characteristics

1. Scalability & Flexibility

Modular design allows capacity expansion by adding additional modules as demand grows. Suitable for various environments, including remote or space-constrained locations.

2. Rapid Deployment

Prefabricated modules are constructed off-site and quickly assembled on-site, reducing operational status lead time to weeks or a few months.

3. Advanced Efficiency

Incorporates features like free cooling, hot aisle containment, and modular power supplies to optimize energy usage.

4. Diverse Use Cases

Ideal for Enterprise data centers, Edge computing, Cloud service providers, and Disaster recovery sites.

❓

Frequently Asked Questions

What is a modular data center?

It is a scalable, prefabricated solution that integrates power, cooling, and cabinets into a unified module for rapid deployment and efficient operation.

How does the liquid cooling system benefit high-density racks?

Liquid cooling directly targets high-heat components like GPUs and CPUs, providing much more efficient heat transfer than air cooling, which is essential for racks exceeding 20kW.

Can these units be deployed in remote locations?

Yes, the containerized and modular design is specifically built for flexibility, allowing for setup in remote, temporary, or space-constrained environments.

What redundancy levels are supported?

We support various redundancy configurations including N, N+1, and 2N to ensure the highest reliability based on your tier requirements.

Is the monitoring system included?

Yes, a module-level dynamic environment monitoring system is integrated, covering power, cooling, smoke sensing, and security.

What is the typical deployment time?

Because modules are prefabricated and pre-tested in the factory, on-site assembly typically takes only a few weeks, significantly faster than traditional construction.
